Ariane-6 Next Generation Launcher

[tnt22]

Giulio Ranzo‏ @GiulioRanzo 2 ч. назад

First P120C SRM propellant casting complete at Regulus. One more step towards Ariane 6 and Vega C

[tnt22]

Stéphane Israël ретвитнул(а)

Giulio Ranzo‏ @GiulioRanzo 23 сент.

Second P120C Booster case manufactured and successfully tested. Ramping up towards Ariane 6 and Vega C. More to come soon.

[triage]

https://twitter.com/bevvscott/status/912491251596894208

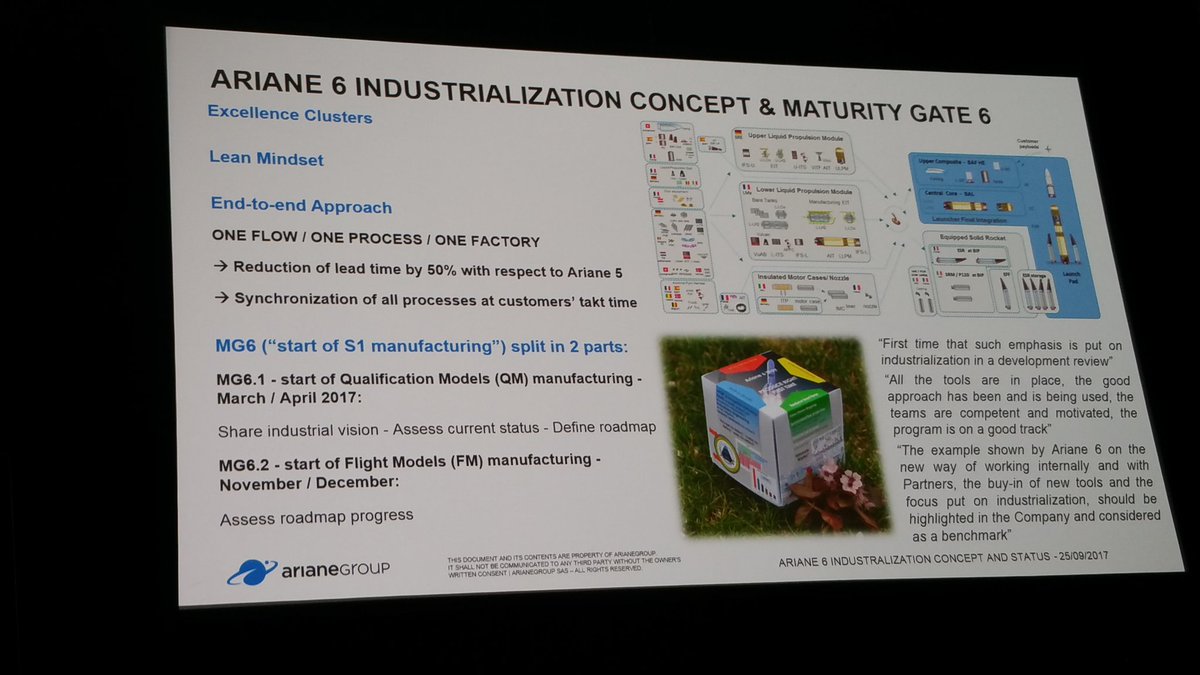

Ariane 6: Interesting to learn that the main recent focus of @ArianeGroup is end-to-end optimisation of the manufacturing process #IAC201

[tnt22]

ArianeGroup‏ @ArianeGroup 21 сент.

There's going to be lots of variety under Ariane 6's fairing!

Video


29 мин.

Do you want some more? Let's have another look under Ariane 6's fairing!

Video

[tnt22]

На французском языке

Спойлер

#1 Ariane 6 - Chantier ELA4

CNES CSG

Опубликовано: 13 сент. 2017 г.

Juin 2017, découvrez le chantier du prochain ensemble de lancement Ariane 6.

(1:18 )

#2 Ariane 6 - Chantier ELA4

CNES CSG

Опубликовано: 13 сент. 2017 г.

Juillet 2017, découvrez le chantier du prochain ensemble de lancement Ariane 6.

(1:33)

#3 Ariane 6 - Chantier ELA4

CNES CSG

Опубликовано: 18 сент. 2017 г.

Août 2017, découvrez le chantier du prochain ensemble de lancement Ariane 6.

(2:12)

[свернуть]

[tnt22]

DutchSpace‏ @DutchSpace 1 ч. назад

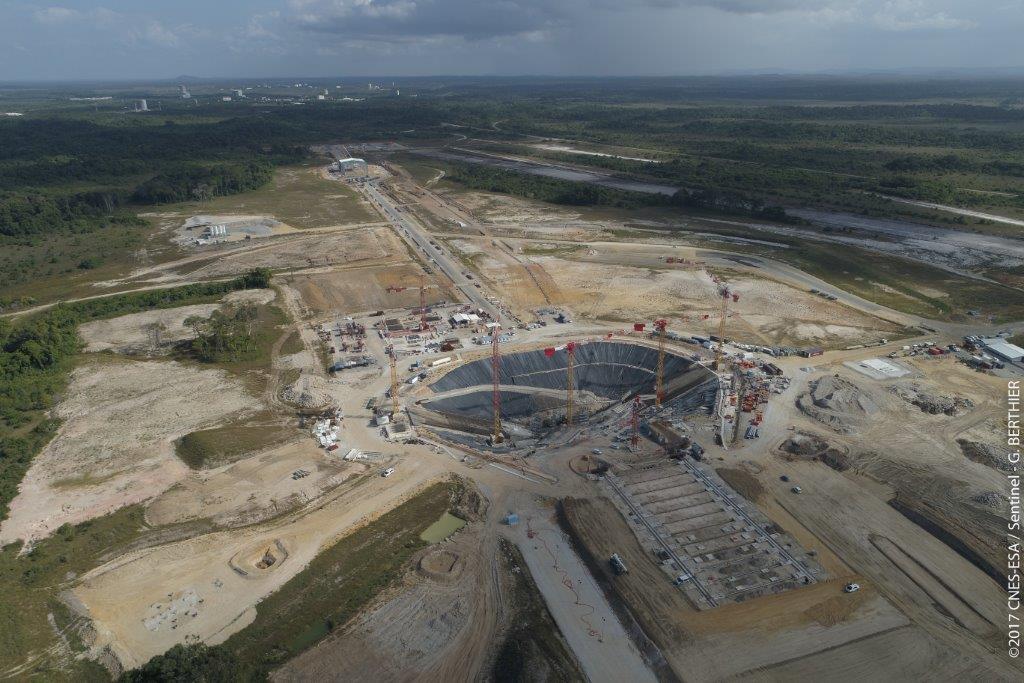

The new #ELA4 #ZL4 launch pad for #Ariane6 is taking shape quickly, early September shot



1 ч. назад

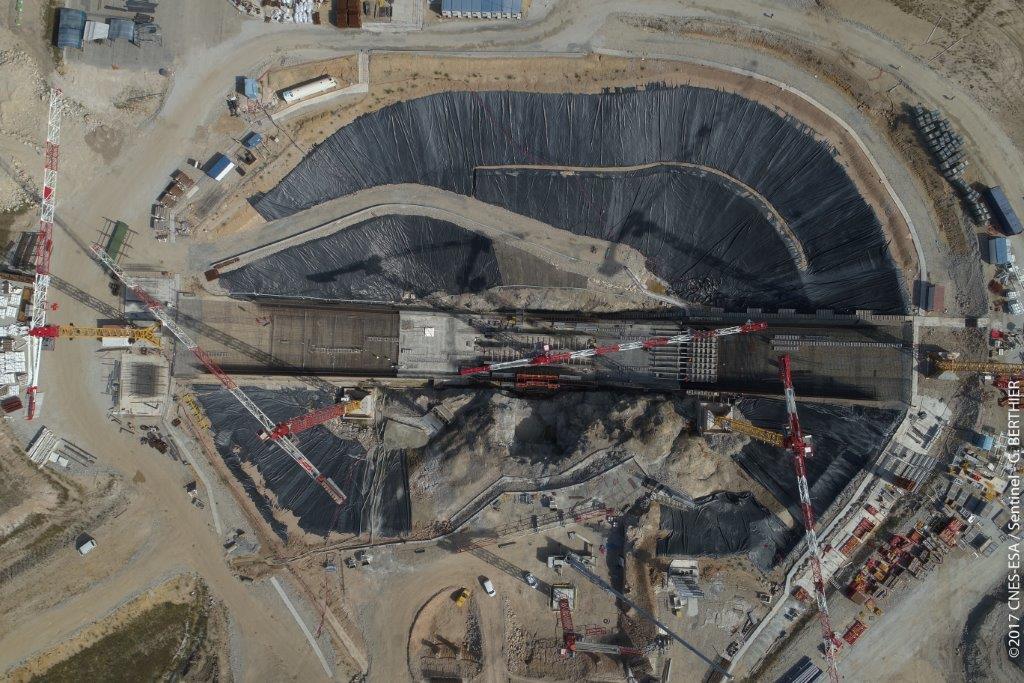

Updated overview shot of #ELA4 for #Ariane6, gantry foundation clearly visible in the front, #BAL starting to take shape in the back

[tnt22]

https://spaceflightnow.com/2017/09/28/arianespace-procures-first-batch-of-upgraded-vega-c-rockets-preps-for-ariane-6-order/

Arianespace procures first batch of upgraded Vega-C rockets, preps for last Ariane 5 order
September 28, 2017 Stephen Clark

Arianespace has split its third order of Vega rockets from Italy's Avio between old and new versions of the solid-fueled booster, as officials prepare to build a final batch of around 18 Ariane 5 rockets before switching to the next-generation Ariane 6 in the early 2020s.

Спойлер

This artist's illustration shows the lineup of European rockets currently flying or scheduled to debut in the next few years. From left to right: Vega, Vega-C, Ariane 5 ECA, Ariane 62 and Ariane 64. Credit: ESA–David Ducros, Jacky Huart, 2016

The French launch company announced Wednesday the signature of a long-anticipated contract for 10 more Vega launchers from Avio, Vega's prime contractor. It marks the third order of Vega rockets from the Italian manufacturer, bringing the total number of Vega vehicles purchased to 26.

Six of the vehicles ordered by Arianespace will come in the same basic Vega configuration that has successfully launched 10 times since debuting in February 2012. Avio will also build the first four upgraded Vega-C launchers, featuring more powerful rocket motors and an enlarged payload fairing to haul bigger satellites into orbit.

Meanwhile, Arianespace is in the final stages of negotiating with its parent company, Ariane Group, to order around 18 more Ariane 5 rockets, the last batch of Ariane 5s to be built after more than 20 years of launches.

Arianespace expects to sell the additional Ariane 5 flights to commercial customers and European governments for launches through the early 2020s.

A separate order of new Ariane 6 rockets is also on tap, a milestone that will officially greenlight production and assembly of the first Ariane 6, which is due for its inaugural flight in July 2020, and will eventually replace the Ariane 5 upon its retirement around 2023.

The exact number rockets to be manufactured in last set of Ariane 5s, called the "PC" batch, will be determined later, according to Stephane Israel, chairman and CEO of Arianespace.

"It could be something with a target of 18, but with some flexibility," Israel said in a recent press briefing at Euroconsult's annual World Satellite Business Week conference in Paris. "We can, due to this flexibility, adjust the final number of launchers."

The timing of the switchover from the Ariane 5 to the Ariane 6 will depend on the success of the new launcher's initial flights, and customer demand. The pending order could give the Ariane 5 more than 125 total flights by the time of its retirement, assuming all the rockets are sold by Arianespace.

All 18 rockets from the last Ariane 5 production batch procured by Arianespace in 2013 now have customers for launches through 2020.

The new set of Vega rockets to be manufactured by Avio and its partners will begin flying from French Guiana in 2019, the same year of Vega-C's scheduled debut.

Arianespace and Avio signed the contract for new Vega vehicles Wednesday at the 34th French-Italian summit in Lyon, France. French President Emmanuel Macron and Italian Prime Minister Paolo Gentiloni witnessed the signing.

"With these 10 additional launchers, Arianespace proudly teams up with its partners to ensure the sustained operation of Vega, along with the service entry of Vega-C as from 2019 at the Guiana Space Center," said Luce Fabreguettes, Arianespace's executive vice president of missions, operations and purchasing. "This latest contract confirms the favored relationship built up by Arianespace and ELV/Avio, industrial prime contractor for Vega, for the success of our light launcher, which has rapidly established itself as the standard in its class.

"With 10 Vega and Vega-C launches in its order book, Arianespace addresses the growing demand from both government and commercial customers for small satellite launch services, in particular for scientific and Earth observation missions," Fabreguettes said.

The Vega-C will be able to haul up to 4,850 pounds (2,200 kilograms) into a circular polar orbit 435 miles (700 kilometers) above Earth, nearly 50 percent better than the lift capability of the existing Vega design.

The upgrades will include replacing the Vega's solid-fueled P80 first stage motor with an enlarged P120 motor. The wider, longer P120 rocket stage will burn 142 metric tons — around 315,000 pounds — of solid powder propellant, compared to 88 metric tons — around 194,000 pounds — of fuel packed into the P80 motor.


The first P120 motor casing, intended for inert ground tests, was completed earlier this year at Avio's facility in Colleferro, Italy. Credit: Avio

The Vega-C's first stage will burn longer than the Vega's existing P80 motor, and produce about a million pounds of thrust, an increase from the nearly 700,000 pounds of thrust generated during current Vega liftoffs.

The P120 motor will also help power the Ariane 6 rocket, which will use two or four strap-on boosters derived from the Vega-C rocket mounted around its liquid-fueled core stage. Officials say sharing the P120 rocket motor between the two launchers will help cut costs.

The first ground firing of a P120 motor is scheduled for next year on a test stand in French Guiana.

The Ariane 6 and Vega-C programs are being developed through public-private partnership, cost-sharing arrangements by Ariane Group, Avio, the European Space Agency, and individual ESA member states.

Avio also developing a bigger second stage for Vega-C called the Zefiro 40, which will take the place of the Zefiro 23 second stage currently flying on Vega.

The Vega-C will use the same Zefiro 9 third stage already in service on Vega, and the hydrazine-fueled fourth stage, or AVUM, will have a lighter structure and carry additional propellant, further enhancing Vega-C's payload capacity.

The Swiss company Ruag is also designing a wider payload shroud for the top of the Vega-C rocket, allowing it to haul up bigger spacecraft or clusters of small satellites on the same mission.

Other innovations on the Vega-C include new avionics and navigation systems, and the Vega-C rocket will be the first European launcher to be equipped for tracking and telemetry relay through NASA's TDRS satellite network, reducing reliance on costly ground stations.

Arianespace has already signed customers for three of the early Vega-C rocket flights.

Two Vega-Cs will launch pairs of high-resolution commercial Earth observation satellites for Airbus Defense and Space beginning in mid-2020. The Italian Ministry of Defense and ASI, the Italian space agency, have booked one Vega-C and one Soyuz launch from French Guiana to carry two second-generation COSMO-SkyMed radar surveillance satellites to orbit.

[свернуть]

[Salo]

https://twitter.com/DutchSpace/status/915212178654887938

DutchSpace‏ @DutchSpace
Updated (August) drone video looking at #ELA4 #ZL4 launch site for #Ariane6 via @esa_sts @CNES

1:52
 6:49 - 3 окт. 2017 г.

[us2-star]

"Ракеты завтрашнего дня CNES" (Ariane 6, Callisto, Ariane Next)

[triage]

us2-star пишет:
"Ракеты завтрашнего дня CNES" (Ariane 6, Callisto, Ariane Next)



Из ролика, но странно собрать в единый концепт что после Ariane 6, т.к. а где ПН или Callisto это ускорители? И как спасают центральный блок Ariane Next?


а что это?

[Дмитрий В.]

pnetmon пишет: Из ролика, но странно собрать в единый концепт что после Ariane 6, т.к. а где ПН или Callisto это ускорители? И как спасают центральный блок Ariane Next?


а что это?

Есть подозрение, что Каллипсо - это технологический демонстратор (типа "Кузнечика") для отработки технологий реактивной посадки и повторного использования. А Ариан Некст с 7 Прометеями - штатная частично многоразовая система типа Фалкон-9. Но это только мои предположения.
А "это" - возможно один из вариантов многоразового блока.

[Искандер]

pnetmon пишет:
https://twitter.com/bevvscott/status/912491251596894208
Ariane 6: Interesting to learn that the main recent focus of @ArianeGroup is end-to-end optimisation of the manufacturing process #IAC201

Интересно, а производилась ли оптимизация производства Протона и Союзов??

[triage]

Дмитрий В. пишет:
Есть подозрение, что Каллипсо - это технологический демонстратор (типа "Кузнечика"    для отработки технологий реактивной посадки и повторного использования.

Правы.
Темы на форуме
 http://novosti-kosmonavtiki.ru/forum/forum13/topic15820/
 http://novosti-kosmonavtiki.ru/forum/forum13/topic15402/

Да и 100 км заявлено

 http://novosti-kosmonavtiki.ru/forum/forum13/topic15402/
 http://www.voaafrique.com/a/lanceurs-la-france-appelle-l-europe-a-preparer-le-moteur-du-futur-/3357791.html
Для того, чтобы быть запущен из Французской Гвианы, эта мини ракета десять метров высотой, которая будет оснащена японским двигателем,взлетити до ста километров над уровнем моря, перед спуском для посадки. Его промоутеры назначили 2020 год для первого пуска.

[tnt22]

http://www.esa.int/Our_Activities/Space_Transportation/Ariane_6_s_Vulcain_engine_set_for_first_firing

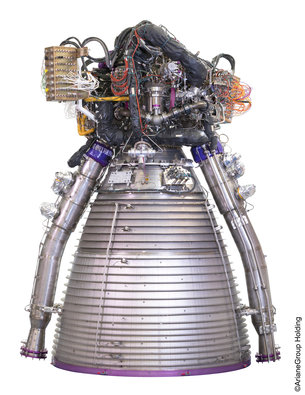

Ariane 6's Vulcain engine set for first firing

Vulcain 2.1

30 October 2017
A Vulcain rocket engine recently arrived in Germany ahead of its first test firing in December to demonstrate new capabilities and technologies developed for Ariane 6.

Спойлер

The Vulcain 2.1 will help to propel Ariane 6 in the first 10 minutes of flight, up to an altitude of 200 km.

The engine delivers 135 tonnes of thrust in vacuum, and weighs the same as an Airbus A318 jet engine but provides more than 10 times the power.

Vulcain parts from around Europe were assembled at the Vernon test centre in France and a demonstration model was sent to the DLR German Aerospace Center test facility in Lampoldshausen for functional tests.

There are several design updates but the main visible difference between the model powering today's Ariane 5 and the Vulcain 2.1 for Ariane 6 is the nozzle.

A more robust nozzle was formed by laser-welding two sheets of metal while creating cooling channels inside.

Structural reinforcements are 3D printed which increases production rate and lowers manufacturing costs.

There are two main changes in how the engine works.

DLR German Aerospace Center

Expensive liquid helium is no longer needed because heated oxygen in the exhaust lines now pressurises the oxygen tank.

The new engine is ignited from the ground via the bottom of the nozzle instead of by pyrotechnic devices inside the motor, reducing the cost and weight.

Over 15 months, three Vulcain test campaigns will provide information to help engineers decide whether adjustments are needed to optimise functional and mechanical behaviour before combined tests start.

[свернуть]

[tnt22]

https://www.thalesgroup.com/en/worldwide/space/press-release/thales-alenia-space-wins-another-contract-ariane-6-0

Thales Alenia Space wins another contract for Ariane 6

| 07.11.2017 |

Belgian unit to provide electronics for Thrust Vector Actuation Systems

Charleroi, November 8, 2017 - Thales Alenia Space has signed a contract with SABCA, prime contractor for the three Thrust Vector Actuation Systems (TVAS) on the new Ariane 6 launcher, to develop and supply control electronics for nozzle steering. ArianeGroup is prime contractor for Ariane 6 on behalf of the European Space Agency (ESA). This latest contract follows another already signed with ArianeGroup that places Thales Alenia Space in charge of developing the Ariane 6 range safeguard system.

Спойлер

Through its contract with SABCA, Thales Alenia Space will develop electronics for the following:

[/li]
• Solid Thrust Vector Actuation Subsystem (S-TVAS) for the P120C solid rocket boosters. The twin-booster Ariane 62 version of the launcher will have two S-TVAS units, while the four-booster Ariane 64 will have four of these units.
• Lower-Liquid Thrust Vector Actuation Subsystem  (LL-TVAS), for the cryogenic stage.
• Upper-Liquid Thrust Vector Actuation Subsystem (UL-TVAS), for the reignitable cryogenic upper stage.


"Thales Alenia Space is delighted to have contributed to the storied Ariane program for over 40 years now, continuing with the contract signed today", said Emmanuel Terrasse, Chief Executive Officer of Thales Alenia Space in Belgium. "This contract win is the result of a collaborative effort by Belgian industry, plus the ongoing support of public authorities at both the federal level, with organizations such as Belspo that actively support the development of new technologies and products, and at the regional level, through support for the installation of innovative test and production facilities."

Thales Alenia Space will also take full responsibility for designing and building the electronics that form the core of the Ariane 6 range safeguard system. The company provides other range safeguard system components that are shared with Ariane 5, Vega and Soyuz.

The development of Ariane 6 was approved by the ESA Council in December 2014 to ensure that Europe maintains its leadership in the fast-changing commercial launch market, while also addressing requirements for European governmental missions. The launcher will be developed in two versions: Ariane 62, with two solid propellant strap-on boosters and Ariane 64, with four solid-propellant strap-on boosters. The first Ariane 6 launch is expected in 2020.

[свернуть]

[LITY]

tnt22 пишет:
http://www.esa.int/Our_Activities/Space_Transportation/Ariane_6_s_Vulcain_engine_set_for_first_firing

Ariane 6's Vulcain engine set for first firing




The new engine is ignited from the ground via the bottom of the nozzle instead of by pyrotechnic devices inside the motor, reducing the cost and weight.

Коллеги, кто объяснит - как это через "bottom of the nozzle"?

[silentpom]

неужели как союз?

[LITY]

silentpom пишет:
неужели как союз?

Ага! Подсмотрели на Куру, гады!)))

[октоген]

Какой регресс   Где же их высокие технологии?

[tnt22]

#4 Ariane 6 - Chantier ELA4

CNES CSG

Опубликовано: 15 нояб. 2017 г.

Octobre 2017, découvrez l'évolution du chantier du prochain ensemble de lancement Ariane 6 (ELA 4), au Centre spatial Guyanais.

(1:33)
