ADM-Aeolus - Vega - Куру/CSG - 22.08.2018

[tnt22]

Arianespace Flight VV12 - Mission Presentation

arianespace

Опубликовано: 21 авг. 2018 г.

(1:47)

[tnt22]

NOTMAR NAVAREA IV 656/2018


NOTMAR HYDROARC 176/2018

[tnt22]

Возможно, имеет отношение к запуску

NOTMAR

HYDROPAC 2998/2018 (61,74)

INDIAN OCEAN.
DNC 03.
1. HAZARDOUS OPERATIONS, ROCKET LAUNCHING
   2326Z TO 0043Z COMMENCING DAILY 21 AUG THRU 20 SEP
   IN AREA BOUND BY
   25-15S 090-04E, 14-47S 092-11E,
   14-50S 092-29E, 25-19S 090-25E.
2. CANCEL THIS MSG 210143Z SEP 18.

( 160350Z AUG 2018 )

[tnt22]

NOTMAR HYDROPAC 2998/2018

[tnt22]

[tnt22]

https://spaceflightnow.com/2018/08/21/first-of-its-kind-satellite-to-measure-global-winds-finally-ready-for-liftoff/

First-of-its-kind satellite to measure global winds finally ready for liftoff
August 21, 2018 | Stephen Clark

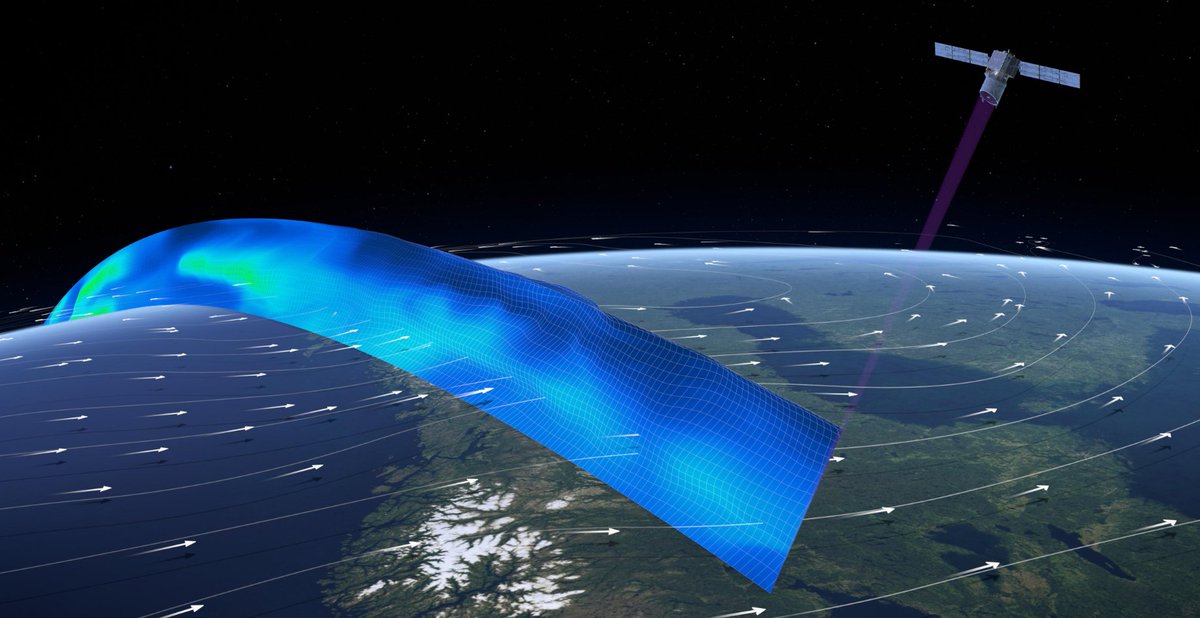

Artist's concept of the Aeolus satellite in orbit. Credit: ESA/ATG medialab

The European Space Agency's $550 million Aeolus science mission, the product of a drawn-out 16-year development effort that required engineers to master new technologies, is in the starting blocks on a launch pad in French Guiana awaiting liftoff Wednesday to monitor wind speeds fr om space for the first time on a global scale.

The winds observatory's launch Wednesday, weather permitting, will kick off a three-year mission to gather the first comprehensive worldwide measurements of wind speed — over oceans and land masses — from Earth's surface to an altitude of nearly 100,000 feet (30 kilometers).

Data collected by the Aeolus satellite will be fed into numerical weather prediction models, replacing simulated "boundary conditions" in the computers models with near real-time measurements from space.

"We are serving the meteorological community as the primary user, but also the climate research community," said Anders Elfving, Aeolus project manager at ESA. "For decades, there has been an outcry from these communities for explicit wind measurements, explicit wind profiles in the whole atmosphere, globally and continuously."

Aeolus was not conceived by ESA as an operational weather satellite, but forecasters will be some of the prime beneficiaries of the mission.

Спойлер

We have a unique product which can be — if proven to the right quality — directly injected into the weather models," Elfving said in a phone interview with Spaceflight Now. "Our main client is the ECMWF, the European Center for Medium Range Weather Forecasts ... in the UK, and they will certainly inject our data straight into their model and get a lot of good boundary conditions for winds, which are today completely missing."

Aeolus carries a high-power ultraviolet laser fired at 50 pulses per second toward the ground. Light emitted from the laser — the centerpiece of Aeolus's single science instrument — will bounce off air molecules, aerosol and cloud particles, and Earth's surface.

A tiny fraction of the scattered ultraviolet photons will reflect back toward a 5-foot (1.5-meter) telescope on the Aeolus satellite.

"Aeolus actually has its own sun on-board in the sense that it's sending out laser light into the atmosphere, and this laser light is then scattered back from air molecules and particles in the atmosphere," said Anne Grete Straume, ESA's Aeolus mission scientist.


A technician inspects the telescope on the ALADIN instrument aboard the Aeolus satellite. Credit: ESA

The light will return to the Aeolus satellite's Atmospheric Laser Doppler Instrument — ALADIN — with a slightly different color. By analyzing the change in color caused by the motion of atmospheric air molecules — known as the Doppler effect — scientists can derive wind speeds.

The Doppler effect is the same process that causes an ambulance's siren to sound different when it approaches and drives away.

"The same happens to the light which is sent out by the satellite," Straume said in an ESA video interview. "The movement of the air molecules and the particles in its path will actually stretch or compress the light wave, and you get a different color coming back to the instrument.

"We measure the back reflection of the air and the particles at different ranges from the instrument, and from this you can actually measure the winds at different altitudes through the atmosphere from the surface up to the stratosphere," she said. "About 30 kilometers is the top level that we will be able to measure."

No other space mission has been able to measure winds at multiple layers of the atmosphere on a global scale. Previous satellites have been limited to deriving winds measurements by tracking the movement of clouds and aerosols, or by measuring the effect of winds on the ocean surface.

But Aeolus will be able to measure wind speeds in clear skies, eliminating the limitations of other missions. Meteorologists currently use weather balloons and airplanes for wind data, but the observations are spotty.

Wind measurements from Aeolus "will fill a significant gap in the wind observing system, particularly in the upper troposphere, the lower stratosphere, in the tropics and over the oceans, wh ere in situ wind observations are lacking," scientists Michael Rennie and Lars Isaksen from the ECMWF wrote in a blog post earlier this month.

As the satellite orbits nearly 200 miles (320 kilometers) above the Earth, Aeolus will point its ultraviolet laser beam at an angle of 35 degrees to the side of its ground track, in the direction away from the sun.

Aeolus will fly in a "dawn-dusk" polar orbit, meaning the spacecraft will roughly follow the boundary between day and night as it travels in a north-south direction, circling the planet every 90 minutes or so.


The Aeolus satellite will measure winds by pointing its laser instrument at a 35-degree angle off its ground track in the direction away from the sun. Credit: ESA/ATG medialab

"We are actually shooting our laser pulse in a slant angle of 35 degrees perpendicular to the orbit, and measuring the line-of-sight return wind speed," Elfving told Spaceflight Now. "For all purposes, the vertical winds are very small with respect to horizontal winds. So what we've promised to give are horizontal line-of-sight winds, which in practice means, more or less, the east-west wind all over the world. That may sound limited, but when meteorologists but that boundary condition of that vector into their overall wind models, they get 75 to 80 percent knowledge of the total wind vector."

ESA decided to go ahead with the Aeolus mission in 2002.

"We were initially promising that we would be flying in 2007, or at least in early 2008," said Elfving, who became Aeolus project manager in 2010. "Yes, we have had a 10-and-a-half or 11-year delay. My director said we are not ashamed at all of that. We are very proud to have sustained through all the troubles because there is actually no other comparable mission implemented in the world."

Engineers determined Aeolus needed an ultraviolet laser to give Aeolus the capability to monitor global winds. A laser operating in visible wavelengths, such as the laser aboard the U.S.-French CALIPSO satellite, would only be tuned to track cloud motion.

Ultraviolet lasers flown in space on previous tech demo and Earth science missions have not succeeded. Most recently, an ultraviolet laser on NASA's Cloud-Aerosol Transport System instrument on the International Space Station failed soon after it was activated in 2015.

Some of the major challenges that faced the Aeolus team included selecting materials that can cope with the high-temperature output of the laser.

"We pulse our optics 50 times every second, and this goes on year after year, and this intense pulse creates 1700 degrees on the optical surface of the optics, and will fatigue the optics in the long run," Elfving said. "So we have had tremendous development of the coatings of the optics to withstand this high laser pulse. We are actually our own sun."

Managers ordered one of the most significant redesigns of the ALADIN instrument aboard Aeolus to ensure the sensor's optical surfaces remain free of contamination.

"If there are some remaining hydrocarbons on the surface of the optics, and the UV light hits it, it will carbonize, so blacken, the surface and reduce dramatically the reflection or transmissibility of the optics," Elfving said. "That has been a pain for many missions trying to do this."

Despite strict clean room controls on the ground, all space missions launch with some amount of contamination, which can outgas in orbit once heated by the sun. The high-energy laser aboard Aeolus could also lead to outgassing as it warms up materials inside the ALADIN instrument.

Engineers determined they could flush the ALADIN instrument with tiny injections of pure oxygen throughout the Aeolus mission. Two high-pressure tanks carrying a combined load of around 31 pounds (14 kilograms) of liquid oxygen will gradually supply the instrument once in space.

"We have a regulation system which takes the high pressure oxygen down to an extremely low pressure in orbit — 40 to 60 pascal — which is an incredibly light pressure, very few molecules," Elfving said.

The amount of oxygen gas inside the instrument in space will be equivalent to the oxygen produced by a small plant indoors, according to ESA.

"But it is enough to cause combustion of this organic material which always remains on the optics," Elfving said. "It helps to catalyze and burn away that, instead of carbonizing it and blackening the optics.

"Those two, I would say, have been the main challenges — laser-induced contamination and laser-induced damage," he added. "For the rest, we are talking about stabilities in alignment of microns or nanometers, and that's obviously a tough challenge, especially when we are pumping a lot of energy into the laser, so about 300 watts.

"That put us between a rock and a hard place," Elfving said. "So it has taken us about 10 years to get from a prototype laser to a flight-worthy laser with a lifetime that meets our requirements. In the beginning, due to this laser-induced contamination, we lost about 50 percent of the energy within hours, and we now we have run a laser with absolutely no degradation for six months and beyond. So we're very confident that have achieved the state of the art."

Concerns about the sensitivity of the Aeolus satellite's laser instrument drove managers to transport the spacecraft from Europe to the mission's launch base in South America by ship instead of airplane. Engineers worried the pressure increase during an airplane's descent would damage the instrument package on Aeolus.

There are no such concerns about a pressure decrease like the conditions the spacecraft will encounter as it climbs into space.

Once the spacecraft arrived in French Guiana, teams fueled Aeolus and put the spacecraft through an extra step of cleaning. Technicians used a powerful ultraviolet torch to search for particles of dust residing on the satellite, then used a soft brush and vacuum cleaner to remove any contamination they found.

"This is a bit of a tedious task, but one that is necessary," ESA said in a statement.

The Aeolus satellite was built by Airbus Defense and Space's spacecraft manufacturing plant in Stevenage, England, and is based on the satellite design used by ESA's Rosetta and Mars Express interplanetary probes. With its maneuvering fuel loaded, Aeolus weighs around 3,013 pounds (1,367 kilograms) at launch, according to Elfving.

Airbus Defense and Space's division in Toulouse, France, developed the ALADIN instrument, and the laser transmitters were supplied by the Italian company Leonardo in Florence and Pomezia, Italy.

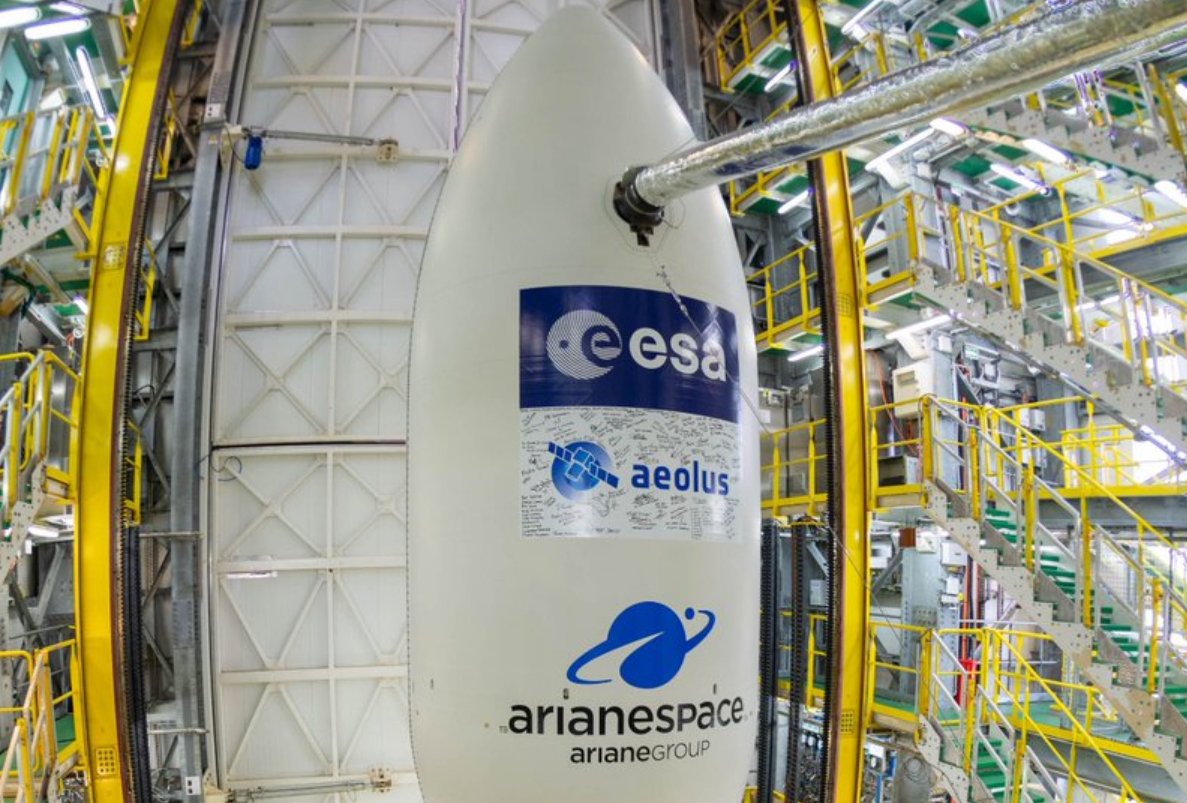

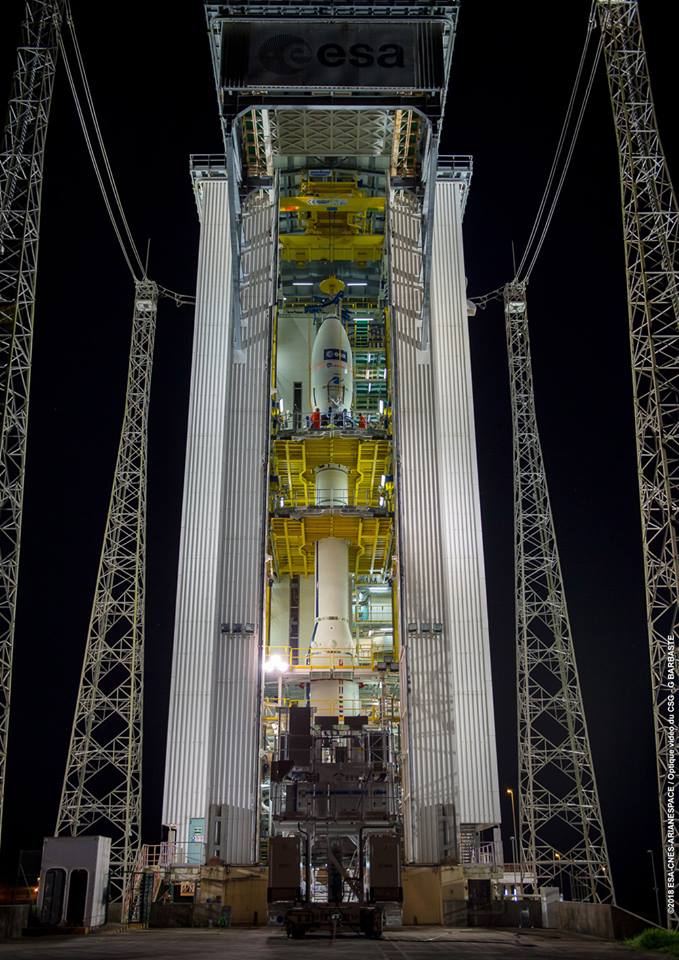

The Aeolus satellite, shrouded inside a payload fairing, was lifted atop its Vega launcher in French Guiana earlier the month. Credit: ESA/CNES/Arianespace – Photo Optique Video du CSG – G. Barbaste

A Vega booster will propel the Aeolus satellite into orbit following liftoff from the European-run Guiana Space Center on the northern coast of South America. Liftoff is timed for 2120:09 GMT (5:20:09 p.m. EDT; 6:20:09 p.m. French Guiana time) Wednesday.

Powered by three Italian-built solid-fueled motors and a liquid-fueled upper stage, the Vega rocket will soar north from French Guiana to deploy Aeolus in a near-circular polar orbit around 55 minutes after liftoff.

The launch was delayed an extra day from Tuesday to Wednesday to allow for more favorable high-altitude winds over the Guiana Space Center.

Once in orbit, Aeolus will automatically extend its power-generating solar panels and begin three days of activations to prepare it for normal operations.

"Then we start switching on the laser and the instrument," Elfving said. "That will take around two weeks if it goes well, but it could take longer because there's a lot of tuning and observing of this high-energy laser. We don't want to damage anything if we have any wrong settings. In October, we expect to start collecting and calibrating data."

Scientists will meticulously compare Aeolus's data with wind measurements collected by airplanes. The calibration campaign will extend into next year, ensuring accuracy of the satellite's measurements.

"That will go on until the second quarter of 2019, and by that moment, we hope to have declared the quality such that meteorologists ... can start ingesting our data operationally," Elfving said.

[свернуть]

[tnt22]

https://spaceflightnow.com/2018/08/22/vv12-mission-status-center/

Live coverage: Vega rocket counting down to launch from French Guiana
August 22, 2018 | Stephen Clark

08/22/2018 18:28 Stephen Clark

The Vega launch countdown commenced this morning at the Guiana Space Center, and clocks are ticking toward liftoff at 2120:09 GMT (5:20:09 p.m. EDT; 6:20:09 p.m. French Guiana time).

Спойлер

Within the next couple of hours, controllers at the spaceport in Kourou, French Guiana, will oversee the activation of the Vega rocket's avionics and computer systems, the switch-on of its telemetry transmitters, and the start-up of the launcher's guidance system.

The launch team will receive a weather briefing before rollback of the Vega launch facility's mobile gantry. The launch pad's mobile service tower will be retracted to launch position at 1805 GMT (2:05 p.m. EDT), rolling on rails to a point 260 feet (80 meters) from the Vega rocket.

The launcher's navigation system will be tested again at 1855 GMT (2:55 p.m. EDT), and Vega's telemetry transmitters and transponders are activated again after the rollback of the launch pad gantry around 2005 GMT (4:05 p.m. EDT).

Engineers will verify the readiness of Vega's systems at 2030 GMT (4:30 p.m. EDT), and a final pre-launch weather briefing is scheduled for 2110 GMT (5:10 p.m. EDT).

The synchronized launch sequence takes over the countdown about four minutes prior to liftoff. The computer-controlled final sequence checks thousands of parameters in the final steps of the countdown.

After liftoff, Vega will clear the pad's four lightning towers and pitch north from the Guiana Space Center, heading over the Atlantic Ocean and surpassing the speed of sound in about 30 seconds.

The Vega's solid-fueled P80FW first stage, producing a maximum of 683,000 pounds of thrust, burns out 114 seconds after liftoff, giving way to the launcher's Zefiro 23 second stage at an altitude of about 33 miles (53 kilometers).

After a 103-second burn, the second stage consumes its propellant 3 minutes, 37 seconds after launch and separates. The Vega's third stage, the Zefiro 9A motor, ignites 3 minutes, 51 seconds into the mission.

A few seconds later, Vega's Swiss-built 8.5-foot-diameter (2.6-meter) payload fairing will jettison.

Vega's third stage fires for more than two minutes, turning off and separating 6 minutes, 30 seconds after liftoff.

The fourth stage, known as AVUM, ignites its liquid-fueled Ukrainian RD-843 engine 8 minutes, 3 seconds into the mission, burning for around eight-and-a-half minutes to reach a transfer orbit above Earth.

After coasting more than 36 minutes, the AVUM fourth stage will fire again at Plus+53 minutes, 6 seconds for 23 seconds to reach a circular orbit for deployment of the Aeolus spacecraft.

Separation of the Aeolus satellite is scheduled for 54 minutes, 57 seconds after liftoff.

[свернуть]

[tnt22]

Трансляция ESA на LiveStream

livestream.com/ESA/AeolusLaunch

[tnt22]

Chris B - NSF‏ @NASASpaceflight 1 ч. назад

FEATURE ARTICLE:
Arianespace's Vega rocket set for ESA Aeolus launch -

https://www.nasaspaceflight.com/2018/08/arianespaces-vega-rocket-esa-aeolus-launch/ ...

- By William Graham

Спойлер

[свернуть]

[tnt22]

http://blogs.esa.int/eolaunches/2018/08/22/ready-to-go/

Posted on August 22, 2018 by http://blogs.esa.int/eolaunches/author/honora/

READY TO GO

Following 24-hour delay for the launch of Aeolus because of winds, everything looks good for the launch today at 23:20 CEST.


Some of the team in Kourou, (ESA)

With Aeolus 'switched on', teams at ESA's European Spacecraft Operations Centre in Germany and teams at the launch site in Kourou are in position for liftoff.

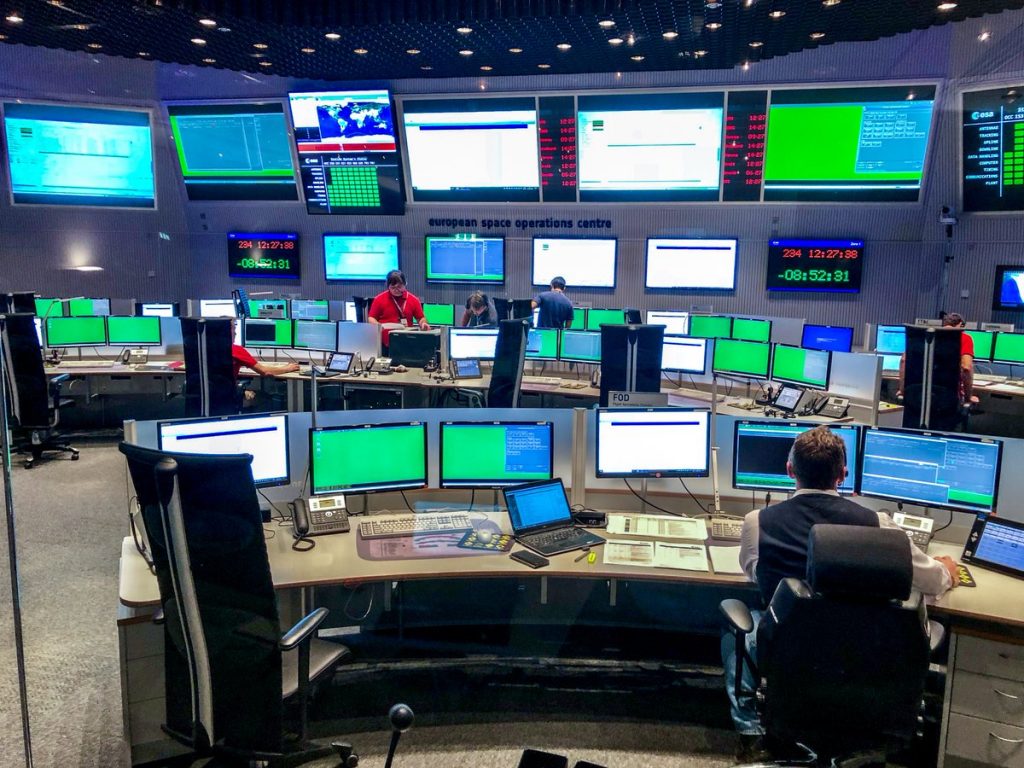

Getting ready in ESOC. (ESA)

[tnt22]

08/22/2018 18:41 Stephen Clark

High-altitude winds over the Guiana Space Center are reported acceptable so far in the countdown, but further wind measurements are planned throughout the day.

The next weather briefing is expected around four hours prior to liftoff, in advance of the rollback of the Vega launch pad's mobile gantry.

[tnt22]

http://www.esa.int/Our_Activities/Observing_the_Earth/Aeolus/Facts_and_figures

FACTS AND FIGURES

Launch: 2018

Launcher: Vega

Satellite: cubic platform and cylindrical instrument structure, weighing 1360 kg (including 266 kg fuel)

Instrument: direct detection Doppler wind lidar, Aladin, operated at 355 nm; separate detection of molecular and particle backscatter (high-spectral resolution)

Mass: 1360 kg (including fuel)

Dimensions: 4.60 × 1.9 × 2.0 m (launch configuration)

Power: 2.4 kW deployable solar array (2×3 panels) with GaAs cells; 84 Ah Li-ion battery

Orbit: altitude of 320 km and inclination of 97°; Sun-synchronous, 7-day repeat cycle

Mission control: ESA's European Space Operations Centre (ESOC) in Darmstadt, Germany

Communication: ground stations in Kiruna, Sweden (telemetry); Svalbard, Norway and Troll, Antarctica (science data)

Data processing: Tromsø, Norway, managed by ESA's Centre for Earth Observation (ESRIN) in Frascati, Italy

Mission life: 3 years

Wind profile retrieval: European Centre for Medium-Range Weather Forecasts (ECMWF) in Reading, UK

Project and commissioning: managed at ESA's European Space Research and Technology Centre (ESTEC) in Noordwijk, The Netherlands

Operations: managed at ESA's Centre for Earth Observation (ESRIN) in Frascati, Italy

Prime contractor: Airbus Defence and Space

[tnt22]

08/22/2018 21:05 Stephen Clark

All systems are reported to be "go" for launch tonight in an instantaneous launch opportunity at 2120:09 GMT (5:20:09 p.m. EDT; 6:20:09 p.m. French Guiana time).

So far in the countdown, Vega's systems have been powered on and launch controllers have checked communications, tracking and command links between the rocket and ground facilities at the Guiana Space Center.

The launch pad's 16-story mobile gantry is now retracting to its launch position about 260 feet (80 meters) fr om the rocket.

Спойлер

The 270-square-mile space center, run by the French space agency, CNES, and the European Space Agency, is located on the jungle coastline of French Guiana, situated on the northeast corner of South America.

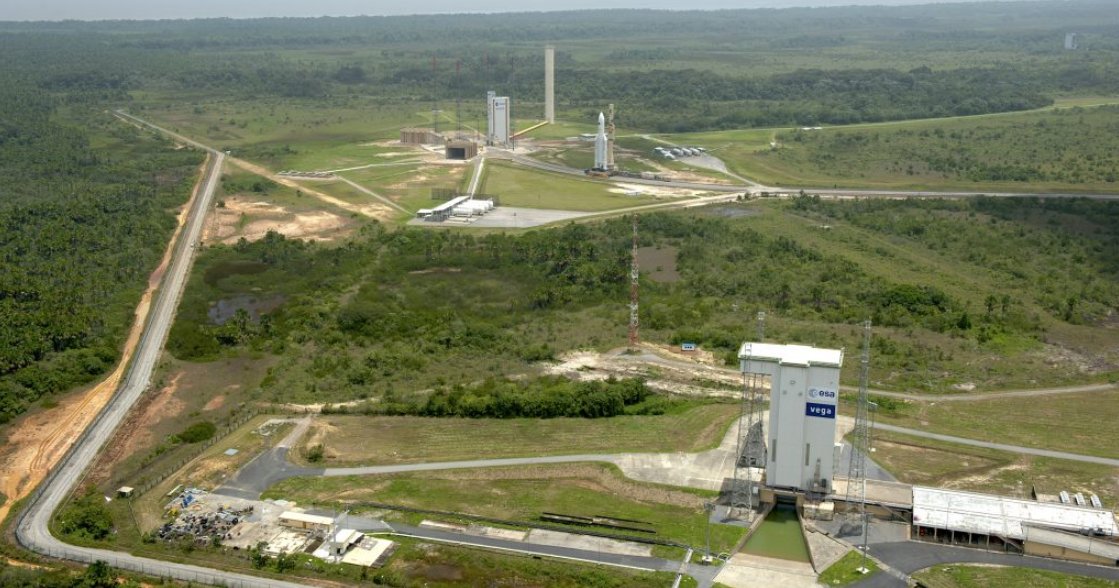

The Vega launch pad, known by its French acronym ZLV, is about 1 kilometer (0.6 miles) southwest of the Ariane 5 launch complex. It was built on the former site of ELA-1, the home of Ariane 1, Ariane 2 and Ariane 3 launchers from 1979 until 1989.

Construction of the Vega launch pad began in 2004, including the building of a new 16-story mobile gantry weighing some 1,000 metric tons. A fixed umbilical mast standing 105 feet tall provides air conditioning to the Vega's payload.

Workers also added four lightning towers at the pad to protect the Vega rocket from thunderstorms.

Unlike the Ariane 5 rocket, the Vega's stages are stacked on the pad inside the mobile gantry, which provides protection of the launcher from weather at the spaceport.

Vega's countdown is managed from Guiana Space Center's prime control center less than a mile from the launch pad, the same building wh ere Ariane 5's countdown is controlled.

[свернуть]

[tnt22]

Трансляция Arianespace на ТыТрубе

на англ. яз.

youtube.com/watch?v=Z4XLImXKgSo

на фр. яз.

youtube.com/watch?v=A7gfsU5ss2s

[tnt22]

08/22/2018 22:08 Stephen Clark

As the Vega launch team in French Guiana monitors the progress of the countdown, engineers across the Atlantic Ocean at the European Space Operations Center in Darmstadt, Germany, have confirmed the readiness of a network of ground stations ready to track the Aeolus satellite after it arrives in orbit.

A ground station in New Norcia, Western Australia, is expected to be the first to hear a signal from the Aeolus satellite after its deployment from the Vega upper stage around an hour after liftoff. A ground receiver at the Troll station in Antarctica will collect information from Aeolus a few minutes later, and is expected to be the first tracking site to decode data on the spacecraft's post-launch health.

[tnt22]

ESA Operations‏Подлинная учетная запись @esaoperations 5 мин. назад

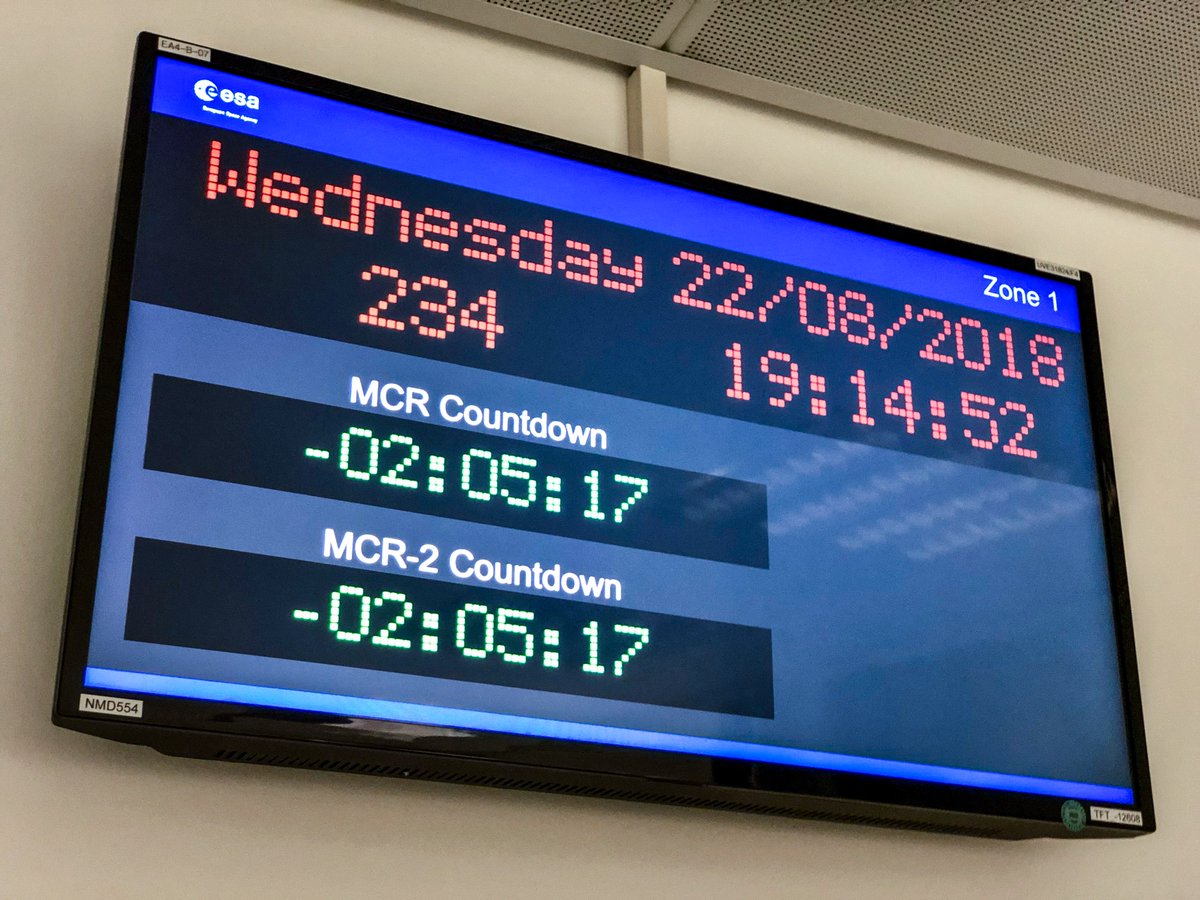

Just over 2 hours left in the #Aeolus countdown tonight...

[tnt22]

Deimos Imaging‏ @deimosimaging 53 мин. назад

#DEIMOS2 caught the #Vega launch pad beneath the clouds in #Kourou today, Aug. 22, just a few hours ahead of the launch of #Aeolus from there! Best of luck to @esa #EarthGroupies

[tnt22]

ESA Operations‏Подлинная учетная запись @esaoperations 2 мин. назад

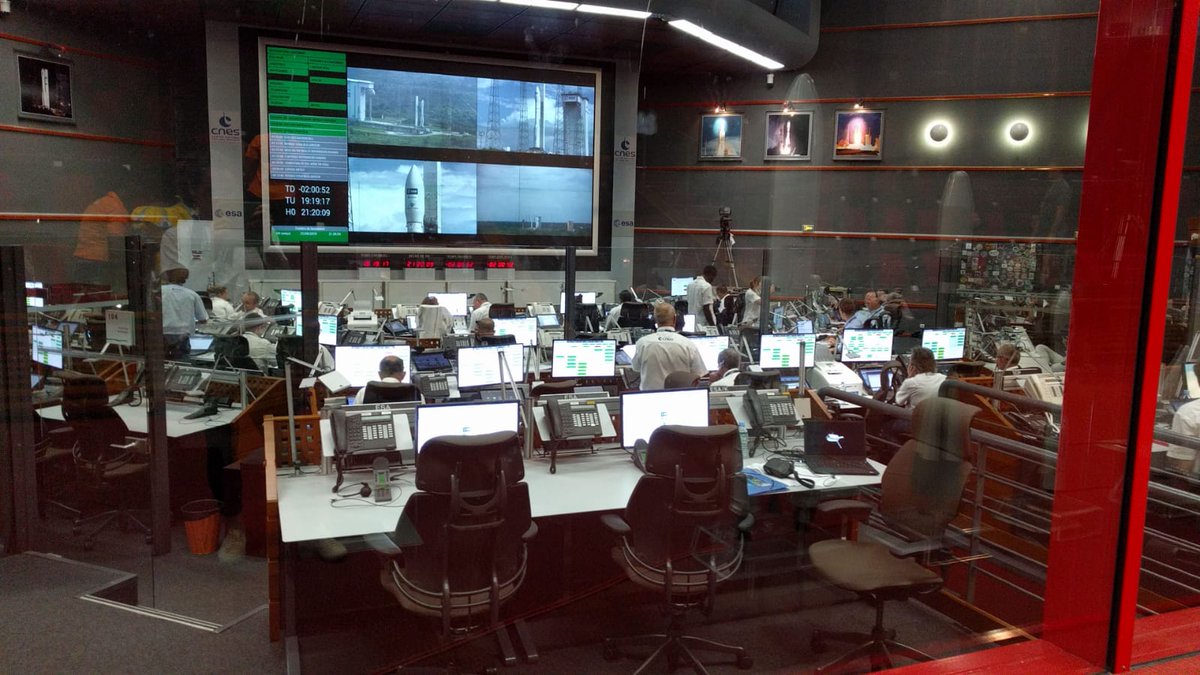

#Jupiter control room (#Vega launch control) in #Korou is also a hive of activity - voice comms have just been confirmed between #ESOC A-Team #FlightDirector P P Emanuelli and his counterpart in #Korou

[tnt22]

https://spaceflightnow.com/2018/08/22/vega-launch-timeline-with-aeolus/

Vega launch timeline with Aeolus
August 22, 2018 | Stephen Clark

The European Space Agency's Aeolus winds observatory is set for liftoff aboard a Vega rocket to kick off a three-year mission to measure global wind profiles from an orbit nearly 200 miles (320 kilometers) above Earth.

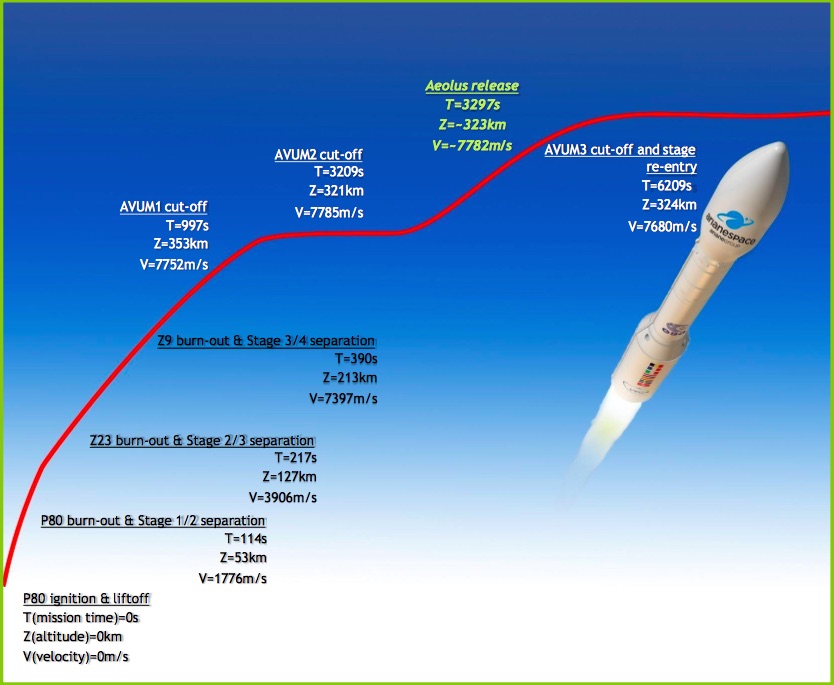

The ascent will take nearly an hour following launch from French Guiana at 2120:09 GMT (5:20:09 p.m. EDT; 6:20:09 p.m. French Guiana time) on Aug. 22.


Credit: Arianespace

Спойлер

T+00:00:00 – Liftoff


The Vega rocket's first stage P80 solid rocket motor ignites and powers the 98-foot-tall booster off the launch pad 0.3 seconds later. The P80 first stage motor generates a maximum of 683,000 pounds of thrust.

T+00:00:31 – Mach 1


The Vega rocket surpasses the speed of sound as it soars on a northerly trajectory from French Guiana. The rocket will reach Max-Q, the point of maximum aerodynamic pressure, at T+plus 53 seconds.

T+00:01:54 – First stage separation


Having consumed its 194,000 pounds (88 metric tons) of solid propellant, the 9.8-foot-diameter (3-meter) P80 first stage motor is jettisoned at an altitude of about 33 miles (53 kilometers). The second stage Zefiro 23 motor will ignite a second later to begin its 103-second firing.

T+00:03:37 – Second stage separation


The Zefiro 23 motor burns out and jettisons.

T+00:03:51 – Third stage ignition


Moving at a velocity of nearly 9,000 mph, or about 3.9 kilometers per second, the Vega rocket's Zefiro 9 motor ignites for the third stage burn.

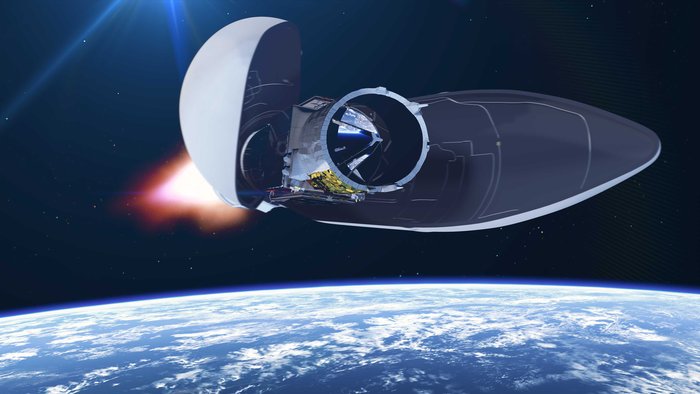

T+00:03:56 – Fairing separation


The Vega's 8.5-foot-diameter (2.6-meter) payload fairing is released as the rocket ascends into space.

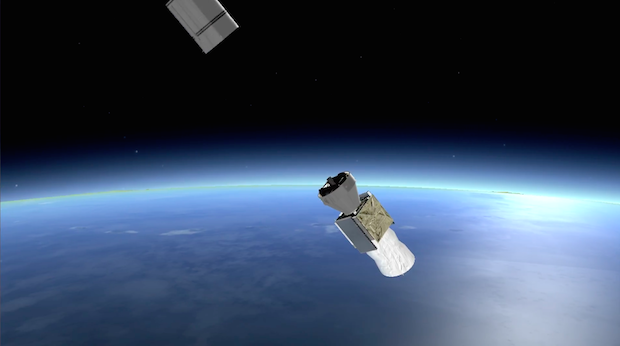

T+00:06:30 – Third stage separation


The Zefiro 9 third stage shuts down and separates, having accelerated the rocket to nearly orbital velocity.

T+00:08:03 – First AVUM ignition


The Vega rocket's Attitude and Vernier Module, or fourth stage, ignites for the first time. The AVUM burns hydrazine fuel with an RD-843 engine provided by Yuzhnoye of Ukraine.

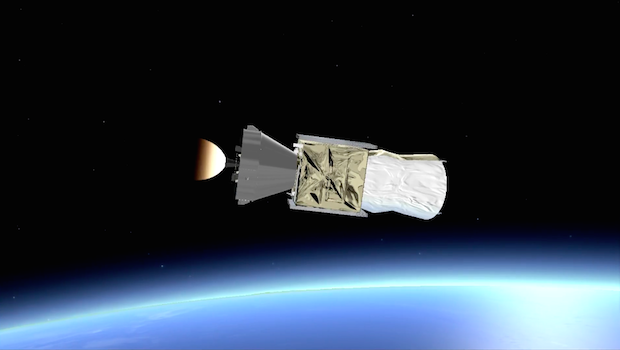

T+00:16:37 – AVUM first cutoff


The Vega's AVUM fourth stage is turned off after an 8-minute, 34-second burn, beginning a nearly 37-minute coast until the engine is ignited again.

T+00:53:06 – Second AVUM ignition


The AVUM fires a second time for a 23-second burn to put the Aeolus satellite into its targeted orbit.

T+00:53:29 – AVUM second cutoff

The AVUM engine shuts down after reaching a circular orbit with an altitude of 199 miles (320 kilometers), and an inclination of 96.7 degrees.

T+00:54:57 – Aeolus separation


The European Space Agency's Aeolus winds observatory separates from the Vega upper stage.

[свернуть]

[tnt22]

ESA Operations‏Подлинная учетная запись @esaoperations 5 мин. назад

Voice and data connections with #NewNorcia tracking station are now being checked. Our new NNO-2 dish will be the first to see the #Aeolus signal tonight
