Dragon SpX-6 (CRS6) – Falcon 9 v1.1 – Канаверал SLC-40 - 14.04.2015 23:10 ДМВ

[Salo]

http://spaceflightnow.com/2015/03/31/spacex-cargo-launch-now-set-for-april-13/

SpaceX cargo launch now set for April 13
Posted on March 31, 2015 by Stephen Clark

File photo of a Falcon 9 rocket and Dragon cargo carrier prepared for launch on a previous mission. Credit: SpaceX

The launch of SpaceX's next resupply run to the International Space Station has been rescheduled for April 13, officials said Tuesday.
The Falcon 9 rocket's liftoff fr om Cape Canaveral was due for no earlier than April 10, but the launch date has been delayed to April 13. Officials did not provide a reason for the delay.
Blastoff from Cape Canaveral's Complex 40 launch pad is set for 4:33 p.m. EDT (2033 GMT). The 20-story rocket will have one second to lift off when the space station's orbital path passes over Florida's Space Coast.
The mission will send SpaceX's Dragon supply ship into orbit in pursuit of the space station. The Dragon capsule will carry several tons of provisions and experiments to the complex, wh ere the lab's Canadian-built robot arm will grapple the SpaceX-owned spaceship after a laser-guided final approach.
The Dragon spacecraft will stay at the space station about one month, then return to Earth in May with a parachute-assisted splashdown in the Pacific Ocean, returning research specimens and other equipment to scientists and engineers on the ground.
The April 13 flight will be SpaceX's fourth Falcon 9 launch of the year, and the company's sixth operational logistics mission to the space station.
SpaceX won a $1.6 billion contract in 2008 for 12 resupply flights to the outpost. NASA recently awarded a contract extension to SpaceX, giving the company 15 flights through 2017.
SpaceX shuffled the order of its upcoming launches earlier this month to inspect rockets at Cape Canaveral for leaky helium pressurization systems after discovering a problem in the Falcon 9 factory in Southern California.
The launch of a European-built communications satellite for the government of Turkmenistan was supposed to take off March 21, but SpaceX opted to delay the mission to around April 24, allowing the space station resupply flight to launch next in the queue.
The launch for Turkmenistan — with a satellite named TurkmenAlem52E/MonacoSat — is apparently still on track for late April.
SpaceX's cramped manifest continues in May with a planned test of an abort system for a human-rated version of the Dragon spacecraft expected to loft astronauts into orbit by the end of 2017.

Follow Stephen Clark on Twitter: @StephenClark1.

[che wi]

Salo пишет:
SpaceX cargo launch now set for April 13

На сайте Patrick AFB вчера несколько раз меняли датудля CRS-6: то 10 апреля, то 13-го, то опять 10-го. Сейчас вообще висит TBD.

[Salo]

http://www.nasa.gov/missions/highlights/schedule.html#.VRvPVI5BnZ4

Targeted Date: April 13, 2015 -- 4:33 p.m. Eastern
Mission: SpaceX CRS-6 Resupply Mission to International Space Station

[Salo]

https://twitter.com/SpaceX/status/584130175224295424

SpaceX ‏@SpaceX

Falcon 9 and Dragon undergoing prep in FL in advance of 4/13 launch to the @Space_Station http://go.nasa.gov/19HfTE5

[Salo]

Обратный отсчёт:
http://spacexstats.com/mission.php?launch=22

[Salo]

http://www.nasa.gov/sites/default/files/files/SpaceX_CRS-6_Mission_Overview%281%29.pdf


[Salo]

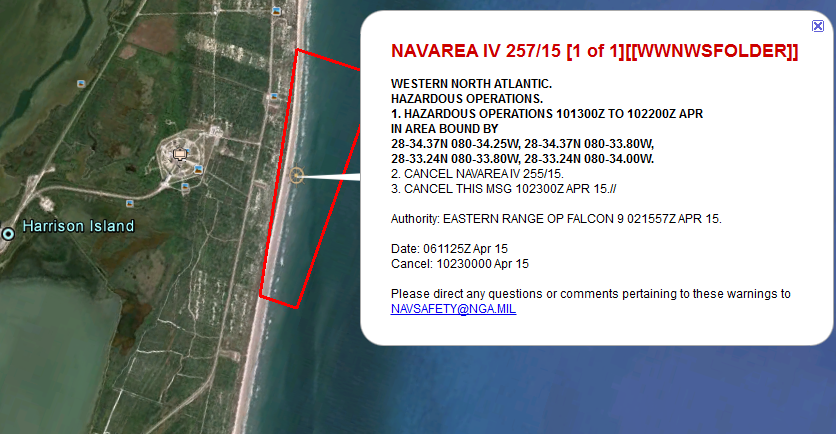

CRS-6 static fire hazard area for Apr 10 1300-2200Z

[Salo]

http://www.americaspace.com/?p=79758

Heavyweight Payload for Science to Accompany SpaceX's Next ISS-Bound Dragon
By Ben Evans

The CRS-6 mission is the sixth dedicated Dragon cargo flight under the language of SpaceX's $1.6 billion Commercial Resupply Services (CRS) contract with NASA. Credit: NASA

SpaceX is gearing up for the next round of its most ambitious year of launches and tests to date, with next week's scheduled flight of the sixth dedicated Dragon cargo mission (CRS-6) towards the International Space Station (ISS). Liftoff of the unpiloted cargo craft—which is being flown under the language of the $1.6 billion Commercial Resupply Services contract, signed between NASA and SpaceX, back in December 2008—is presently targeted to occur during an "instantaneous" window at 4:33 p.m. EDT Monday, 13 April. Like each of its predecessors, this mission will fly from the storied Space Launch Complex (SLC)-40 at Cape Canaveral Air Force Station, Fla., atop the Falcon 9 v1.1 booster. If SpaceX is unable to meet this window, it has Eastern Range clearance to recycle 24 hours for a backup attempt at 4:10 p.m. EDT Tuesday, 14 April. According to NASA, the CRS-6 mission will transport about 4,390 pounds (1,990 kg) of provisions, payloads, tools and scientific experiments to the space station's incumbent Expedition 43 crew.

This will be SpaceX's fourth launch in as many months, following hard on the heels of the CRS-5 Dragon to low-Earth orbit, bound for the ISS, on 10 January, NASA's Deep Space Climate Observatory (DSCOVR) towards the L2 Lagrange Point—which marked the Hawthorne, Calif.-based company's first foray beyond Earth orbit—on 11 February and, most recently, the Eutelsat 115 West B and ABS-3A communications satellites to Geostationary Transfer Orbit (GTO) on 1 March. SpaceX's original manifest then called for the launch of Turkmenistan's first national satellite, TurkmenAlem52E/MonacoSat—also internally known as "Thales", in honor of its manufacturer, the Paris, France-headquartered Thales Group—on 21 March, followed by the long-awaited Pad Abort Test (PAT) of a modified Dragon vehicle from SLC-40 in early April, as part of the pathway towards Commercial Crew operations, and finally CRS-6 on 10 April.
This schedule was cast into disarray in mid-March, however, when an issue was detected with a batch of Falcon 9 v1.1 helium pressurization bottles during tests at SpaceX's manufacturing facility. "During stress-testing helium bottles of a similar lot, we identified a potential condition that could be shared with those on-board the Thales vehicle," SpaceX told AmericaSpace on 19 March. "While it's unlikely that the flight helium bottles would have encountered an issue during the mission, out of an abundance of caution, we have opted to replace a few of the flight bottles." Speaking last month to Aviation Week, SpaceX President and CEO Gwynne Shotwell pointed out that the bottles "passed inspection", but added that "now is not the time to have an issue in-flight". In the immediate aftermath of the delay, SpaceX submitted a new date to the Eastern Range for the TurkmenAlem52E/MonacoSat flight. "With the time required to make the change, along with Range availability," SpaceX told AmericaSpace, "our target date for the mission is now 24 April." By the beginning of April, it was added that "Replacement of the helium bottles is nearing completion".

Next week's mission will represent the sixth dedicated Dragon cargo flight under a $1.6 billion Commercial Resupply Services (CRS) contract with NASA. Photo Credit: Mike Killian Photography/AmericaSpace

In the meantime, it was understood that the PAT would be moved from its original position in early April to the beginning of May. "We have more flexibility with the Pad Abort schedule," SpaceX explained, "so we're evaluating the best dates in light of the two missions we have coming in April." The Dragon vehicle assigned to the PAT, meanwhile, was delivered to Cape Canaveral Air Force Station in February 2015 for final processing operations. It will be mounted onto a support structure at SLC-40 and the test will be the subject to an in-depth AmericaSpace preview article, closer to the time. "The whole test is less than two minutes from pad to splashdown," SpaceX told us, "and most of that distance is covered in the first 25-30 seconds of the test." Since it is a test, the company does not intend to webcast the PAT.
With CRS-6 expected to launch next week, this makes 2015 the first year in SpaceX's history that it has delivered missions aloft in as many as four consecutive months. It will be the second ISS-bound Dragon, following January's CRS-5, and with three more scheduled to fly, this will also make 2015 a banner year, with five flights. If these are executed according to the manifest, CRS-6 will be followed by CRS-7 in June and CRS-9 in December, each of which will carry an International Docking Adapter (IDA) to support NASA's Commercial Crew needs, whilst CRS-8 in September will deliver the Bigelow Expandable Activity Module (BEAM) to the space station. To date, SpaceX has launched no more than two Dragons per year since its inaugural Commercial Orbital Transportation Services (COTS) test flight, back in May 2012, and if all goes well the company will have completed 75 percent of its 12-flight CRS commitment to NASA by year's end, with the remainder expected to be conducted in 2016.
Unlike this year's other Dragons, CRS-6 will carry no major payload in its unpressurized "Trunk" Section. CRS-5 in January carried the Cloud Aerosol Transport System (CATS) and the remaining flights will carry the IDAs and BEAM, all intended for robotic removal from their trunks—by means of the 57.7-foot-long (17.6-meter) Canadarm2—and attachment to the space station. The CRS-6 trunk will be empty, although the pressurized segment of the spacecraft will be loaded with about 4,390 pounds (1,990 kg) of provisions, payloads, tools and scientific experiments for the incumbent Expedition 43 crew, which consists of Commander Terry Virts of NASA, Russian cosmonauts Anton Shkaplerov, Gennadi Padalka and Mikhail Kornienko, U.S. astronaut Scott Kelly and Italy's first woman in space, Samantha Cristoforetti. As of today (Tuesday), Virts, Shkaplerov and Cristoforetti are entering their 135th day in orbit, whilst Padalka, Kornienko and Kelly have been in space for a little less than two weeks.
Like CRS-5, whose thunderous January ascent was captured by AmericaSpace's photography team in a spectacular folio of launch imagery, the CRS-6 mission is expected to follow a two-day rendezvous protocol, ahead of being captured and berthed by Canadarm2 at the Earth-facing (or "nadir") port of the station's Harmony node on Wednesday, 15 April. At the controls of the Canadian-built mechanical arm, and based inside the multi-windowed cupola, will be Cristoforetti, backed up by Virts and supported by newly-arrived One-Year crew member Kelly. After capturing Dragon at about 7:14 a.m. EDT, it should be berthed at Harmony nadir about two hours later, after which the crew will ingress the cargo ship and begin the process of unloading one of the largest loads of equipment and supplies ever delivered to the ISS by SpaceX.

European Space Agency (ESA) astronaut Samantha Cristoforetti is pictured inside the multi-windowed cupola. She will be the lead Expedition 43 crew member for the CRS-6 capture and berthing operation. Photo Credit: Twitter @AstroSamantha

That cargo consists of 1,100 pounds (500 kg) of crew supplies, including care packages from home, food and provisions, 1,140 pounds (518 kg) of miscellaneous items for the station's Environmental Control and Life Support System (ECLSS) and Electrical Power System (EPS), 1,860 pounds (844 kg) of "Utilization" hardware—including U.S.-sponsored experiments and research payloads from the Canadian Space Agency (CSA), the Japan Aerospace Exploration Agency (JAXA) and the European Space Agency (ESA)—and about 79 pounds (36 kg) of command and data-handling equipment, TV and photographic gear and EVA tools.
Although it was stressed to AmericaSpace by NASA's Dan Huot that final payload determinations would be made before the end of the week, what is readily apparent is that CRS-6 will be one of the most science-heavy Dragon flights to date. Canada will provide hardware for its ongoing "Tomatosphere" experiment, which seeks to increase the interest of students in the space sciences and horticulture technology, as well as enhancing familiarity and experience with research methodologies. Since its creation in 2001, Tomatosphere has delivered approximately 600,000 tomato seeds to the ISS, as part of an ongoing experiment which has allowed two million students from over 13,000 Canadian schools to measure germination rates, growth patterns and vigor. Provided by U.S. and Canadian companies, the seeds will begin to address questions of how to supply long-duration exploration missions, beyond low-Earth orbit, with the life-support requirements of food, water, oxygen and the need to consume carbon dioxide exhaled by crew members. Two years ago, Tomatosphere won the Natural Sciences and Engineering Research Council of Canada (NSERC) Award for Science Promotion. The project has led to a number of educational units, aimed at Grades 3-10, focusing on astronaut nutrition, the recycling of breathable air and how to someday survive in the hostile environment of Mars.

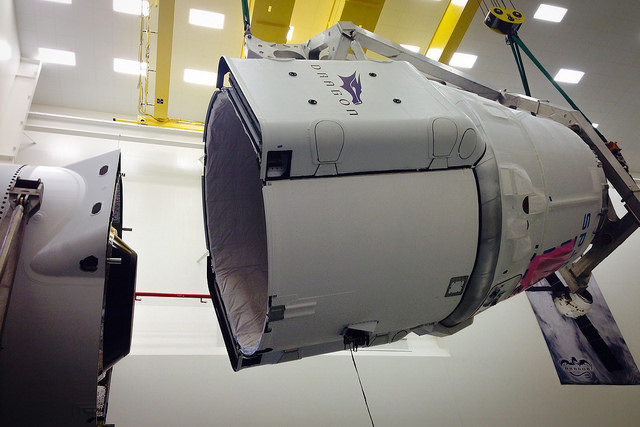

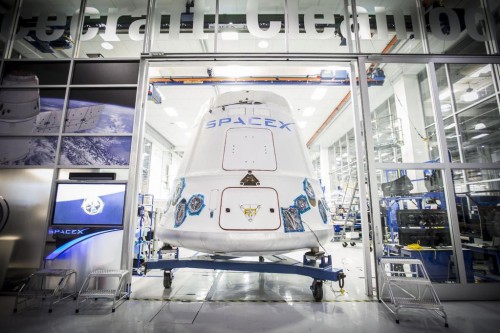

The Dragon CRS-6 spacecraft. Photo Credit: SpaceX

Meanwhile, ESA has provided three payloads for delivery to the ISS aboard CRS-6. These include the latest batch of biological cell samples (Kubik-5) for the Kubik incubator/cooler, which is situated aboard Europe's Columbus laboratory module. This controlled-temperature device operates between 6-38 degrees Celsius (42.8-100.4 degrees Fahrenheit) and carries removable inserts—including a centrifuge ins ert for simultaneous 1G "control" samples to run alongside microgravity samples—for self-contained, automatic experiments involving seeds, immune cells or small animals. It has supported numerous investigations, spanning ISS Expeditions 17-26 between April 2008 and March 2011, Expeditions 29-30 from September 2011 through April 2012 and currently Expeditions 43-44 through September 2015. Other ESA payloads include samples for TripleLux-A, which will be housed inside the Biolab facility aboard Columbus and which seeks to understand the negative mechanisms of microgravity, including the effects of radiation, upon cells from rats, mussels and bacteria. It is hoped that this research may safeguard the health of future astronauts, as well as sufferers of weakened immune systems on Earth. Lastly, CRS-6 will carry hardware for the Cardiolab Holter Arterial Blood Pressure (CDL HLTA) instrument, which examines the relationship between salt intake the cardiovascular system in microgravity conditions.
In addition to the Canadian and European payloads, a wide range of other experiments and equipment from Japan and the United States will also ride uphill aboard Dragon. JAXA investigations are centered upon the process of aging in microgravity, observations of the gravity-sensing organs of plants, microbial analysis and the Tanpopo astrobiology study. Meanwhile, U.S. experiments will focus on the ongoing "Twins Study"—which involves One-Year Crewman Scott Kelly and his Earth-bound identical twin brother, former astronaut Mark Kelly—and a variety of other research goals, including bone and muscle degradation, nanoparticles and osteoporosis, blood sampling, microbial analysis, fluid shifting, protein crystal growth, biological investigations, sleep studies and plant growth. The U.S. load will also include power and data cables for the Expedite the PRocessing of Experiments for Space Station (ExPRESS) multi-purpose research racks, IMAX photographic hardware, supplies for the ISSPresso on-board coffee machine and a Microgravity Experiment Research Locker Incubator (MERLIN).
Also aboard CRS-6 is the Rodent Research-2 investigation, which consists of a group of mice, being flown as part of an ongoing study of mammalian physiology in the microgravity environment. In September 2014, the Rodent Research-1 payload was launched to the ISS aboard SpaceX's CRS-4 Dragon, marking the first occasion that rodents had ever been delivered to the station aboard an unpiloted commercial cargo ship. Lasting 37 days, it was the longest rodent study ever conducted aboard a NASA facility in the weightlessness of space, and was returned to Earth in late October aboard Dragon. They were accommodated in the Rodent Research Hardware System, which comprised three units: a transporter module, which they occupied during launch and the journey to the ISS, and an access module, which the station crew used to transfer them in to a habitat module for the duration of their stay in orbit. Sponsored by the Center for the Advancement of Science in Space (CASIS), the Rodent Research-2 experiment seeks to study the rodents' immune response to an injected vaccine, which will activate the immune system in a manner not dissimilar to a virus.
After the mice have been exposed to the microgravity environment for about two weeks, they will be inoculated with a TT vaccine. A subset of these mice will also receive the CpG adjuvant at the time of inoculation. Two weeks later, during the peak of the primary response, the mice will be euthanized in the Materials Science Glovebox (MSG). According to NASA, euthanasia is achieved via an intraperitoneal  injection of ketamine/xylazine anesthesia, followed by exsanguination by cardiac puncture.  Spleens are dissected from the mice, sectioned, and frozen at -80 degrees Celsius (-112 degrees Fahrenheit) in a cold block within a Mini Cold Bag (MCB).  Bloods will be separated by centrifugation and serum will be frozen.  Frozen spleen and serum samples will then be stored in a Minus Eighty Laboratory Freezer (MELFI) until they can be returned to earth for analysis.
Assuming an on-time launch on Monday, 13 April, and satisfactory berthing on Wednesday, 15 April, it is anticipated that CRS-6 will remain in residence at the ISS for about five weeks, before returning to a parachute-assisted splashdown in the Pacific Ocean, off the California coast.

[Salo]

[che wi]

Брошюра
http://www.nasa.gov/sites/default/files/files/SpaceX_NASA_CRS-6_PressKit.pdf

[Salo]

http://spaceflightnow.com/2015/04/10/falcon-9spacex-6-launch-timeline/

Falcon 9/SpaceX-6 launch timeline
Posted on April 10, 2015 by Stephen Clark

Follow the key events of the Falcon 9 rocket's ascent into orbit from Cape Canaveral on SpaceX's sixth operational resupply mission to the International Space Station. Exact times for re-entry and landing of the Falcon 9's first stage have not been released by SpaceX.
Data source: SpaceX

T-0:00:00: Liftoff

After the rocket's nine Merlin engines pass an automated health check, four hold-down clamps will release the Falcon 9 booster for liftoff from Complex 40.

T+0:01:10: Mach 1

The Falcon 9 rocket reaches Mach 1, the speed of sound.

T+0:01:23: Max Q

The Falcon 9 rocket reaches Max Q, the point of maximum aerodynamic pressure.

T+0:02:37: MECO

Moments after two of the Falcon 9's first stage engines shut down, the remaining seven Merlin engines cut off at an altitude of 80 kilometers, or about 50 miles, and a velocity of Mach 10.

T+0:02:41: Stage 1 Separation

The Falcon 9's first stage separates from the second stage four seconds after MECO. The spent stage will descend back to Earth for an attempted landing on a barge in the Atlantic Ocean.

T+0:02:49: Stage 2 Ignition

The second stage Merlin vacuum engine ignites for a nearly seven-minute burn to inject the Dragon payload into orbit.

T+0:03:29: Nose Cone Jettison

The nose cone covering the Dragon spacecraft's berthing port is jettisoned after the rocket climbs above the dense lower atmosphere.

T+0:09:00: First Stage Landing

The Falcon 9's first stage will land on SpaceX's autonomous spaceport drone ship in the Atlantic Ocean.

T+0:09:27: SECO

The second stage Merlin vacuum engine shuts down after reaching a target orbit with a low point of 199.2 kilometers (123.8 miles), a high point of 365.5 kilometers (227.1 miles), and an inclination of 51.6 degrees.

T+0:10:02: Dragon Separation

The Dragon spacecraft separates from the Falcon 9 second stage to begin pursuit of the International Space Station.

T+0:12:00: Begin Solar Array Deployment

Dragon's two power-producing solar arrays begin unfolding after their covers are jettisoned. The solar arrays extend 54 feet tip-to-tip.

Follow Stephen Clark on Twitter: @StephenClark1.

[Salo]

http://spaceflightnow.com/2015/04/10/spacex-on-track-for-cargo-launch-monday/

SpaceX on track for cargo launch Monday
Posted on April 10, 2015 by Stephen Clark

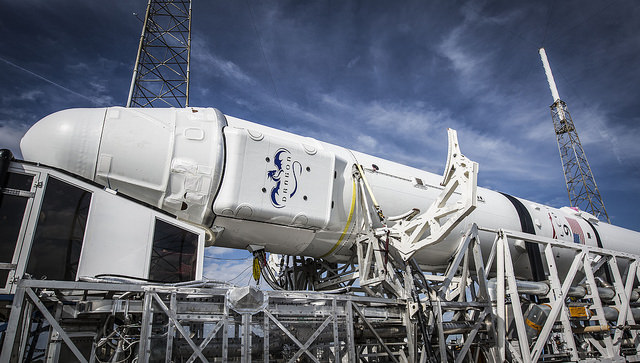

SpaceX's Dragon capsule is prepared for launch Monday. Credit: SpaceX

Weather forecasters will be on the lookout for rain showers and thunderstorms during Monday's scheduled launch of a SpaceX cargo craft to the International Space Station, but there is a 60 percent chance conditions at Cape Canaveral will permit liftoff.
SpaceX ground crews have mated the Falcon 9 rocket with its Dragon capsule payload ahead of a customary preflight engine test Saturday.
The launch team will fuel the 208-foot-tall Falcon 9 rocket with refined kerosene and liquid oxygen, run through countdown procedures and ignite the booster's nine Merlin 1D main engines Saturday. Engineers will crunch data from the static fire test before giving the green light to press on with launch Monday.
Liftoff Monday is set for 4:33:14 p.m. EDT (2033 GMT) from Cape Canaveral's Complex 40 launch pad. Launch is perfectly timed for the Falcon 9 rocket to pivot northeast from Florida's Space Coast in pursuit of the space station.
The weather forecast calls for a mostly cloudy sky and isolated rain showers during Monday's instantaneous launch opportunity. Meteorologists expect a cold front to bring inclement weather to Central Florida over the weekend.
"The frontal boundary begins to dissipate over Central Florida on Monday, but there is a threat of rain showers, thick cloud coverage and anvils drifting towards the coast from inland storms," forecasters from the U.S. Air Force's 45th Weather Squadron wrote. "Maximum upper-level winds are from the northwest at 55 knots near 45,000 feet."
Forecasters predict a few clouds at 3,000 feet, scattered clouds at 14,000 feet and a broken cloud deck at 28,000 feet. Winds should be out of the southeast at 12 to 17 mph.
If the launch is delayed to Tuesday, conditions should improve. There is a 70 percent chance of acceptable weather for Tuesday's launch attempt at 4:10 p.m. EDT (1610 GMT).

The mission patch for SpaceX's sixth operational cargo mission to the International Space Station. Credit: SpaceX

The rocket will deploy the Dragon capsule in orbit 10 minutes after liftoff, beginning the craft's two-day automated pursuit of the orbiting research lab and its six-person crew. Assuming launch occurs on time Monday, astronaut Samantha Cristoforetti will unlimber the space station's robotic arm and grapple the free-flying Dragon spaceship Wednesday at approximately 7 a.m. EDT (1100 GMT).
The delivery of 4,387 pounds of supplies, provisions and experiments is the main purpose of Monday's launch, but SpaceX plans another try to recover the Falcon 9 rocket's first stage booster intact.
If successful, the achievement would mark a major step toward SpaceX's goal of turning the Falcon 9 into a partially reusable launcher, which the company says would slash the cost of transporting payloads into space.
Just as the cargo-carrying Dragon capsule enters orbit, the Falcon 9's 14-story first stage booster will attempt to stick a landing on SpaceX's rocket recovery barge in the Atlantic Ocean.
Stationed about 200 miles northeast of Cape Canaveral, the barge is emblazoned with a bullseye and equipped with underwater thrusters to maintain position for the rocket's descent.
The first stage will fire a subset of its nine booster engines for three maneuvers after jettisoning from the Falcon 9's upper stage about three minutes after liftoff. The burns will guide the 12-foot-diameter rocket toward the landing zone in the Atlantic Ocean.
Four stabilizing fins will pop open during descent, and the rocket will target a vertical rocket-assisted touchdown on the remote-controlled barge, or autonomous spaceport drone ship, as SpaceX calls it.
The landing experiment will mark the second time SpaceX has tried the maneuver with the drone ship. A Falcon 9 booster reached the barge after a successful descent during a launch in January, but the rocket's four grid fins ran out of hydraulic fluid, causing the stage to land on a tilt and disintegrate in a fireball.
Engineers fixed the problem by loading extra hydraulic fluid into future launchers.

Follow Stephen Clark on Twitter: @StephenClark1.

[Искандер]

Ветер достаточно сильный ожидается. Вот и посмотрим как они в баржу попадут и сесть попытаются.

[Salo]

https://twitter.com/SpaceX/status/587048257651511296

SpaceX @SpaceX

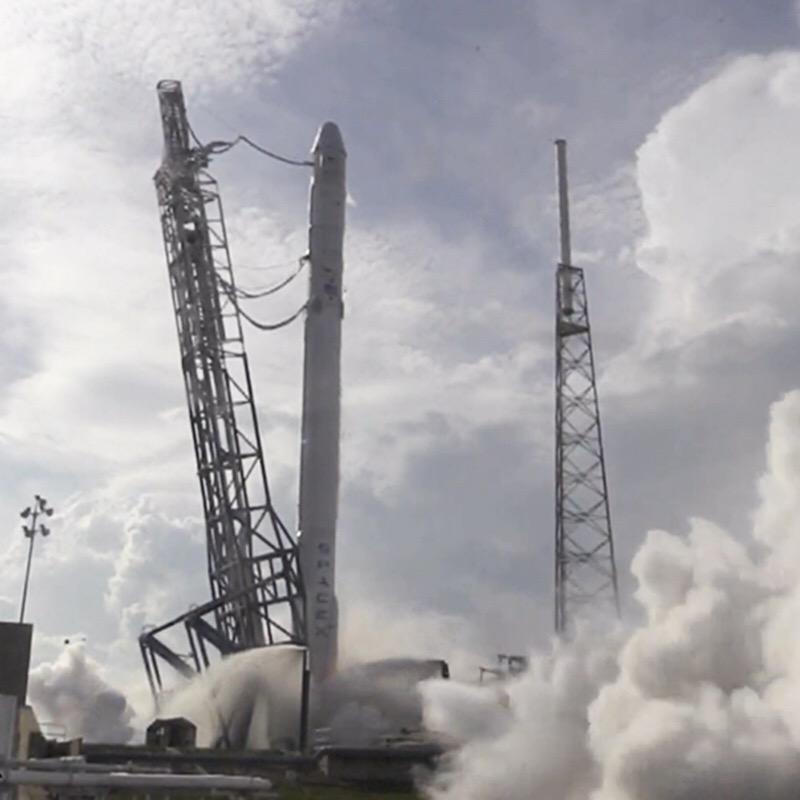

Static fire engine test completed today in advance of Monday's launch attempt to the @Space_Station.



17:23 - 11 апр. 2015 г.

[che wi]

Kristen Fredriksen @neskirderf · 11h ago

First stage landing attempt tmrw on ship "Just Read the Instructions". Too bad it didn't fit on my nail!

[che wi]

ISS Updates ‏@ISS101  10m ago

#Falcon9 now vertical on the pad at SLC-40 as countdown operations for today's #SpX6 launch get underway.

[Димитър]

Когда пуск?

[Reader]

В 20-33 по Гриничу, вроде

[Антон]

А почему в названии темы 22.04?

[napalm]

Антон пишет:
А почему в названии темы 22.04?

Чудеса, но сдвинули влево. Да-да, и такое бывает
