Гаганьян ( Gaganyaan )

[Max]

Для русского уха на форуме о космонавтике ближе Арутюн Кивирян.
А просто для русского уха ближе Анри д`Артаньян

[zandr]

https://x.com/isro/status/1988209361177764313

ISRO  @isro
ISRO successfully conducted a key Integrated Main Parachute Airdrop Test (IMAT) for the Gaganyaan mission at Babina Field Firing Range, Jhansi, on Nov 3, 2025. The test validated the main parachutes under extreme conditions. #ISRO #Gaganyaan
For more information visit
https://isro.gov.in/IMAT_03.html

Successful accomplishment of key development test in Integrated Main Parachute Airdrop Test (IMAT) series for Gaganyaan mission
November 11, 2025
ISRO has successfully conducted an important test on Main Parachutes for the Gaganyaan Crew Module at the Babina Field Firing Range (BFFR), Jhansi, U.P. on November 03, 2025. This test is the part of the ongoing series of Integrated Main Parachute Airdrop Tests (IMAT) for the qualification of parachute system for Gaganyaan Mission.

Спойлер

For the Gaganyaan Crew Module, the parachute system comprises a total of 10 parachutes of 4 types. The descent sequence begins with two apex cover separation parachutes that remove the protective cover of the parachute compartment, followed by two drogue parachutes that stabilize and decelerate the module. Upon release of the drogues, three pilot parachutes are deployed to extract three main parachutes, which further slow down the Crew Module to ensure a safe touchdown. The system is designed with redundancy—two of the three main parachutes are sufficient to achieve a safe landing.
The main parachutes of the Gaganyaan mission deploy in a step-by-step process known as reefed inflation. In this process, the parachute first opens partially, which is called reefing, and then fully opens after a predetermined period of time, known as disreefing. This process is carried out using pyro device.
In this test, the one of the possible extreme scenarios of delay in the disreefing between the two main parachutes was successfully demonstrated validating the main parachutes for the maximum design. The test evaluated the system's structural integrity and load distribution under asymmetric disreefing conditions—one of the most critical load scenarios expected during actual mission descent.
A simulated mass equivalent to the Crew Module was dropped from an altitude of 2.5 km using the Indian Air Force's IL-76 aircraft. The parachute system deployed as planned and the sequence was executed flawlessly, and the test article achieved a stable descent and soft landing, validating the robustness of the parachute design.
The successful completion of this test marks another significant step toward qualifying the parachute system for human spaceflight, with active participation from the Vikram Sarabhai Space Centre (VSSC), ISRO, Aerial Delivery Research and Development Establishment (ADRDE), DRDO, Indian Air Force and the Indian Army.
Description: IMAT-03
Format : mp4
File Size : 135 MB
Duration : 00:01:33
Plugin : NA

[свернуть]

Успешные сбросовые испытания парашютной системы.

[zandr]

https://www.isro.gov.in/Gaganyaan_Drogue_Parachute_Deployment_Tests.html

Successful accomplishment of Drogue Parachute Deployment Tests for Gaganyaan
^{December 20, 2025}

ISRO has successfully completed a series of qualification tests for Drogue Parachutes for the development of deceleration system of Gaganyaan Crew Module at the Rail Track Rocket Sled (RTRS) facility of the Terminal Ballistics Research Laboratory (TBRL), Chandigarh, during December 18-19, 2025.

The deceleration system of Gaganyaan Crew Module comprises of a total of 10 parachutes of 4 types. The descent sequence begins with two apex cover separation parachutes that remove the protective cover of the parachute compartment, followed by two drogue parachutes that stabilize and decelerate the module. Upon release of the drogues, three pilot parachutes are deployed to extract three main parachutes, which further slow down the Crew Module to ensure a safe touchdown.

A crucial component of this system is the deployment of drogue parachutes, which play a pivotal role in stabilizing the Crew Module and also reducing its velocity to a safe level during re-entry.

The objective of this specific test series was to rigorously evaluate the performance and reliability of the drogue parachutes under extreme conditions. Both the RTRS tests on drogue parachutes were successfully conducted on December 18 & 19, 2025 achieving all the test objectives and confirming their robustness even under the situation of significant variation in flight conditions.

The successful completion of these tests marks another significant step toward qualifying the parachute system for human spaceflight, with active support and participation from the Vikram Sarabhai Space Centre (VSSC), ISRO, Aerial Delivery Research and Development Establishment (ADRDE), DRDO and Terminal Ballistic Research Laboratory (TBRL), DRDO.

<видео>

"Успешно проведение испытаний раскрытия парашюта Drogue для Gaganyaan"

Shorts: https://www.youtube.com/shorts/wl4LJI5dgOk

[zandr]

Код Выделить Развернуть

https://www.youtube.com/watch?v=Cnd5jzvTHSU

ISRO Successfully Completes Drogue Parachute Tests for Gaganyaan Mission Milestone
  NEWS STATION

[zandr]

https://x.com/archipeppe/status/2007359855112200566

Giuseppe De Chiara  @archipeppe
The brand new Gaganyaan manned spacecraft.


[zandr]

https://x.com/harsh86400/status/2007768930824360082

The Space Guy  @harsh86400
Inside ISRO's Gaganyaan Crew Module: Before & After Panels!
 Left:  Packed with instruments.
 Right: Bare structure
Spot the isogrid pattern on the  lower bulkhead in the center !
This lightweight triangular grid  handles max stress during sea splashdown.

[zandr]

https://x.com/harsh86400/status/2008901485934105053

The Space Guy  @harsh86400
Here are some Half cross section cuts of Gaganyan crew module on right you can also see the entering port as well as crew escape system fairing.

(картинки всем будут видны через 8 часов)

[zandr]

https://x.com/ispaceflight_in/status/2014267044720783860

indianspaceflight.in  @ispaceflight_in

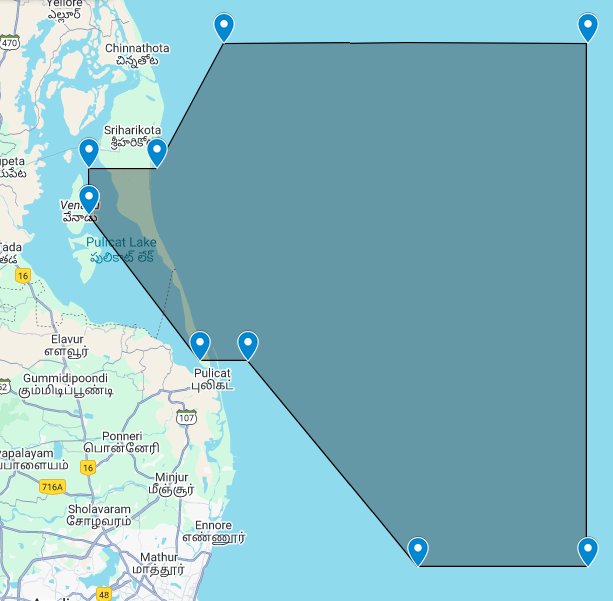

A new #NOTAM designated A0231/26, has been issued for the period of 27 January through 15 February 2026; while the official description is standard, current analysis and comparisons with previous NOTAM profiles strongly suggest this window is reserved for the Integrated Air Drop Test (IADT-02), a critical milestone for the Gaganyaan mission. #Gaganyaan #IADT02 #ISRO
Notam: https://indianspaceflight.in/?notamId=A0231%2F26

[zandr]

Это испытание на срабатывание САС при maxQ?

[Ed Sch]

Это испытание на срабатывание САС при maxQ?

Вертолётный сброс.
Судя по ограничению высоты 3,5 км.(12'000FT), это не про maxQ.

[zandr]

Новый период
https://x.com/r_isro/status/2018269765442388240

r_isro  @r_isro
New NOTAM for Integrated Air Drop Test (IADT-02). Enforcement duration between 0130-0600 (UTC), 3 to 15 February 2026
https://reddit.com/r/ISRO/comments/1qtrfcy/new_notam_for_integrated_air_drop_test_iadt02/

[zandr]

https://x.com/mansukhmandviya/status/2030248639017443407

Dr Mansukh Mandaviya  @mansukhmandviya
Some places make you feel the future before the world sees it. ISRO is one of them.

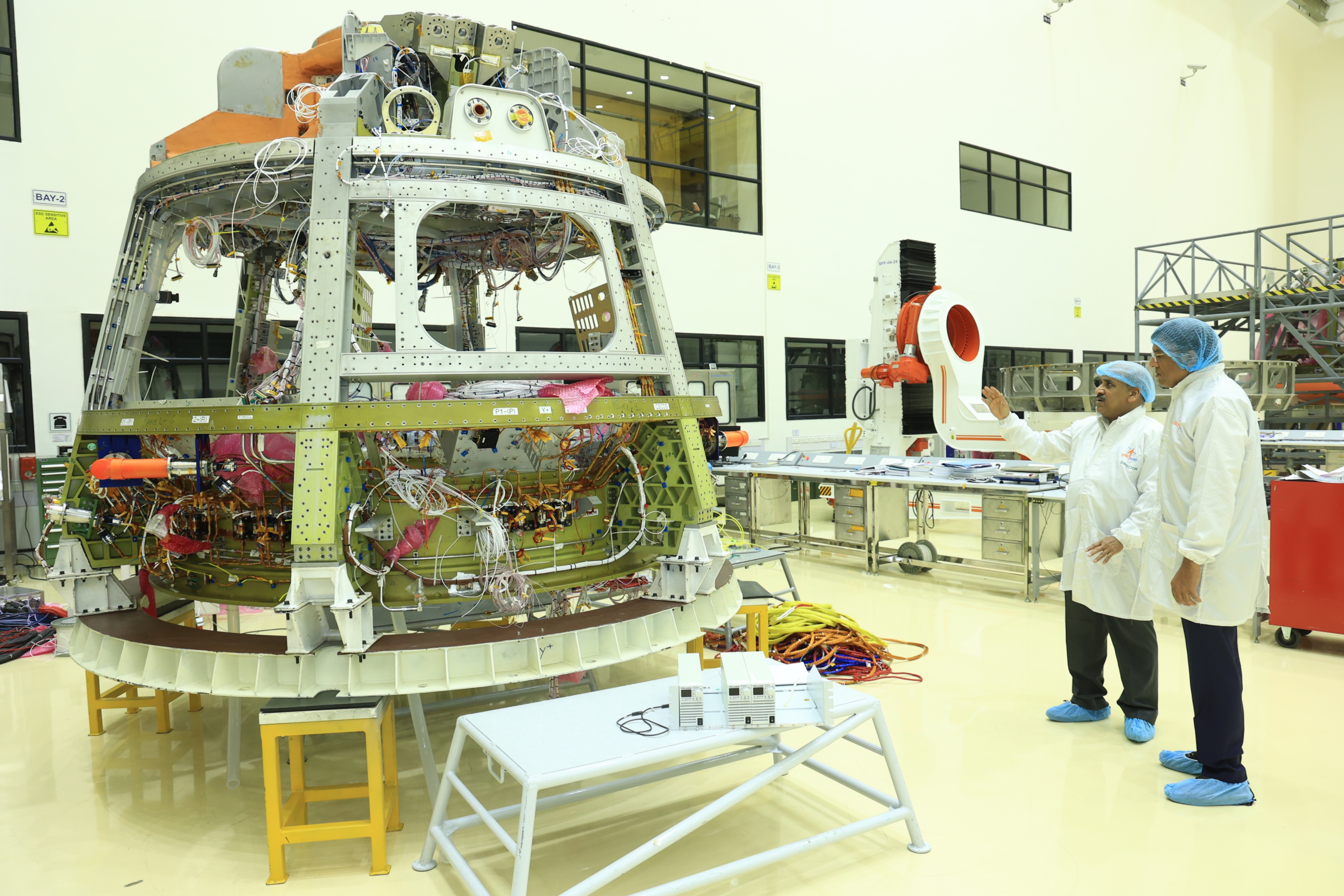

Visiting ISRO-SITE (ISITE) was an absolute honour. I witnessed the complete cycle of satellite assembly, integration, and testing. Interacting with our brilliant scientists revealed their extraordinary mastery in space technology.
Under PM Modi ji's leadership, this rapid pace of innovation is the true definition of a 'Badalta Bharat, Naya Bharat'.
...

...

Космический корабль на табуретках. (Я сейчас на такой сижу  )

Фото должно быть свежим.

[Bell]

Тю... какой-то он небольшой. Гдеж они будут танцевать?

[Андрюха]

Тю... какой-то он небольшой. Гдеж они будут танцевать?

При ВКД

[Старый]

Гдеж они будут танцевать?

На станции!

[Анатолий Егоров]

Indian Space Post
@indianspacepost

HLVM3 / Gaganyaan-1: ISRO to announce the timeframe for the first uncrewed Gaganyaan mission "in a couple of days", reveals Chairman V. Narayanan to The Hindu.

@r_isro
Launch date of HLVM3-G1/OM1, first uncrewed mission of Gaganyaan to be announced this week: ISRO Chairperson

[Paleopulo]

Indian Space Post
@indianspacepost

HLVM3 / Gaganyaan-1: ISRO to announce the timeframe for the first uncrewed Gaganyaan mission "in a couple of days", reveals Chairman V. Narayanan to The Hindu.

@r_isro
Launch date of HLVM3-G1/OM1, first uncrewed mission of Gaganyaan to be announced this week: ISRO Chairperson

Ну хоть по времени сообщения о дате полета какие-то сведения есть, а то 1-й квартал как бу кончился уже.

[Rocinante]

https://x.com/ISROSpaceflight/status/2042563492633538908?s=20

ISRO has successfully conducted the 2nd Integrated Air-Drop Test (IADT) of Gaganyaan on today morning after the first one in August 2025! 🔥

The aim of this test was to validate the parachutes and other recovery systems on board Gaganyaan that are necessary for safely landing the Crew Module on Earth upon its return from orbit.

In this test, the Crew Module, weighing in at 5.7 tons, was lifted by a Chinook aircraft and dropped from an altitude of 3 km over the Bay of Bengal near the Sriharikota coast. The Crew Module subsequently slowed itself down autonomously using a series of drogue and main parachutes, followed by a soft splashdown in the sea.

Сегодня утром ISRO успешно провела второе комплексное испытание сброса с воздуха (IADT) Gaganyaan после первого, состоявшегося в августе 2025 года! 🔥

Целью этого испытания была проверка парашютов и других систем спасения на борту Gaganyaan, необходимых для безопасной посадки пилотируемого модуля на Землю после его возвращения с орбиты.

В ходе этого испытания пилотируемый модуль весом 5,7 тонн был поднят вертолетом Chinook и сброшен с высоты 3 км над Бенгальским заливом недалеко от побережья Шрихарикоты. Затем пилотируемый модуль самостоятельно замедлился с помощью серии тормозных и основных парашютов, после чего мягко приводнился в море.

Спойлер

Вы не можете просматривать это вложение.
Вы не можете просматривать это вложение.
Вы не можете просматривать это вложение.

[свернуть]
