Новости МКС

[tnt22]

Anton Shkaplerov‏ @Anton_Astrey 14 ч. назад

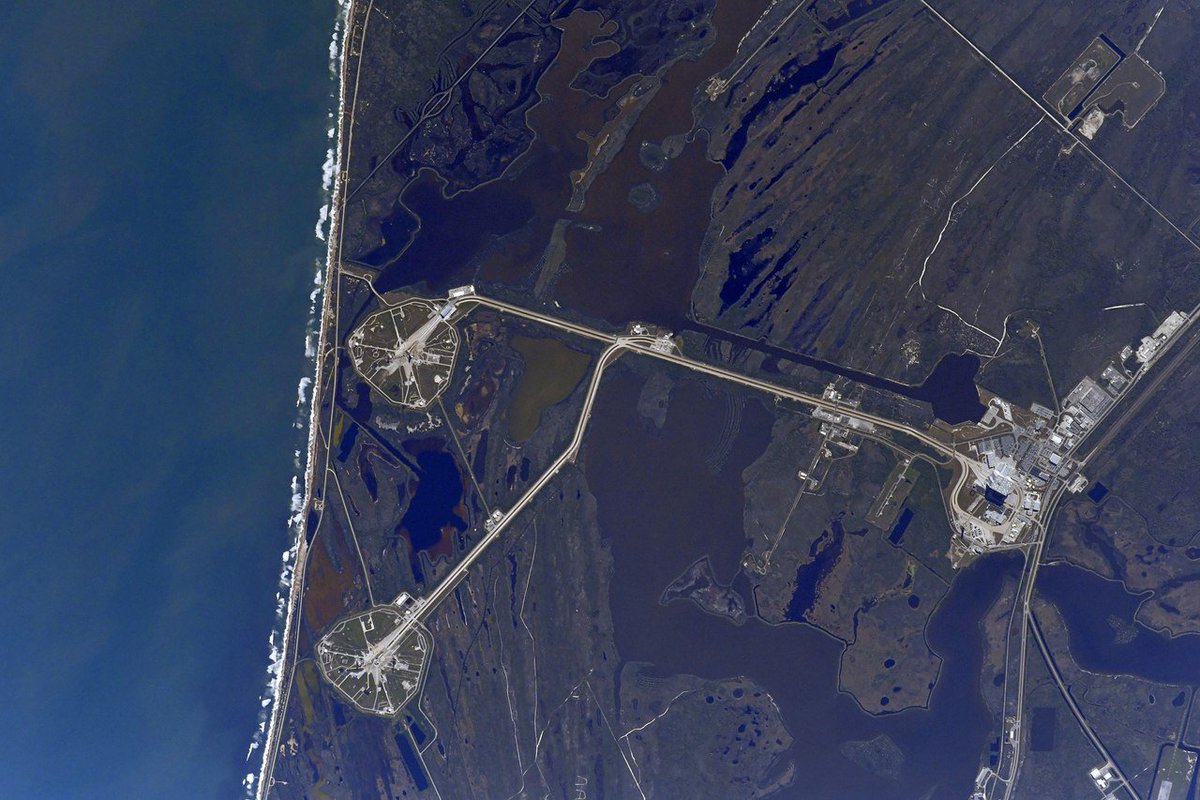

Знаменитые и легендарные стартовые комплексы LC-39A и LC-39B, расположенные на территории космического центра #Кеннеди. А справа вы можете видеть Здание вертикальной сборки — сооружение, предназначенное для окончательной сборки кораблей и ракет-носителей перед запуском с LC-39

[tnt22]

Официоз от НАСА

SpaceX CRS-14 Launch - April 2, 2018

NASA Video

Опубликовано: 5 апр. 2018 г.

 (2:14:49)

[tnt22]

Официальное видео (НАСА)

SpaceX CRS-14 Grapple - April 4, 2018

NASA Video

Опубликовано: 5 апр. 2018 г.

 (2:05:00)

[tnt22]

Официоз (НАСА)

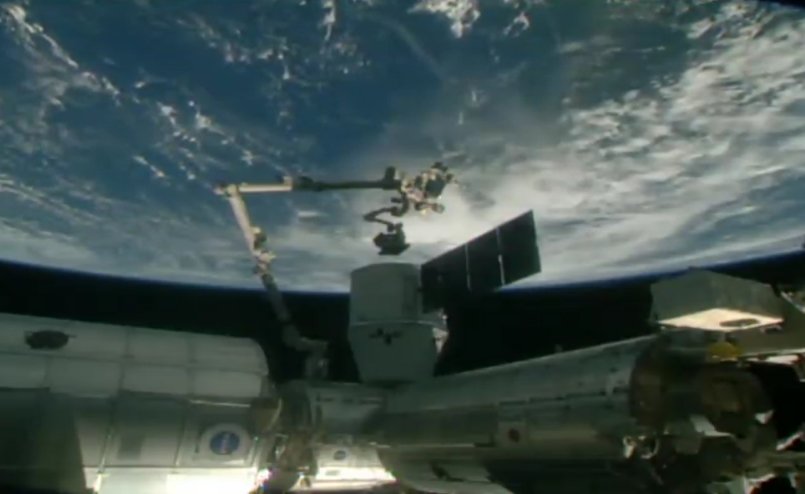

SpaceX CRS-14 Berthing - April 4, 2018

NASA Video

Опубликовано: 5 апр. 2018 г.

 (37:57)

[tnt22]

Chris B - NSF‏ @NASASpaceflight 8 мин. назад

Per the snare issue on the SSRMS LEE - Background: https://www.nasaspaceflight.com/2018/03/falcon-9-crs-14-mission-static-fire-testing/ ...

The plan used for CRS-14:

"SSRMS used a forced based capture for the first time to grapple Dragon. Forced based capture is a software enhancement to the LEE that reduces loads on the snare cables."

[tnt22]

В соответствии с

https://spaceflight.nasa.gov/realdata/sightings/SSapplications/Post/JavaSSOP/orbit/ISS/SVPOST.html

Код Выделить Развернуть

  IMPULSIVE TIG (GMT)   M50 DVx(FPS)      LVLH DVx(FPS)      DVmag(FPS)
   IMPULSIVE TIG (MET)   M50 DVy(FPS)      LVLH DVy(FPS)      Invar Sph HA
   DT                    M50 DVz(FPS)      LVLH DVz(FPS)      Invar Sph HP
   ------------------------------------------------------------------------
   105/08:50:00.000           0.0               0.0              0.0
   N/A                        0.0               0.0              220.8
   000/00:00:00.000           0.0               0.0              214.6

   108/10:36:13.344           0.3               1.0              1.0
   N/A                       -0.8              -0.0              220.9
   000/00:02:26.689          -0.4              -0.0              214.9   18 апреля 2018 в 10:36:13.344 UTC (108/10:36:13.344) запланирована коррекция орбиты МКС импульсом длительностью 147 с (00:02:26.689)

[tnt22]

https://blogs.nasa.gov/stationreport/2018/04/05/iss-daily-summary-report-4052018/

ISS Daily Summary Report – 4/05/2018

SpX-14 Mission:

Спойлер

After yesterday's successful capture and berthing of Dragon, the crew ingressed the vehicle early this morning and began cargo transfer operations. Once the crew finishes unloading the center stack, they will transfer SpX-14 cold stowage into ISS assets and begin installation and activation of several payloads delivered by the vehicle.

[свернуть]

Mobile Servicing System (MSS) SpX-14 Operations:

Спойлер

Later today, ground robotic specialist will release the Dragon vehicle and unstow the Special Purpose Dexterous Manipulator (SPDM). Finally, the Enhanced ORU Temporary Platform (EOTP) will be configured to support tomorrow's operations to extract the Pump and Flow Control Subassembly (PFCS) and Materials International Space Station Experiment (MISSE) from the Dragon trunk.

[свернуть]

Mouse Stress Defense:

Спойлер

The crew completed final preparations and then transferred the mice arriving on the SpaceX-14 vehicle from the Transportation Cage Unit to the Cell Biology Experiment Facility (CBEF) to start the Mouse Stress Defense investigation. Microgravity provokes cellular mechanical stresses and perturbs cellular signaling, leading to reduction of muscle and bone density. To overcome these stresses, one of the promising strategies is to activate Nrf2, a master regulator of antioxidant pathway. Mouse Stress Defense investigates how Nrf2 contributes to effective prevention of space-originated stresses.

[свернуть]

NanoRacks Plate Reader:

Спойлер

The crew validated and calibrated the NanoRacks Plater Reader-2 today. This is in preparation for its use with the Metabolic Tracking-2 investigation. NanoRacks Plate Reader-2 is a laboratory instrument designed to detect biological, chemical or physical events of samples in microtiter plates. Microplate readers are widely used in research, drug discovery, bioassay validation, quality control and manufacturing processes in the pharmaceutical and biotechnological industry and academic organizations.

[свернуть]

Multi-Use Variable-G Platform (MVP):

Спойлер

The crew installed the MVP hardware that arrived on the SpaceX-14 vehicle into EXPRESS Rack (ER) 8 in the US Laboratory. MVP is used to conduct research in space with a wide variety of sample types, such as fruit flies, flatworms, plants, fish, cells, protein crystals and many others. It includes 2 internal carousels that simultaneously can produce up to 2 g of artificial gravity. Each carousel hosts 6 separate removable experiment modules on each carousel. Video and still imagery, including microscopy, can be included. The platform provides temperature and humidity controls and monitors and records oxygen and carbon dioxide levels.

[свернуть]

Tangolab-1 and -2:

Спойлер

The crew installed the Tangolab-2 facility in EXPRESS Rack ER 6 in the US Laboratory and performed several payload card placements in the TangoLab-1 & 2 facilities. TangoLab-1 and TangoLab-2 lockers are reconfigurable general research facilities designed for microgravity research and development and pilot manufacturing aboard the ISS.

[свернуть]

[tnt22]

Jonathan McDowell‏Подлинная учетная запись @planet4589 5 мин. назад

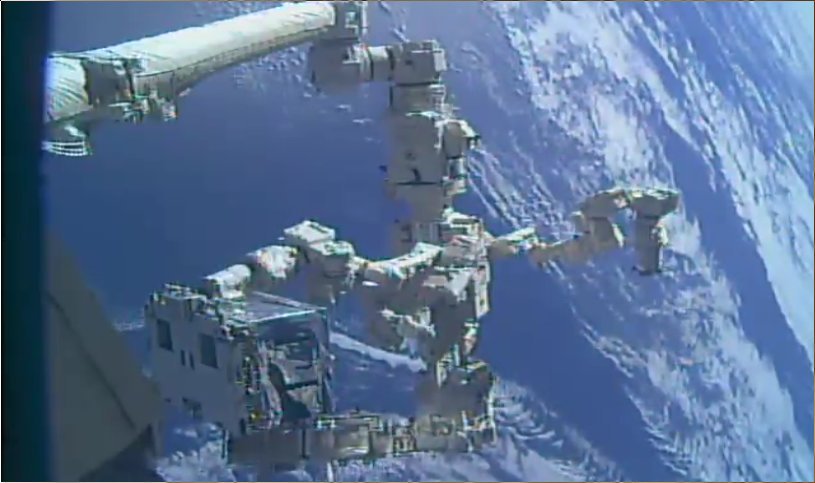

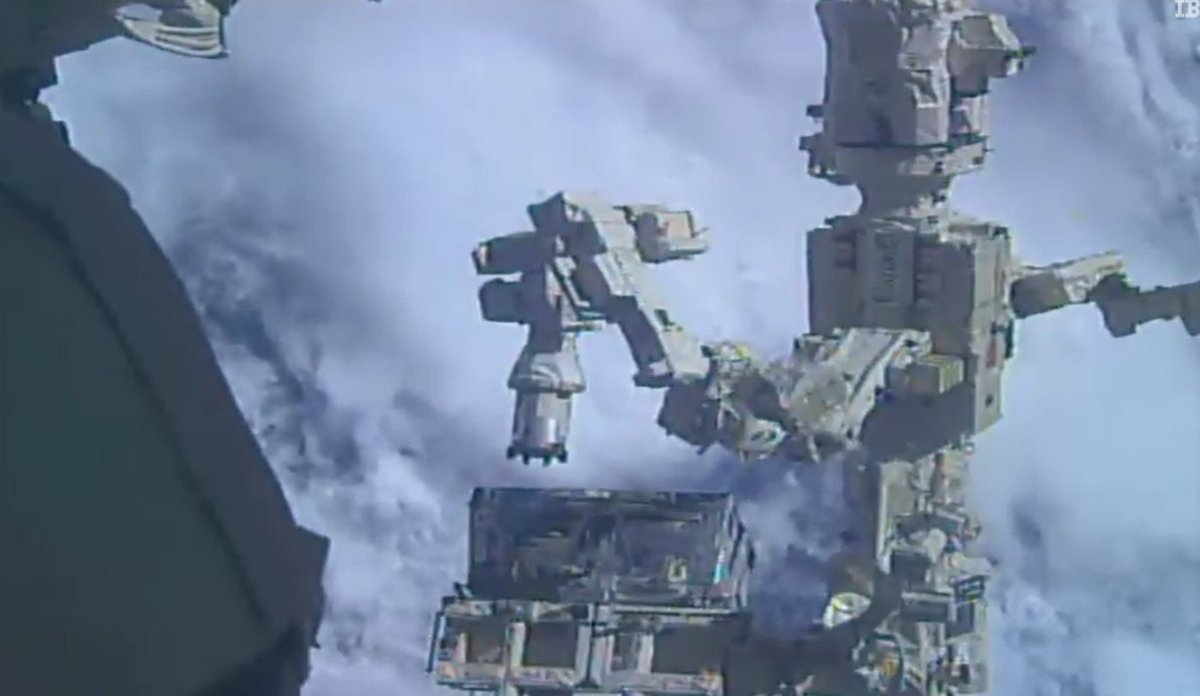

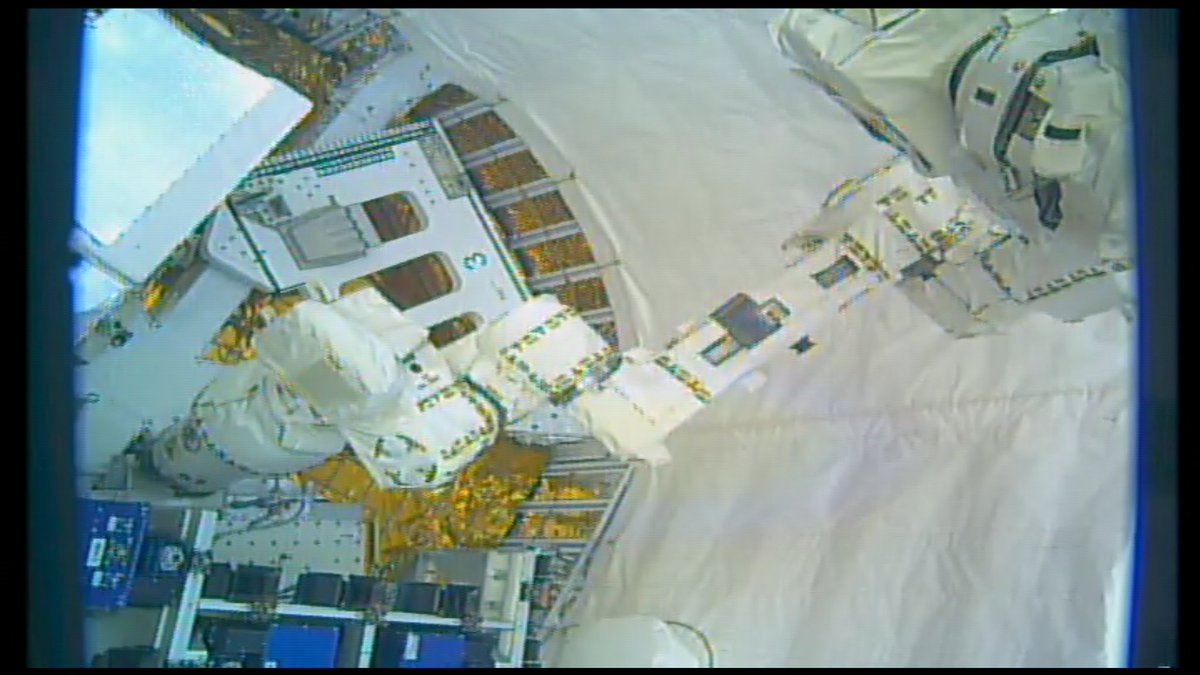

Aboard ISS, Dextre now transferring one of the Dragon trunk payloads to its install location. Think this might be PFCS but could be MISSE-FF?

[tnt22]

ASIM‏ @ASIM_Payload 6 ч. назад

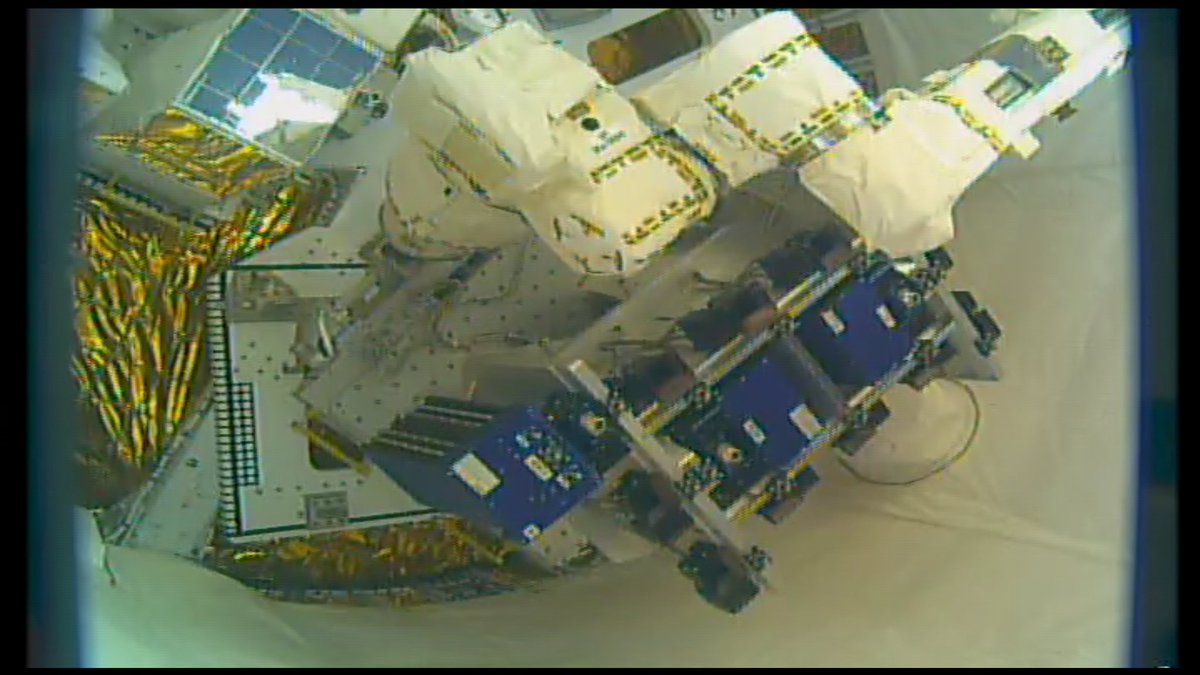

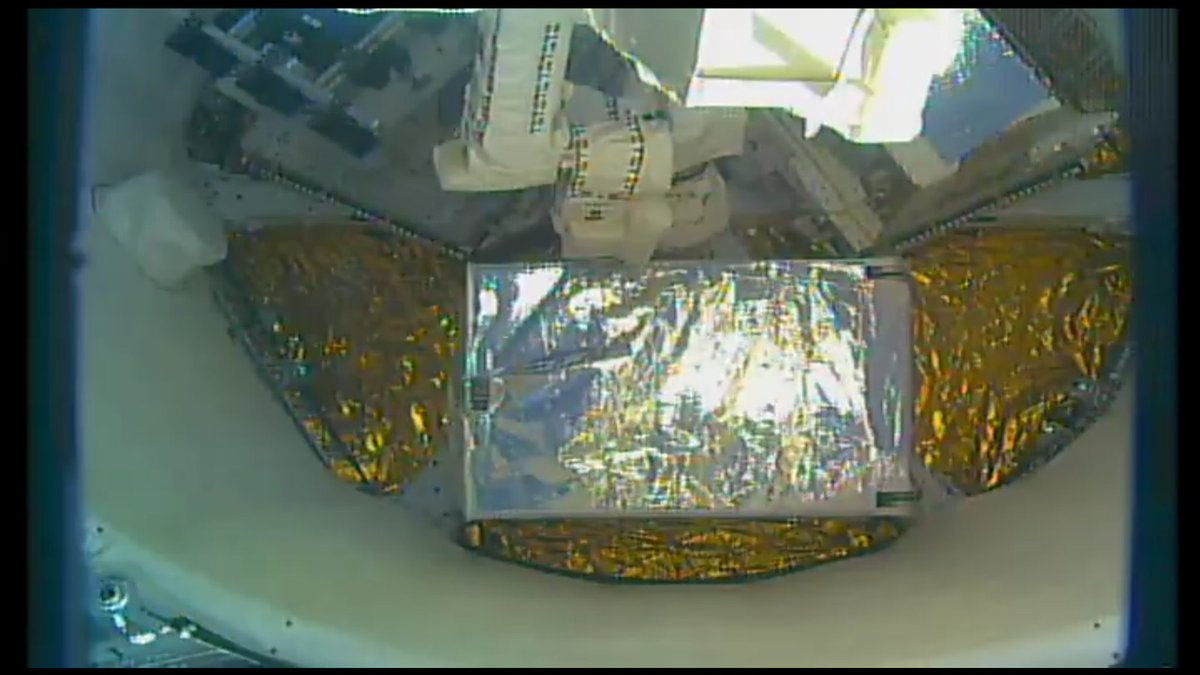

Small glimpse of @ASIM_Payload in the #CRS14 Dragon Trunk during extraction of neighbors MISSE-FF and PFCS. Good luck with your missions

[tnt22]

Space to Ground: A Learning Doubleheader: 04/06/2018

NASA Johnson

Опубликовано: 6 апр. 2018 г.

(2:07)

[tnt22]

http://tass.ru/obschestvo/5101978

Тульские суворовцы 9 апреля впервые пообщаются с экипажем МКС

Общество | 6 апреля, 15:47UTC+3

Сеанс прямой телевизионной связи продлится около получаса


© Александр Рюмин/ТАСС

МОСКВА, 6 апреля. /ТАСС/. Воспитанники Тульского суворовского военного училища 9 апреля впервые пообщаются с экипажем, который сейчас находится на Международной космической станции (МКС), сообщили в пятницу в Минобороны РФ.

"9 апреля в преддверии Дня космонавтики воспитанники Тульского суворовского военного училища впервые в режиме реального времени пообщаются с членами экипажа МКС", - сказали в ведомстве.

Сеанс прямой телевизионной связи пройдет в училище и продлится около получаса. За это время суворовцы узнают о работе экипажа и увидят обстановку на МКС.

Также в этот день к суворовцам приедут действующие космонавты, ранее работавшие на МКС. Они подробнее расскажут о пребывании на орбите и ответят на вопросы учащихся.

[tnt22]

ASIM‏ @ASIM_Payload 3 ч. назад

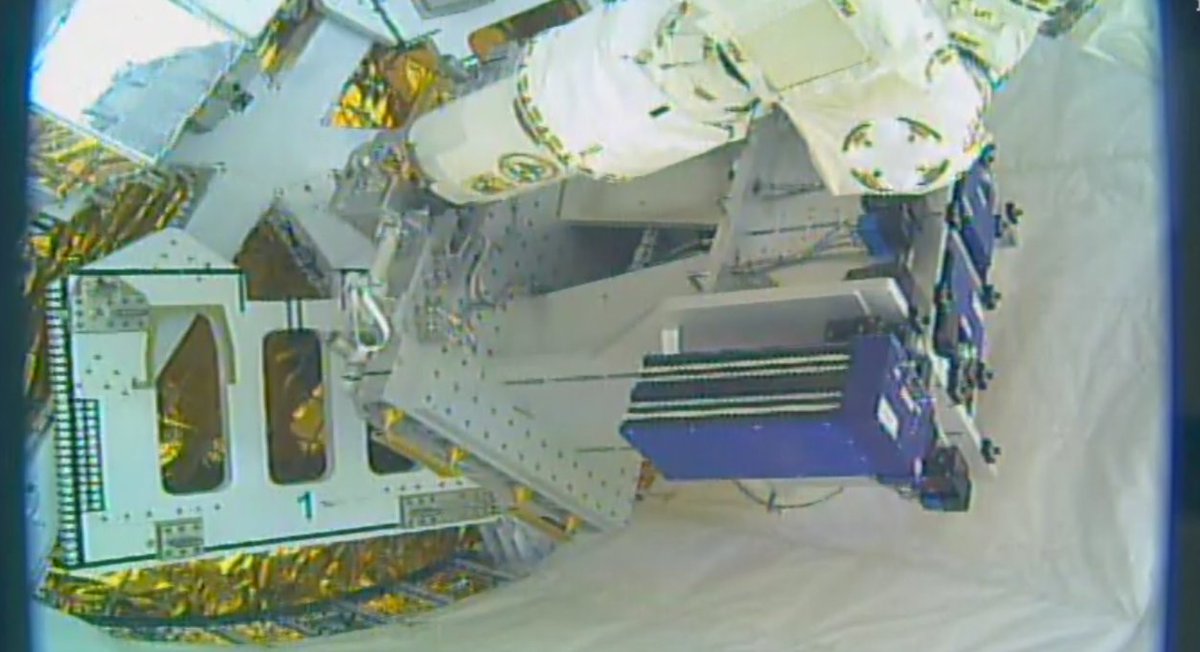

Some more views of MXGS and MMIA @ASIM_Payload instruments in the #CRS14 Dragon trunk during Friday's ROBO operation.

[tnt22]

Chris B - NSF‏ @NASASpaceflight 8 ч. назад

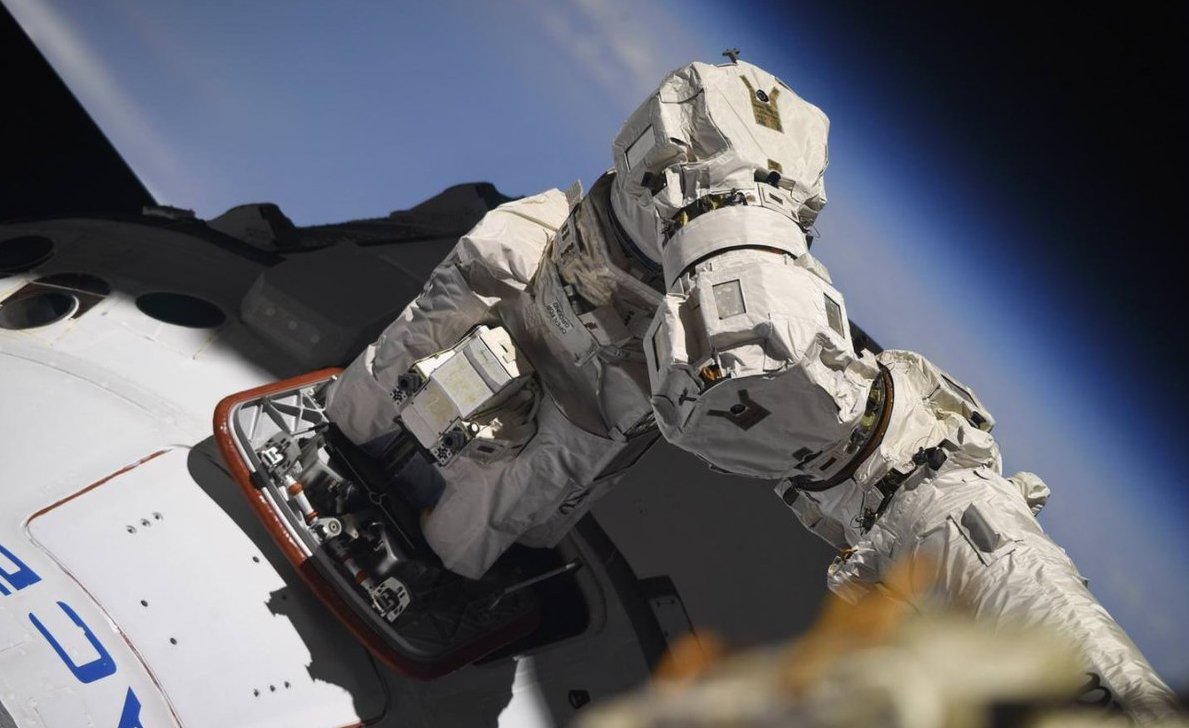

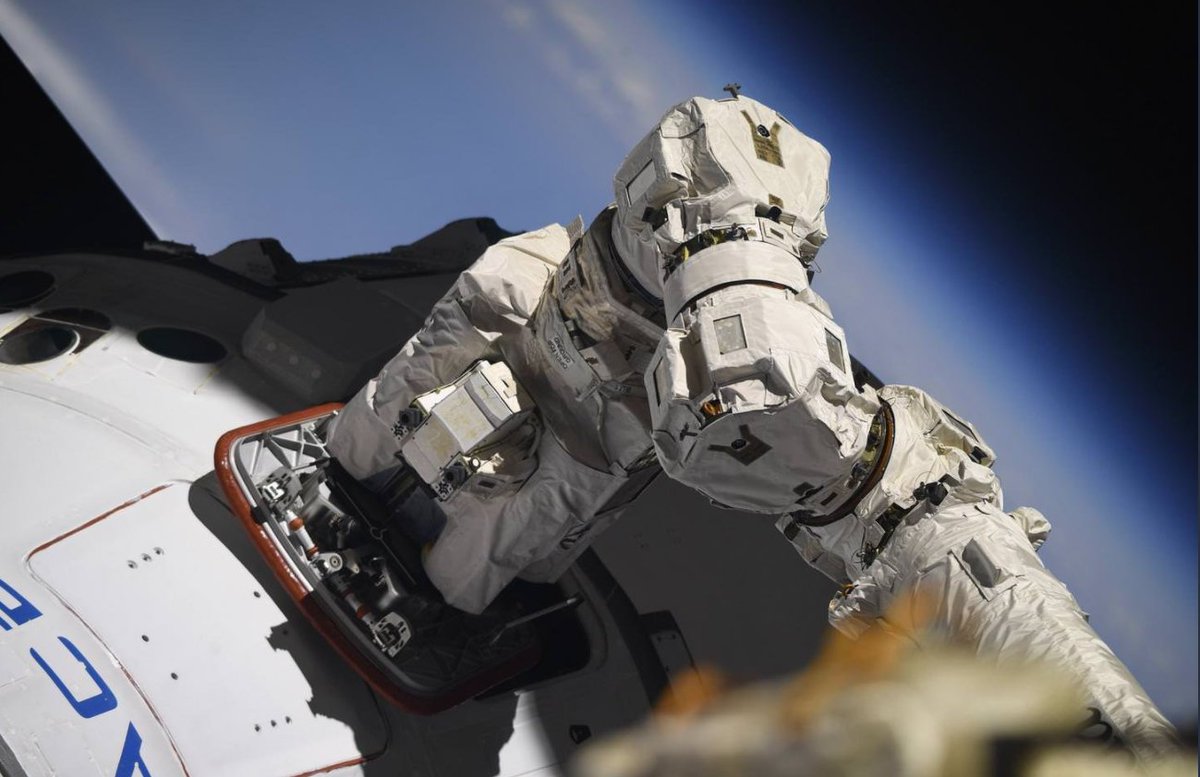

ARTICLE: Dextre busy at work removing CRS-14 Dragon payloads -

https://www.nasaspaceflight.com/2018/04/dextre-removing-crs-14-dragon-payloads/ ...

(Just a short article on trunk payload removal, which doesn't usually get as much attention as berthing ops, etc.)

Спойлер

[свернуть]

[tnt22]

Oleg Artemyev‏Подлинная учетная запись @OlegMKS 1 ч. назад

Со светлым праздником Пасхи, друзья! Вот такой праздничный стол у нас с @Anton_Astrey сегодня. . Happy Easter!

[Salo]

https://ria.ru/science/20180408/1518152225.html

В России завершили наземные испытания руки-манипулятора для МКС
03:04 08.04.2018

© NASA

МОСКВА, 8 апр — РИА Новости. Завершено наземное тестирование российской руки-манипулятора, которая будет установлена на поверхности Международной космической станции (МКС), рассказал РИА Новости заместитель главного конструктора ЦНИИ робототехники и технической кибернетики (РТК) по робототехнике и роботостроению Игорь Даляев.
 Сейчас на МКС используется крупная канадская грузовая рука-манипулятор Canadarm и входящий в ее состав гибкий манипулятор Dexter. К отправке в космос готовится европейская "рука" ERA.
"Завершается изготовление летного образца изделия — специализированной манипуляционной системы "Захват-Э". Первый опытный образец системы уже успешно прошел наземные испытания", — рассказал Даляев.
В рамках следующего этапа планируется протестировать "руку" в условиях открытого космоса. Для этого разработчики ждут запуска к МКС нового российского многофункционального лабораторного модуля "Наука", на поверхности которого и планируется установить российскую руку-манипулятор. По текущим планам "Роскосмоса", модуль планируется вывести на орбиту в декабре 2018 года. Вслед за его прибытием на станцию на грузовом корабле "Прогресс" доставят руку-манипулятор, а космонавты установят ее на внешней поверхности МКС.
 Затем начнется сам эксперимент по тестированию системы дистанционного управления "захватом". Сидя внутри станции, с помощью ноутбука и джойстика космонавты проведут 30 сеансов управления полуметровой "рукой": схватятся за образец поручня, аналогичного тем, за которые держатся космонавты во время передвижения по внешней поверхности станции, а с помощью системы обратной связи экипаж сможет оценить усилия сжатия.

Трехрукий робот

Разработка и тестирование в условиях космоса руки-манипулятора является частью большого проекта по созданию робота — помощника космонавтов "Косморобот". Он должен содействовать экипажу при выходах в открытый космос с борта МКС: осматривать внешнюю поверхность станции, переносить грузы, подсвечивать фонарями зону работ, устанавливать и отсоединять оборудование.
 "Технические решения, заложенные в "Захват-Э", активно используются при разработке "Косморобота". Результаты эксперимента позволят выявить все нюансы работы наших приводов в орбитальных условиях и учесть их при создании летных образцов", — сказал Даляев.
Для передвижения по поверхности станции у "Косморобота" будет сразу три "руки", которыми он будет цепляться за поручни.
Разработкой робота занимаются ЦНИИ РТК, Ракетно-космическая корпорация "Энергия" (разработчик российских космических кораблей и оператор российского сегмента МКС), а также НПО "Андроидная техника" и другие компании. Испытания робота-помощника в космосе планируется начать в 2020 году.

[tnt22]

https://blogs.nasa.gov/stationreport/2018/04/06/iss-daily-summary-report-4062018/

ISS Daily Summary Report – 4/06/2018

Mobile Servicing System (MSS) SpX-14 Operations:

Спойлер

Overnight, the Robotics ground controllers released the Space Station Remote Manipulator System (SSRMS) from the SpaceX-14 Dragon Flight Releasable Grapple Fixture (FRGF). They performed a survey of the Dragon trunk and then unstowed the Special Purpose Dexterous Manipulator (SPDM) from Mobile Base System (MBS) Power Data Grapple Fixture 2 (PDGF2). The Robotics ground controllers configured the SSRMS and the SPDM for the start of the extraction of the Pump Flow Control Subassembly (PFCS) and the Material on ISS Experiment – Flight Facility (MISSE-FF) payloads from the Dragon Trunk. Later today, ground robotic controllers will extract MISSE-FF and the PFCS from the Dragon Trunk. PFCS will be temporarily stowed on the Enhanced ORU Temporary Platform (EOTP) Side 1 while MISSE will temporarily be stowed on EOTP Side 2.

[свернуть]

Plant Gravity Perception (PGP):

Спойлер

Today, the crew replaced Experiment Containers in the European Modular Cultivation System (EMCS). Ground Specialists have started powering up the Plant Gravity Perception experiment. Power up will continue through tomorrow at which time they will begin hydration. For this investigation, normal and mutated forms of thale cress, a model research plant, are germinated to support the study of the plants' gravity and light perception. Results provide insight into the plants' adaptation to a microgravity environment and supports efforts to grow plants for food on future space missions.

[свернуть]

Veg-03:

Спойлер

The crew watered the plants and harvested leaves from each plant to complete the Veg-03E investigation. The leaves were preserved and ins erted into cold stowage for later return to the Earth. Plants for the Veg-03F investigation will continue to grow. Veg-03 supports the proof-of concept for the Veggie plant growth chamber and the planting pillows. Future long duration space missions will require a fresh food supply grown in space to supplement crew diets.

[свернуть]

Team Task Switching:

Спойлер

A crewmember completed a Team Task Switching survey today. Crew members are often required to switch their attention from one task to another. If they struggle with those shifts, performance on the original task and the subsequent task can be affected. Additional impacts (e.g., on motivation) are also possible. The objective of the Team Task Switching investigation is to gain knowledge about whether or not crew members have difficulty in switching tasks and determine the impacts of these switches in order to both reduce any negative consequences and improve individual and team motivation and effectiveness.

[свернуть]

Invitrobone:

Спойлер

The crew configured EXPRESS Racks 6 and 8, then retrieved Invitrobone-1 and Invitrobone–2 from the Dragon vehicle and ins erted them into those racks, respectively. The Invitrobone investigation seeks to provide insight into the effect of the microgravity environment on bone turnover, to support development of more efficient countermeasures for astronauts.

[свернуть]

NanoRacks Module-66:

Спойлер

The crew installed NanoRacks Module-66 into the NanoRacks Platform-1 today. Alzheimer's disease, an irreversible neurodegenerative process, is characterized by formation of neurofibrillary tangles of tau protein and plaques, or clumps of amyloid beta peptide, that kill brain cells. Research suggests that an intermediate stage in fibril formation is ten times more toxic and may play a greater role in cell death and development of Alzheimer's disease. This investigation examines fibril formation and beta amyloid peptides in microgravity using a fluorescence spectrometer. Results could lead to ways to slow down the rate at which Alzheimer's disease affects the brain or to eliminate toxic effects of beta amyloid peptide.

[свернуть]

Multi-Use Variable-G Platform (MVP):

Спойлер

The crew installed the Drosophila module and food cylinders in to the MVP today. MVP is used to conduct research in space with a wide variety of sample types, such as fruit flies, flatworms, plants, fish, cells, protein crystals and many others. It includes 2 internal carousels that simultaneously can produce up to 2 g of artificial gravity. Each carousel hosts 6 separate removable experiment modules on each carousel. Video and still imagery, including microscopy, can be included. The platform provides temperature and humidity controls and monitors and records oxygen and carbon dioxide levels.

[свернуть]

Made in Space Fiber Optics (MSFO):

Спойлер

The crew se t up the MSFO locker and cables in preparation for 3D print operations in the Manufacturing Device. This investigation demonstrates the merits of manufacturing fiber optic filaments in microgravity.

[свернуть]

Microgravity Science Glovebox (MSG):

Спойлер

Today the crew configured the MSG Life Science hardware to support Metabolic Tracking and Micro-11 operations.

[свернуть]

On-Board Training (OBT) Medical Emergency:

Спойлер

This onboard training provides the opportunity for the 54S crew to review procedures, hardware and communication methods necessary to manage a medical emergency onboard ISS. Emergency medical equipment was deployed and the crew practiced Cardiopulmonary Resuscitation (CPR) positioning to ensure familiarity with procedure execution should a medical emergency occur.

[свернуть]

Public Affairs Office (PAO) Events:

Спойлер

Feustel and Kanai participated in two live-to-air PAO events today. Kanai's event was with Toho University's Junior and Senior High Schools in Narashino City, Japan. Feustel's event, was with Queen's University in Kingston, Ontario.

[свернуть]

[tnt22]

Anton Shkaplerov‏ @Anton_Astrey 5 ч. назад

Часто спрашивают: "Как вы связываетесь с семьей?". У каждого на #МКС есть спутниковый телефон. Можно звонить в любую точку мира, достаточно знать номер телефона и иметь свободное время. А по выходным у нас проходят приватные видеоконференции, похожие на звонки через Skype

[tnt22]

Anton Shkaplerov‏ @Anton_Astrey 2 ч. назад

Свежий #Байкал. Наступает весна - лёд трескается, это можно разглядеть даже на фотографии, если увеличить. // Ice Melting on Lake #Baikal.

[tnt22]

Oleg Artemyev‏Подлинная учетная запись @OlegMKS 3 ч. назад

Я уже говорил, что 4 апреля к нам прилетел «грузовик» #Dragon, доставив более двух тонн научной техники и различных грузов. А вот и некоторые подробности в виде вкусняшек! Это мороженое, да. Вкуснотиииища!

[tnt22]

https://blogs.nasa.gov/stationreport/2018/04/09/iss-daily-summary-report-4092018/

ISS Daily Summary Report – 4/09/2018

Plant Gravity Perception (PGP):

Спойлер

The crew began the final Plant Gravity Perception experiment run on Saturday with three of the Experiment Containers maintaining power. For this investigation, normal and mutated forms of thale cress, a model research plant, are germinated to support the study of the plants' gravity and light perception. Results provide insight into the plants' adaptation to a microgravity environment and supports efforts to grow plants for food on future space missions.

[свернуть]

Veg-03:

Спойлер

Today the crew completed the final harvest of the VEG-03 plants today. Sample leaves were preserved and ins erted into cold stowage for later return to the Earth. Veggie facilities were cleaned and set up to dry. Veg-03 supports the proof-of concept for the Veggie plant growth chamber and the planting pillows. Future long duration space missions will require a fresh food supply grown in space to supplement crew diets.

[свернуть]

Human Research Program (HRP) Collections (Microbial Tracking, Biochemical Profile, and Repository):

Спойлер

A 53S crewmember completed saliva collections yesterday for his Flight Day (FD) 120 session that supports the Microbial Tracking-2 (MT-2) experiment. 54S crewmembers collected blood and urine samples yesterday and today for their FD15 sessions that supports the Biochem Profile and Repository investigations.

[/li]
• The Microbial Tracking-2 (MT-2) investigation series continues the monitoring of the types of microbes that are present on the ISS. It seeks to catalog and characterize potential disease-causing microorganisms onboard the ISS. Crew pre-flight, in-flight, and post-flight samples and environmental samples are collected to identify any associations between the microbial contents of the samples, as well as potential health effects.
• The Biochemical Profile experiment tests blood and urine samples obtained from astronauts before, during, and after spaceflight. Specific proteins and chemicals in the samples are used as biomarkers, or indicators of health. Post-flight analysis yields a database of samples and test results; which scientists can use to study the effects of spaceflight on the body.
• Repository is a storage bank used to maintain biological specimens over extended periods of time and under well-controlled conditions. The repository supports scientific discovery that contributes to our fundamental knowledge in the area of human physiological changes and adaptation to a microgravity environment and provides unique opportunities to study longitudinal changes in human physiology spanning many missions.


[свернуть]

Radiation Dosimetry Inside ISS-Neutron (RaDI-N):

Спойлер

After retrieving the RaDI-N hardware from a Russian crewmember, a USOS crewmember deployed eight Space Bubble Detectors on a Node 3 rack front today. This Canadian Space Agency (CSA) investigation measures neutron radiation levels while onboard the ISS. Bubble detectors used as neutron monitors are designed to only detect neutrons and ignore all other radiation.

[свернуть]

Earth Knowledge Acquired by Middle School Students (EarthKAM):

Спойлер

The crew reactivated the EarthKAM equipment in Node 1 for an imaging session yesterday. EarthKam allows thousands of students to photograph and examine Earth from a space crew's perspective. Using the Internet, the students control a special digital camera mounted on-board the International Space Station. This enables them to photograph the Earth's coastlines, mountain ranges and other geographic items of interest from the unique vantage point of space. The EarthKAM team then posts these photographs on the Internet for viewing by the public and participating classrooms around the world.

[свернуть]

Microgravity Science Glovebox (MSG) Video Upgrade Equipment (VUE):

Спойлер

Troubleshooting steps for the failed MSG VUE were unsuccessful today. Ground experts are evaluating the results and developing additional steps to resolve the issue.

[свернуть]

Acoustic Monitoring:

Спойлер

Crew-worn acoustic monitors were se t up and distributed to 3 crewmembers.  These will be worn for 24 hours before they will be deployed to static locations within ISS. The acoustic monitoring sessions gather data to characterize any changes to the acoustic environment throughout the station.

[свернуть]

Waste and Hygiene Compartment (WHC) Pump Separator Replacement:

Спойлер

Today the crew reported that the Pump Separator was making unusual noises and that the Check Pump Separator indicator light could no longer be cleared using troubleshooting procedures. Ground specialists declared the hardware failed and the crew completed the Removal and Replacement (R&R) using an on-board spare. This failed pump separator will be returned to the ground at a future date for inspection in order to determine the cause of failure. After the R&R, the Pump Separator and WHC system is performing nominally.

[свернуть]

Dragon Cargo Operations:

Спойлер

This weekend, the crew completed several hours of additional Dragon cargo operations to include the transfer of the Invitrobone 1 and 2 payloads. Today, the crew conducted additional cargo transfers and removed the Dragon Lithium Hydroxide (LiOH) Filter Bag located at the forward starboard quadrant of the Dragon Capsule. This LiOH filter bag provided Carbon Dioxide (CO2) scrubbing from the Dragon vehicle during free flight. A new LiOH Filter Bag will be installed into Dragon prior to departure with CO2 scrubbing during berthed ops via the joint atmosphere. With today's activities, Dragon cargo operations are complete until later this week.

[свернуть]

Dragon Robotic Operations:

Спойлер

Friday night Robotics Ground Controllers removed the new Pump Flow Control Subsystem (PFCS) and Materials International Space Station Experiment (MISSE) from the Dragon trunk. Saturday, the Robotics Ground Controllers walked the Space Station Remote Manipulator System (SSRMS) off Node 2 onto Mobile Base System (MBS) Power Data Grapple Fixture (PDGF)3, unstowed the SPDM and translated the Mobile Transporter (MT) from Worksite 4 (WS4) to WS2. Sunday ground controllers used Special Purpose Dexterous Manipulator (SPDM) to temporarily remove the spare Direct Current Switching Unit (DCSU) from Express Logistics Carrier (ELC)-2 for the MISSE worksite clearance. MISSE was installed on ELC-2, and heater power applied. SPDM was then used to reinstall the spare DCSU on ELC-2. This evening the ground robotic specialist will be configuring for PFCS R&R on Tuesday. First, the MT will be translated from WS2 to WS8. Next SPDM will unlock and open the Multilayer Insulation (MLI) cover over the PFCS. Finally SPDM will remove the new PFCS from the Flight Support Equipment (FSE).

[свернуть]
