Новости МКС

[tnt22]

William Harwood‏ @cbs_spacenews 3 ч. назад

EVA-45: Airlock repressurization began at 2:22pm EDT, officially ending a 6-hour 26-minute spacewalk


3 ч. назад

EVA-45: This was the 204th ISS spacewalk, the 9th so far this year, the 4th for Bresnik and the 2nd for Vande Hei


3 ч. назад

EVA-45: Total station EVA time now stands at 1,271 hours and 36 minutes, or 53 days

[tnt22]

William Harwood‏ @cbs_spacenews 3 ч. назад

EVA-45: Airlock repress held up briefly when Bresnik had a bit of trouble clearing his ears; repress then resumed at a slower rate


ISS Updates‏ @ISS101 2 ч. назад

Pressure equalization is complete. @astro_paolo is wearing protective gear to secure the camera light which uses a thermal paint that tends to flake off & is not particularly healthy.

[tnt22]

[tnt22]

ISS Updates‏ @ISS101 2 ч. назад

There goes the light, @AstroKomrade & @Astro_Sabot are next.

[tnt22]

Марк

Рэндольф

[tnt22]

ISS Updates‏ @ISS101 2 ч. назад

Both spacewalkers safely back inside the Station after another very productive day outside. EVA-46 by @AstroKomrade & @AstroAcaba is scheduled for October 18.

Спойлер

[свернуть]

[tnt22]

Фотоконтроль перчаток



[tnt22]

Снимают перчатки


С\нимают гермошлемы


[tnt22]

Картинка с МКС прервана (в телетрансляции), хотя имеется в ЦУП-Х (верхняя часть фото, правый и левый углы) - с астронавтов снимают скафандры


На этом НАСА завершает трансляцию

[tnt22]

Chris B - NSF‏ @NASASpaceflight 3 ч. назад

EVA-45 Concludes! PET 6 hrs 26 mins Second of a trio of EVAs. EVA-46 is next week.

EVA-45 Coverage: https://forum.nasaspaceflight.com/index.php?topic=43844.0 ...

Article covering the EVAs: https://www.nasaspaceflight.com/2017/10/spacewalkers-maintenance-stations-robotic-arm/ ... - by @Space_Pete

Спойлер

[свернуть]

Spacewalkers continue LEE tasks on station's robotic arm

[tnt22]

https://blogs.nasa.gov/spacestation/2017/10/10/astronauts-back-inside-station-after-second-spacewalk/

Astronauts Back Inside Station After Second Spacewalk
Posted on October 10, 2017 at 2:29 pm by Mark Garcia.


Astronaut Mark Vande Hei wraps up lubrication work on the latching end effector of the Canadarm2 robotic arm.

Expedition 53 Commander Randy Bresnik and Flight Engineer Mark Vande Hei of NASA completed a 6 hour, 26 minute spacewalk at 2:22 p.m. EDT. The two astronauts lubricated components of the new latching end effector they installed in the previous spacewalk on the Canadarm2 robotic arm and replaced a faulty camera system.

Спойлер

They also completed a variety of additional tasks, including replacing a smudged lens cover and removing two handrails from outside the tranquility module in preparation for a future wireless antenna installation.

This was the second of three spacewalks planned for October. Bresnik will also lead the next spacewalk Oct. 18 joined by Flight Engineer Joe Acaba to continue the lubrication of the new end effector and to replace another camera system on the Destiny Lab.

Today's spacewalk was the fourth for Bresnik's career and the second for Vande Hei. The Oct. 18 spacewalk will mark the third of Acaba's career.

For more information about the International Space Station, visit www.nasa.gov/station.

This entry was posted in Expedition 53 and tagged European Space Agency, International Space Station, NASA, Roscosmos, spacewalk on October 10, 2017 by Mark Garcia.

[свернуть]

[tnt22]

http://spaceflight101.com/iss/us-eva-45-successfully-completed-outside-iss/

Robotic Arm Lubrication, Camera Replacement & More – Back-to-Back EVA Success for ISS Astronauts
October 10, 2017

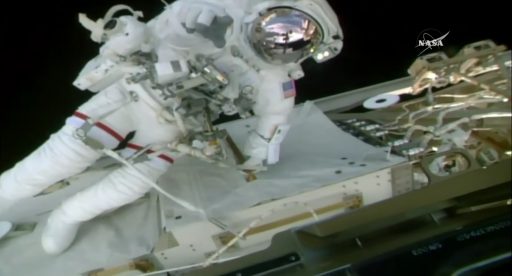

International Space Station crew members Randy Bresnik and Mark Vande Hei checked off a busy task list on Tuesday during the second of three spacewalks planned outside the orbiting laboratory this month to tackle a number of repair and outfitting tasks. Working on the exterior of ISS for six and a half hours, the pair dealt with the replacement of broken cameras, lubrication on the Station's robotic arm and various preparatory tasks for future robotic and spacewalk efforts.

Спойлер

Astronaut Randy Bresnik viewed through a newly installed camera group during Tuesday's EVA – Photo: NASA TV

Tuesday's EVA, the 204th in support of ISS Assembly & Maintenance, ran six hours and 26 minutes and accomplished all primary objectives plus two get-ahead tasks as Bresnik and Vande Hei carried the momentum fr om last Thursday's EVA success into the new week.

Randy Bresnik, completing the fourth EVA in his career, now stands at a total EVA time of 25 hours and 11 minutes while Mark Vande Hei stepped into the void for the second time, now with 13 hours and 21 minutes of EVA time under his belt. It was the ninth spacewalk of 2017. All in all, the 204 ISS spacewalks have totaled 1,272 hours of work.


Canadarm2 – the Station's prime robotic asset – Photo: NASA

Last Thursday's EVA revolved around the major task of replacing a partially failed Latching End Effector (LEE) on the Station's robotic arm that had encountered a motor stall in August and was no longer capable of forming an electrical/data connection with any objects it grappled. Having been on active duty aboard ISS for over 16 years, this particular effector had been operated over 400 times as part of Canadarm2's varied tasks that include capturing visiting vehicles, moving external equipment and assisting the Dextre robot in maintenance tasks.

Working for six hours and 55 minutes on Thursday, Bresnik and Vande Hei replaced the degraded LEE-A with an end effector formerly part of a temporary payload holding platform which had only been used 14 times over its tenure on ISS and was considered a viable spare to support Canadarm2 operations for years to come. However, in order to finalize the arm repair, lubrication was needed on all moving parts of the new LEE-A – representing one of the core tasks of the remaining two October EVAs.

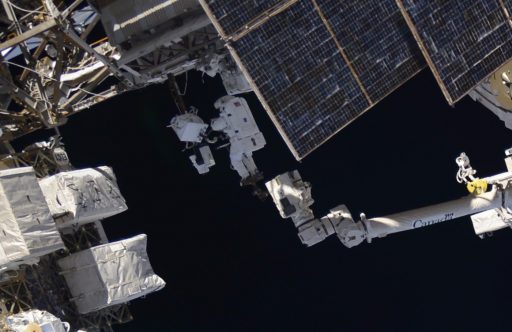

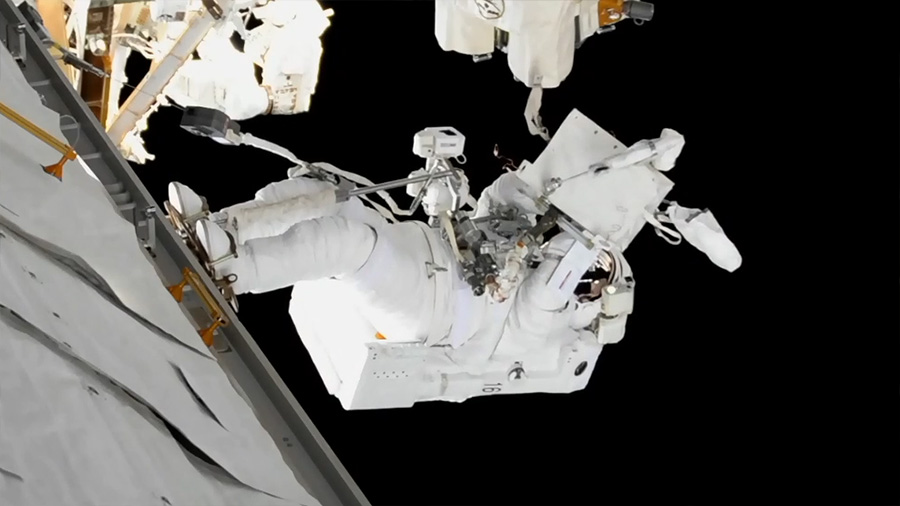

Mark Vande Hei riding the Robotic Arm during EVA-45 – Photo: Sergey Ryazanskiy

Bresnik and Vande Hei officially started U.S. EVA-45 at 11:56 UTC on Tuesday after the usual multi-hour process of getting into their Extravehicular Mobility Units, pre-breathing pure oxygen to purge nitrogen fr om their blood and depressurizing the airlock in methodical fashion to permit final leak checks on the suits. Heading out the door at orbital sunrise, the two spacewalkers went through the usual verifications of tethers and suit systems before entering the EVA task list – unlike last week's walk that revolved around a single task, Tuesday's EVA had a multi-point list in store for the crew.

Randy Bresnik started his 4th career spacewalk by locking down a handle on a high-pressure nitrogen tank on the airlock before fetching a foot restraint and moving over to the Destiny laboratory where External Stowage Platform 1 is located – the very first stowage pallet delivered to ISS, having been on orbit since 2001. There, he set up shop and demated a heater cable from a Pump Flow Control Subassembly (PFCS) that was to be rotated by 90° to properly position a vent port for a future ammonia vent from the unit before it can be installed as a spare.

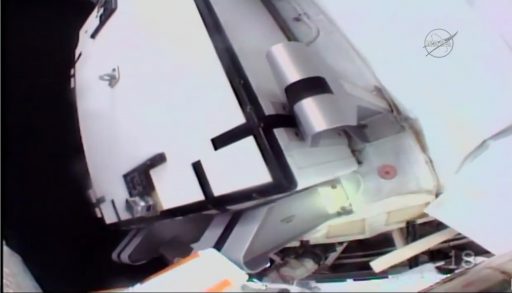

PFCS after rotation – Photo: NASA TV

Meanwhile, Mark Vande Hei moved to familiar ground at the P1 truss wh ere most work took place last Thursday. He installed a Worksite Interface Socket on the new LEE-A of the robotic arm that enables it to host foot restraints needed by astronauts when taking a ride on the tip of the 18-meter long Canadarm2. Once the foot restraint was in place, EV-1 and EV-2 joined forces at ESP-1 since the PFCS rotation was a two-man job.

As the very first Orbital Replacement Unit delivered to ISS, the PFCS uses a Common Structural Interface (CSI) – essentially a primitive version of the Flight Releasable Attachment Mechanism (FRAM) that became standard on ISS for all but the earliest spare components. CSI, unlike the FRAM, can only be manipulated by spacewalkers and does not have the ability to provide power to whatever it is holding.


External TV Camera Group Architecture – Image: NASA

Rotation of the PFCS was a fairly quick task with the crew releasing the 200-Kilogram unit by turning a handle, then seating it back onto the CSI in the new orientation and latching it back in place. After being re-connected to heater power, the PFCS is now considered ready for its ammonia vent to prepare the spare for when its needed within the Station's Photovoltaic Thermal Control System.

The next task for the EVA was the replacement of a camera group at Camera Port 9 on the nadir side of the Station's Port Truss which had been exhibiting a pink hue for several years after a color wheel within the standard definition camera got stuck. For the camera replacement, EV-2 ingressed the robotic arm to be moved to Camera Port 9 by robotic operators Paolo Nespoli and Joe Acaba while Randy Bresnik retrieved the spare Camera, Light, Pan/Tilt Assembly (CLPA) from the airlock.

At the Camera Group, Vande Hei first removed the External HD Camera Assembly (EHDCA) that had been added to the camera group in September 2016 and was functioning properly.

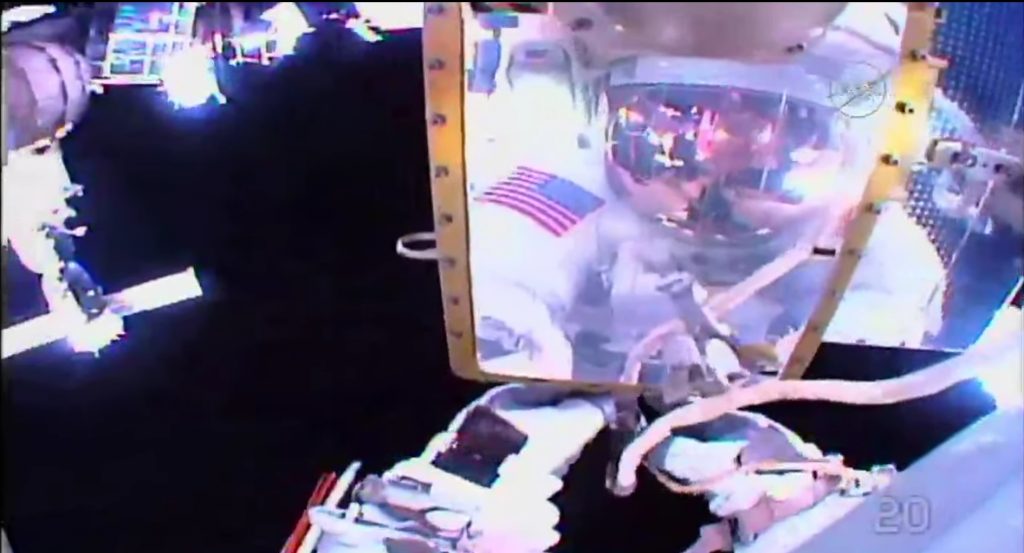

"Mirror Selfie" by Mark Vande Hei on the reflective surface of the HD Camera on CP9 – Photo: NASA TV


Mark Vande Hei Unbolts the failed CLPA – Photo: NASA TV

Next was the detachment of the entire CLPA by releasing two secondary and one primary structural bolt using the Pistol Grip Tool. The spare CLPA – handed over by Bresnik – was put in place through the reverse process, i.e. soft-docking the assembly via two guide pins & automatically connecting electrical/data interfaces through blind-mate connectors followed by driving the three bolts.

Vande Hei was unable to fully torque one of the two secondary bolts, but Mission Control was able to accept the installation with the primary bolt fully tightened and one out of two secondary bolts driven to torque. Re-installation of the EHDCA was trouble-free and Vande Hei connected the two power cables providing electricity for the HD camera and luminaire before giving Houston a GO to re-power the camera group, now with clear vision.


EV-2 in Position for LEE Lubrication – Photo: NASA TV


BLT & LEE-A – Photo: NASA TV

Continuing at a brisk pace, Vande Hei was maneuvered back to egress the arm and relocated the foot restraint onto the forward face of the truss while Randy Bresnik took the failed camera to the airlock and made quick work replacing a camera lens cover on the Mobile Transporter that had shown a smudge in its field of view for the past several months.

Randy Bresnik had to make an additional pass by the newly installed CP9 camera to release the pan/tilt locking lever that had been forgotten earlier on.

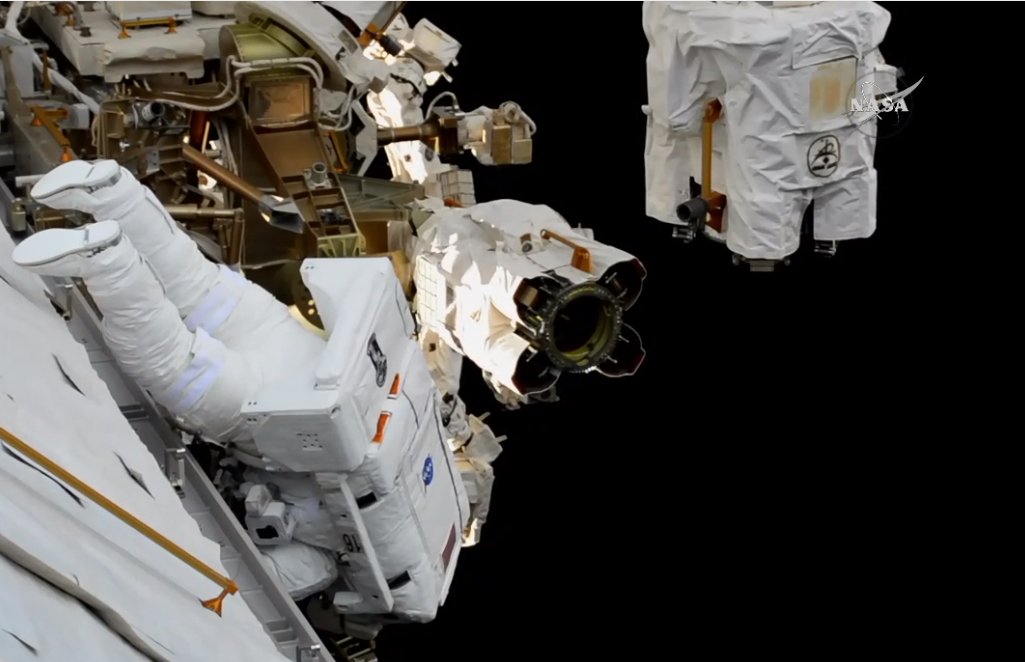

Staring down the barrel of Latching End Effector A, Mark Vande Hei used a grease gun and Ballscrew Lubrication Tool (BLT) to transfer Braycote vacuum grease onto the Central Rigidizing Ballscrew in the center of the LEE.

Next up were the four latch ballscrews, a task originally lined up for EVA-46. Although similar in nature to the central screw, the latch ballscrews are partially obscured from view, requiring Vande Hei to work mostly by feel when transferring grease onto the screws. ROBO operators Acaba and Nespoli assisted him by rotating the LEE-A in between lubrication runs to provide the best possible access to the latches.

Making good progress on the lubrication, Vande Hei managed to grease all four latch ballscrews, leaving only the linear bearing tracks and equalization brackets to be lubricated on EVA-46.


LEE Lubrication Areas – Image: NASA


Photo: NASA TV

While Vande Hei was dealing with the lengthy lubrication task, Randy Bresnik swiftly proceeded through his tasks, bundling up a protective cover and removing a WIF Socket from the POA LEE (formerly LEE-A). He then dropped off his foot restraint at External Stowage Platform 2, placed an ORU bag inside the airlock and translated around Node 1 and to the Node 3 endcone for his final primary task.

Using a Pistol Grip Tool, Bresnik removed a pair of hand rails to free up mounting points for the future installation of Advanced Wireless Antennas to improve the Station's capability of routing wireless video from external cameras and spacewalkers into the hard-line comm system of the complex.

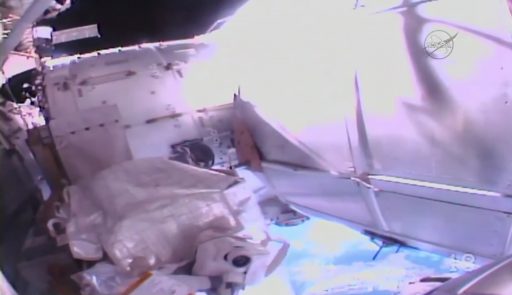

ELC-1 BCDU after its cover was removed – Photo: NASA TV

Proceeding with another get-ahead task, Bresnik translated port to Express Logistics Carrier 1 wh ere he removed a multilayer insulation blanket from a spare Battery Charge/Discharge Unit to make the Orbital Replacement Unit accessible for the Dextre robot to potentially save a future EVA should one of the active units require replacement.

Sharing the airlock with plenty of tool bags, Bresnik and Vande Hei ended the EVA in orderly fashion with the official close to EVA-45 coming at 18:22 UTC when the repressurization of Quest began.

Having managed to breeze through another EVA task list & two get aheads, Bresnik and Vande Hei will give teams on the ground the task of coming up with additional objectives for U.S. EVA-46, on the schedule for October 18 with Randy Bresnik again in the role of EV-1 and Joe Acaba stepping outside on his third career EVA, the first of this mission. Open tasks identified for EVA-46 are the installation of an HD Camera on CP3, the replacement of a camera group on CP13, finalizing the LEE-A lubrication, changing a fuse on the Dextre robot and preparing external spares for future robotic manipulation by removing protective covers.

[свернуть]

[tnt22]

Сергей Рязанский‏Подлинная учетная запись @SergeyISS 4 ч. назад

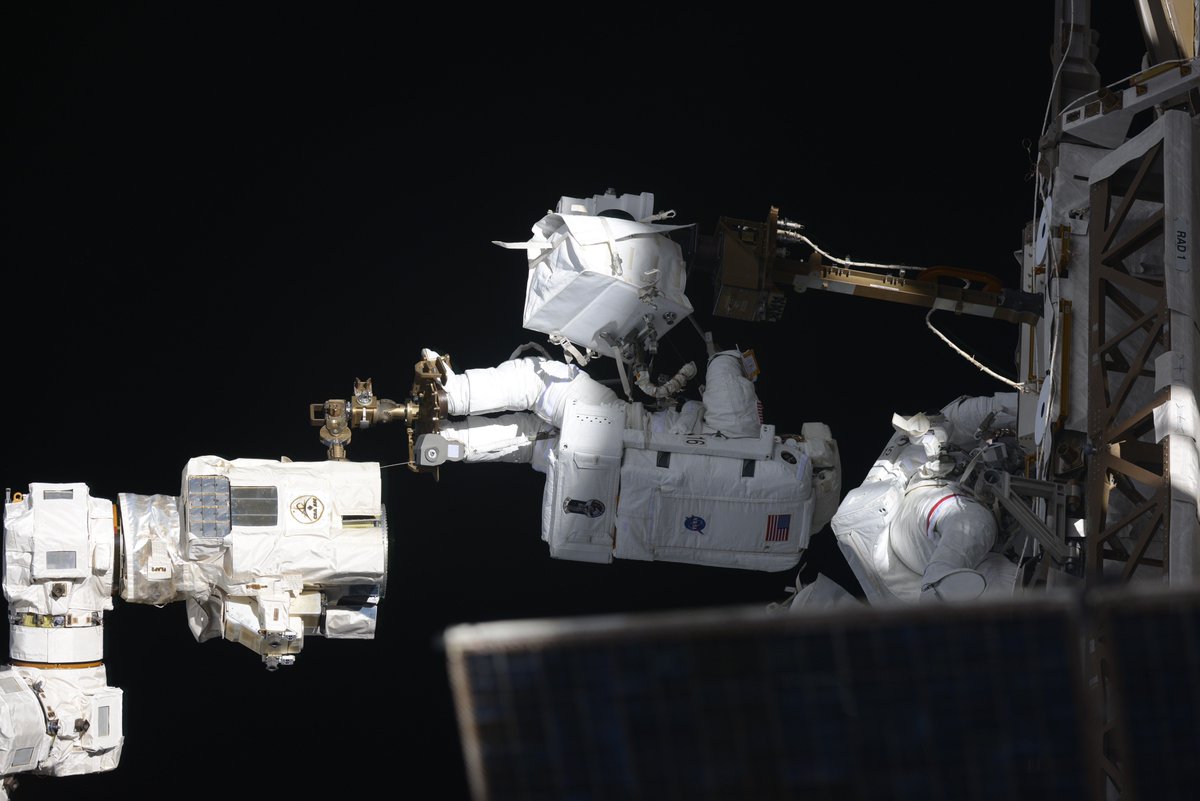

Прямо сейчас мои американские коллеги @AstroKomrade и @Astro_Sabot работают за пределами Международной космической станции



4 ч. назад

Hello, @AstroKomrade and @Astro_Sabot

[tnt22]

АНОНС

Intl. Space Station‏Подлинная учетная запись @Space_Station 2 ч. назад

Questions for Norishige Kanai, @Astro_Maker & @AntonAstrey? Use #askNASA! We'll answer live on @NASA TV tomorrow: https://www.nasa.gov/press-release/next-international-space-station-crew-available-for-news-conference-interviews ...

2017-10-11 21:00 ДМВ

[tnt22]

https://www.nasa.gov/press-release/next-international-space-station-crew-available-for-news-conference-interviews

Oct. 3, 2017
MEDIA ADVISORY M17-116

Next International Space Station Crew Available for News Conference, Interviews


NASA astronaut Scott Tingle and crewmates Anton Shkaplerov of the Russian space agency Roscosmos and Norishige Kanai of the Japanese Aerospace Exploration Agency (JAXA) will discuss their upcoming mission to the International Space Station in a news conference.
Credits: NASA

NASA astronaut Scott Tingle and crewmates Anton Shkaplerov of the Russian space agency Roscosmos and Norishige Kanai of the Japan Aerospace Exploration Agency (JAXA) will discuss their upcoming mission to the International Space Station in a news conference at 2 p.m. EDT on Wednesday, Oct. 11 at NASA's Johnson Space Center in Houston.

The news conference will be broadcast live on NASA Television and streamed on the agency's website, and the crew will be available for in-person or remote media interviews afterward.

Tingle, Shkaplerov and Kanai will launch to the space station aboard the Soyuz MS-07 spacecraft on Dec. 17 from the Baikonur Cosmodrome in Kazakhstan. They will join the station's Expedition 54 crew, and return to Earth in April 2018 as members of Expedition 55. This will be the first spaceflight for Tingle and Kanai, and the third for Shkaplerov.

Спойлер

Reporters who wish to participate by telephone must call Johnson's newsroom at 281-483-5111 no later than 1:45 p.m. on Wednesday, Oct. 11. To request credentials to participate in person or to schedule an interview, U.S. reporters must contact Johnson's newsroom by 5 p.m. Tuesday, Oct. 10. Those following the briefing on social media may ask questions using the hashtag #askNASA.

During a planned four-month mission, the station crew members will take part in about 250 research investigations and technology demonstrations not possible on Earth in order to advance scientific knowledge of Earth, space, physical and biological sciences. Science conducted on the space station continues to yield benefits for humanity and will enable future long-duration human and robotic exploration into deep space, including missions past the Moon and Mars.

A U.S. Navy captain, Tingle grew up in Randolph, Massachusetts, and earned a Bachelor of Science in mechanical engineering from Southeastern Massachusetts University in Dartmouth, now the University of Massachusetts Dartmouth, and a Master of Science in mechanical engineering from Purdue University in West Lafayette, Indiana. Following graduate school, Tingle spent three years with the Aerospace Corp., in El Segundo, California, as a technical staff member in its Propulsion Department. He was commissioned as a U.S. Navy officer in 1991, and accumulated more than 4,500 flight hours in 51 types of aircraft, 750 carrier arrestments and 54 combat missions. Tingle was selected in July 2009 as one of 14 members of the 20th NASA astronaut class. His training included scientific and technical briefings; intensive instruction in space station systems; spacewalks; robotics; physiological training; T-38 flight training; and water and wilderness survival training.

View Tingle's full biography at:

https://www.nasa.gov/astronauts/biographies/scott-d-tingle/biography

Follow Tingle on Twitter at:

@Astro_Maker

Follow Tingle on Instagram at:

@astro_maker

Learn more about the International Space Station and its crews at:

http://www.nasa.gov/station

-end-

Kathryn Hambleton
 Headquarters, Washington
 202-358-1409
kathryn.hambleton@nasa.gov
Megan Sumner
 Johnson Space Center, Houston
 281-483-5111
megan.c.sumner@nasa.gov

[свернуть]

Last Updated: Oct. 4, 2017
Editor: Katherine Brown

[tnt22]

https://spaceflightnow.com/2017/10/10/astronauts-stage-second-spacewalk-in-five-days/

Astronauts stage second spacewalk in five days
October 10, 2017 William Harwood

STORY WRITTEN FOR CBS NEWS & USED WITH PERMISSION

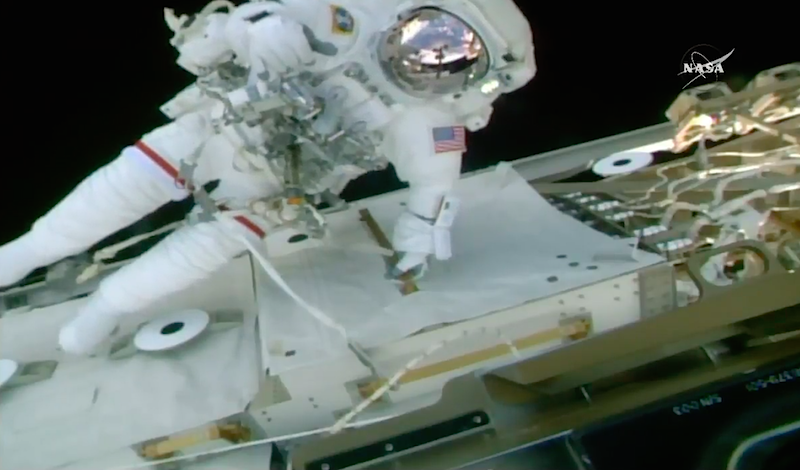

Astronaut Randy Bresnik seen in an image from a camera installed Tuesday by spacewalkers outside the International Space Station. Credit: NASA TV/Spaceflight Now

Five days after work to replace the grapple fitting on one end of the space station's robot arm, commander Randy Bresnik and flight engineer Mark Vande Hei ventured back outside the lab complex Tuesday to lubricate the new arm mechanism, to replace a degraded camera and to carry out a variety of lower-priority chores.

Спойлер

Floating in the Quest airlock, they switched their suits to battery power at 7:56 a.m. EDT (GMT-4) to officially begin the excursion. Six hours and 26 minutes later, back in the airlock, the outing came to an end with all objectives accomplished.

Last Thursday, the spacewalkers replaced the grapple fitting on one end of the Canadarm 2 space crane. Today, Vande Hei used a grease gun to lubricate the internal ball-joint screw mechanism in the replacement fitting, which is used to lock the arm onto visiting spacecraft and other components.

Running ahead of schedule, Vande Hei also carried out lubrication of four latches that originally were on the task list for a spacewalk next Thursday.

Lower priority tasks Tuesday included tightening a latch on an external oxygen tank; rotating a spare ammonia pump module to permit venting before it is relocated later; removal of two handrails to clear the way for installation of wireless antennas during a future spacewalk; replacement of a camera lens cover; and several other minor tasks.

"Hey,Sabot, see that bright glow down there on Earth?" Bresnik asked at one point, using Vande Hei's nickname. "Remember, they mentioned that Kirk Shireman, our space station program manager, his birthday's tomorrow? I think once safety heard how many candles were going to be on his cake, I think they mandated a birthday cake lighting practice today to make sure nobody got hurt tomorrow!"

"Ha," Vande Hei laughed. "That must be what it is."

Servicing the station's aging robot arm, or space station remote manipulator system — SSRMS — is is a critical priority given the space crane's central role in lab operations, moving astronauts and equipment to various work sites around the outpost and capturing visiting cargo ships.

Both ends of the seven-joint arm are fitted with latching end effectors, or LEEs, to grapple components, visiting vehicles, spacewalker foot restraints and the station itself. It can move inchworm fashion from one anchor point to another and ride a mobile transporter to reach various worksites along the lab's power truss.

Bresnik and Vande Hei replaced the LEE-A mechanism last Thursday while LEE-B will be replaced during a spacewalk early next year.

"Our primary objective is to make sure we get the SSRMS recovered and fully functional, " said Kenny Todd, space station operations integration manager. "The SSRMS played a critical role in the assembly of station, but it's playing just as critical a role today in the overall execution of the program when it coms to science, when it comes to inspections, when it comes to putting visiting vehicles on station.

"It's just an absolute critical asset that our Canadian partners have contributed. We're very excited about getting out and getting it fully recovered and functional."

If all goes well, Bresnik and Joe Acaba will carry out another spacewalk Oct. 18 to finish the arm lubrication work, to install another group of cameras and to carry out additional maintenance.

This was the 204th spacewalk devoted to station assembly and maintenance since construction began in 1998, the ninth so far this year, the fourth for Bresnik and the second for Vande Hei. Total station spacewalk time now stands at 1,271 hours and 36 minutes, or 53 days.

[свернуть]

[tnt22]

К юбилею Договора о Космосе

Outer Space Treaty at 50

NASA

Опубликовано: 10 окт. 2017 г.

Astronauts on board the International Space Station salute the 50th anniversary of the Outer Space Treaty. NASA works with the United Nations to support the peaceful exploration of space.

(1:24)

[tnt22]

https://www.nasa.gov/press-release/nasa-to-televise-international-space-station-cargo-ship-launch-docking-0

Oct. 10, 2017
MEDIA ADVISORY M17-122

NASA to Televise International Space Station Cargo Ship Launch, Docking


NASA Television will provide live coverage of the launch and docking of a Russian cargo spacecraft delivering almost three tons of food, fuel and supplies to the International Space Station

NASA Television will provide live coverage of the launch and docking of a Russian cargo spacecraft delivering almost three tons of food, fuel and supplies to the International Space Station beginning at 5:15 a.m. EDT Thursday, Oct. 12.

Launch of the unpiloted Russian Progress 68 is scheduled for 5:32 a.m. (3:32 p.m. Baikonur time) from the Baikonur Cosmodrome in Kazakhstan.

The spacecraft is set to dock to the Pirs Docking Compartment on the Russian segment at 8:56 a.m. Docking comes just three and a half hours, or two orbits of Earth, after launch to demonstrate an expedited capability for potential use on future Russian cargo and crew launches. NASA TV coverage of rendezvous and docking will begin at 8:15 a.m. Progress 68 will remain docked at the station for more than five months before departing in March for its deorbit into Earth's atmosphere.

Спойлер

Keep up with the International Space Station, and its research and crews, at:

http://www.nasa.gov/station

Get breaking news, images and features from the station on Instagram and Twitter:

http://instagram.com/iss

http://www.twitter.com/Space_Station

-end-

Kathryn Hambleton
 Headquarters, Washington
 202-358-1100
kathryn.hambleton@nasa.gov
Gary Jordan
 Johnson Space Center, Houston
 281-483-5111
gary.j.jordan@nasa.go

[свернуть]

Last Updated: Oct. 10, 2017
Editor: Katherine Brown

[tnt22]

https://blogs.nasa.gov/stationreport/2017/10/10/iss-daily-summary-report-10102017/

ISS Daily Summary Report – 10/10/2017
Posted on October 10, 2017 at 4:00 pm by HQ.

USOS Extra Vehicular Activity (EVA) #45:

Спойлер

Today Randy Bresnik (as EV1) and Mark Vande Hei (as EV2) successfully performed US EVA #45 with a Phased Elapsed Time (PET) of 6:26. The primary goal of today's EVA was to Remove and Replace (R&R) the External Television Camera Group (ETVCG) located at Camera Port 9 (CP9) and to lubricate the newly installed Latching End Effector (LEE) A on the Space Station Robotic Manipulator System (SSRMS). The LEE A was installed onto the SSRMS last week during USOS EVA #44. Additional tasks accomplished include: Airlock High Pressure Gas Tank (HPGT) handle tie back, rotation of the Pump/Flow Control Subassembly (PFCS), R&R of the Mobile Base System (MBS) mast Camera/Light/PTU Assembly (CLPA) lens cover, removal of a handrail from Node 3, and BDCU MLI Removal.

[свернуть]

At Home in Space:

Спойлер

The crew took photographs today to document the current on-orbit ISS culture. This Canadian Space Agency investigation assesses culture, values, and psychosocial adaptation of astronauts to a space environment shared by multinational crews on long-duration missions. It is hypothesized that astronauts develop a shared space culture that is an adaptive strategy for handling cultural differences and they deal with the isolated confined environment of the spacecraft by creating a home in space. At Home in Space also uses questionnaires to investigate individual and culturally related differences, family functioning, values, coping with stress, and post-experience growth.

[свернуть]

[tnt22]

Уточнение НАСА ТВ

October 11

ISS Expedition 54-55 B-roll and Crew News Conference (Tingle, Kanai, Shkaplerov) (Starts at 1:45 p.m.)
1:30 p.m. - 3:00 p.m.
