Bandwagon-2: 425 Project Fl3, 16 малых спутников – Falcon 9 (B1071.21) – Vandenberg SLC-4E – 21.12.2024 11:34 UTC

[zandr]

https://nextspaceflight.com/launches/details/7238

Bandwagon-2
Launch Time
Fri Dec 20, 2024 14:53 GMT+3
...
Vehicles
Landing Zone 4
Unknown Vehicle

Mission Details
Bandwagon-2
Bandwagon-2 is a dedicated rideshare mission by SpaceX. SpaceX's SmallSat Rideshare Program provides small satellite operators with regularly scheduled, dedicated Falcon 9 rideshare missions to mid-inclination orbits for ESPA class payloads for as low as $300,000 per mission, which includes up to 50kg of payload mass.

Low Earth Orbit  425 Project Flight 3
Launch of the third satellite in a contract of 5 reconnaissance satellites for the South Korean Defense Acquisition Program Administration (DAPA), with 1 satellite featuring an electro-optical infrared (EO/IR) telescope. The other 4 synthetic aperture radar (SAR) satellites are to be launched at a later date.
They will be launched to low Earth orbit between 600 and 700 km by 2025, enabling South Korea's military to observe the nuclear-armed neighbor's key military facilities every two hours with 30-50 centimeters resolution imagery, according to a 2019 report produced by the Korea Institute of S&T Evaluation and Planning.
The project is led by the Korean Agency for Defense Development (ADD) and Korea Aerospace Research Institute (KARI), with input from Korea Aerospace Industries (KAI), Hanwha Systems, and Thales Alenia Space.
Total Mass: 800.0 kg    Low Earth Orbit

Location
SLC-4E, Vandenberg SFB, California, USA

... и корейский разведывательный спутник.

[zandr]

NET December 20    29   - Bandwagon-2: 425 Project SAR satellite F3, CroCube, CTC 0, Hawk 11A, Hawk 11B, Hawk 11C, Jackal, LAZARsat, LizzieSat 2, SC1, Think Orbital, Tomorrow.io-3, Tomorrow.io-4, XCUBE-1 - Falcon 9-414 (LZ-4) - Vandenberg SLC-4E

[Liss]

Для порядку:

B2463/24 NOTAMN
Q) MMFR/QRDCA/IV/BO/W/000/999/
A) MMFO
B) 2412201153
C) 2412261009
D) 20 1153-1233, 21 1128-1208, 22 1106-1146, 23 1041-1121, 24 1016-1056,
  25 0951-1031, 26 0929-1009
E) DANGEROUS AREA DUE REENTRY ROCKET BANDWAGON-2 STAGE 1
  LATERAL LIMIT AREA FORMED BY THE UNION OF THE FLW POINTS:
  3002N 12002W
  3004N 11959W
  3003N 11943W
  2951N 11935W
  2930N 11943W
  2926N 12000W
  3000N 12000W
  3002N 12002W
  FIR OCEANICA MAZATLAN (MMFO)
F) SFC
G) UNL
CREATED: 13 Dec 2024 20:15:00
SOURCE: MMMXYNYX

[zandr]

На сутки вправо
https://nextspaceflight.com/launches/details/7238

Bandwagon-2
Launch Time
Sat Dec 21, 2024 14:28 GMT+3

[Pirat5]

2 варианта:  B1071.21 или  B1075.16

[zandr]

https://www.spacex.com/launches/mission/?missionId=bandwagon-2

SpaceX is targeting Saturday, December 21 at 3:34 a.m. PT for a Falcon 9 launch of the Bandwagon-2 mission to orbit from Space Launch Complex 4 East (SLC-4E) at Vandenberg Space Force Base in California. If needed, there is a backup opportunity on Sunday, December 22 at 3:12 a.m. PT.

A live webcast of this mission will begin about 15 minutes prior to liftoff, which you can watch here and on X @SpaceX. You can also watch the webcast on the new X TV app.

There are 30 payloads on board this mission for KOREA ADD, Arrow Science and Technology, Exolaunch, HawkEye 360, Maverick Space Systems, Sidus Space, Tomorrow Companies Inc., True Anomaly, and Think Orbital.

This will be the 21st flight of the first stage booster supporting this mission, which previously launched NROL-87, NROL-85, SARah-1, SWOT, Transporter-8, Transporter-9, NROL-146, and 13 Starlink missions. Following stage separation, the first stage will land on Landing Zone 4 (LZ-4) at Vandenberg Space Force Base...

B1071.21

[zandr]

Там же

LAUNCH AND LANDING
All Times Approximate
Hr/Min/Sec   Event
00:01:07   Max Q (moment of peak mechanical stress on the rocket)
00:02:15   1st stage main engine cutoff (MECO)
00:02:18   1st and 2nd stages separate
00:02:22   Stage 1 flip
00:02:26   2nd stage engine starts
00:02:31   1st stage boostback burn start
00:03:06   Fairing separation
00:03:21   1st stage boostback burn end
00:06:32   1st stage entry burn start
00:06:52   1st stage entry burn ends
00:07:49   1st stage landing burn start
00:08:15   1st stage landing

О полёте второй ступени и времени отделения ПН не сообщается.

[zandr]

https://celestrak.org/NORAD/elements/supplemental/

Bandwagon-2 Pre-Launch

Код Выделить Развернуть

2024-249A 70301 ADD425-2 96.11 45.41 574 570 0.0002569 -0.69
2024-249B 70302 ONDOSAT-OWL-3 94.84 45.01 512 509 0.0002526 -0.73
2024-249C 70303 CTC-0 94.83 45.00 513 508 0.0003705 -0.73
2024-249D 70304 PLEIADES-ORPHEUS 94.84 45.00 513 508 0.0003834 -0.73
2024-249E 70305 TOMORROW-S3 94.92 45.00 519 511 0.0005218 -0.73
2024-249F 70306 TOMORROW-S4 94.93 45.01 519 512 0.0005411 -0.73
2024-249G 70307 XCUBE-1 94.84 45.00 513 509 0.0002988 -0.73
2024-249H 70308 ONDOSAT-OWL-11 94.92 45.00 518 511 0.0005283 -0.73
2024-249J 70309 GITAI SC1 94.90 45.01 516 512 0.0003279 -0.73
2024-249K 70310 X49 94.90 45.01 516 511 0.0003382 -0.73
2024-249L 70311 HAWK-11C 94.87 45.01 514 511 0.0001994 -0.73
2024-249M 70312 LIZZIESAT-2 94.86 45.01 513 511 0.0001825 -0.73
2024-249N 70313 X47 94.89 45.01 515 512 0.0002777 -0.73
2024-249P 70314 THINK ORBITAL FLIGHT 2 94.87 45.01 514 511 0.0001802 -0.73
2024-249Q 70315 TANSTAAFL-002 94.89 45.00 515 511 0.0003051 -0.73
2024-249R 70316 HAWK-11A 94.87 45.01 514 511 0.0001923 -0.73
2024-249S 70317 HAWK-11B 94.89 45.01 515 512 0.0002363 -0.73Derived from individual Pre-Launch Bandwagon-2 state vectors for each object in the initial deployment, provided by SpaceX.

Launch: 2024-12-21 11:34:23.990 UTC.
Deployments: 2024-12-21 12:26:09.830 UTC to 2024-12-21 13:18:46.110 UTC.

Целевые орбиты аппаратов и время пуска.

[zandr]

Код Выделить Развернуть

https://www.youtube.com/watch?v=T0hdFic_KuA

On Go - SpaceX - Falcon 9 - Bandwagon-2 - SLC-4E - Vandenberg Space Force Base - Space Affairs Live
  SPACE AFFAIRS

[zandr]

SpaceX  @SpaceX
All systems are looking good for today's launch of the Bandwagon-2 mission to orbit from California. Propellant load is underway
http://spacex.com/launches/bandwagon-2

Заправляют РКН.

[zandr]

Две орбиты
Вы не можете просматривать это вложение.

[zandr]

Пуск!
Вы не можете просматривать это вложение.

[zandr]

Разделение ступеней подтверждено.
Вы не можете просматривать это вложение.

[zandr]

Посадка первой ступени
Вы не можете просматривать это вложение.
Ступень приземлилась.

[zandr]

Отключение двигателя второй ступени.
Вторая ступень со спутниками выведена на предварительную орбиту.

[zandr]

https://x.com/Raul74Cz/status/1870396834507542921

Raul  @Raul74Cz

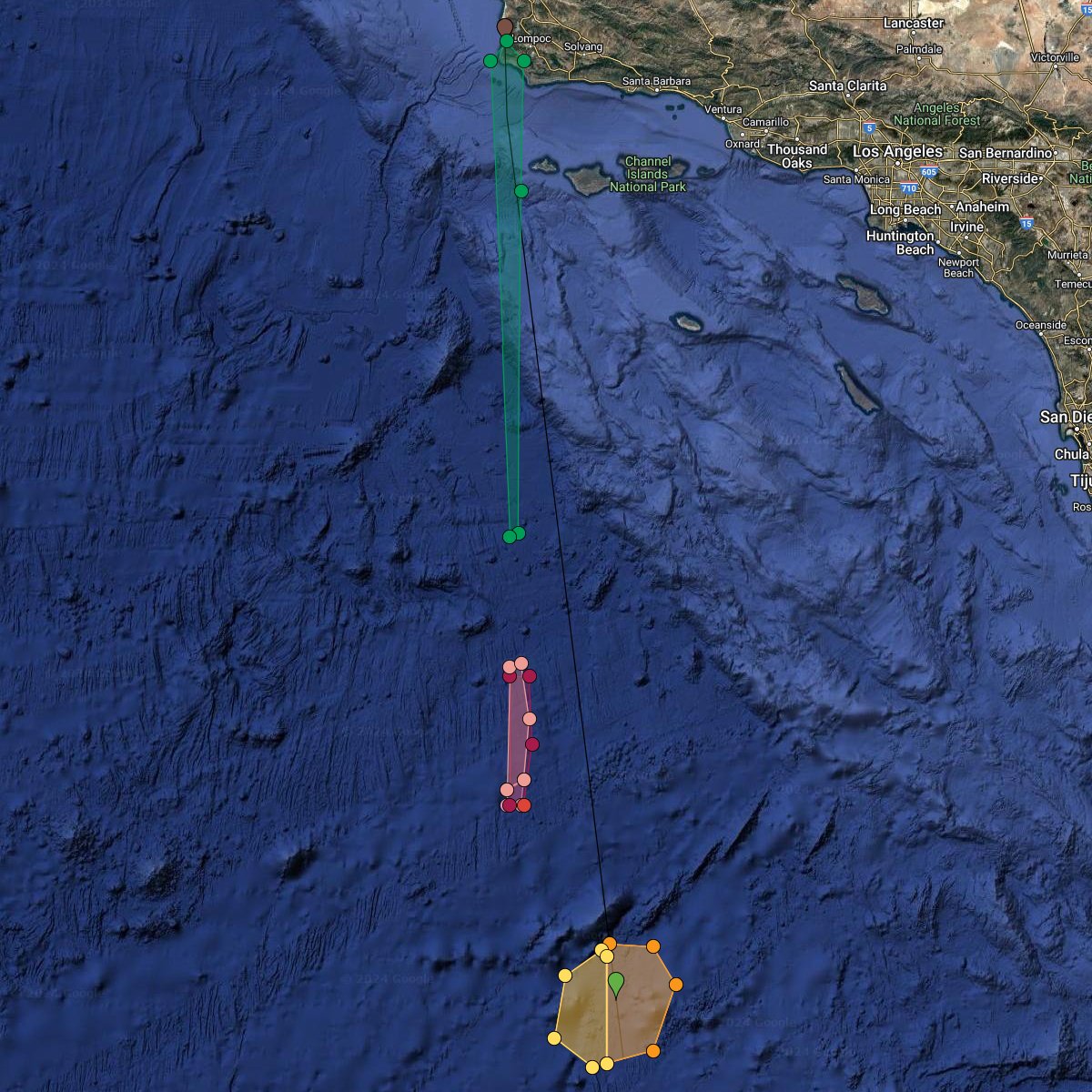

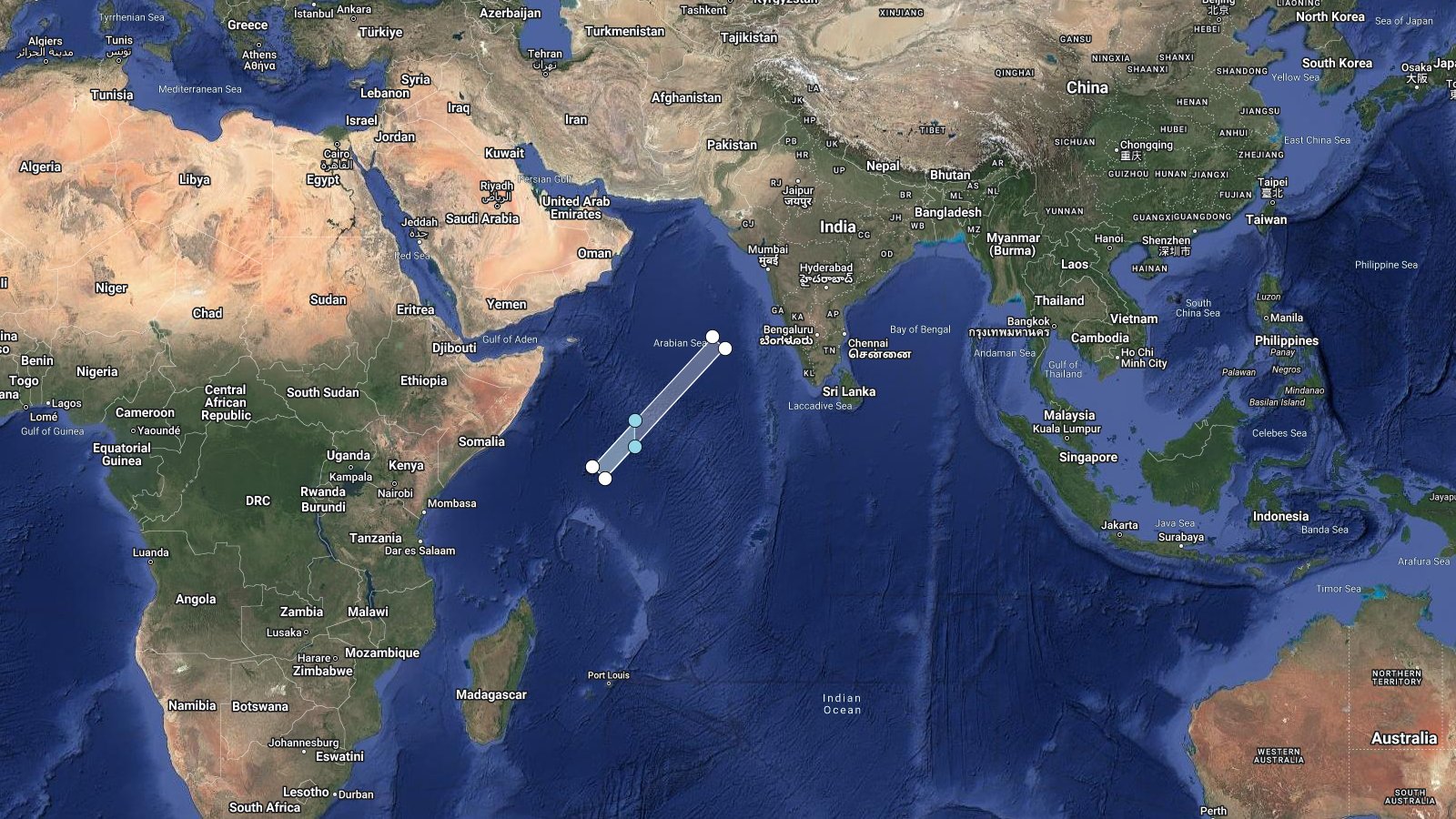

LHA map for #Bandwagon-2 mission from VSFB SLC-4E NET 21 Dec 11:34 UTC, alternatively 22 to 26 Dec based on issued NOTAM/NOTMARs. LZ-4 landing for booster. Estimated fairing recovery position approx. 546m downrange. Stage2 debris reentry  in Indian Ocean. http://bit.ly/LHA-45


Зоны падения.
Запуск - на ССО.
Затем, переход на 45 градусов, и после отделения ПН - свод ступени.

[mik73]

Код Выделить Развернуть

2024-249B 70302 ONDOSAT-OWL-3
...
2024-249H     70308    ONDOSAT-OWL-11

А вот тут пишут, что этих фитюлек (монгольские полукубсаты) в пуске должно быть с десяток. Тогда и "дырка" в нумерации понятна.  И там, по ссылке, кстати, еще несколько непомянутых упомянуто. Типа     DJIBOUTI-1B и еще парочки, не являющихся, вроде синонимами перечисленных выше.

Код Выделить Развернуть

2024-249Q 70315 TANSTAAFL-002

Прелесть какая. За такое название можно многое понять, простить и даже грокнуть.

Ну и они. конечно, 247-е, а не 249-е.

[Pirat5]

TANSTAAFL

TANSTAAFL = «Нет такой вещи, как бесплатный обед» (песня «Луна — суровая хозяйка»)

[Pirat5]

ONDOSAT-OWL-3
 ONDOSAT-OWL-11

всего их рекламируют 10шт, №03-12

[Pirat5]

ещё обещают 2 турецких

Два турецких покеткуба Hello Space от одноимённой компании для Интернета вещей на базе сети LoRaWAN.  t.me/spacex_rus/66159

но есть ли они...
