Galaxy 35 & 36, MTG-I1 – Ariane 5 ECA (VA259) – Guiana SC ELA-3 – 13.12.2022 20:30 UTC

[zandr]

https://www.thalesgroup.com/en/worldwide/space/press-release/first-imaging-satellite-meteosat-third-generation-fleet-final-0

FIRST IMAGING SATELLITE IN METEOSAT THIRD GENERATION FLEET IN FINAL INTEGRATION PHASE PRIOR TO DEPARTURE FOR KOUROU
07 SEP 2022
 THALES ALENIA SPACE EARTH OBSERVATION METEOROLOGY WEATHER SATELLITES

MTG-I1 set to revolutionize weather forecasting in Europe

Cannes, September 7, 2022 – Thales Alenia Space, a joint venture between Thales (67%) and Leonardo (33%), as prime contractor for the Meteosat Third Generation (MTG) satellites, is currently carrying out the final integration phase on the MTG-I1 satellite. The MTG-I1 will soon depart for the Guiana Space Centre in Kourou, French Guiana, where its launch is scheduled for the end of 2022 onboard an Ariane 5 rocket.

MTG-I1 is the first imaging satellite in the Meteosat Third Generation program, which aims to improve weather forecasting in Europe and Africa. Designed as a follow-on to the Meteosat Second Generation (MSG) series, the MTG program is a collaborative venture between the European Space Agency (ESA) and EUMETSAT  to ensure the continuity of high-resolution weather monitoring beyond 2040. Built by Thales Alenia Space in cooperation with OHB, the MTG satellites will operate in geostationary orbit 36,000 km above the Earth and will have a life span of 8.5 years.

The MTG program comprises six satellites: four imaging satellites (MTG-I) and two atmospheric sounding satellites (MTG-S) capable of providing 3D maps of the atmosphere — a major technological breakthrough.

The MTG-I1 satellite is equipped with a flexible combined imager (FCI), a technological gem that can provide a full image of the Earth every 10 minutes (versus 15 minutes for the previous generation) and includes a fast mode capable of providing images of Europe every 2.5 minutes. With a spatial resolution of 0.5 to 1 km, the satellite will improve the reliability of weather forecasts over a timescale of minutes to hours.

Спойлер

The MTG-I1 is also equipped with an extremely sophisticated lightning imager (LI), the first of its kind in Europe. Developed by Leonardo,  the LI, made of four cameras, will be able to detect cloud-to-cloud and cloud-to-ground flashes in all potential scenarios (for example during both night and day). This unique instrument will further our knowledge of how lightning is generated and improve emergency population warnings as well as weather nowcasting, traffic control safety and climate change awareness.

This first satellite in the MTG series will become operational in orbit during 2023 and will be joined by three other imaging satellites and two sounding satellites between 2024 and 2030. Together, they will form a geostationary constellation operated by EUMETSAT that will represent a big step forward in terms of the monitoring of extreme weather.

Цитата

"The Meteosat Third Generation constellation will revolutionize weather forecasting and deepen our understanding of the climatic changes taking place today. By integrating spectral and lightning imagery data, the MTG program will enable earlier prediction of severe storms and other significant weather events, which pose a growing threat to communities" commented Pierre Armand, MTG Program Director for Thales Alenia Space.

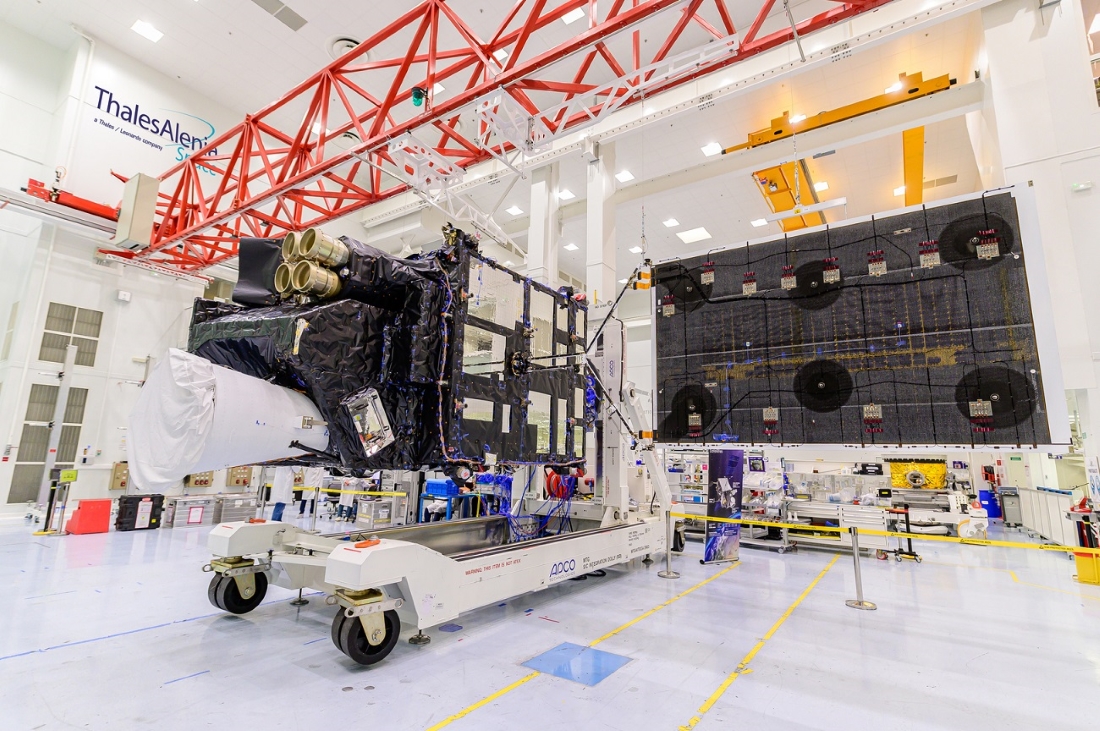

The MTG-I1 imaging satellite will leave the Thales Alenia Space site in Cannes in late September 2022. Special means will be deployed to transport the four-tonne satellite and its container to the Fos-sur-Mer port for shipment. The satellite is scheduled to be launched from the Guiana Space Centre in Kourou before the end of 2022, onboard an Ariane 5 rocket.

[свернуть]

[zandr]

https://nextspaceflight.com/launches/details/5056

Galaxy 35 & 36, MTG-I1
Launch Time
NET Dec 14, 2022
Flight VA259.

Rocket  Ariane 5 ECA

Спойлер

ESA
Status: Active
Price: $200.0 million
Liftoff Thrust: 15,120 kN
Payload to LEO: 21,000 kg
Payload to GTO: 10,500 kg
Stages: 2
Strap-ons: 2
Rocket Height: 53.0 m
Fairing Diameter: 5.4 m
Fairing Height: 17.0 m

[свернуть]

Mission Details
Galaxy 35 & 36
Intelsat's Galaxy 35 and Galaxy 36 satellites will operate in the upper portion of the C-band spectrum, a range of wireless radio frequencies that is used for critical telecommunications and data connectivity around the world. With this mission, Intelsat will meet the accelerated C-band spectrum clearing timelines established by the U.S. Federal Communications Commission (FCC).
Payloads: 2  Geostationary Transfer Orbit

MTG-I1
MTG (Meteosat Third Generation) is the follow-up system to Meteosat MSG series of geostationary satellites.
The satellite system will consist of a twin configuration of 3-axis-stabilised satellites: the Imaging mission satellite (MTG-I) and the Sounding mission satellite (MTG-S).
The payload proposed for MTG-I consists of the Flexible Combined Imager (FCI), Lightning Imager (LI), Data Collection System (DCS), and search and rescue (GEOSAR).
The FCI is expected to outperform MSG Spinning and Enhanced Visible and Infrared Imager (SEVIRI) observations on cloud, aerosol, moisture and fire by adding new channels in the solar domain and by improving temporal-, spatial-, and radiometric resolution. For instance, the FCI in its High Resolution Fast Imagery mode focusing on Europe/North Africa with a resolution down to 500 meters and a repeat cycle of 2.5 minutes will produce the greatest benefits to Nowcasting services.
Payloads: 1  Geostationary Transfer Orbit

Location
ELA-3, Guiana Space Centre, French Guiana, France

[zandr]

https://novosti-kosmonavtiki.ru/news/84924/

Новый европейский метеорологический спутник прибыл на космодром во Французской Гвиане
После двухнедельного путешествия через Атлантический океан первый спутник третьего поколения Meteosat (MTG-I1) прибыл во Французскую Гвиану. Теперь инженеры займутся его подготовкой к запуску на ракете Ariane 5 в декабре, сообщает AstroNews.
Сейчас спутник находится в чистом помещении, инженеры миссии проводят дальнейшие проверки и готовят его к запуску.
MTG-I1 является первым из шести спутников, образующих полноценную систему MTG, которая будет предоставлять важнейшие данные для прогнозирования погоды в ближайшие 20 лет.
Миссия будет состоять из двух спутников MTG-I и одного MTG для зондирования (MTG-S), которые будут работать совместно.
Остальные MTG заменят спутники первого набора, чтобы обеспечить непрерывность передачи данных как минимум на два десятилетия.
Миссия MTG будет предоставлять данные с более высоким разрешением, скорость передачи увеличится, а также будут доступны новые данные для загрузки.
Спутники MTG-I оснащены двумя совершенно новыми инструментами для получения высококачественных данных, которые позволят улучшить прогнозы погоды: «Гибким комбинированным формирователем изображений» (Flexible Combined Imager, FCI) и «Устройством для отображения молний» (Lightning Imager).
«Гибкий комбинированный формирователь изображений» имеет больше спектральных каналов и способен получать изображения с более высоким разрешением по сравнению с текущим прибором Meteosat второго поколения SEVIRI.
«Устройство для отображения молний» будет непрерывно отслеживать более 80% земного шара на предмет молниевых разрядов, происходящих либо между облаками, либо между облаками и землей.
Этот новый инструмент позволит обнаруживать сильные штормы на ранних стадиях. Его детекторы настолько чувствительны, что смогут обнаружить относительно слабую молнию даже при полном дневном свете.
Спутники MTG-I также несут две меньшие полезные нагрузки, которые будут использоваться для сбора данных с удаленных научных маяков и для поиска аварийных маяков.
А.Ж.

[zandr]

https://twitter.com/Arianespace/status/1596096566057893893

Arianespace  @Arianespace
...
 The new targeted launch date for #VA259 –initially scheduled for December 14- now is December 13.

[zandr]

https://blogs.esa.int/eolaunches/2022/11/21/mtg-i1-on-the-home-straight-for-launch/

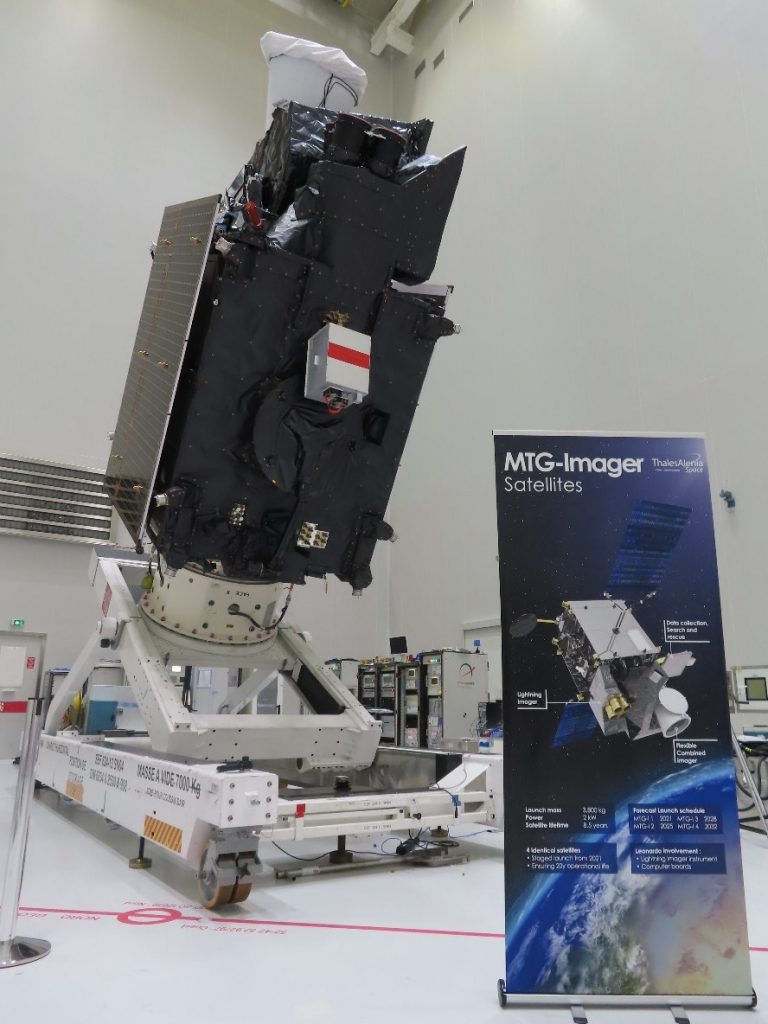

MTG-I1 ON THE HOME STRAIGHT FOR LAUNCH
21 November 2022
After six weeks of intense work, the first phase of the MTG-I1 launch campaign is coming to an end, paving the ground for the hazardous second phase of fuelling, before transferring the satellite to the Arianespace Launcher Authority, that is responsible for the final mating with the launcher in the third and last phase before launch.
A great acknowledgement goes to the dedication and professionalism of the industrial team of Thales Alenia Space and OHB.
The last two weeks were characterised by final system checks, advanced dry runs for the launch configuration and the training of launch countdown events involving both ESA and Eumetsat.
What is remarkable is that, despite the re-shuffling of activities due to the availability of manpower, the additional workload induced by Qualification Acceptance Review (QAR) closeout activities, and the re-test induced by NCR closeouts, the combined ESA-Eumesat industrial team could maintain the previously envisaged schedule of six weeks for this phase.

MTG-I1 inclined to perform the payload launch configuration. (Credits: ESA)
...

[zandr]

DutchSpace  @DutchSpace

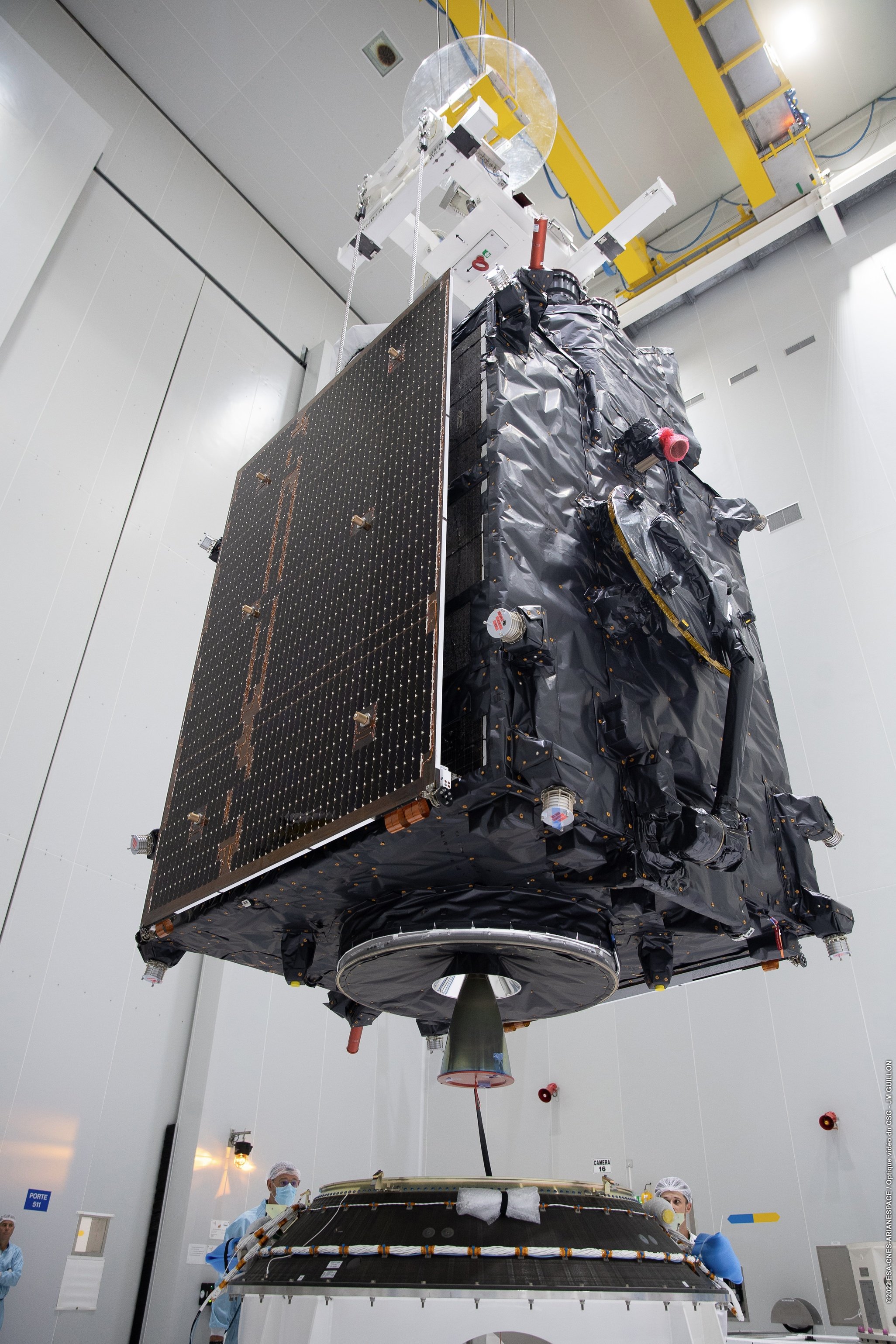

Nice view of MTG-I1 being mated onto the launch adapter

[zandr]

EUMETSAT  @eumetsat

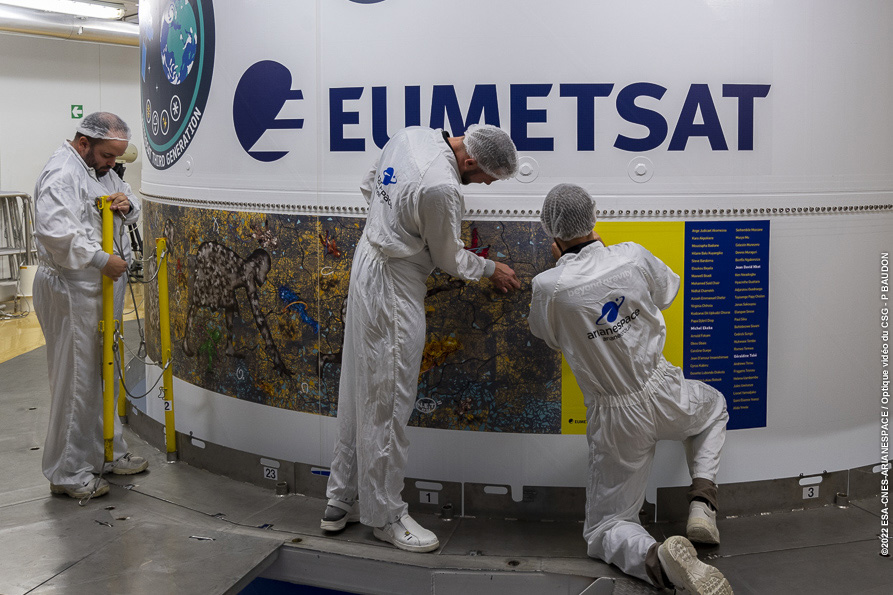

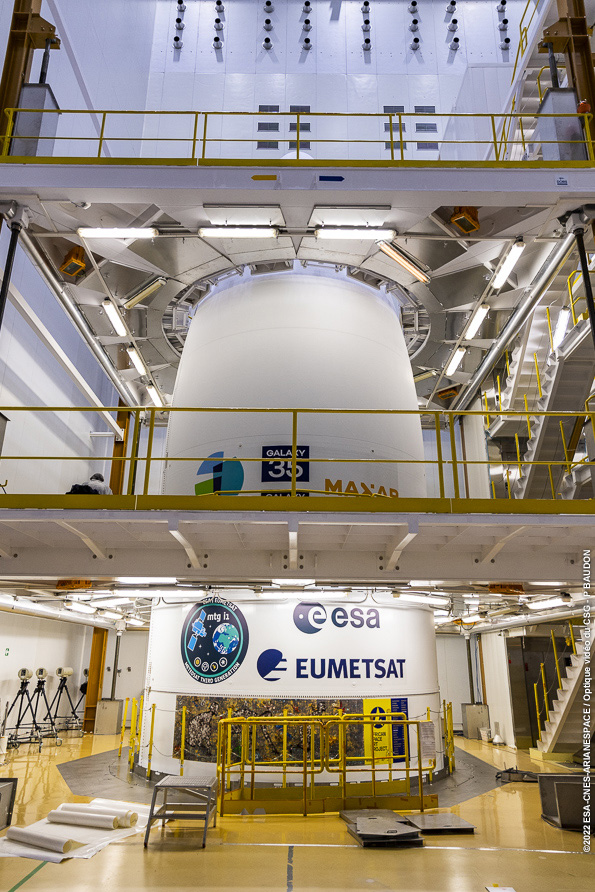

Getting all dressed up before the special event  Teams in #Kourou prepare the Ariane-5 launcher for lift off on 13 Dec, covering with an African work of art that will also be launched into space alongside #MTGI1 Take a look  More on the ASAP project: https://bit.ly/3yerfwE

[zandr]

Arianespace  @Arianespace
Want to know more about our Flight #VA259 with #Ariane5?
Then take a look at our Flight Kit!
 https://arianespace.com/mission/ariane-flight-va259/

[Pirat5]

Press-kit https://www.arianespace.com/wp-content/uploads/2022/12/VA259-launchkit-EN.pdf
total payload of approximately 10,972 kg.

MTG-I1
Perigee altitude: 251.8 km • Apogee altitude: 35830.2 km
Galaxy-35
Perigee altitude: 250.6 km. • Apogee altitude: 35915.2km
Galaxy-36
Perigee altitude: 251.2 km • Apogee altitude: 35836.5 km

Inclination of 6° degrees for all three satellites

MTG-I1 = 3.76 tonnes
Galaxy35 + Galaxy36 = 6.3 tonnes

[zandr]

Arianespace  @Arianespace

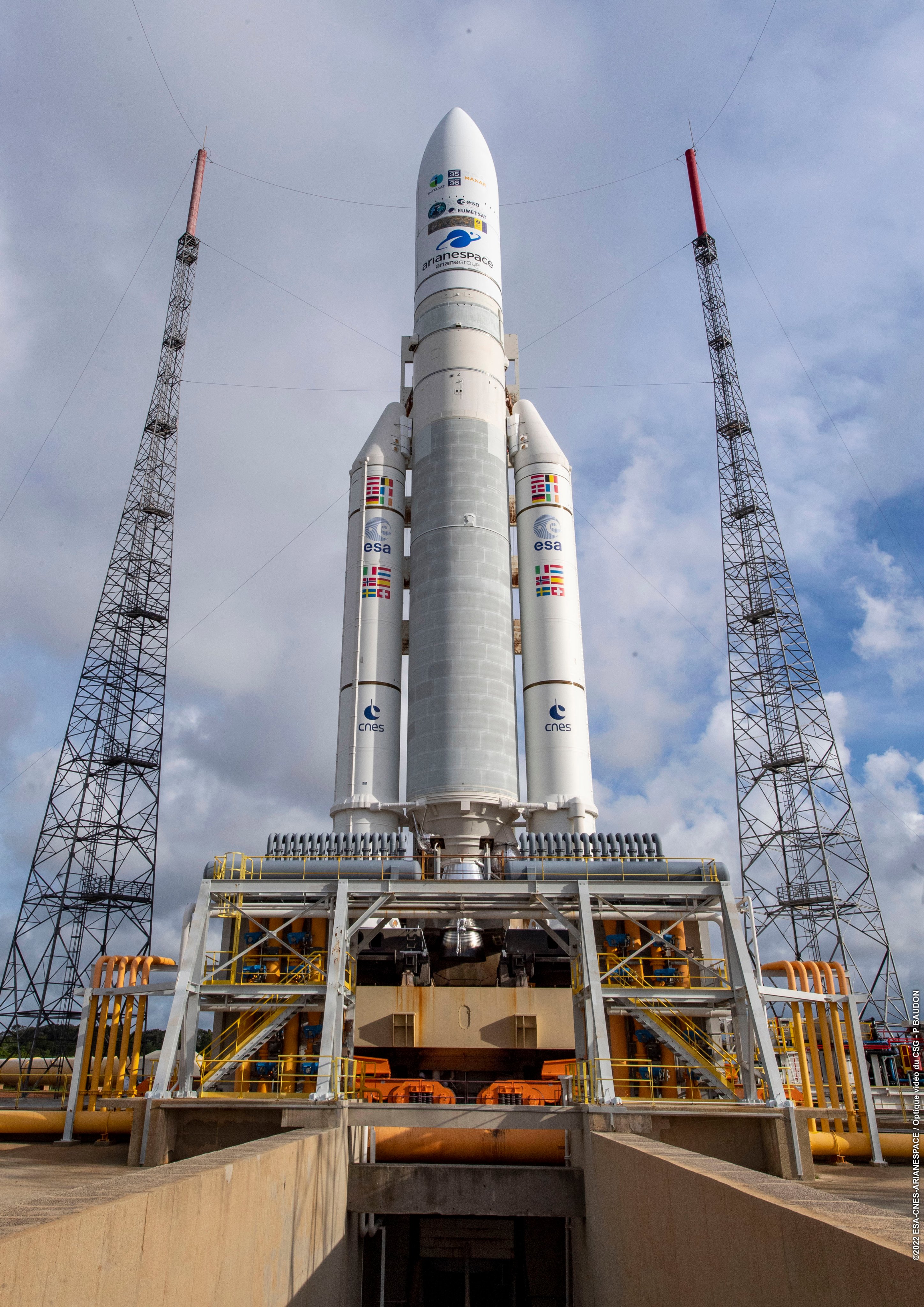

Liftoff for our flight #VA259 is planned for today, as early as possible within the following launch window:
 03:30 p.m. - 05:16 p.m. Washington, D.C. time,
 05:30 p.m. - 07:16 p.m. Kourou time,
 08:30 p.m. - 10:16 p.m. UTC
 09:30 p.m. - 11:16 p.m. Paris time.

[zandr]

Код Выделить Развернуть

https://www.youtube.com/watch?v=bJP-GjxqumU

Flight VA259 – State-of-the-art | Galaxy 35 and 36 / MTG-I1 | Ariane 5 Launch | Arianespace
arianespace
On Tuesday, December 13, 2022 at 5:30 p.m. local time (8:30 p.m. UTC), Arianespace's next Ariane 5 mission will lift off from Europe's Spaceport, French Guiana, with MTG-I1 meteorological satellite and Galaxy 35 and Galaxy 36 telecommunications satellites. The mission duration will be 34 minutes and 37 seconds.

Спойлер

The satellites will be launched for two major companies and long-standing Arianespace customers: the European Organization for the Exploitation of Meteorological Satellites EUMETSAT and the multinational satellite services and communication provider Intelsat.

·       The Meteosat Third Generation (MTG) system will help meteorologists meet one of their main challenges – the rapid detection and forecasting of severe weather events – so that timely warnings can be given to citizens, civil authorities and first responders. The data from MTG-I1 (I stands for Imager) will have a wide range of uses, from enabling aircraft to avoid storms and for earlier alerts of flooding, through to more precise monitoring of fires and fog. It will help to protect lives, property and infrastructure and bring economic benefits to Europe and Africa. The MTG satellites are developed and procured in cooperation with the European Space Agency by an industrial consortium led by Thales Alenia Space in cooperation with OHB. The satellites are developed according to the requirements defined by EUMETSAT after consultation with the users of its meteorological data.

·       Galaxy 35 and Galaxy 36 are the next satellites in Intelsat's comprehensive Galaxy fleet refresh plan, a new generation of spacecraft that will provide Intelsat Media customers in North America with high-performance media distribution capabilities and unmatched penetration of cable headends. These two satellites will bring C-band contribution capacity to support high-profile events, such as collegiate and professional football, auto racing, baseball, golf, boxing and professional wrestling. The satellites also offer in-orbit protection for select customers in the broadcast arc serving North America.

[свернуть]

[zandr]

Трансляция
Вы не можете просматривать это вложение.

[zandr]

Т-2 мин.Вы не можете просматривать это вложение.

[zandr]

Пуск!
Вы не можете просматривать это вложение.

[zandr]

https://www.interfax.ru/world/876767

Ракета Ariane 5 стартовала на орбиту с тремя европейскими спутниками
Москва. 13 декабря. INTERFAX.RU - Ракета Ariane 5 во вторник стартовала на орбиту с двумя европейскими спутниками связи и метеорологическим аппаратом, сообщила компания-оператор Arianespace.

Запуск был осуществлен с космодрома Куру во Французской Гвиане в 21:30 по парижскому времени (в 23:30 мск).

На геостационарную орбиту будут выведены два спутника связи Galaxy 35 и Galaxy 36 компании Intelsat и метеорологический аппарат MTG-I1 Европейской организации спутниковой метеорологии (EUMETSAT).

Космические аппараты связи Galaxy 35 и Galaxy 36 французской телекоммуникационной компании Intelsat предназначены для покрытия территории Северной Америки.

Спутник MTG-I1 поможет метеорологам осуществлять быстрое обнаружение и прогнозирование суровых погодных явлений в целях своевременного предупреждения граждан, властей и служб экстренного реагирования в регионе Европы и Африки.

[zandr]

Код Выделить Развернуть

https://www.youtube.com/watch?v=X4VMRea7NgI

4:15
Ariane 5 launches MTG-I1 and Galaxy 35/36
  SciNews
An Ariane 5 launch vehicle (Ariane Flight VA259) launched the Meteosat Third Generation-Imager 1 (MTG-I1) and Intelsat's Galaxy 35 and Galaxy 36 (G-35/G-36) satellites, a total payload of approximately 10,972 kg, into Geostationary Transfer Orbit (GTO) from Ariane Launch Complex No. 3 (ELA 3) at Guiana Space Centre in Kourou, French Guiana, on 13 December 2022, at 20:30 UTC (17:30 local time).
Credit: Arianespace

[zandr]

Работает разгонный блок Вы не можете просматривать это вложение.

[zandr]

Первый пошёлВы не можете просматривать это вложение.

[zandr]

Второй пошёл

[zandr]

Отделился чехол (?) MTG.
