Telstar 19 Vantage - Falcon 9 - Canaveral SLC-40 - 22.07.2018

[Чебурашка]

Да, а яйца баллоны для гелия на второй ступени там новые?

[tnt22]

Alex_II пишет:
Там кстати ЭРД илией апогник на этом Телстаре?

Jonathan McDowell‏Подлинная учетная запись @planet4589 19 ч. назад

Telstar 19V confirmed in subsynchronous geotransfer orbit of 243 x 17863 km x 27.0 deg; Falcon 9 stage 2 in similar orbit.

19 ч. назад

The low apogee of the (presumably as-planned) Telstar 19V transfer orbit would imply about 1050 kg of the 7075 kg satellite launch mass will be used to raise apogee to standard GTO

19 ч. назад

Another 3500 kg or so of propellant needed to finally reach GEO, leaving the satellite with a mass of about 2500 kg in GEO if my sums are correct

и #111

The spacecraft will use a hydrazine-fueled engine to finish the climb into a circular geostationary perch over the equator.

и там же

Telstar 19 VANTAGE should arrive in geostationary orbit within a couple of weeks, then enter service by the end of August at 63 degrees west longitude after completing tests and commissioning, along with deployments of solar panels and antennas.

=> Никаких ЭРД, апогейник

[tnt22]

SpaceX Telstar 19 VANTAGE Launch - UP CLOSE VIEWS

AmericaSpace

Опубликовано: 22 июл. 2018 г.

(2:40)

[tnt22]

https://www.telesat.com/news-events/telesat-successfully-launches-telstar-19-vantage-bringing-new-high-throughput-ku-and-ka

Telesat Successfully Launches Telstar 19 VANTAGE Bringing New High Throughput Ku and Ka-band Capacity across the Americas and Atlantic

Innovative satellite will serve growing consumer, enterprise and mobility markets from Telesat's prime orbital location of 63 degrees West, the same now used by Telesat's Telstar 14R

Cape Canaveral, Florida, July 23, 2018 – Telesat announced today the successful launch of its new Telstar 19 VANTAGE high throughput satellite (HTS) aboard a SpaceX Falcon 9 rocket. Liftoff occurred on Sunday, July 22nd, from Cape Canaveral Air Force Station. Built by SSL, a Maxar Technologies Company, Telstar 19 VANTAGE is the latest in a new generation of Telesat satellites with capacity optimized to serve the types of bandwidth intensive applications increasingly in demand by users worldwide.

Спойлер

Operating from Telesat's prime orbital location of 63 degrees West, the same as Telesat's highly utilized Telstar 14R satellite, Telstar 19 VANTAGE will bring a new level of performance and value for satellite broadband requirements on land, at sea and in the air. It will have distinct zones of coverage across the Americas and Atlantic, combining broad regional beams and high throughput spot beams in Ku-band with additional HTS spot beams in Ka-band. Through these innovative capacity and coverage options, Telstar 19 VANTAGE will deliver important advantages to Telesat customers who serve growing consumer, enterprise and mobility markets.

As previously announced, Hughes Network Systems LLC (Hughes) has signed a 15-year agreement for Telstar 19 VANTAGE Ka-band capacity that Hughes will utilize to expand its broadband satellite services for consumers and businesses in five South American countries. Hughes will refer to this capacity as "Hughes 63 West."

Telesat also has long-term contracts for the entire Ka-band capacity of Telstar 19 VANTAGE over Northern Canada, including providing Bell Canada subsidiary Northwestel with the HTS spot beam capacity required to enhance broadband connectivity for all 25 communities in Nunavut, Canada's northernmost territory.

"The pre-launch agreements Telesat has secured with Hughes and Bell Canada, combined with strong interest from other leading satellite service providers across the Americas and Atlantic, confirm that Telstar 19 VANTAGE delivers superior performance and value for today's bandwidth intensive applications," said Dan Goldberg, Telesat's President and CEO. "The design and capabilities of Telstar 19 VANTAGE enable our customers to provide more advanced satellite broadband to their end users. We would like to thank SpaceX for the successful launch of Telstar 19 VANTAGE and for their dedication and professionalism throughout this mission. In a few weeks, Telesat will again be working with SpaceX for the launch of our next satellite, Telstar 18 VANTAGE over Asia."

Telesat's Newest Satellite

SpaceX successfully launched Telstar 19 VANTAGE to Geostationary Transfer Orbit (GTO) aboard a new Falcon 9 rocket. Liftoff from Space Launch Complex 40 at Cape Canaveral Air Force Station was at 1:50am ET on Sunday, July 22nd. About 33 minutes after liftoff, Telesat's newest satellite with a launch mass of 7,080 kg was deployed from the Falcon 9. Ku-band coverages of Telstar 19 VANTAGE include: Brazil regional beam, North Atlantic regional beam and HTS spot beams over Brazil and the Andean region. Ka-band HTS spot beams of Telstar 19 VANTAGE cover: South America, the Caribbean, the North Atlantic and Northern Canada.

Telstar 19 VANTAGE is expected to enter commercial service this summer after it has successfully completed orbit raising and comprehensive in-orbit testing. The satellite has a 15 year design life.

Download Attachment

Telesat Successfully Launches Telstar 19 VANTAGE

[свернуть]

[Apollo13]

https://www.satbeams.com/satellites?id=2677

Dry mass (kg): 3031

[Apollo13]

tnt22 пишет:
=> Никаких ЭРД, апогейник

Гюнтер пишет что ЭРД там тоже есть.

[TH]Propulsion:[/TH]

?, 4 × SPT-100 plasma thrusters

[Apollo13]

Чебурашка пишет:
Да, а яйца баллоны для гелия на второй ступени там новые?

Новые баллоны скорее всего планируется использовать начиная с пуска DM-1.

https://www.nasa.gov/sites/default/files/atoms/files/ccp_presentation_for_nac_public_session.pdf

Falcon 9 (Block 5)

• Demonstrated significant run time on Crew Configuration
engines including new blisk turbine wheel
• Octaweb 3.0 (bolted) qual is complete & good
• COPV 2.0
   • Development test program complete
   • Significant qualification testing is complete
   • Manufacture of Demo-1 flight bottles is beginning

[tnt22]

https://www.teslarati.com/spacex-falcon-9-largest-commercial-satellite-launch/

SpaceX delivers largest commercial satellite in kick off of Falcon 9 marathon

By Eric Ralph
Posted on July 22, 2018

SpaceX has successfully completed its 13th launch of 2018, kicking off a marathon of three new Falcon 9 Block 5 booster debuts with the launch of the Telstar 19V communications satellite, potentially breaking the record for the largest commercial satellite ever launched at 7000 kg (15,500 lb).

Despite the heft of its payload and partially thanks to a slightly lower parking orbit for the satellite, Falcon 9 booster B1047 – the second Block 5 booster to roll off the assembly line – managed to successfully land aboard the autonomous spaceport drone ship (ASDS) Of Course I Still Love You (OCISLY), stationed approximately 650 km (400 mi) off the Florida coast at launch time.

While the booster was unable to maintain a live video feed through its high-speed reentry and Atlantic landing, SpaceX's cameras on OCISLY managed to reconnect a few seconds after touchdown to show the 50-meter (160-foot) tall rocket safely resting on the drone ship. As the webcast host noted, Falcon 9 Block 5 features a number of prominent upgrades designed to enable levels of reusability and reliability essentially unprecedented in the world of orbital rocketry.

Спойлер

B1047 created an extraordinary ring vortex rainbow as it smashed through Max Q, the point of highest aerodynamic stress on the rocket. (Tom Cross)


B1047 before the launch of Telstar 19V. (Tom Cross)


B1047 before the launch of Telstar 19V. (Tom Cross)


B1047 before the launch of Telstar 19V. (Tom Cross)
...

[свернуть]

[tnt22]

Apollo13 пишет:

ЭРД там тоже есть

Есть. И на ЭРД Вы хотите меньше чем за месяц выйти на ГСО, чтобы успеть провести тестирование на орбите и передать сабж в эксплуатацию к концу августа? SES-14 на ЭРД с января только к середине июля сумел доползти до ГСО, тогда как собрат по запуску Al Yah 3 на апогейнике дошел до ГСО к 3-му мая, за май прошел IoT и с июня уже начал работу по назначению (хотя вывод на орбиту был аномальным по наклонению). SES-12 на ЭРД всё ползёт вверх, за полтора месяца после запуска дополз аж до 5500 км перигея...
Когда писал "никаких", считал понятным из приведенных цитат невозможность использования ЭРД для быстрого выхода на ГСО, не более того.

[tnt22]

Telstar 19 VANTAGE Successfully Launched

SSL

Опубликовано: 22 июл. 2018 г.

The SSL-built Telstar 19 VANTAGE communications satellite was successfully launched for Telesat.

(1:35)

[tnt22]

http://sslmda.com/html/pressreleases/2018-07-23-Powerful-Satellite-Built-by-Maxar-Technologies-SSL-for-Telesat-is-Performing-Post-Launch-Maneuvers.php

Powerful Satellite Built by Maxar Technologies' SSL for Telesat is Performing Post-Launch Maneuvers According to Plan
50th SSL-built satellite launched this decade drives competitive advantage for Telesat customers with high-throughput technology

Palo Alto, Calif. – July 23, 2018 – SSL, a Maxar Technologies company (formerly MacDonald, Dettwiler and Associates Ltd.) (NYSE: MAXR; TSX: MAXR), and a leading provider of innovative satellites and spacecraft systems, announced today the advanced high throughput satellite built for Telesat, a leading global satellite operator, is successfully performing post-launch maneuvers according to plan. The SSL-built satellite deployed its solar arrays on schedule following its launch aboard a SpaceX Falcon 9 launch vehicle from the Cape Canaveral Air Force Station in Florida early Sunday morning. It began firing its main thruster earlier today to propel toward its final geostationary orbit.

Спойлер

Telstar 19 VANTAGE packs exceptional performance onto a single spacecraft with multiple payloads that provide high-speed internet service to populations in both North and South America. It is the latest in a new generation of satellites for Telesat that combine broad regional beams and powerful spot beams in a design optimized to deliver fast and reliable service for bandwidth-intensive applications that power the new space economy.

"I would like to thank our long term colleagues at Telesat for their continued confidence in SSL and for our close collaborative working relationship that always results in superior performance and value," said Dario Zamarian, Group President of SSL. "Telstar 19 VANTAGE represents an important milestone for SSL as our 50th communications satellite to launch this decade, and it also underscores our success in providing exceptional high throughput capacity for targeted regions of the world."

When it reaches its orbital slot at 63 degrees West longitude, the satellite will provide service in Northern Canada, South America, the Caribbean, and the North Atlantic. Its unique design maximizes throughput and spectral efficiency and optimizes network performance for Telesat's customers. SSL incorporated multiple technical advances into Telstar 19 VANTAGE including 3D printing which helps to reduce mass and enables better design solutions.

"SSL has been a valued partner to Telesat for many years and we congratulate them on achieving 50-built GEO satellites since 2010 and on their technology advances that drive our industry forward," said Dan Goldberg, President and CEO, Telesat. "We're pleased that Telstar 19 VANTAGE is now heading toward its orbital slot at 63 degrees West and that Telesat will soon be providing high performing capacity on our newest satellite to Hughes in South America, to Bell Canada subsidiary Northwestel over Northern Canada, and to our customers across the Americas and Atlantic who require the very latest in satellite broadband."

Telstar 19 VANTAGE is based on the powerful SSL 1300 platform, which provides flexibility for a broad range of applications and technology advances. Telesat's newest satellite is designed for 15 or more years of service and will be co-located with Telesat's Telstar 14R.

SSL is also building Telstar 18 VANTAGE for Telesat, which is scheduled to launch next month to 138 degrees East. The third Telstar VANTAGE satellite in Telesat's global fleet, it will combine broad regional beams with powerful HTS spot beams to bring a new level of broadband performance for customers across the Asia Pacific region.

A video showing the satellite under construction can be viewed here.

(video 1:35)

[свернуть]

[tnt22]

TomCross‏ @_TomCross_ 2 ч. назад

Watch Falcon 9 leave a ring in the sky!
@Teslarati #spacex #falcon9 #telstar19v @SpaceX


(video 0:01)

[Apollo13]

tnt22 пишет:

Apollo13 пишет:

ЭРД там тоже есть

Есть. И на ЭРД Вы хотите меньше чем за месяц выйти на ГСО, чтобы успеть провести тестирование на орбите и передать сабж в эксплуатацию к концу августа? SES-14 на ЭРД с января только к середине июля сумел доползти до ГСО, тогда как собрат по запуску Al Yah 3 на апогейнике дошел до ГСО к 3-му мая, за май прошел IoT и с июня уже начал работу по назначению (хотя вывод на орбиту был аномальным по наклонению). SES-12 на ЭРД всё ползёт вверх, за полтора месяца после запуска дополз аж до 5500 км перигея...
Когда писал "никаких", считал понятным из приведенных цитат невозможность использования ЭРД для быстрого выхода на ГСО, не более того.

Это понятно. Я уточнил, потому что кто-то мог подумать что их нет совсем.

[Apollo13]

Вопрос знатокам. Какой самый тяжелый коммерческий ГСО спутник с точки зрения сухой массы?

Этот?

https://www.satbeams.com/satellites?norad=35496

Satellite Name: Echostar T1 (TerreStar 1, CANSAT-24)
Launch mass (kg): 6910
Dry mass (kg): 3801

[tnt22]

John Kraus‏ @johnkrausphotos 2 мин. назад

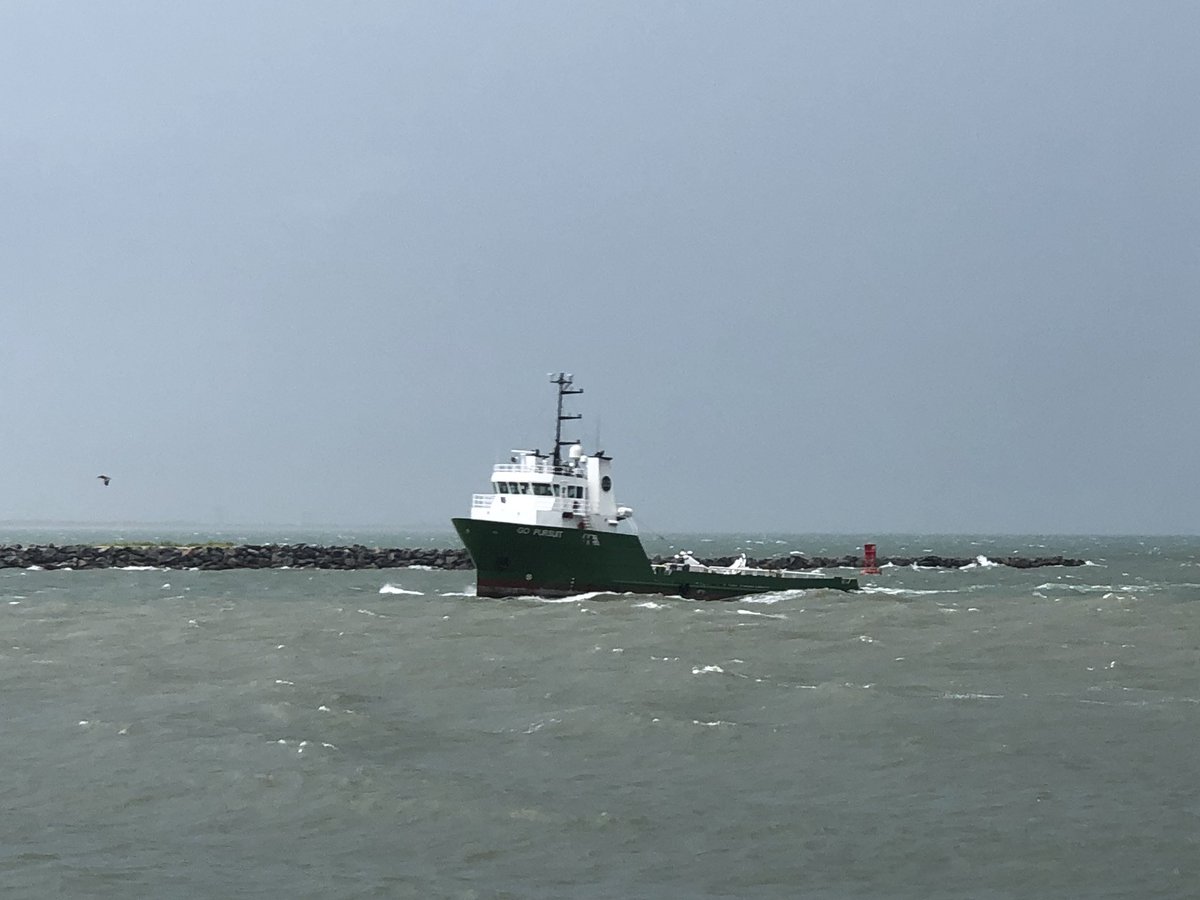

GO Pursuit is visible and is approaching Port Canaveral. It is currently unclear whether or not any fairing halves are on board.

2 мин. назад

Update: An uncovered fairing half is visible atop GO Pursuit.

[tnt22]

John Kraus‏ @johnkrausphotos 2 мин. назад

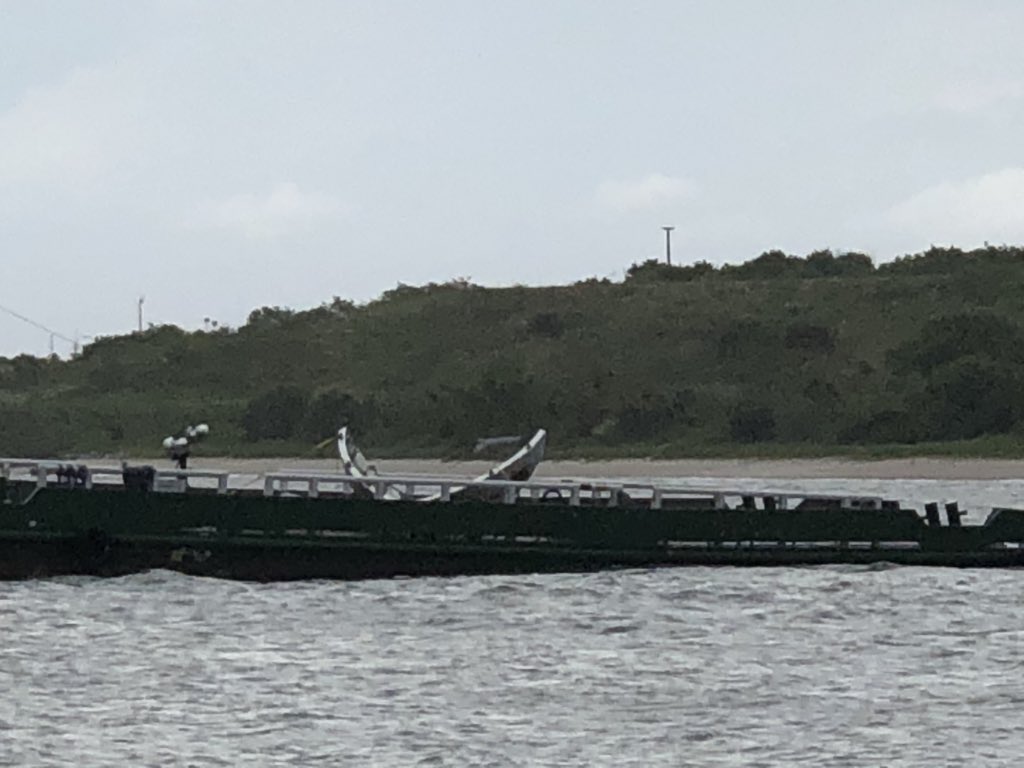

Visual confirmation of fairing half atop GO Pursuit. Phone picture; detailed images to follow.

[tnt22]

John Kraus‏ @johnkrausphotos 1 мин. назад

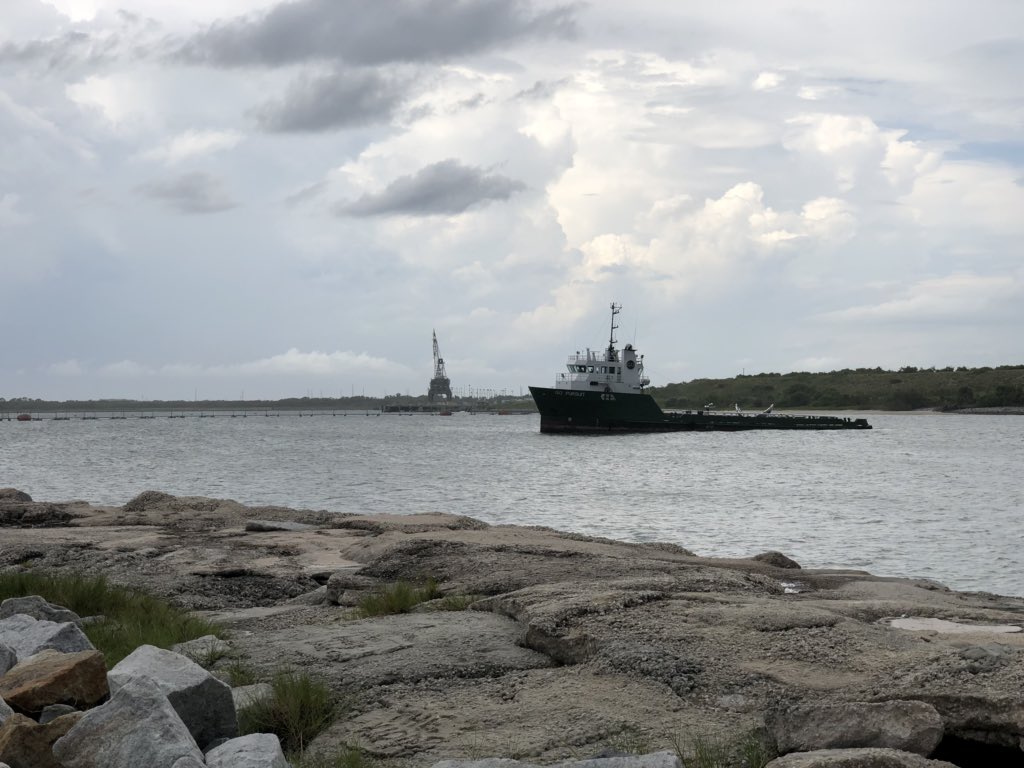

GO Pursuit has entered the Port

[tnt22]

John Kraus‏ @johnkrausphotos 1 мин. назад

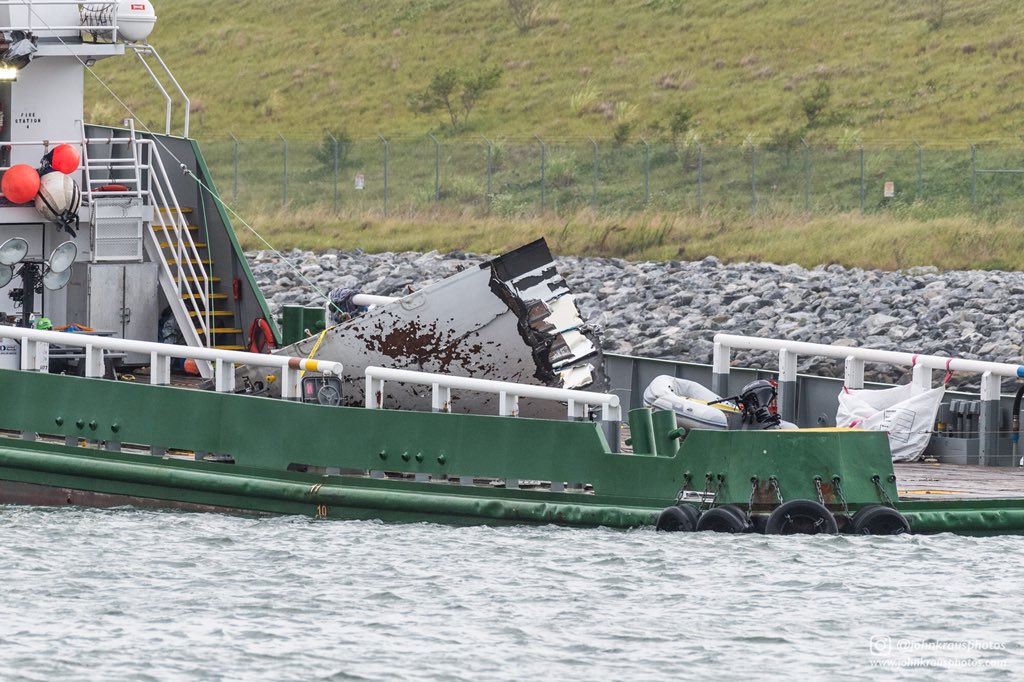

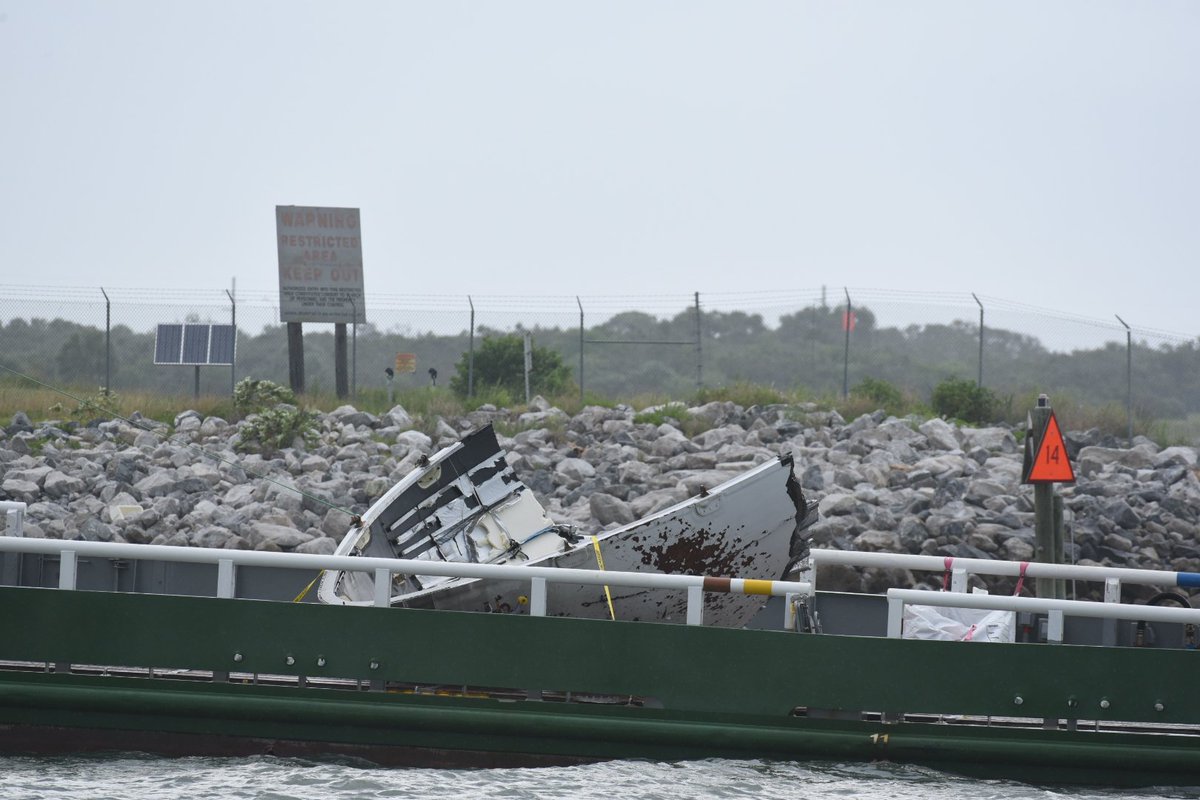

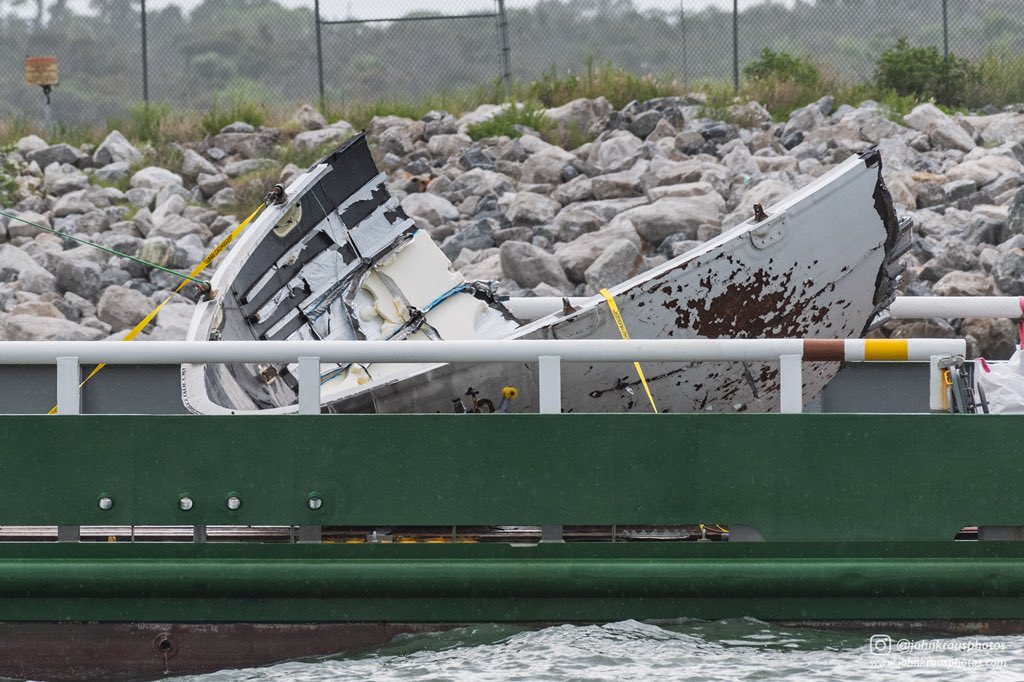

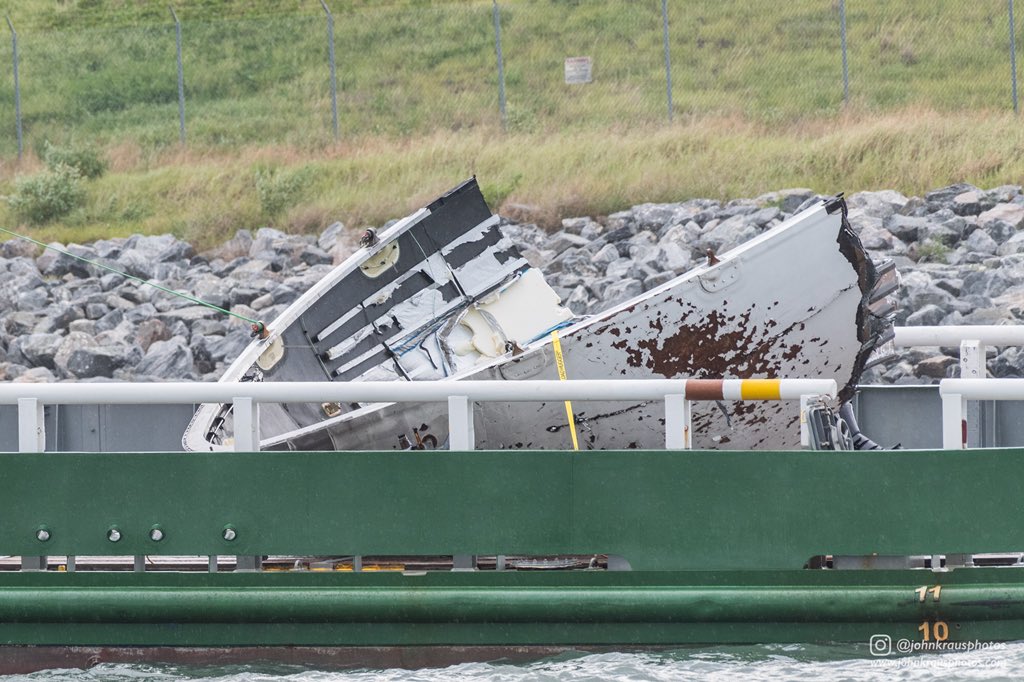

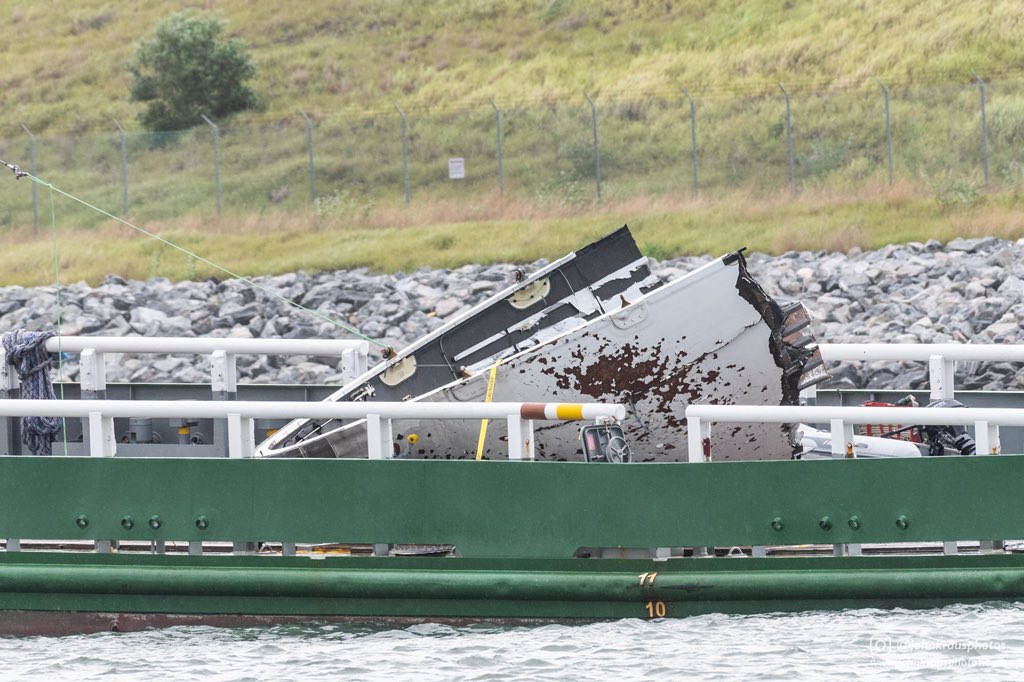

Detailed images of GO Pursuit returning to Port Canaveral this afternoon with a partial fairing half following Sunday's launch of Falcon 9 and Telstar 19V. Damage is no surprise, as these east coast fairings — for now — land in the water.

Спойлер

[свернуть]

[tnt22]

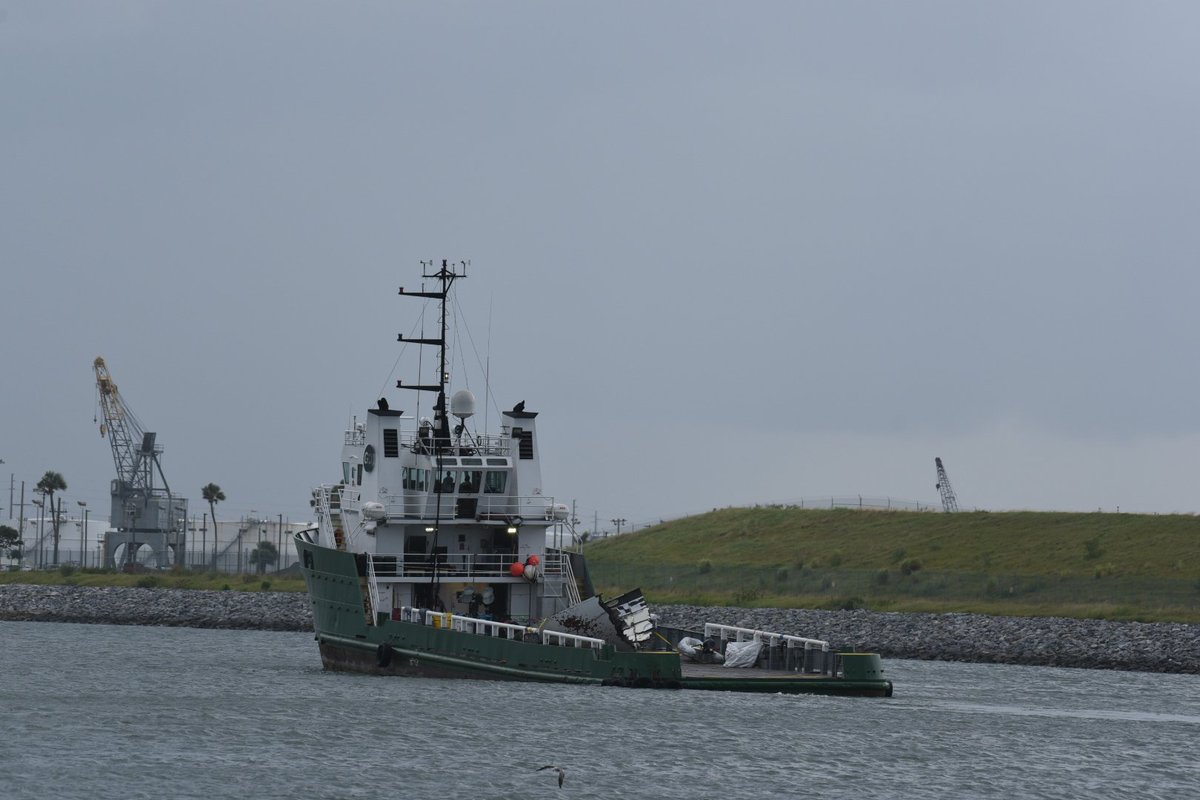

Marcus Cote‏ @marcuscotephoto 4 мин. назад

#Gopursuit enters Port Canaveral with mangled piece of #Falcon9 fairing just moments ago. #spacex #telstar19v

[tnt22]

Съёмка портовой вебкамерой
