Inmarsat 5 F4 – Falcon 9 – Кеннеди LC-39A – 15.05.2017 – 23:21 UTC

[tnt22]

Mary Whenman‏ @marywhenman 18 мин назад

.@johnthornhillft @ft interviewing @InmarsatGlobal CEO Rupert Pearce ahead of tonight's #I5F4 launch @SpaceX @NASAKennedy

[Liss]

Телега с районами падения

A0584/17 - EROP X4705 ATTENTION AIRLINE DISPATCHERS, SOME OPS APPEAR TO BE USING THE NOTAM BEGINNING TIME TO START FILING ROUTES AROUND THE LAUNCH OP. LAUNCH HAZARD AREA TIMES IN THE NOTAM ARE ALT SPECIFIC AND DO NOT AFFECT ALL OPS. THIS NOTAM CONTAINS A BREAKDOWN OF THE TIMES FOR PRE-LAUNCH AND LAUNCH CLOSURES. THE FOLLOWING IS IN USE FOR A MISSILE LAUNCH/SPLASH DOWN. DURING THESE TIMES KZMA ARTCC/OAC AND KZNY ARTCC/OAC WILL NOT APPROVE IFR FLT WI 45NM OF THE AFFECTED OCEANIC STNR AIRSPACE RESERVATIONS WEST OF 6000W, 50NM BTN 6000W AND 5500W, AND 60NM EAST OF 5500W OR WI AFFECTED WARNING AREA AIRSPACE.
 EFF: 1705152115 - 1705160049 W497A WEST OF 80 WEST, SFC-5000FT MSL
 EFF: 1705152115 - 1705160049 CAPE ATCAA, SFC-FL180
 EFF: 1705152245 - 1705160049 R2933, 5000FT MSL-UNL
 EFF: 1705152245 - 1705160049 R2934, SFC-UNL
 EFF: 1705152315 - 1705160049 LAUNCH HAZARD AREA A WI AN AREA DEFINED AS 2839N08038W TO 2840N08035W TO 2840N08001W TO 2836N07934W TO 2832N07934W TO 2831N08004W TO 2832N08023W TO 2834N08036W TO 2837N08038W TO POINT OF ORIGIN, SFC-UNL. LAUNCH HAZARD AREA B WI AN AREA DEFINED AS 2835N07618W TO 2835N07407W TO 2815N06948W TO 2735N06948W TO 2735N07107W TO 2806N07618W TO POINT OF ORIGIN. SFC-UNL.
 IN THE INTEREST OF SAFETY, ALL NONPARTICIPATING PILOTS ARE STRONGLY ADVISED TO AVOID THE ABV AREAS, EXC AS NOTED BLW FOR FLT PLAN FILING PURPOSES. THE FOLLOWING RESTRICTIONS WILL BE IN EFFECT WI KZMA AND KZNY FIRS. ALL TRAFFIC REQUESTED ALT MUST BE ESTIMATED TO CLEAR OCEANIC ALT RESERVATIONS AT OR BEFORE 1705152310. KZNY REQUEST ACFT CERTIFIED FOR RNP 4/10 FILE ROUTES TO AVOID HAZARD AREAS A AND B BY 25NM, AND NON CERTIFIED RNP 4/10 ACFT AVOID AREAS A AND B BY 45NM DURING THE HAZARD PERIOD 1705152315-1705160049. THE FOLLOWING ROUTES WILL BE IMPACTED: AR6, AR15, AR17, A699, G437 L451, L452, L453, L454, M204, M327, M328, M329, M330,M331, M593 AND Y585. HIBAC TRANS SHIFTY STAR CLSD. FOR FLT FILED OVER OMN ON THE FOLLOWING STARS: FISEL/GISSH/FRWAY/CAYSL EXPECT A REROUTE VIA OMN J79 TRV AND TRV TRANSITION. REROUTES FOR "AR" ROUTES WILL BE CONTAINED IN FAA ATC COMMAND CENTER ADVISORY. BECAUSE OF THE INDEFINITE OPN TIME, SOME AIRLINE OPS ARE REROUTING FLT UNNECESSARILY. EXCEPTING THE KZNY REQUEST ABV ALL FLT WITH ROUTES THAT WOULD NORMALLY TRANSIT THROUGH OCEANIC OP AREAS DURING OP WINDOW 1705152315 THRU 1705160049 SHOULD FILE THEIR NORMAL ROUTE BUT PLAN ON RECEIVING REROUTE FROM ATC. KZMA WILL REROUTE ONLY THOSE FLT NECESSARY TO CLEAR THE AFFECTED AREAS WHILE IN USE. EXP THE FOLLOWING INTL REROUTES: Y585 OMN J79 TRV CVIKK Y585 AND REVERSE. FOR FLT THAT HAVE NOT FILED AROUND OCEANIC HAZARD AREAS TRANSITING FM MIAMI/SAN JUAN FIR TO NEW YORK EXP THE FOLLOWING INTL REROUTES: A699 CLSD EAST OF NUCAR G437 CLSD NORTH OF BAAGR L451 ELMUC Y585 RENAH G446 NUCAR AR3 CLB AND REVERSE. L452 GTK G446 NUCA4R AR3 CLB INLAND AND REVERSE. L453 CERDA M594 MCOOP L455. M204 EXPECT TO USE M203. M327 EXPECT NUCAR SNAGY KANUX. M328 TANIA NUCAR SNAGY KANUX. M329 ZQA MILLE M595 RABAL M330 BDA. M330 MILLE M595 RABAL MEGGG M331 LFANO RABAL MEGGG M593 O/MILLE M595 VINSO AMMEO. SFC - SEE TEXT END PART 3 OF 3, SEE TEXT, 15 MAY 21:15 2017 UNTIL 16 MAY 00:49 2017. CREATED: 12 MAY 12:20 2017

[tnt22]

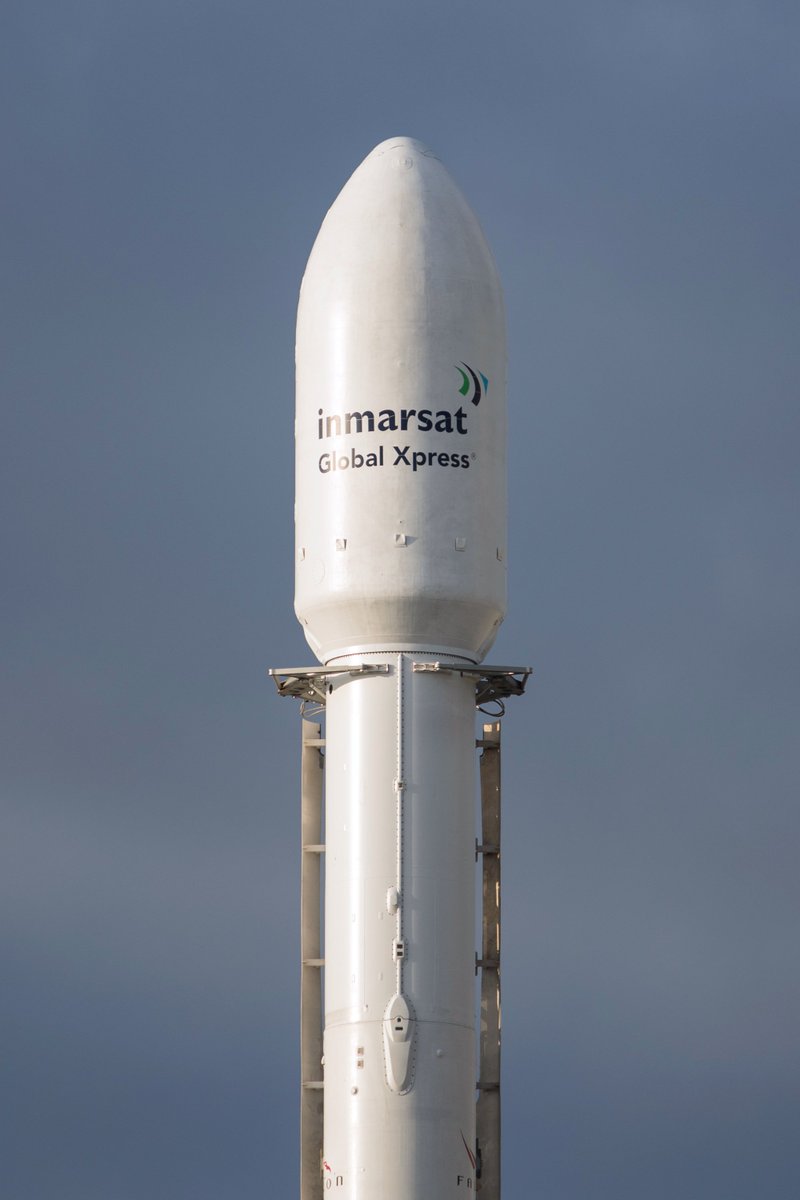

https://img.novosti-kosmonavtiki.ru/156706.jpg

[Max Andriyahov]

6100 кг это рекорд для Ф9 на ГПО?

[влад краев]

Max Andriyahov пишет:
6100 кг это рекорд для Ф9 на ГПО?

вроде да, до этого в одноразовом варианте летала с 5.5+т. Так что будет рекордным.

[tnt22]

Прогноз погоды L-0
L-0 Forecast 15 May Launch


[tnt22]

05/15/2017 18:35
The official U.S. Air Force launch weather forecast has improved, now indicating a 90 percent chance of acceptable conditions for liftoff this evening.

The concern with anvil clouds blowing east over Kennedy Space Center from inland thunderstorms has diminished, and forecasters will primarily be monitoring cumulus clouds coming onshore from the Atlantic Ocean.

"Sunny skies and northeasterly surface winds are making for a pleasant day in Central Florida," forecasters wrote. "Winds will become more easterly and pick up a bit over the Space Coast as the sea breeze gets going this afternoon. The sea breeze cumulus clouds will remain mostly shallow due to dry air aloft over the spaceport.

"The primary concern for launch today is a rogue, deeper cumulus cloud associated with onshore flow. Max upper-level winds will be from the west at 55 knots near 45,000 feet."

At launch time, the outlook calls for a few clouds at 2,500 feet, easterly winds of 15 to 20 mph, and a temperature of around 77 degrees Fahrenheit.

[tnt22]

SpaceX‏Подлинная учетная запись @SpaceX 5 мин. назад

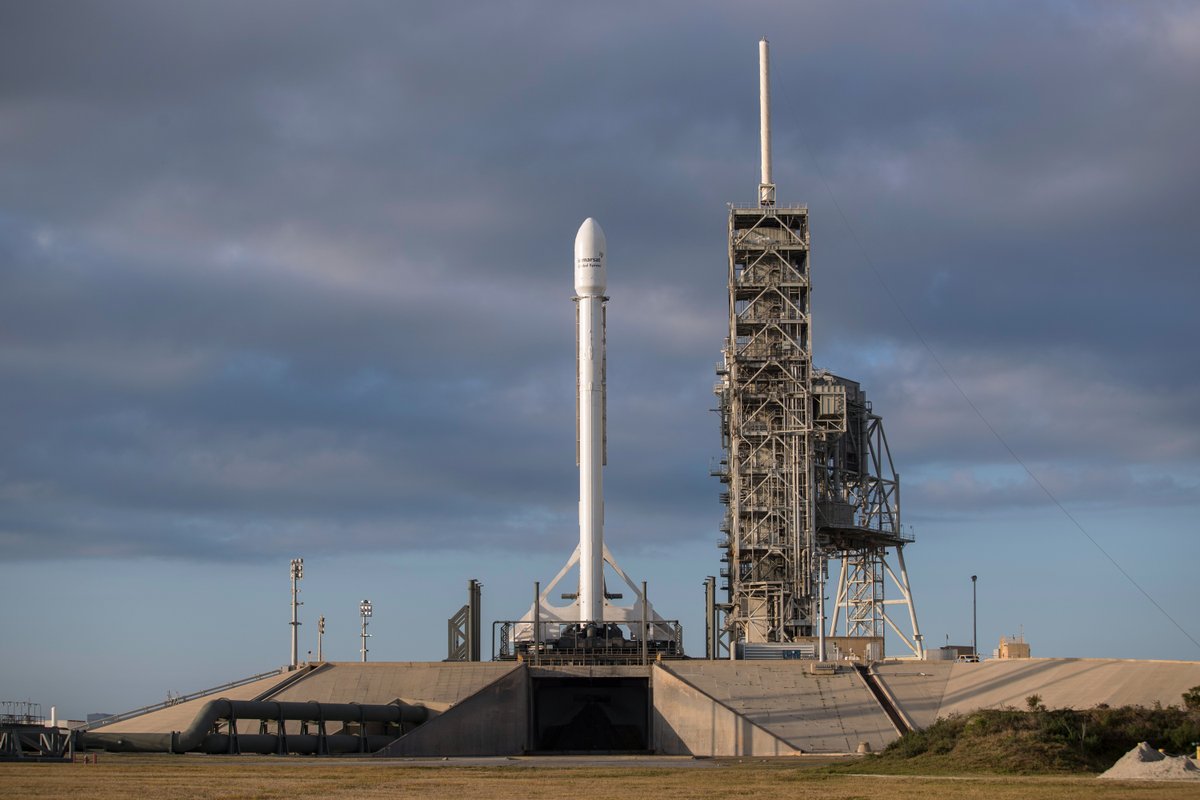

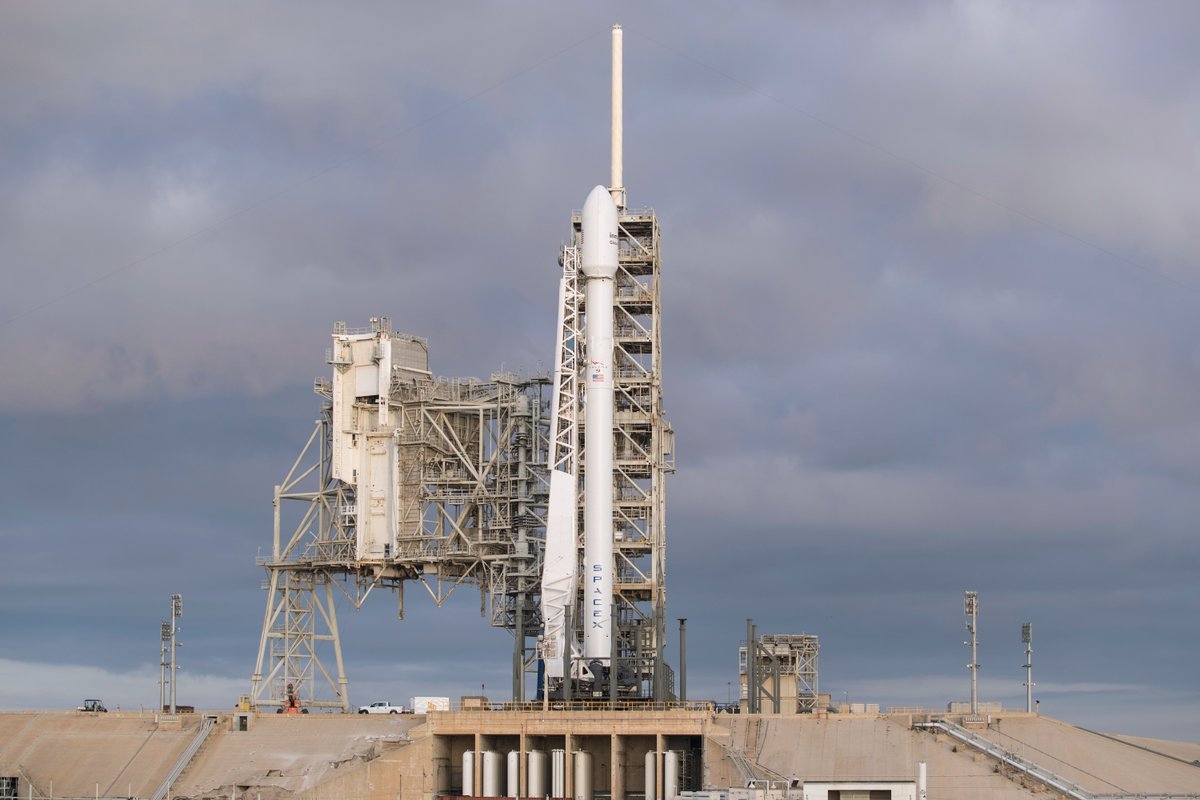

Falcon 9 and Inmarsat-5 Flight 4 vertical on Pad 39A. The 49-minute launch window opens at 7:21 p.m. EDT, or 23:21 UTC.

[Max Andriyahov]

Красив, собака. Интересно, они подъемник сразу делали с таким широким основанием с расчетом на Хэви?

[snek]

Max Andriyahov пишет:
Интересно, они подъемник сразу делали с таким широким основанием с расчетом на Хэви?

Вроде я где-то читал, что да, но не могу вспомнить где.

[tnt22]

Max Andriyahov пишет:
6100 кг это рекорд для Ф9 на ГПО?

Да.

Stephen Clark‏ @StephenClark1 12 мин. назад

Tonight's Falcon 9 launch is carrying Inmarsat 5 F4, heaviest-yet geostationary payload carried by SpaceX at 6086 kg https://spaceflightnow.com/2017/05/14/falcon-9-set-to-launch-inmarsat-satellite-for-in-flight-wifi-mobile-broadband/ ...

[tnt22]

Stephen Clark‏ @StephenClark1 13 мин. назад

Inmarsat's Michele Franci: Falcon 9 will go into a "supersynchronous" transfer orbit, devoting all fuel to payload. https://spaceflightnow.com/2017/05/14/falcon-9-set-to-launch-inmarsat-satellite-for-in-flight-wifi-mobile-broadband/ ...

[tnt22]

Inmarsat‏Подлинная учетная запись @InmarsatGlobal 37 сек назад

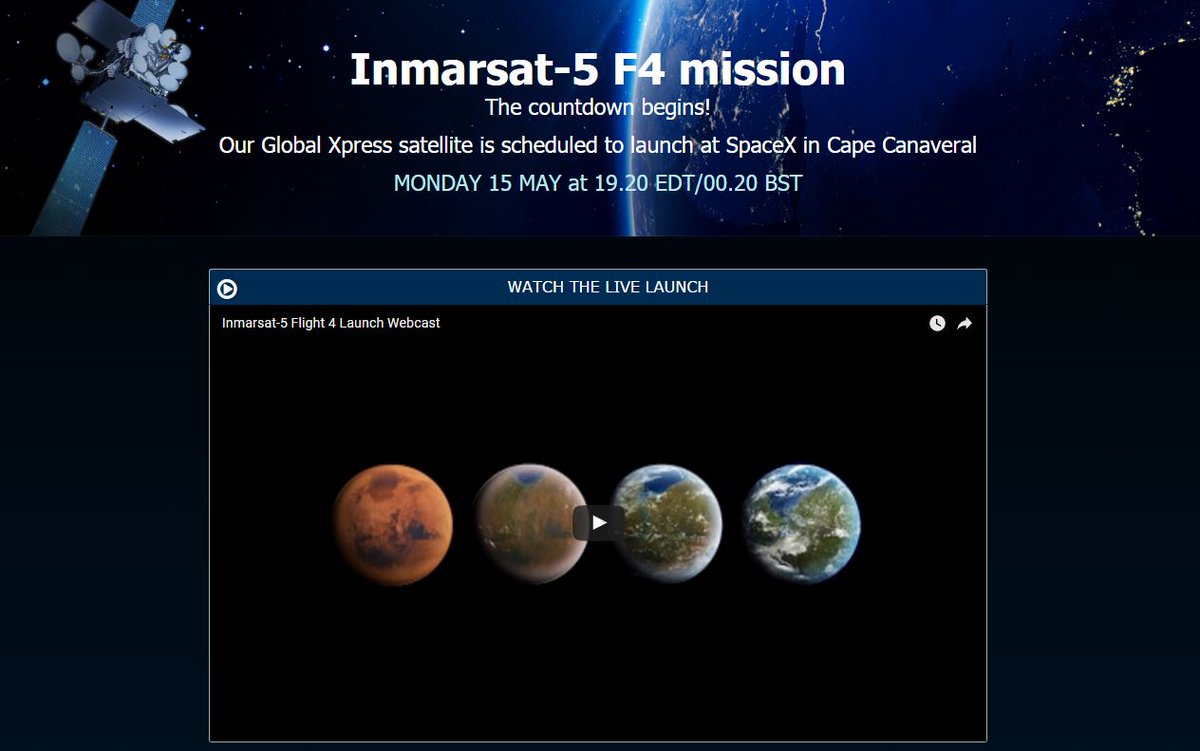

Weather is GO for launch. All systems are nominal. The 49-min #I5F4 launch window opens at 19:21 EDT. WATCH it here: http://www.inmarsat.com/i5f4/

[tnt22]

https://spaceflightnow.com/2017/05/15/photos-falcon-9-rocket-fourth-inmarsat-5-series-satellite-prepared-for-launch/

Photos: Falcon 9 rocket, fourth Inmarsat 5-series satellite prepared for launch
May 15, 2017 Stephen Clark

Engineers fr om SpaceX, Boeing and Inmarsat spent the last few weeks preparing a Falcon 9 rocket and the Inmarsat 5 F4 communications satellite for liftoff from NASA's Kennedy Space Center in Florida.

Спойлер

Since the satellite arrived at Cape Canaveral from its Boeing factory in Southern California last month, technicians filled it with 5,372 pounds (2,437 kilograms) of hydrazine and nitrogen tetroxide propellants, fastened it inside the nose fairing of a Falcon 9 rocket, and transferred the spacecraft to SpaceX's nearby hangar, wh ere it was rotated on its side for attachment to the Falcon 9 second stage.

The 13,417-pound (6,086-kilogram) Inmarsat 5 F4 spacecraft is the heaviest commercial telecom satellite launched by SpaceX to date. Based on the Boeing 702HP spacecraft design, the satellite will head into orbit on a 15-year mission to expand broadband coverage for mobile users of Inmarsat's Ka-band Global Xpress service.

It is the fourth satellite to join the Global Xpress network in geostationary orbit and will serve alongside three nearly identical spacecraft already in space after deployments by Russian Proton/Breeze M rockets from 2013 through 2015.

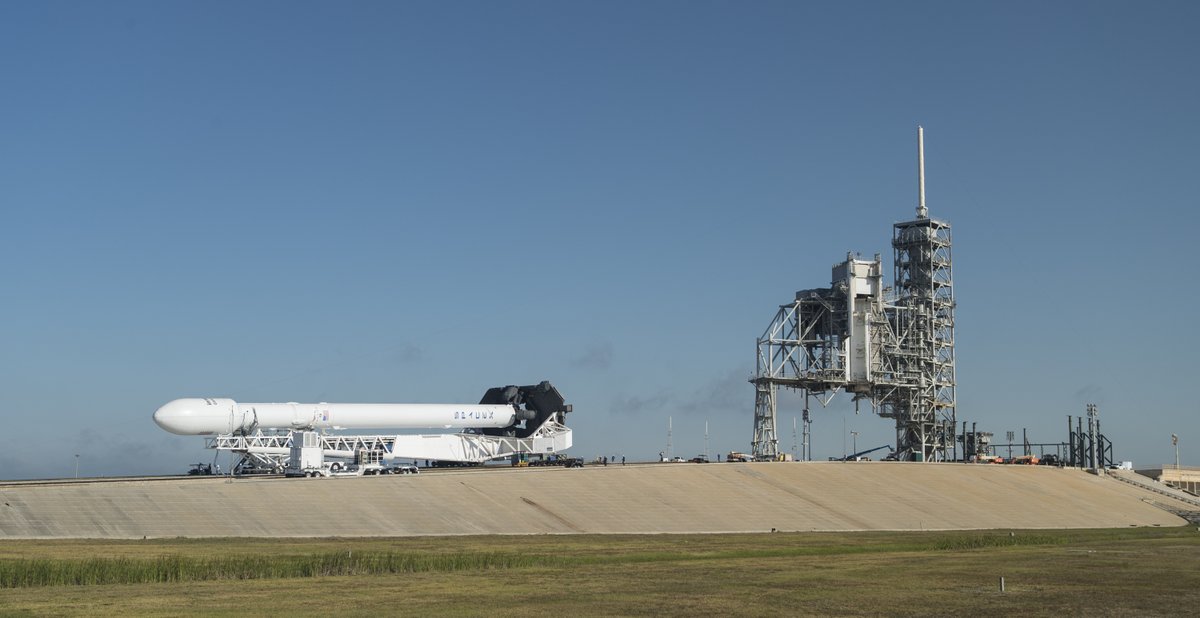

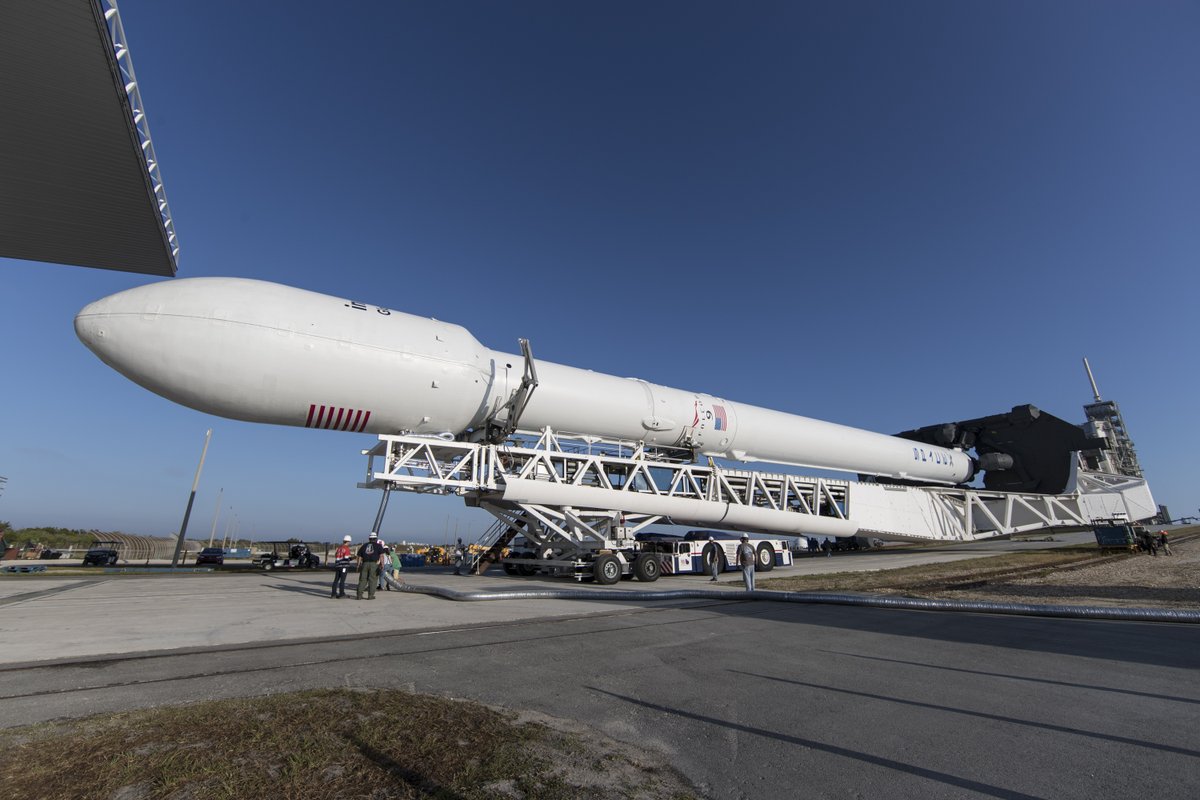

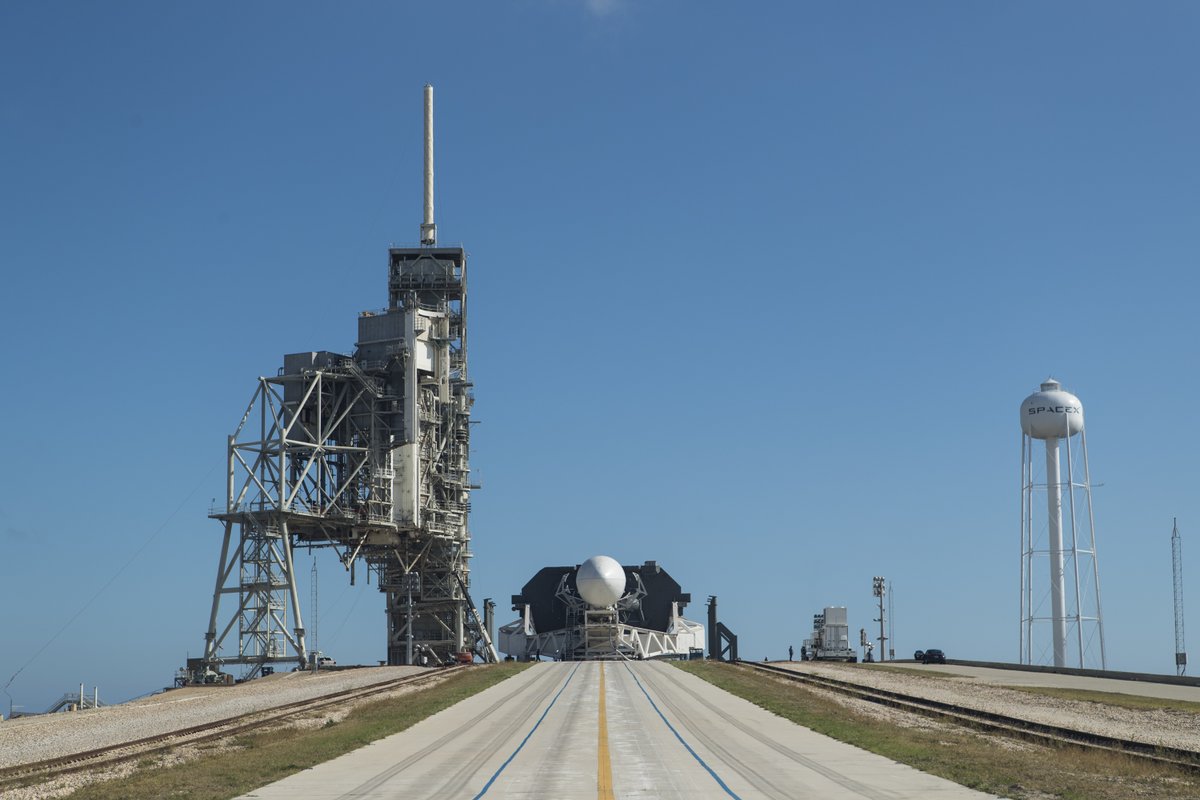

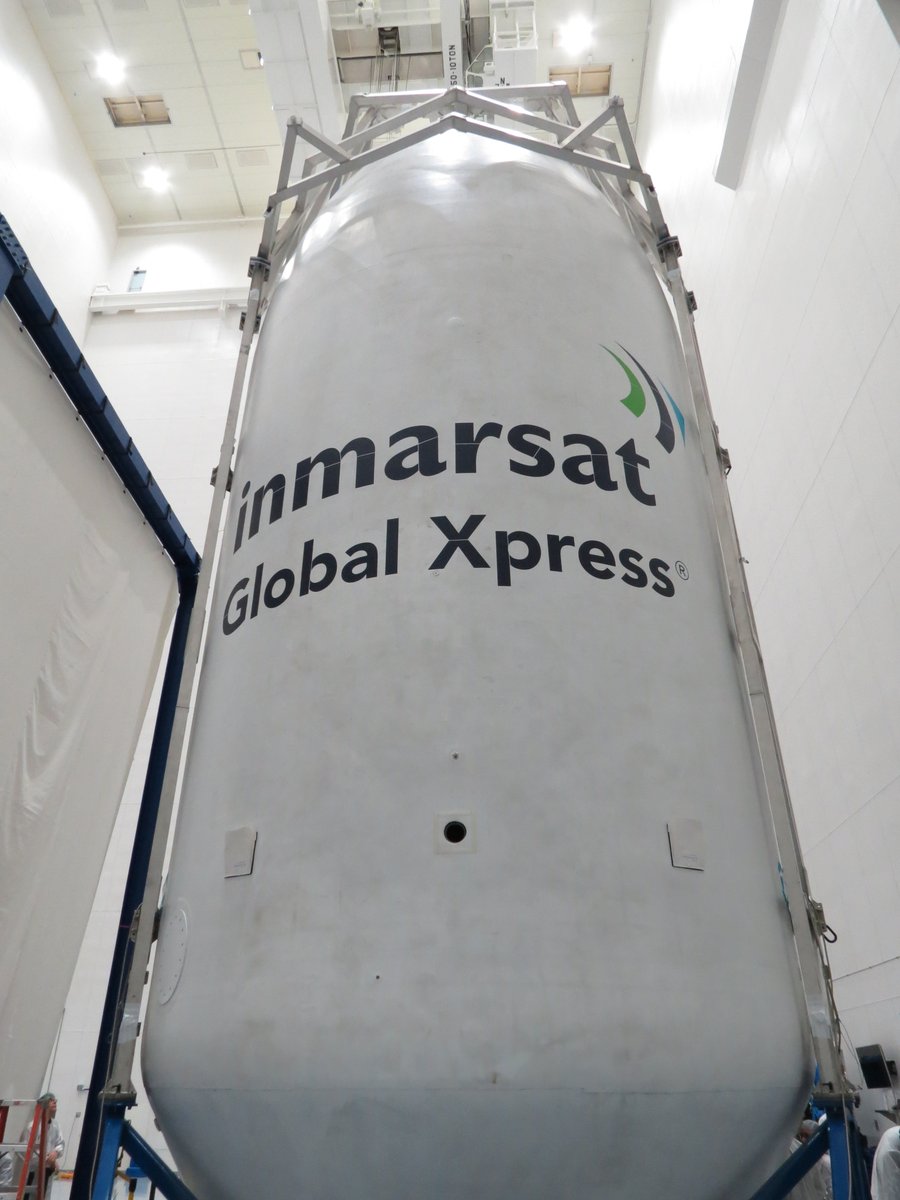

These photos show the spacecraft being attached to its payload attach fitting, made by Ruag Space in Sweden, followed be encapsulation inside the Falcon 9's 17-foot (5.2-meter) diameter payload fairing. Other images show the rollout of the fully-assembled launcher to pad 39A at Kennedy Space Center, and views of the Falcon 9 vertical at the seaside complex on the morning of liftoff.

Monday's launch window opens at 7:21 p.m. EDT (2321 GMT) and extends for 49 minutes.


Credit: Inmarsat

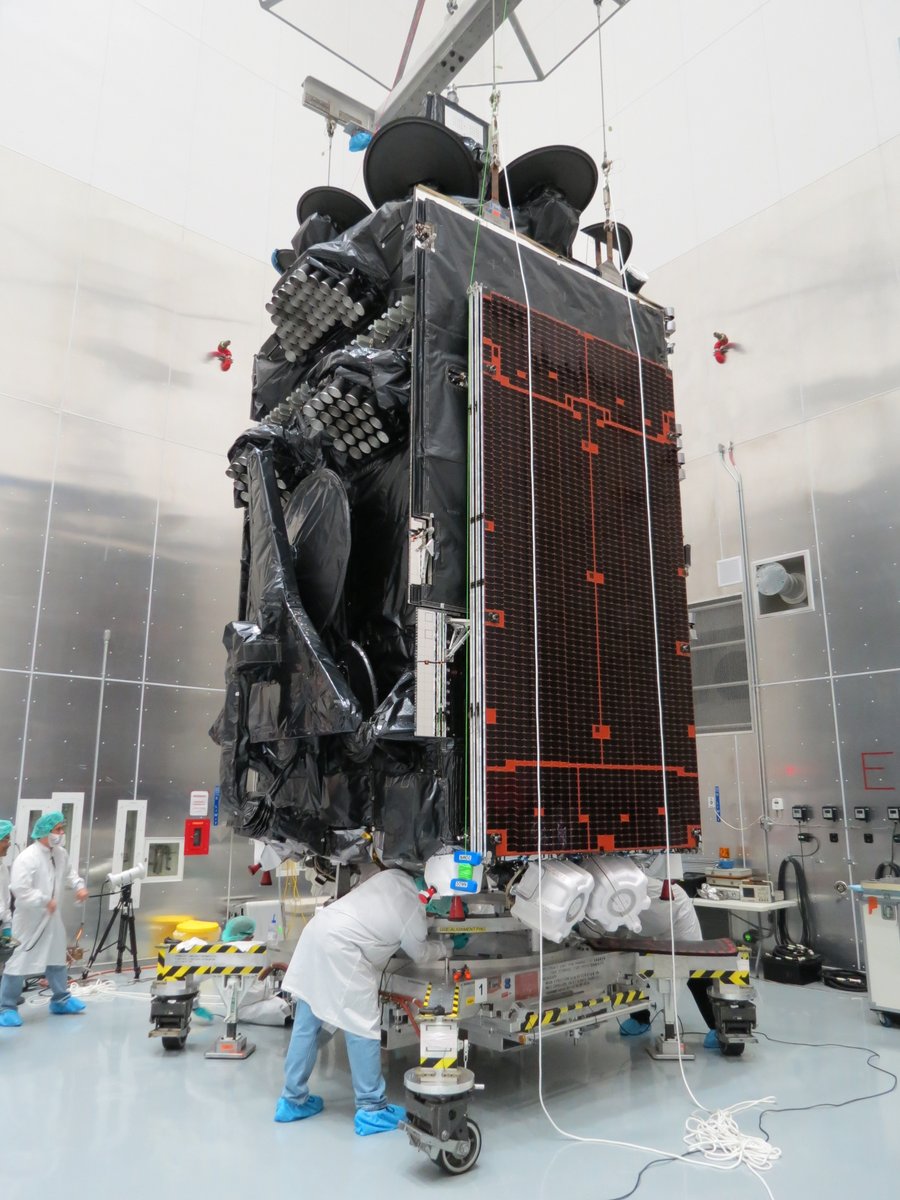

The Inmarsat 5 F4 satellite mounted on top of the Falcon 9 rocket's payload adapter. Credit: Inmarsat

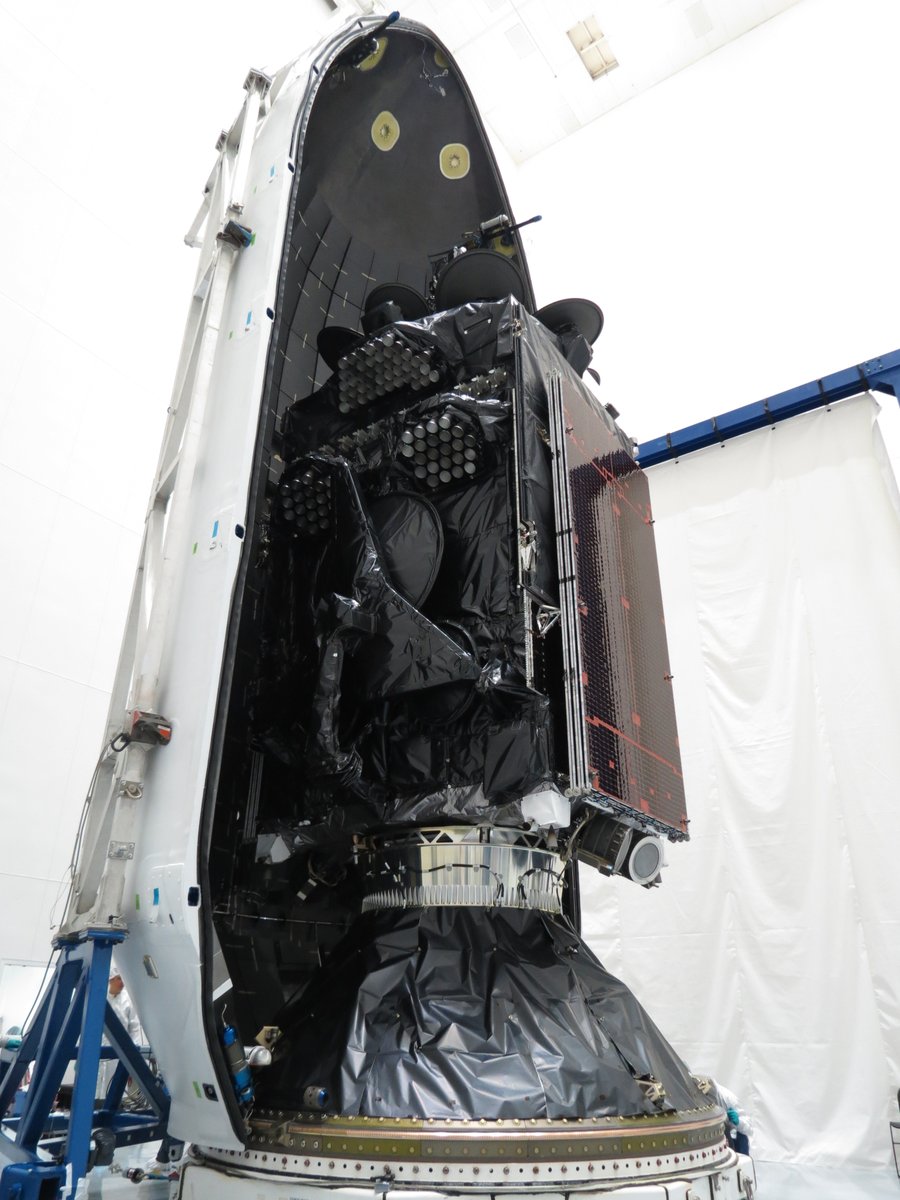

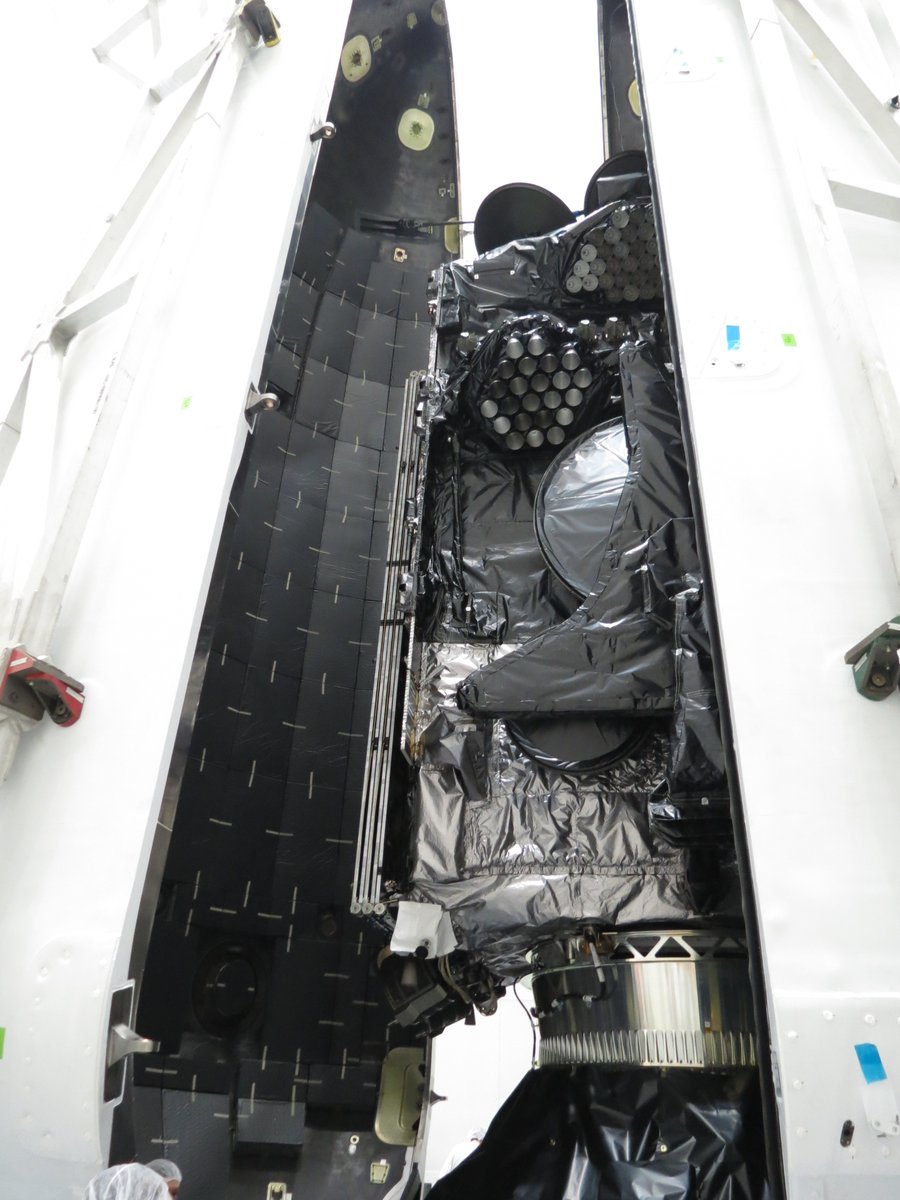

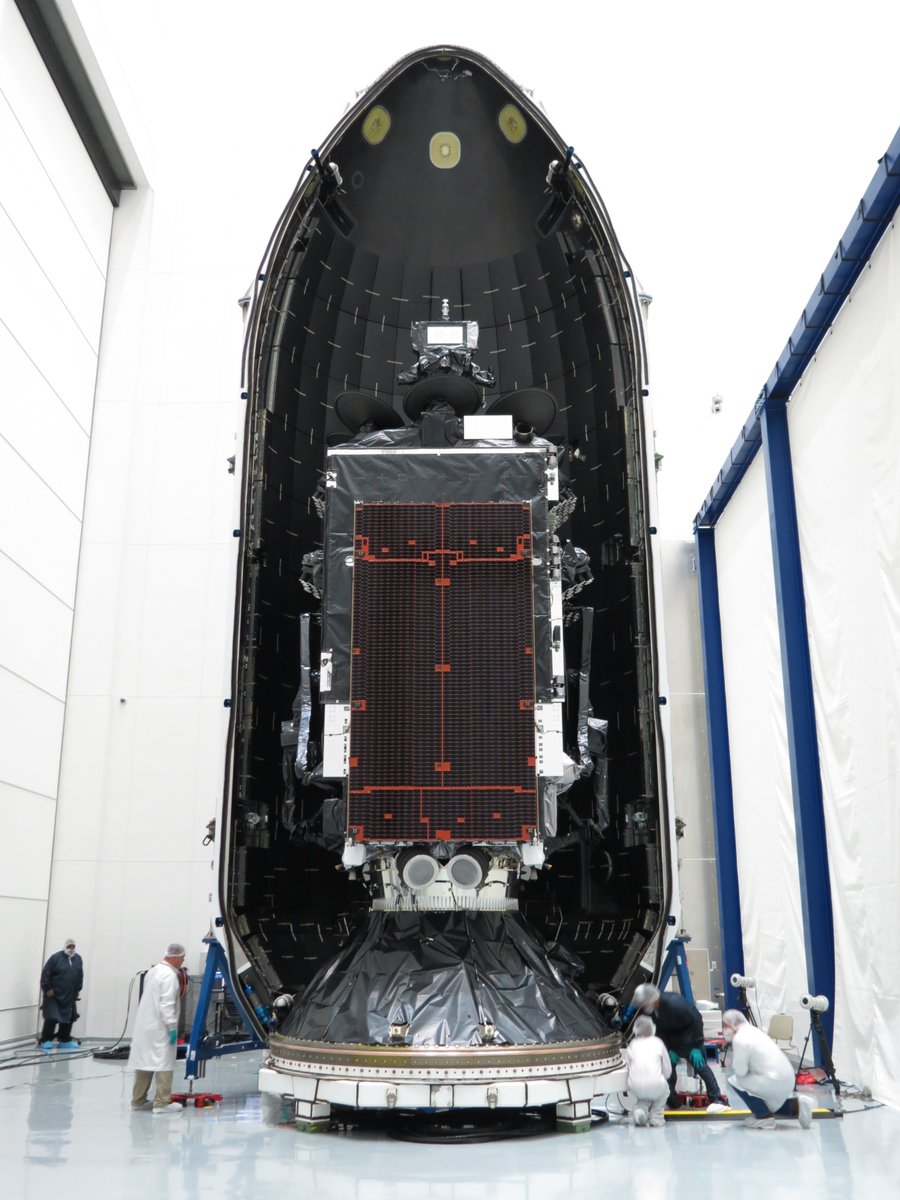

The Inmarsat 5 F4 satellite pictured with one-half of the Falcon 9 rocket's payload fairing. Credit: Inmarsat


Credit: Inmarsat


Credit: Inmarsat


Credit: Inmarsat


Credit: Inmarsat


Credit: Inmarsat


Credit: Inmarsat


Credit: Inmarsat


Credit: SpaceX


Credit: Inmarsat


Credit: Inmarsat

[свернуть]

[Max Andriyahov]

Ок, спасибо! А попытка спасения ГО будет? Не смог нагуглить.

[tnt22]

Inmarsat‏Подлинная учетная запись @InmarsatGlobal 40 сек назад

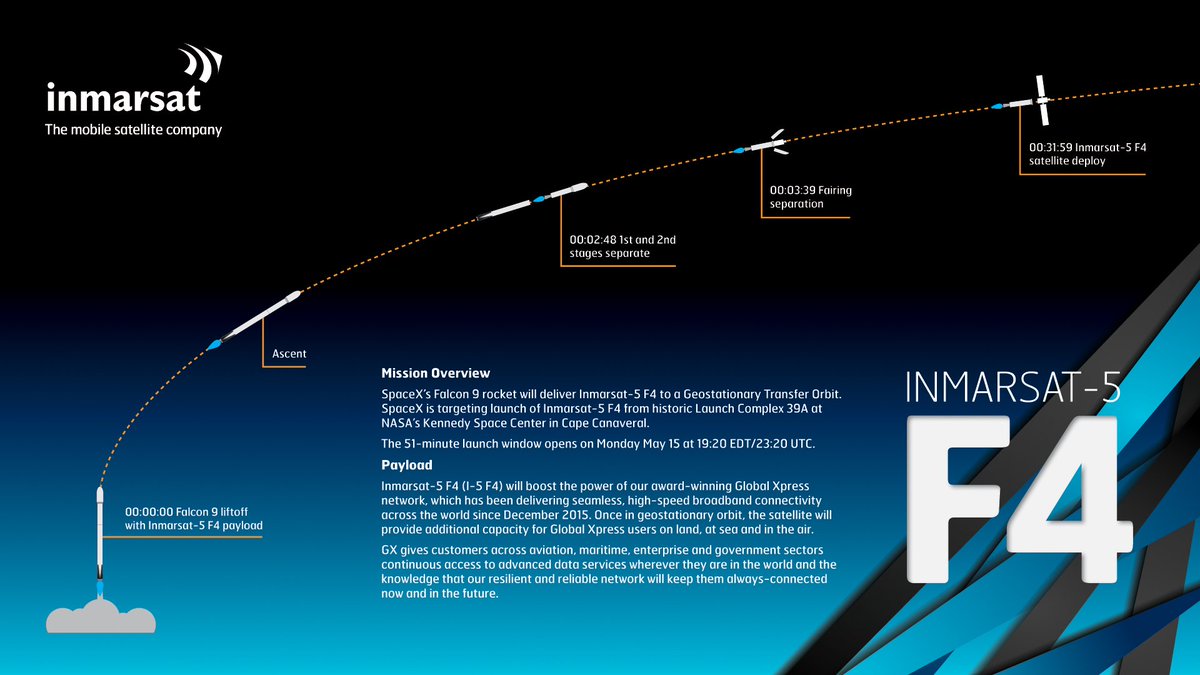

DYK it takes approx 32 mins for our @BoeingDefense-built #I5F4 satellite to deploy from a @SpaceX Falcon 9? Here's the mission timeline:

[snek]

Max Andriyahov пишет:
А попытка спасения ГО будет? Не смог нагуглить.

По имеющимся фоткам не похоже, что ГО проапгрейжен до реюзабельной версии.

[tnt22]

Max Andriyahov пишет:
А попытка спасения ГО будет?

Скорей всего - НЕТ
https://www.nasaspaceflight.com/2017/05/expendable-falcon-9-inmarsat-5-f4-launch/

To accommodate the satellite, SpaceX will launch the Falcon 9 in its fully expendable configuration, foregoing an attempt to recover the first stage in order to maximize the mass it can deliver into orbit.

[Дмитрий В.]

Max Andriyahov пишет:
6100 кг это рекорд для Ф9 на ГПО?

Ага, Но весьма далеко от официально объявленных 8300 кг на ГПО.
