A-ONE: Cygnus Mass Simulator, Dove 1, PhoneSat х3 - Antares-110 - MARS LP-0A - 21.04.2013 21:00 UTC

[Salo]

N пишет:

И ссылка:
http://www.nasa.gov/exploration/commercial/cargo/briefing_041613.html

[Salo]

[Liss]

Закрытая зона почему-то только одна.

A0223/13 - QRACA DUE TO MILITARY STATIONARY AIRSPACE RESERVATION "ANTARES ONE" WITHIN THE NEW YORK OCEANIC CTA/FIR, NEW YORK OCEANIC WILL NOT ACCEPT IFR FLIGHT WITHIN 45NM OF THAT AIRSPACE BOUNDED BY: 2657N/6014W, 2807N/5848W, 1834N/5030W, 1814N/5058W, 1814N/5212W, TO START POINT. THE FOLLOWING INTERNATIONAL ROUTES WILL BE AFFECTED: A516, L375, L435, M525, M595 AND M596 AND M597. INTERNATIONAL REROUTES ARE AS FOLLOWS: A516: PJM TARMO AMENO AND REVERSE L375: KOZIK KAVAX 1700N 5300W IRAXI AND REVERSE L435: KOZIK KAVAX 1700N 5300W PAKER AND REVERSE M525: CAFFE TARMO AMENO AND REVERSE M595: BRKZZ AMENO AND REVERSE M596: NUBUS AMENO AND REVERSE M597: THANK TARMO AMENO AND REVERSE. SFC - FL999, 2100-0030 DLY, 17 APR 21:00 2013 UNTIL 22 APR 00:30 2013. CREATED: 16 APR 14:40 2013

!CARF 04/084 (KZNY A0217/13) ZNY AIRSPACE DCC ANTARES ONE STATIONARY RESERVATION WITHIN AN AREA BNDD BY 2657N/6014W 2807N/5848W 1834N/5030W 1814N/5058W 1814N/5212W SFC-UNL WEF 1304172100-1304180030

[Дмитрий В.]

Liss пишет:
Закрытая зона почему-то только одна.

A0223/13 - QRACA DUE TO MILITARY STATIONARY AIRSPACE RESERVATION "ANTARES ONE" WITHIN THE NEW YORK OCEANIC CTA/FIR, NEW YORK OCEANIC WILL NOT ACCEPT IFR FLIGHT WITHIN 45NM OF THAT AIRSPACE BOUNDED BY: 2657N/6014W, 2807N/5848W, 1834N/5030W, 1814N/5058W, 1814N/5212W, TO START POINT. THE FOLLOWING INTERNATIONAL ROUTES WILL BE AFFECTED: A516, L375, L435, M525, M595 AND M596 AND M597. INTERNATIONAL REROUTES ARE AS FOLLOWS: A516: PJM TARMO AMENO AND REVERSE L375: KOZIK KAVAX 1700N 5300W IRAXI AND REVERSE L435: KOZIK KAVAX 1700N 5300W PAKER AND REVERSE M525: CAFFE TARMO AMENO AND REVERSE M595: BRKZZ AMENO AND REVERSE M596: NUBUS AMENO AND REVERSE M597: THANK TARMO AMENO AND REVERSE. SFC - FL999, 2100-0030 DLY, 17 APR 21:00 2013 UNTIL 22 APR 00:30 2013. CREATED: 16 APR 14:40 2013

!CARF 04/084 (KZNY A0217/13) ZNY AIRSPACE DCC ANTARES ONE STATIONARY RESERVATION WITHIN AN AREA BNDD BY 2657N/6014W 2807N/5848W 1834N/5030W 1814N/5058W 1814N/5212W SFC-UNL WEF 1304172100-1304180030

Возможно, ГО и 1-я ступень падают в один район?

[Liss]

Дмитрий В. пишет:
Возможно, ГО и 1-я ступень падают в один район?

Центр закрываемого района отстоит от места старта примерно на 2500 км.

[Дмитрий В.]

Liss пишет:

Дмитрий В. пишет:
Возможно, ГО и 1-я ступень падают в один район?

Центр закрываемого района отстоит от места старта примерно на 2500 км.

У Антареса довольно "растянутая" первая ступень, поэттому она может улететь далеко. А поскольку разделение происходит на большой высоте с малыми скоростными напорами, имеет смысл скинуть вскоре и ГО.

[АниКей]

Первый запуск ракеты "Антарес" можно будет увидеть из столицы США
13:41 17.04.2013
Как отмечает Orbital, ракета поднимется достаточно высоко над горизонтом, что ее можно будет увидеть со ступеней Капитолия. Высшей точки на небе с точки зрения жителей Вашингтона она достигнет на 230-й секунде после старта.


МОСКВА, 17 апр — РИА Новости. Первый испытательный запуск ракеты "Антарес" с масс-габаритным макетом частного космического грузовика Cygnus ("Лебедь"  можно будет наблюдать прямо из столицы США Вашингтона, сообщает разработчик ракеты и корабля, компания Orbital Sciences.
Запуск ракеты планируется на 17.00 по времени восточного побережья США 17 апреля (01.00 мск 18 апреля) с площадки Среднеатлантического регионального космопорта (MARS) на острове Уоллопс, штат Виргиния. На данный момент погода благоприятствует пуску, ранее метеорологи заявляли, что существует вероятность в 55% неподходящих для запуска условий. Если старт будет отложен, "Антарес" сможет стартовать 18-21 апреля.
Как отмечает Orbital, ракета поднимется достаточно высоко над горизонтом, что ее можно будет увидеть со ступеней Капитолия. Высшей точки на небе с точки зрения жителей Вашингтона она достигнет на 230-й секунде после старта.


© Фото: Orbital
Огневые испытания ракеты "Антарес"

 Ракета "Антарес", которая ранее успешно прошла огневые испытания, должна будет вывести на орбиту высотой 250-300 километров демонстрационный масс-габаритный макет корабля Cygnus, оснащенный датчиками для контроля параметров полета. В случае успешного запуска Orbital продолжит подготовку к первому запуску корабля Cygnus, который, как ранее сообщало НАСА, предварительно запланирован на начало лета.
Ракета Antares создавалась при участии украинского предприятия "Южмаш" с использованием разработок, опробованных на ракете "Зенит". Она будет выводить в космос космический грузовик Cygnus грузоподъемностью от 2 до 2,7 тонны. Orbital Sciences наряду с компанией SpaceX в 2008 году получила от НАСА контракты по доставке грузов на МКС — CRS-контракты (Commercial Resupply Services), на долю Orbital Sciences пришлось восемь рейсов. Конкурент компании, SpaceX, 1 марта запустила второй плановый грузовой рейс к Международной космической станции. http://ria.ru/science/20130417/933099617.html

[ilan]

Дмитрий В. пишет:

Liss пишет:

Дмитрий В. пишет:
Возможно, ГО и 1-я ступень падают в один район?

Центр закрываемого района отстоит от места старта примерно на 2500 км.

У Антареса довольно "растянутая" первая ступень, поэттому она может улететь далеко. А поскольку разделение происходит на большой высоте с малыми скоростными напорами, имеет смысл скинуть вскоре и ГО.

 Я бы сказал, что разделение происходит уже в космосе. ГО сбрасывается также до включения двигателя второй ступени. Поэтому и первая ступень и части ГО летят практически по одной траектории, и все это падает с высоты более 189 км.
Согласно
http://www.orbital.com/Antares-Cygnus/files/AONE-Mission-Overview.pdf
Выключение двигателей 1-й ступени на 230 секунде, на высоте 107 км;
отделение 1-й ступени на 235 секунде, на высоте 113 км;
отделение ГО на 319 секунде, на высоте 184 км;
включение двигателя 2-й ступени на 328 секунде, на высоте 189 км.
С 230 по 328 секунду - пассивный участок, на котором первая ступень получает только небольшой импульс увода либо от толкателей, либо от РДТТ разделения ступеней (не знаю, что применяется на Антаресе).
Поэтому и район падения для всех частей один.

[ilan]

АниКей пишет:
Как отмечает Orbital, ракета поднимется достаточно высоко над горизонтом, что ее можно будет увидеть со ступеней Капитолия. Высшей точки на небе с точки зрения жителей Вашингтона она достигнет на 230-й секунде после старта.

Интересный эффект: Для наблюдателя из Вашингтона будет казаться, что после выключения двигателей 1-й ступени ракета падает, хотя она на самом деле до включения второй ступени наберет еще более 80 км высоты.

[Salo]

Seerndv пишет:

Американская ракета «Антарес» с самарскими двигателями готовится к первому пуску

 Сегодня ночью со стартового комплекса летного центра NASA (США, штат Вирджиния) состоится первый полет американской ракеты-носителя среднего класса «Антарес». В составе первой ступени ракеты-носителя установлены двигатели НК-33/ AJ26, изначально разработанные и произведенные на самарском предприятии ОАО "Кузнецов"(входит в УК "Объединенная двигателестроительсная корпорация", ОДК), сообщили Самара.ру на "Кузнецове". Делегация ОДК в составе генерального директора Владислава Масалова, исполнительного директора ОАО «Кузнецов» Николая Якушина и главного конструктора по проекту НК-33 Валерия Данильченко накануне прибыли на Среднеатлантический Региональный космодром (MARS) в Вирджинии. Именно здесь, на стартовом комплексе острова Уэллопс, в ночь с 17 на 18 апреля запланирован первый экспериментальный полет ракеты-носителя среднего класса «Антарес», разработанной американской корпорацией «Orbital Sciences» для доставки грузов на МКС. В составе первой ступени ракеты «Антарес» установлены двигатели НК-33/AJ26, модифицированные американской двигателестроительной компанией «Aerojet». Техническую поддержку по адаптации НК-33/AJ26 к РН «Антарес» в рамках сотрудничества с «Aerojet» оказывают специалисты самарского ОАО «Кузнецов» (входит в ОДК). Предприятие является разработчиком и производителем двигателя НК-33. Сейчас ракета-носитель «Антарес» установлена на стартовом столе пускового комплекса. В рамках запуска «Антаресу» предстоит миссия продолжительностью 603 секунды. Программа экспериментального полета предполагает, что ракета-носитель выведет моделируемую полезную нагрузку на запланированную орбиту (высота 250х300 км) с углом отклонения 51,6 градусов. Ориентировочное время пуска -01.00 по московскому времени 18 апреля.
 http://samara.ru/read/48388


[Space Alien]

Так сегодня состоится пуск или нет?

[Salo]

http://www.spaceflightnow.com/antares/demo/status.html

WEDNESDAY, APRIL 17, 2013

1300 GMT (9 a.m. EDT)
 The launch countdown is underway at NASA's Wallops Flight Facility, with clocks set to a scheduled liftoff time of 5 p.m. EDT (2100 GMT) for the first test launch of the Orbital Sciences Antares rocket.

The eight-hour countdown is beginning now with a call-to-stations for the Antares launch team. Over the next few hours, engineers will power up the 13-story rocket, load the launcher with refined RP-1 kerosene and liquid oxygen propellants, and activate the booster's systems for testing to ensure all is ready for flight.

The launch window has been shortened to two hours and now closes at 7 p.m. EDT (2300 GMT). The abbreviated launch window was planned going into the countdown and was conceived to ensure the launch team is not overworked and on console for too long, according to Orbital Sciences.

Once engineers begin loading super-cold liquid oxygen into the rocket's first stage, the available launch window will be condensed to 15 minutes. Orbital says the reason is to make sure the cryogenic oxidizer does not boil off too much during the countdown, a concern due to the limited supply of liquid oxygen available at the launch pad to replenish the rocket's tanks.

Orbital Sciences says technicians completed closeouts of final arming of the Antares rocket last night at about 9 p.m. EDT.

The weather continues to look iffy for today's launch, with less than a 50 percent chance of acceptable conditions during the launch window.

[Salo]

http://spaceflightnow.com/antares/demo/130416aj26/#.UW7IAko27_g

Antares rocket engines lean on Russian moon legacy
BY STEPHEN CLARK
SPACEFLIGHT NOW
Posted: April 16, 2013

More than four decades ago, working under the orders of the Soviet leadership, technicians toiled in anonymity to build dozens of rocket engines to power Russian moon shots off planet Earth, intending to flaunt the supremacy of communism over capitalism.

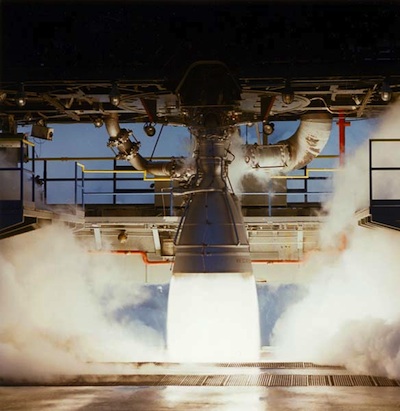

File photo of the NK-33 engine firing on a test stand. Credit: Aerojet

On Wednesday, those same engines - designed and constructed under the umbrella of totalitarianism in the former Soviet Uni on - will launch a commercial rocket conceived for a money-making mission.

The privately-developed Antares rocket, operated by Orbital Sciences Corp., will take off for the first time Wednesday in a launch window opening at 5 p.m. EDT (2100 GMT). The Antares launch base is at NASA's Wallops Flight Facility on the Virginia coast.

The Antares first stage is powered by two of the Russian-built engines - named the AJ26 engine by Aerojet, the powerplant's main U.S. contractor.

In Russia, the units are called NK-33 engines. The original manufacturer was Kuznetsov, a Russian design bureau which built engines for space launchers and Russia's strategic military bombers.

After the engines were built, Soviet space dreams were adjusted to focus on Earth-orbiting space stations, leaving the engineering marvels in storage without a purpose.

Aerojet imported the engines to the United States in the 1990s in an effort to develop a commercial rocket to launch U.S. military satellites. The California-based propulsion company competed to supply engines for the Atlas 5 rocket, which was then under development by Lockheed Martin Corp.

Lockheed Martin sel ected another Russian engine to power the Atlas 5's first stage, leaving Aerojet with a stock of three dozen NK-33 engines at the company's headquarters in Sacramento, Calif.

Aerojet modified the NK-33 engines by adding a gimbal mechanism for steering, installing modern instrumentation, and qualifying the engines for U.S. propellants, according to Julie Van Kleeck, vice president of space programs for Aerojet.

Following Lockheed Martin's decision to use another engine, the NK-33 engines appeared to be left in the dust for a second time until Orbital Sciences came along with a proposal for the Antares rocket - then called the Taurus 2 - in 2007.

Once Orbital's Antares rocket was sel ected by NASA to supply the International Space Station, the company purchased 20 of the engines fr om Aerojet to power 10 launches - two test flights and eight operational missions, according to Kurt Eberly, deputy Antares project director at Orbital Sciences.

"If you want to get an engine like this, you can't find it in the United States," Eberly said. "I think it speaks to the state of the liquid propulsion industry in the United States."

The engine is noteworthy for its efficiency. It produces more power for its weight than any other liquid-fueled engine ever built.

Officials from Kuznetsov, the original manufacturer of the engines, traveled to Virginia to witness the Antares launch.

"I think they are excited to finally see their engine launch something into orbit," Eberly said.

According to Eberly, purchasing the engines from Russia was the most cost-effective solution for the Antares rocket's first stage. A comparable engine developed from scratch could cost more than $500 million, not including the price per unit, he said.

There are more NK-33 engines stored in Samara, Russia, but there is growing demand for the engines. Russia is working on a light version of the Soyuz rocket which will use one NK-33 engine on the first stage.

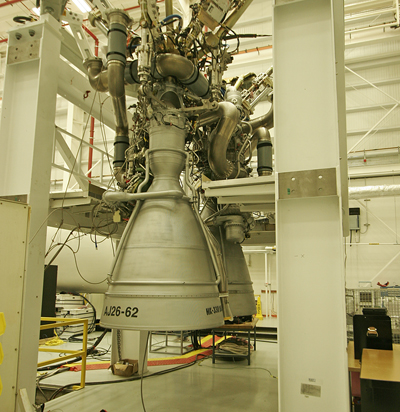

Photo of two AJ26 engines inside the Antares horizontal integration facility at NASA's Wallops Flight Facility. These engines will be used on the second launch of the Antares rocket. Credit: Stephen Clark/Spaceflight Now

The Soyuz 2-1v rocket could launch for the first time later this year, and the new Russian launcher will compete with Orbital Sciences and Aerojet for access to the lim ited stockpile.

Russia could restart production of the NK-33 engine, but it would take several years to ramp up construction to produce new engines. If Orbital Sciences is successful in finding a secondary market for the Antares rocket, such as launching commercial, military or scientific satellites, the company may need to find an alternate engine in the long run, Eberly said.

Aerojet is working with NASA and the U.S. Air Force to design a kerosene-fueled U.S.-built alternative to the Atlas 5 rocket's RD-180 main engine and to power next-generation boosters for NASA's Space Launch System heavy-lift rocket. Such an engine could be used by Antares in the future, Eberly said.

The NK-33 engine is derived from the NK-15 engine used on the Soviet Union's N1 rocket, a massive launcher designed to hurl manned lunar landers toward the moon. It was Russia's answer to NASA's Saturn 5 moon rocket.

The N1 rocket launched four times on unmanned test flights fr om 1969 to 1972, but all the missions failed to reach orbit. Investigators found no fault with the engines, instead blaming the mishaps on the complexity of the gargantuan rocket, which used 30 engines on the first stage alone.

"They also have thousands and thousands of seconds of test time behind them in a wide variety of conditions and power levels, so we know the engines are robust," said Frank Culbertson, executive vice president and general manager of the Orbital Sciences advanced programs group. "As we went through testing, we did discover there were some effects of aging since they had been in storage for a while, including some stress corrosion cracking. That's what we're correcting with the weld repairs and other inspections."

Engineers added extra inspections after a crack in a fuel line triggered a fire in 2011 during a burn on a test stand at NASA's Stennis Space Center in Mississippi.

"What they bring is an engine that uses a lot of power, has a great deal of performance, and satisfies our needs for getting payloads to orbit," Culbertson said. "We also have a legacy of proven design we can lean on."

[Salo]

http://spaceflightnow.com/antares/demo/countdowntimeline.html

Antares countdown timeline
SPACEFLIGHT NOW
Posted: April 16, 2013

NOTE: All times approximate

T-minus 8 hours    Call to Stations
The launch team reports to the control center at NASA's Wallops Flight Facility.

T-minus 7 hours, 30 minutes    Complete Voice Checks
The launch team conducts voice checks over radio loops.

T-minus 6 hours, 30 minutes    Clear the Pad
Workers evacuate the launch pad.

T-minus 5 hours, 35 minutes    Poll to Initiate Fueling Sequence
The launch team conducts a "go/no go" poll to initiate the Antares fueling sequence.

T-minus 5 hours    Vehicle Power-Up
The Antares launch vehicle is powered on using an external power source.

T-minus 4 hours, 5 minutes    Poll to Initiate Pre-Launch Processing
The launch team is polled for a "go" to begin the pre-launch processing sequence.

T-minus 3 hours, 40 minutes    15-minute Hold
The countdown holds for 15 minutes.

T-minus 3 hours, 30 minutes    RF Transmitter Checks
The launch team tests the Antares rocket's radio transmitter, which will be the communications link between the vehicle and the ground during flight.

T-minus 3 hours, 5 minutes    Poll to Initiate LOX Chilldown
The launch team is a polled for a "go" to begin the liquid oxygen chilldown, which conditions the ground and vehicle propellant lines for loading of the cryogenic propellant, which is stored at a temperature of minus 298 degrees Fahrenheit.

T-minus 3 hours    Begin Liquid Oxygen Chilldown
The liquid oxygen chilldown sequence begins.

T-minus 2 hours, 48 minutes    Terminate LOX Loading
The Antares flight termination system, which would destroy the rocket if it flew off course during launch, is tested to ensure it is ready for launch.

T-minus 2 hours, 24 minutes    Enable Ordnance
The Antares rocket's pyrotechnic charges, which are used to separate the rocket's stages and other components in flight, are set to enable.

T-minus 1 hour, 45 minutes    15-minute Hold
The countdown holds for 15 minutes.

T-minus 1 hour, 30 minutes    Begin Propellant Loading
Liquid propellants are pumped into the Antares first stage through the base of the rocket. The 12.8-foot-diameter first stage, fabricated in Ukraine, holds 21,000 gallons of RP-1 kerosene and 41,000 gallons of liquid oxygen. The Antares second stage is fueled by solid propellants, which were loaded when the stage was built.

T-minus 25 minutes    Start of Engine Low-Flow Chilldown
The chilldown sequence for the Antares rocket's two AJ26 main engines begins to prepare the engines for ignition.

T-minus 10 minutes    Start of Engine Medium-Flow Chilldown
The chilldown sequence is transitioned to a medium flow.

T-minus 5 minutes    Transfer Avionics to Internal Power
The Antares rocket's avionics are switched to run off of an internal battery.

T-minus 3 minutes, 30 minutes    Initiate Terminal Countdown
The final three-and-a-half minutes of the countdown are run off a computer autosequence.

T-minus 2 minutes    Pressurize Propellant Tanks
The Antares rocket's first stage propellant tanks are pressurized for launch.

T-minus 15 seconds    Main Engine Slew Test
The Antares rocket's AJ26 first stage engines are slewed in a preflight steering check to ensure the gimbal system is ready for flight. The engines can gimbal up to 6 degrees from center to steer the rocket.

T-minus 5 seconds    TEL Retraction
The rocket's umbilical tower, which is also used to transport and erect the vehicle at the launch pad, is retracted away from the launch vehicle.

T-minus 0 seconds    Main Engine Ignition
The two AJ26 main engines ignite with the help of a start cartridge before ramping up to a combined thrust level of approximately 750,000 pounds.

T+plus 1.5 seconds    Engine Health Check Complete
A computer-controlled health check of the performance of the AJ16 engines is completed before liftoff.

T+plus 2 seconds    Liftoff
After the engines are confirmed healthy, the hold-down system releases the Antares rocket at liftoff.

[Salo]

http://www.spaceflightnow.com/antares/demo/status.html

WEDNESDAY, APRIL 17, 2013
1420 GMT (10:20 a.m. EDT)
Workers at launch pad 0A are completing final preparations to the ground facility before evacuating the complex ahead of fueling this afternoon.

WEDNESDAY, APRIL 17, 2013
1510 GMT (11:10 a.m. EDT)
More than four decades ago, working under the orders of the Soviet leadership, technicians toiled in anonymity to build dozens of rocket engines to power Russian moon shots off planet Earth, intending to flaunt the supremacy of communism over capitalism. On Wednesday, those same engines - designed and constructed under the umbrella of totalitarianism in the former Soviet Union - will launch a commercial rocket conceived for a money-making mission.

WEDNESDAY, APRIL 17, 2013
1546 GMT (11:46 a.m. EDT)
Workers have evacuated the launch pad ahead of the power-up of the Antares rocket. The technicians are positioned in a fallback zone a safe distance from the launch pad.

And the launch team has given the "go" to initiate the Antares fueling sequencer, which oversees preparations to fill the rocket with liquid propellant this afternoon. The team is also "go" to power on the Antares launch vehicle coming up at about 12 p.m. EDT (1600 GMT).

[Salo]

http://spaceflightnow.com/antares/demo/prelaunch/

PHOTOS: Antares on the eve of launch

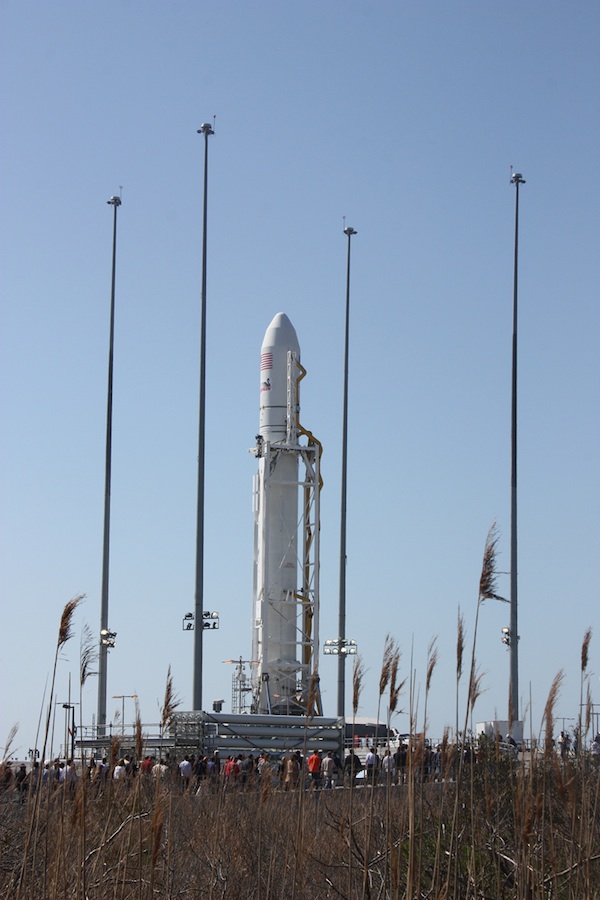

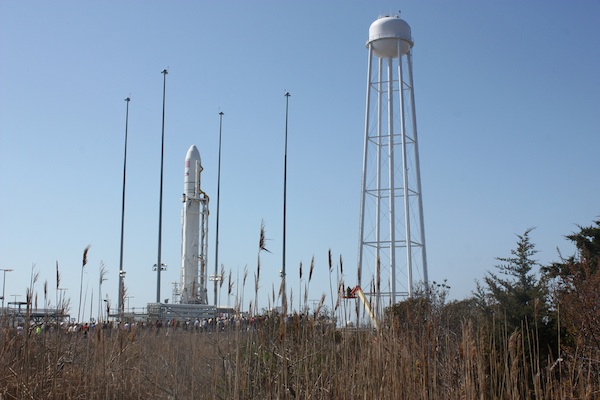

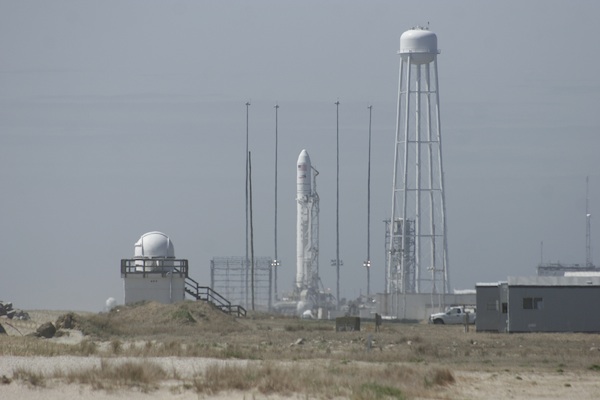

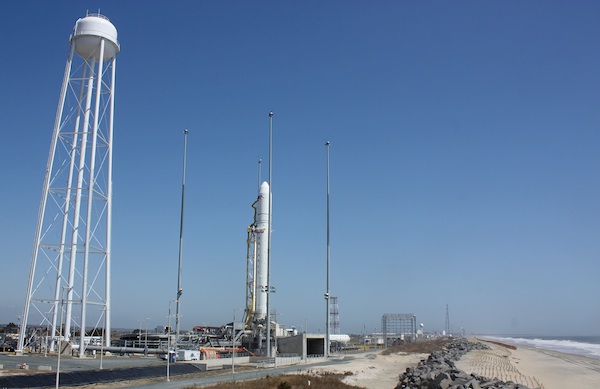

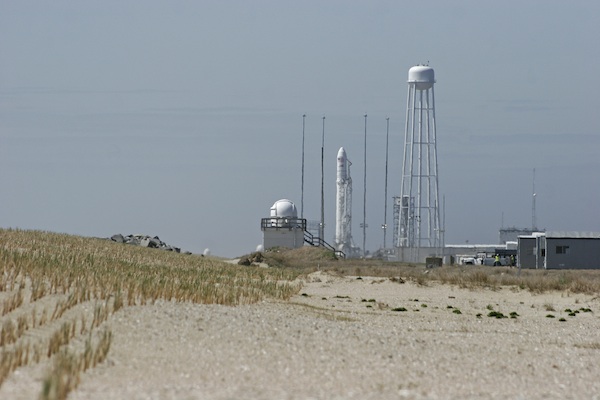

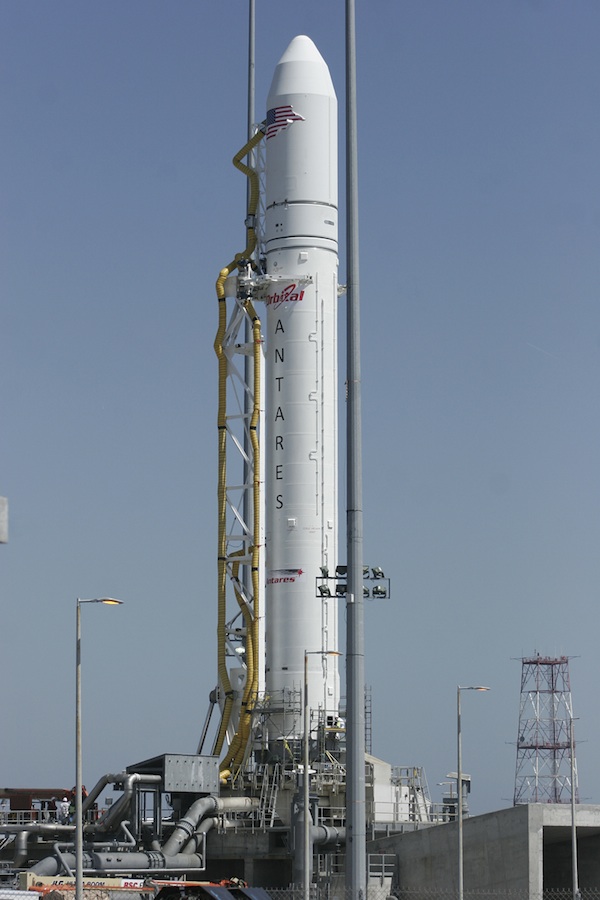

On the eve of its first flight, the Antares rocket stands on launch pad 0A at NASA's Wallops Flight Facility in Virginia. The 13-story rocket, developed by Orbital Sciences Corp., will eventually carry supplies on launches to the International Space Station.

Liftoff is scheduled for Wednesday at 5 p.m. EDT (2100 GMT).

See our Mission Status Center for the latest news on the launch.

Photo credit: Stephen Clark/Spaceflight Now

[Valerij]

Antares Rocket Cleared for April 17 Test Launch
By Dan Leone | Apr. 16, 2013

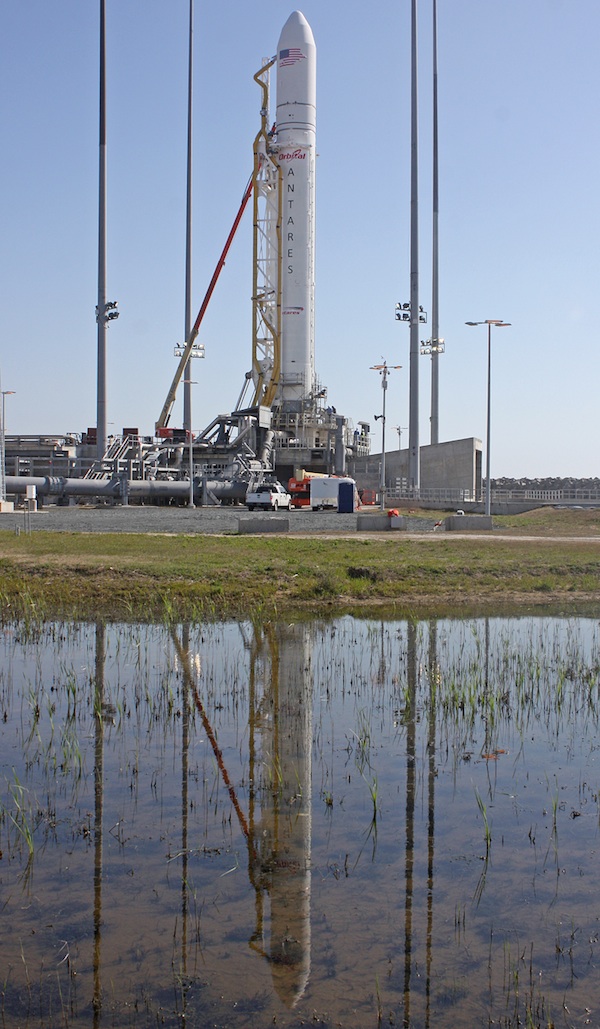

Orbital Sciences Antares rocket on the launch pad at Wallops. Credit: NASA photo by Brea Reeves
WALLOPS ISLAND, Va. — Orbital Sciences Corp. has been cleared to launch the Antares rocket April 17 on its inaugural flight.

Weather permitting — and forecasts show a chance of showers here around launch time — liftoff is scheduled for 5 p.m. EDT.

Orbital aborted a countdown rehearsal April 13 because of a faulty valve in one of the two Aerojet-supplied AJ-26 liquid kerosene engines that power the Antares' first stage. The valve was replaced April 14.

NASA Wallops Flight Facility Site Director Bill Wrobel on April 16 gave the test launch the formal go-ahead. The so-called Authority to Proceed followed a launch readiness review "at which Orbital managers gave a 'go' to proceed to toward launch," NASA said in a statement.

http://www.spacenews.com/article/launch-report/34884antares-rocket-cleared-for-april-17-test-launch#.UW7R2aKLjhc

[Salo]

http://www.orbital.com/Antares-Cygnus/files/Pre-Launch-Guest-Briefing.pdf

[igorvs]

Кто-нибудь знает, прямой эфир по пуску будет?

[igorvs]

Сегодня будет пуск кузнечика, возможно с полным отключением двигателя, прямо в день пуска Antares
