STS-127 - Endeavour - Kennedy - 15.07.2009 22:03 UTC

[Agent]

А почему они не могут с LC-39B слетать? Проверили бы за одно возможность спасательной миссии как таковой.

Пока там Шаттл, нельзя проводить работы по подготовке пуска Ареса 1 Х

[anik]

А почему они не могут с LC-39B слетать?

По программе STS-400 "Индевор" взлетел бы с LC-39B, так как у него при этом пустой отсек полезной нагрузки. В миссии STS-127 "Индевору" надо везти грузы для МКС, а устанавливать их в ОПН можно только на LC-39A. LC-39B теперь лишена такой возможности.

[andybe29]

Space shuttle Endeavour's STS-127 launch is currently targeted for 7:17am ET on June 13.

[anik]

http://www.nasa.gov/home/hqnews/2009/may/HQ_M09-096_Endeavour_TCDT.html

Перевозку STS-127 на LC-39A отложили на 31 мая. Плохая погода...

[anik]

В 11:16 ЛМВ начали перевозку, согласно Spaceflight Now.

Последний шаттл покидает LC-39B...

[Rakanishu]

Когда стыковка запланирована, кто-нибудь знает?  В пресс-ките не нашел. Или это только после старта сообщат?

[yuri_doma]

Когда стыковка запланирована, кто-нибудь знает?  В пресс-ките не нашел. Или это только после старта сообщат?

Если старт 13, то стыковка 15 июня

[anik]

Когда стыковка запланирована, кто-нибудь знает?

Уилльям Харвуд из CBS News, как всегда, знает: 15 июня в 11:52 ЛМВ.

[anik]

Пресс-кит к полету STS-127: http://www.nasa.gov/pdf/358018main_sts127_press_kit.pdf (6.32 Мб)

И краткая справка: http://www.nasa.gov/pdf/351479main_STS127%20Mission%20Summary.pdf (484 Кб)

[KBOB]

Статус миссии на www.spaceflightnow.com

[KBOB]

A leak has developed in fueling of space shuttle Endeavour. The launch team is troubleshooting to determine the source. It appears that launch will be scrubbed for today. However, NASA has not yet announced that.

Возможен перенос старта.

[KBOB]

http://www.spaceflightnow.com/shuttle/sts127/status.html

There was a leak with the GUCP during the STS-119 mission back in March. In that case, the system leak was discovered as the liquid hydrogen tank was entering final topping mode. Technicians replaced the ground assembly and the system was tight for the subsequent launch attempt four days later.

Похожая проблемма возникла при старте миссии STS-119 в марте. Возможна 4-х дневная задержка старта.

[Чебурашка]

Пуск отложен как минимум до 17 июня.
Конфликт с пусокм LRO. Менеджеры обеих программ собираются на совещение, чтобы решить, что делать.

[Salo]

http://www.spaceflightnow.com/shuttle/sts127/090613scrub/

Space shuttle Endeavour launch postponed by leak
BY WILLIAM HARWOOD
STORY WRITTEN FOR CBS NEWS "SPACE PLACE" & USED WITH PERMISSION
Posted: June 13, 2009

Launch of the shuttle Endeavour, grounded by a gaseous hydrogen leak during fueling Saturday, is off until Wednesday at the earliest, NASA officials say. But because of the already planned launch of NASA's Lunar Reconnaissance Orbiter satellite Wednesday, the shuttle team could be delayed to June 20, the last day this month Endeavour can be launched.

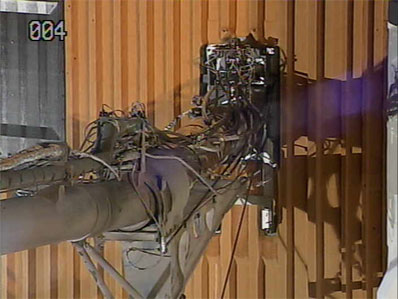

The file image shows the launch pad's gaseous hydrogen vent arm that connects the pad tower to the shuttle's tank. Credit: NASA TV

Mission managers plan to meet later this weekend to discuss troubleshooting and to assess their options, including negotiations with the Lunar Reconnaissance Orbiter project and the Air Force Eastern Range that provides telemetry and tracking support for all rockets launched from Florida.

"Obviously, the 17th is a range problem, there's a conflict out there with LRO/LCROSS," said Mike Moses, shuttle integration manager at the Kennedy Space Center. "We haven't even begun to work that yet. ... We'll start those negotiations tomorrow and see where we get, both with the Range and with the NASA payload."

In the meantime, shuttle engineers will press ahead with troubleshooting to figure out what went wrong during fueling.

Engineers began the three-hour fueling process at 9:52 p.m. Friday. As the hydrogen section of the tank fills up, some of the liquid turns into a gas that is carried away by a vent line. As Endeavour's tank was being topped off, sensors indicated higher-than-allowable levels of gaseous hydrogen at the ground umbilical plate, or GUP, that connects the vent line to the side of the shuttle's external tank.

The problem, which only shows up when supercold cryogenic propellants are flowing, was virtually identical to a leak in March that grounded the shuttle Discovery for four days. In that case, engineers disassembled the umbilical and replaced a critical seal. While the "root cause" of the problem was never determined, the system worked normally during Discovery's subsequent launch attempt.

"We got into tanking on time," senior Launch Director Mike Leinbach said early Saturday. "Everything was going perfectly fine, per plan. But just like on the STS-119 mission, we suffered a leak at the ground umbilical carrier plate just as soon as we got into the topping part of the sequence on the hydrogen load.

"The signature was almost identical to what we had two flows ago. The guys on console cycled the valve as they did previously, they cycled the valve four times trying to clear up that leak. In the past, every now and then that'll work for us. This time, again, it didn't work for us. We were out of spec leakage at that disconnect.

"It's a four-day scrub turnaround is what we're estimating right now," he said. "That's a preliminary plan, but I would not expect it to be any shorter than that. ... It's going to be very, very similar to what we went through last time on STS-119."

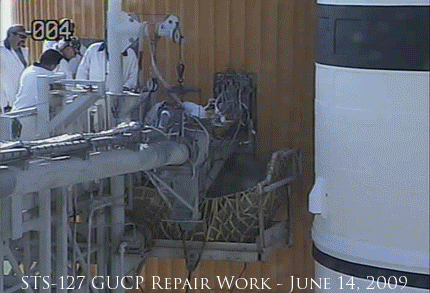

A closeup view of the ground umbilical carrier plate. Credit: NASA TV

Moses said engineers were surprised to encounter the same problem in two out of three launch campaigns. After the March leak, "we measured how that seal fits, we looked at it under a microscope, we looked at it under cryo conditions, we didn't really find anything that would tell us what common cause is."

"But obviously, something is going on, the second time in three flights, something is going on. So teams are being kicked off to go look at that. ... But really, our plan is going to be pretty much what it was last time, which is just R-and-R that seal and then we really have to tank again to see what happens."

That means Endeavour will be grounded until Wednesday at the earliest. But NASA's Lunar Reconnaissance Orbiter currently is scheduled for launch atop an Atlas 5 rocket at 3:51 p.m. Wednesday.

It takes the Eastern Range two days to reconfigure its systems to support a different launch. If the LRO mission stays on track and takes off Wednesday afternoon as planned, the next opportunity for Endeavour would be before dawn on June 20.

But in that case, NASA would only have one day to get Endeavour off the ground or the flight would slip to July 11 because of temperature constraints related to the orbit of the International Space Station.

NASA managers want to get Endeavour off as soon as possible to avoid downstream delays for upcoming space station assembly missions as the shuttle program winds down toward retirement in 2010. But the LRO mission is a high priority as well and it's not yet clear how NASA might ultimately resolve the conflict.

"They only have a four-day window, it's a lunar rendezvous, so they have those four days and if they don't make that they have to wait two weeks before they could go again," said Moses.

"So there are two parts to that. One, we don't want them to miss their lunar rendezvous window because that's very difficult to replan around. The other thing is, the Range is kind of backing up, especially on the Atlas pad, there are a lot of payloads that are waiting for LRO to get going and having a payload that needs to wait every two weeks for its launch window to reopen could cause some problems. We're going to have those negotiations, I can't begin to foretell how they're going to go.

"We had pretty much agreed ahead of time that we would probably not bump them off the Range, but it would all depend on why we needed to scrub in the first place," Moses said. "We didn't really talk about a failure like this, we were mostly thinking weather. So we'll go and re-talk again. But I don't expect that we'll make them go away and we'll take that whole window. But if we do, we'd try the 17th and could go all the way through the 20th."

[andybe29]

NASA has decided to launch Endeavour at 5:40 a.m. EDT Wednesday and delay the Moon-bound Atlas 5 rocket originally planned for that day

[Agent]

Анимация

[yuri_doma]

Снова протекает в том же месте, заправка водорода остановлена
....
Перезапускают режим "быстрой загрузки" для дополнительных проверок

[46-15]

Снова протекает в том же месте, заправка водорода остановлена
....
Перезапускают режим "быстрой загрузки" для дополнительных проверок

Информация достоверная?

[yuri_doma]

Да
http://spaceflightnow.com/shuttle/sts127/status.html
Остановили снова

[46-15]

Да
http://spaceflightnow.com/shuttle/sts127/status.html
Остановили снова

Отсчет пошел.
