Dragon SpX-15(CRS-15), ECOSTRESS, LEE (Ground Spare)- Falcon 9 (B1045.2)- Canaveral SLC-40 -29.06.18

[tnt22]

Эмблема миссии

[tnt22]

[tnt22]

[tnt22]

[tnt22]

[tnt22]

Опасные зоны (нотмар)

[tnt22]

Трансляция пуска

на сайте SpaceX

spacex.com/webcast

или

на ТыТрубе

youtube.com/watch?v=ycMagB1s8XM

[tnt22]

Human Spaceflight‏Подлинная учетная запись @esaspaceflight 10 ч. назад

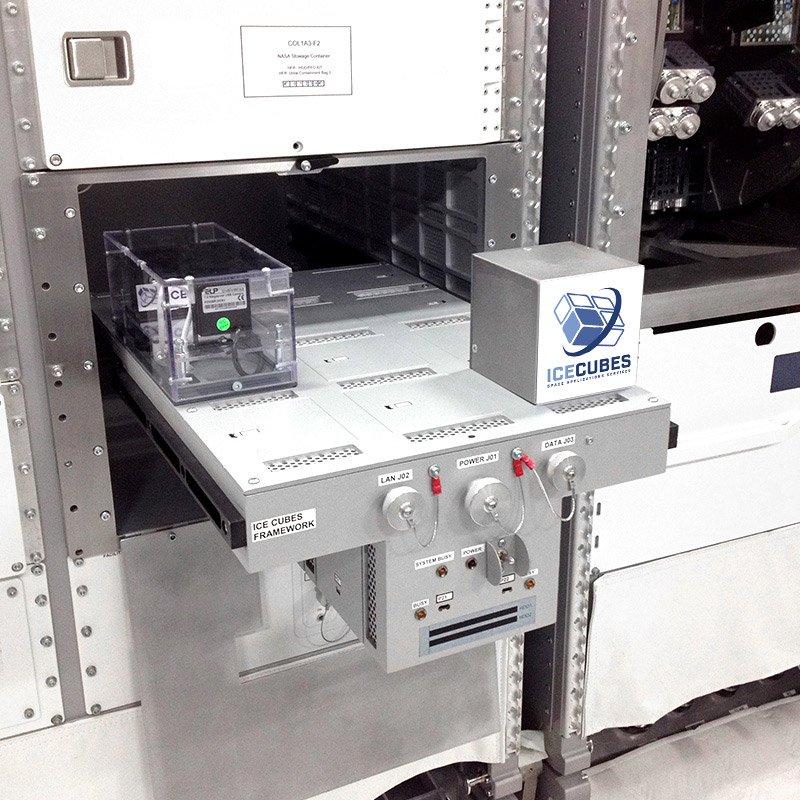

Science and art on a Dragon! A European package will launch on the @SpaceX rocket to aid more science on the @Space_Station with @Astro_Alex. Launch is scheduled for Friday, June 29 at 09:41 GMT (11:41 CEST). #Columbus10Years More on the blog: http://blogs.esa.int/alexander-gerst/2018/06/28/science-and-art-on-a-dragon/ ...

Спойлер

[свернуть]

[us2-star]

[tnt22]

SpaceX‏Подлинная учетная запись @SpaceX 3 ч. назад

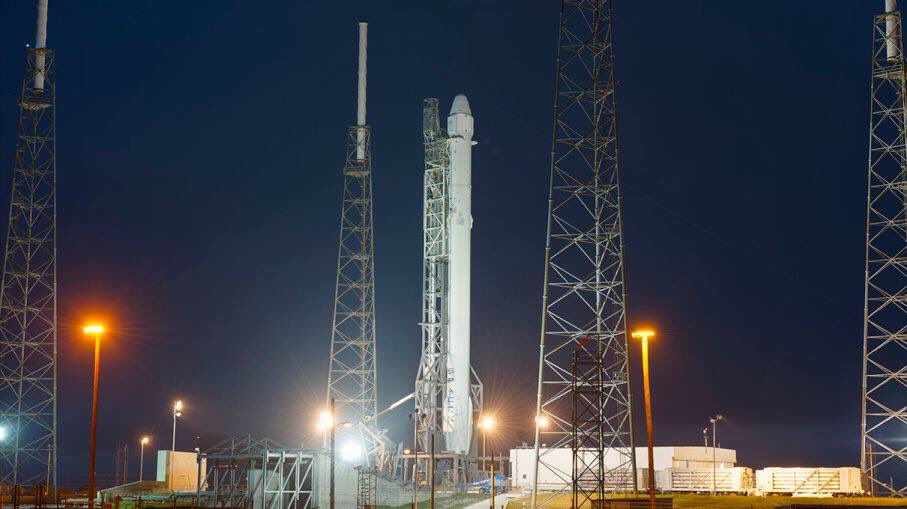

Falcon 9 and Dragon went vertical tonight ahead of tomorrow's resupply mission to the @ISS. Weather is 90% favorable for launch at 5:42 a.m. EDT, 9:42 UTC.

[tnt22]

06/29/2018 06:27 Stephen Clark

The Falcon 9 rocket has been raised vertical at Cape Canaveral's Complex 40 launch pad in preparation for liftoff at 5:42 a.m. EDT (0942 GMT).

[tnt22]

https://spaceflightnow.com/2018/06/28/commercial-spacex-cargo-capsule-readied-for-launch-friday/

Commercial SpaceX cargo capsule readied for launch Friday
June 28, 2018 Stephen Clark


SpaceX's Dragon spacecraft is carrying a spare latching end effector (top) and NASA's ECOSTRESS instrument to the space station inside the vehicle's trunk. Credit: SpaceX

A Falcon 9 rocket and Dragon supply ship, primarily using previously-flown hardware, are scheduled for liftoff before dawn Friday at Cape Canaveral on SpaceX's 15th cargo launch to the International Space Station under contract to NASA.

The 213-foot-tall (65-meter) liquid-fueled rocket will take off from Cape Canaveral's Complex 40 launch pad at 5:42:42 a.m. EDT (0942:42 GMT), around 45 minutes before sunrise on Florida's Space Coast.

If clouds stay away, the launch could provide a spectacular early morning display for sky-watchers in Central Florida. The Falcon 9 rocket is expected to climb into sunlight a few minutes after liftoff, illuminating the launcher's expanding exhaust plume in the rarefied upper atmosphere.

Спойлер

...

Forecasters at the U.S. Air Force's 45th Weather Squadron predict a 90 percent probability of favorable weather at launch time Friday. Clouds left over from storms over the Space Coast on Thursday evening should dissipate in time for the launch, but forecasters kept a low probability of cumulus and anvil clouds remaining in the area and violating weather criteria.

"We would have to be particularly unlucky," said Mike McAleenan, the Air Force's launch weather officer.

SpaceX engineers on Thursday afternoon were examining a concern with a thermal protection panel on the Dragon cargo craft, according to Jessica Jensen, the company's director of Dragon mission management.

Engineers are conducting thermal analysis on the panel to ensure it will perform as expected when subjected to heating during launch and re-entry, Jensen said.

Otherwise, all systems are "go" for launch.


SpaceX's mission patch for the CRS-15 cargo mission. Credit: SpaceX

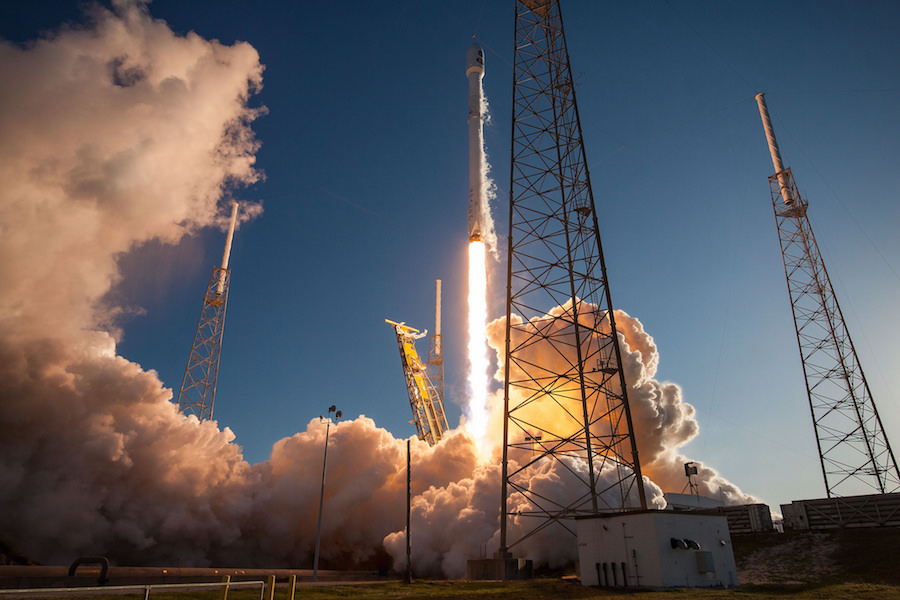

The Falcon 9 rocket set for liftoff Friday will use the same first stage booster flown April 18 with NASA's Transiting Exoplanet Survey Satellite. SpaceX recovered the stage at sea after sending the TESS mission, designed to find planets circling other stars in our sun's neighborhood, toward its perch in space.

The first stage was the final one manufactured by SpaceX using the company's discontinued "Block 4" configuration. SpaceX debuted the upgraded "Block 5" version of the Falcon 9 rocket May 11.

The Falcon 9 Block 5 design is optimized for reusability of the first stage, and SpaceX founder and chief executive Elon Musk said the upgraded Block 5 boosters could be launched, landed and flown again in as little as 24 hours, eventually requiring little more than the cost of new propellants and processing costs.

The Block 4 configuration was not capable of such rapid re-flights, requiring disassembly of its landing legs, inspections, refurbishment and the installation of new heat shield material and grid fins used on descent. The work took time and cost millions of dollars, but SpaceX officials said the expense of refurbishing Block 4 boosters was less than the cost of manufacturing an all-new vehicle.

"Our teams have just gotten extremely efficient at refurbishment processing," Jensen told reporters Thursday. "They know what to look for, they know what signs they're looking for, they know what's going to have to be replaced. We've just gotten extremely efficient, and we were able to turn this one around in just over two months."


The first stage which launched NASA's Transiting Exoplanet Survey Satellite on April 18 will launch the Dragon supply ship Friday. Credit: SpaceX

Going into Friday's launch, the quickest turnaround between flights by the same first stage was around four-and-a-half months.

Friday's mission will be the final launch of a Block 4 first stage, Jensen said.

If launch does not occur Friday, SpaceX has a backup launch opportunity Sunday at 4:54 a.m. EDT (0854 GMT). Officials plan to skip a launch attempt Saturday due to limitations caused by the position of the space station in its orbit.

Ground crews at pad 40 were loading time-sensitive cargo into the Dragon capsule's pressurized compartment Thursday, before the launch team planned to lift the Falcon 9 rocket vertical ahead of the predawn countdown Friday.

Rocket-grade kerosene is set to begin flowing into the Falcon 9 rocket at 4:32 a.m. EDT (0832 GMT), followed by the start of liquid oxygen loading 5:07 a.m. EDT (0907 GMT). The automated countdown sequencer will also send commands to load helium pressurant into the Falcon 9 launcher.

After a final steering check and checkouts of the Falcon 9's navigation computer, the rocket's nine first stage Merlin engines will ignite at around T-minus 3 seconds. Hold-down restraints will open as the countdown clock reaches zero, allowing the rocket to climb away from Cape Canaveral with 1.7 million pounds of thrust.

The Falcon 9 will head to the northeast to align with the space station's orbit, passing the speed of sound in about a minute before shutting down its first stage engines at T+plus 2 minutes, 45 seconds.

The first stage on Friday's launch will not be recovered by SpaceX.

After stage separation, the Falcon 9's second stage, propelled by a single Merlin engine, will ignite for more than five-and-a-half minutes to place the Dragon spacecraft into a preliminary elliptical orbit approximately 200 miles (300 kilometers) above Earth.

Deployment of the Dragon capsule from the Falcon 9 upper stage is timed for T+plus 9 minutes, 31 seconds, and the spacecraft will begin extending its power-generating solar panels around 90 seconds later.

While the Dragon supply ship begins its three-day rendezvous with the space station, the Falcon 9's upper stage will continue in orbit on a long-duration coast demonstration, Jensen said.

A warning zone outlined in a notice to pilots and mariners suggests the Falcon 9's second stage will fall into the Atlantic Ocean following a de-orbit burn around six hours after liftoff Friday.

SpaceX has not disclosed the purpose of the long-duration coast experiment, but rocket stages are typically required to operate for six hours and conduct multiple engine firings to place payloads, such as clandestine military surveillance satellites, directly into geostationary orbit more than 22,000 miles over the equator.

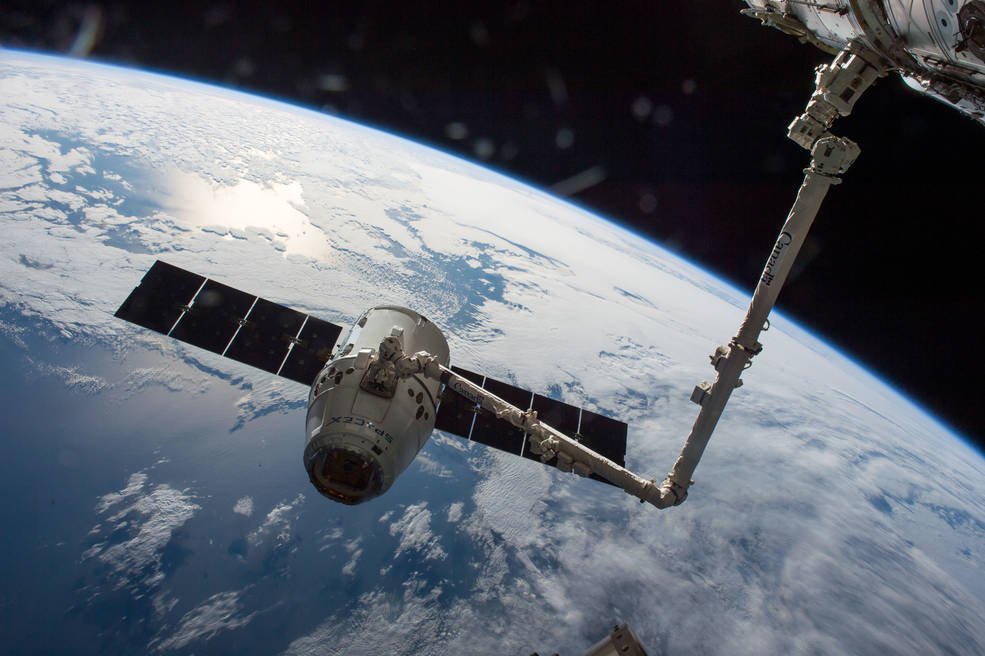

If the mission gets off the ground on time Friday, the Dragon capsule is set to reach the space station Monday. The station's Canadian-built robotic arm will grapple the free-flying capsule around 7 a.m. EDT (1100 GMT), then place the spacecraft on a berthing port on the Harmony module.

Astronauts will manually unpack the contents of Dragon's pressurized cargo module, which SpaceX is reusing from a previous resupply mission that launched in July 2016.

The mission is slated to deliver 5,946 pounds (2,697 kilograms) of equipment, experiments and provisions to the orbiting research laboratory. About 3,774 pounds (1,712 kilograms) of that tally will be carried inside Dragon's internal cabin, including:

[/li]
• 2,718 pounds (1,233 kilograms) of scientific investigations
• 452 pounds (205 kilograms) of crew supplies
• 392 pounds (178 kilograms) of vehicle hardware
• 139 pounds (63 kilograms) of spacewalk equipment
• 46 pounds (21 kilograms) of computer resources
• 27 pounds (12 kilograms) of Russian hardware


The equipment launching to the space station inside the Dragon's trunk includes a spare Canadian-built latching end effector for the research lab's robotic arm, plus a 1,213-pound (550-kilogram) instrument developed by NASA's Jet Propulsion Laboratory to be mounted outside the station's Japanese Kibo lab module to measure the temperature of plants from space.

The temperature measurements will tell scientists about the health of the plants, how much water they are using, and the resiliency of crops to extreme conditions like heat waves and droughts.

"When a plant is so stressed that it turns brown, it's often too late for it to recover," said Simon Hook, ECOSTRESS principal investigator at JPL. "But measuring the temperature of the plant lets you see that a plant is stressed before it reaches that point."

Developed under a cost cap of $30 million, the ECOSTRESS instrument is a pathfinder for future missions, and it will collect data from its mounting fixture outside the space station for about one year.

"ECOSTRESS will allow us to monitor rapid changes in crop stress at the field level, enabling earlier and more accurate estimates of how yields will be impacted," said Martha Anderson, an ECOSTRESS science team member with the U.S. Department of Agriculture in Beltsville, Maryland. "Even short-term moisture stress, if it occurs during a critical stage of crop growth, can significantly impact productivity."

The Dragon spacecraft will depart the space station Aug. 2 and return to a splashdown in the Pacific Ocean with nearly two tons of equipment, cargo and research specimens for analysis by engineers and scientists on the ground.

[свернуть]

[tnt22]

TomCross‏ @_TomCross_ 6 ч. назад

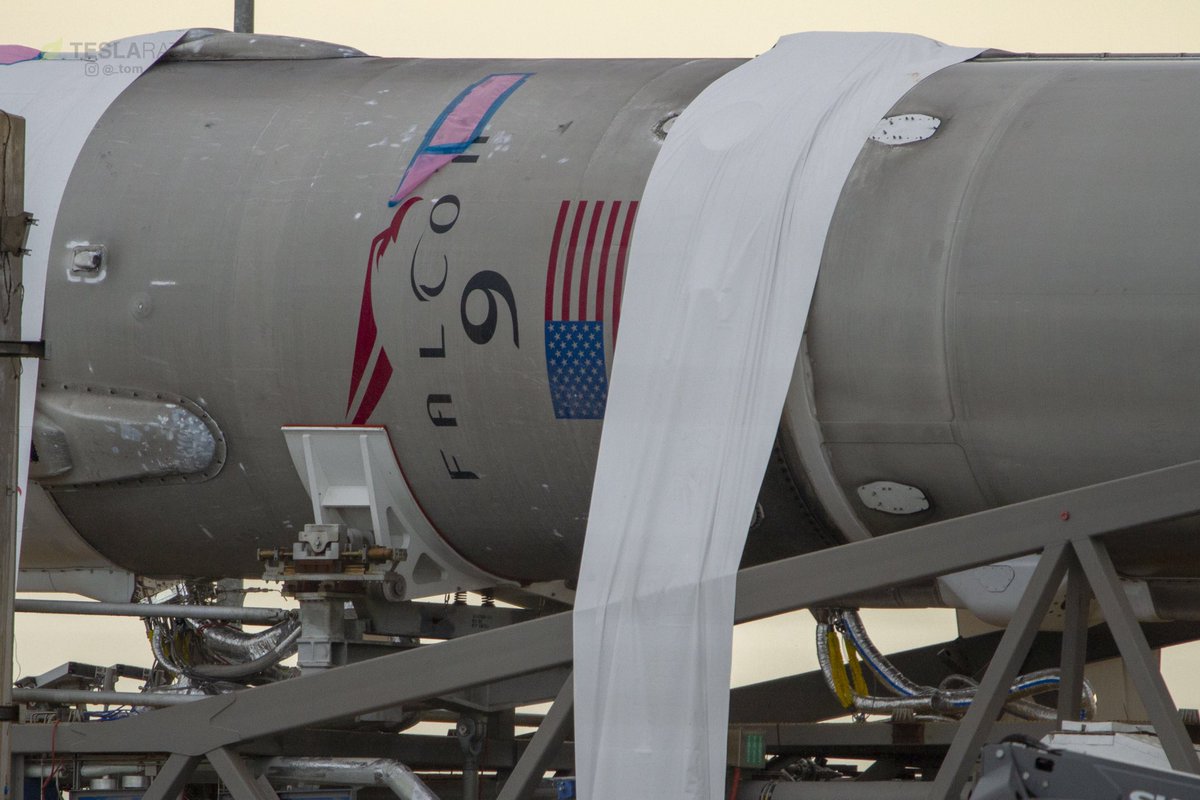

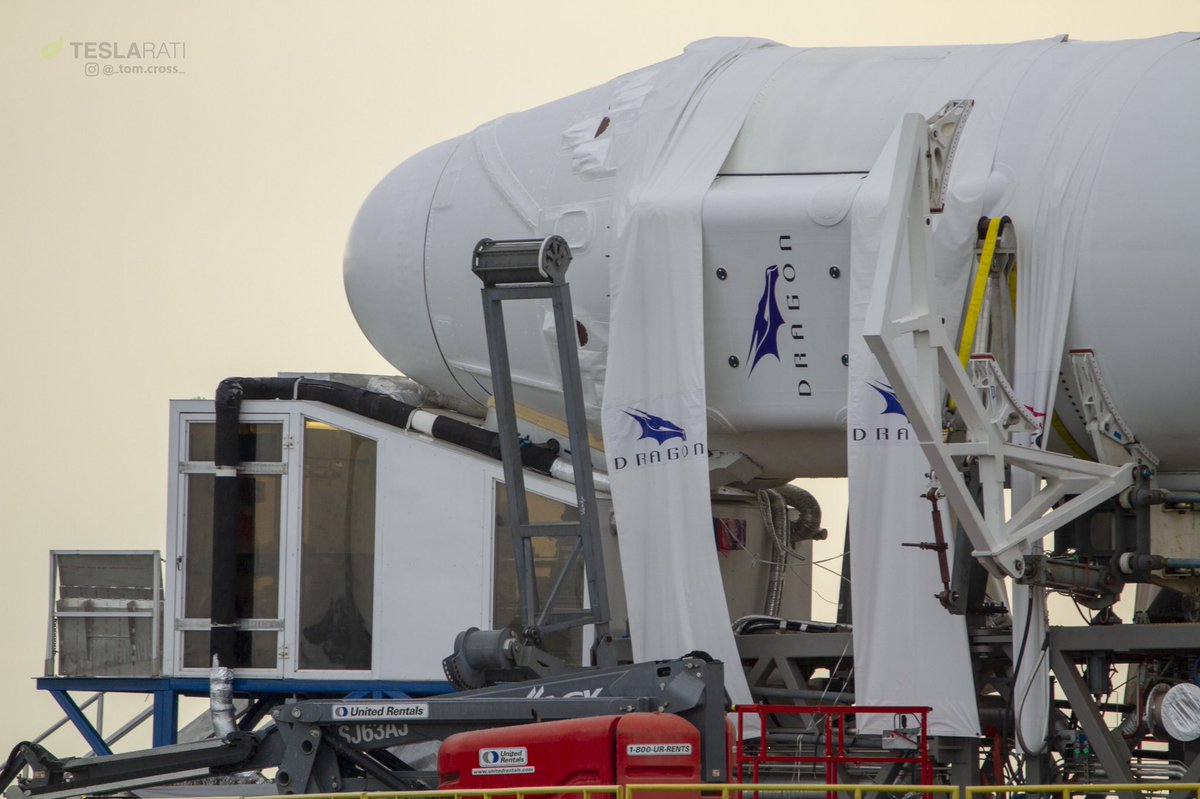

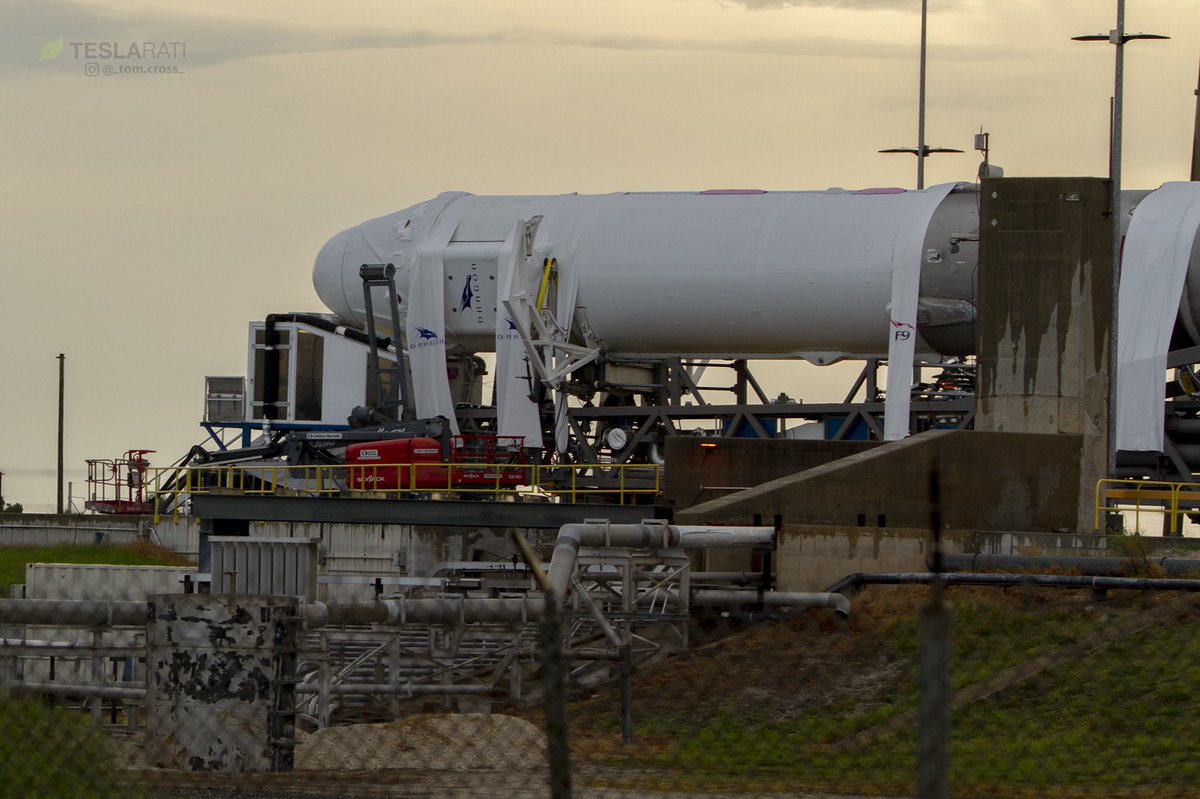

Falcon 9 on its side this evening for Dragon capsule loading. Taking photos of a horizontal rocket in a light rain during sunset was a nice treat for a change. Launch is at 5:42am est. and should be incredible!
@Teslarati #SpaceX #falcon9 #crs15 @NASA @ISS_Research

Спойлер

[свернуть]

[tnt22]

Ken Kremer‏ @ken_kremer 4 ч. назад

"Used @SpaceX Falcon 9/Dragon Set for Spectacular Pre-Dawn Blastoff June 29 to ISS Carrying #CIMON Artificial Intelligence Astronaut Assistant: Watch Live" - @Space_Station @NASA #CRS15 @DLR_de . Read my story/photos @ken_kremer http://kenkremer.blogspot.com/2018/06/used-spacex-falcon-9dragon-set-for.html ...

[tnt22]

SpaceX's CRS-15 Mission to the Space Station: What's On Board?

NASA

Опубликовано: 28 июн. 2018 г.

(5:50)

[tnt22]

Chris G - NSF‏ @ChrisG_NSF 10 мин. назад

It appears our to-the-second launch time has shifted by 1sec to 05:42:41 EDT (09:42:41 UTC) to account for precise day-of ISS positioning.
#SpaceX #Falcon9 #NASA #Dragon #CRS15

[tnt22]

Chris G - NSF‏ @ChrisG_NSF 5 мин. назад

At T-1hr 30mins and COUNTING. All appears to be on track for launch this morning. Teams will be polled shortly for a GO for fueling ops.
#SpaceX #Falcon9 #NASA #Dragon #CRS15

[tnt22]

NASA Kennedy / KSC‏Подлинная учетная запись @NASAKennedy 8 мин. назад

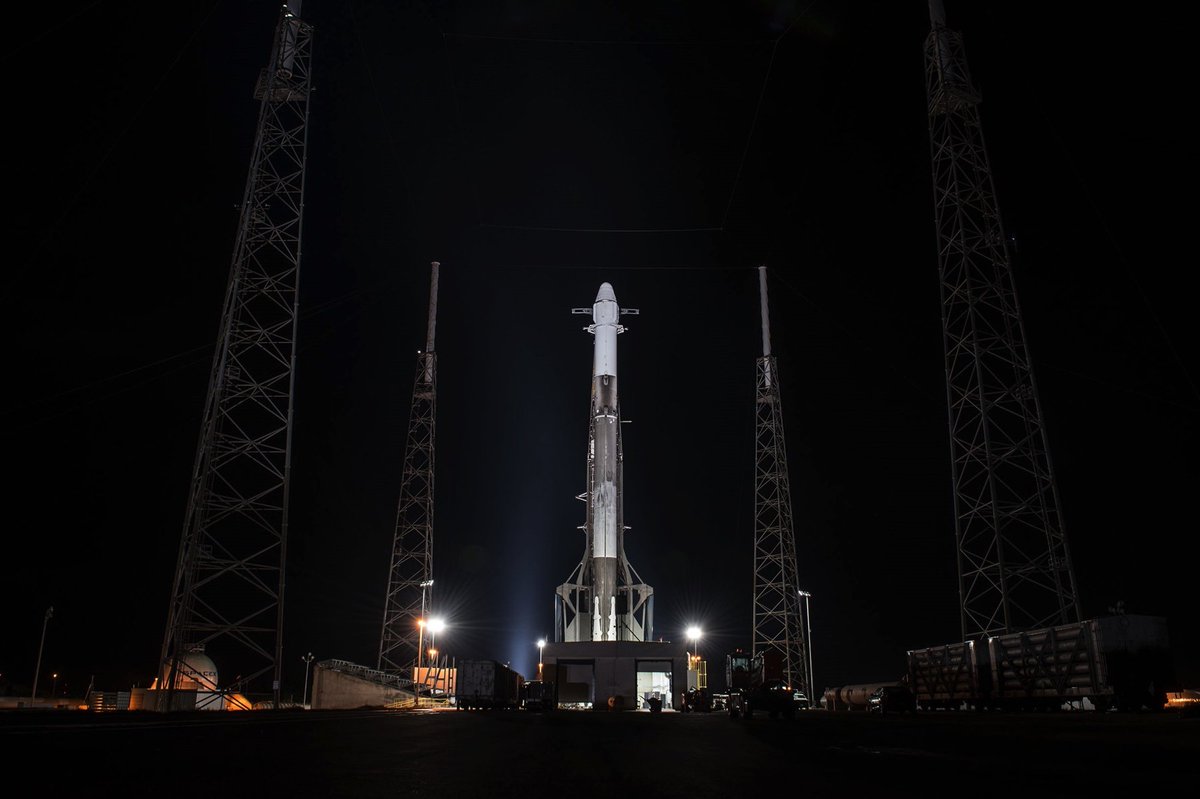

The @SpaceX Falcon 9 rocket with #Dragon atop stands at the launch pad as we are counting down to a 5:42 a.m. EDT to launch to begin a three-day trip to the @Space_Station.



Spaceflight Now‏ @SpaceflightNow 4 мин. назад

T-minus 90 minutes. SpaceX's Falcon 9 countdown is on track for liftoff from Cape Canaveral at 5:42am EDT (0942 GMT) with nearly three tons of supplies and experiments for the International Space Station. Live coverage: https://spaceflightnow.com/2018/06/28/falcon-9-dragon-crs-15-mission-status-center/ ...

[tnt22]

[tnt22]

Chris G - NSF‏ @ChrisG_NSF 6 мин. назад

Falcon 9 AFTS (Automated Flight Termination System) has completed its checkouts and is "acceptable" for flight.
#SpaceX #Falcon9 #NASA #Dragon #CRS15
