ZhangHeng-1 (CSES-1), ÑuSat-4 (Ada), ÑuSat-5 (Maryam) + наноспутники – CZ-2D – Цзюцюань (JSLC) - 02.02.2018

Автор che wi, 24.01.2018 12:57:44

« назад - далее »

0 Пользователи и 1 гость просматривают эту тему.

tnt22



tnt22

http://www.xinhuanet.com/english/2018-02/02/c_136944964.htm
ЦитироватьChinese, Italian presidents congratulate each other on successful launch of electromagnetic satellite
Source: Xinhua | 2018-02-02 18:24:24 | Editor: Lu Hui

BEIJING, Feb. 2 (Xinhua) -- Chinese President Xi Jinping and Italian President Sergio Mattarella congratulated each other Friday on the successful launch of a China-Italy cooperative electromagnetic satellite, known as Zhangheng 1 in Chinese.

In his message, Xi said that China and Italy have achieved major results in cooperation on the seismo-electromagnetic satellite project, a significant embodiment of China-Italy comprehensive strategic partnership.

The achievements will greatly enhance the two countries' ability to monitor the Earth's electromagnetic environment using space technology, and will play an important role in earthquake alert and disaster prevention and alleviation, so as to facilitate the socio-economic development of the two countries.


tnt22

Появился первый объект запуска
0 TBA - TO BE ASSIGNED
1 43192U 18015A   18033.45158700 -.00000069  00000-0  00000+0 0  9994
2 43192  97.3413 165.3763 0014311 275.0882 167.9240 15.22360621    19


tnt22

Цитировать GomSpace‏ @GomSpace_Aps 34 мин. назад

We are happy to announce that we have now established radio contact with the GOMX-4 nanosatellites!
Спойлер
[свернуть]

zandr

http://russian.news.cn/2018-02/02/c_136945042.htm
ЦитироватьКитай запустил первый спутник совместного образования /подробная версия/
Цзюцюань, 2 февраля /Синьхуа/ -- В пятницу во второй половине дня с космодрома Цзюцюань /Северо-Западный Китай/ с помощью ракеты-носителя "Чанчжэн-2Г" /серия "Великий поход"/ был произведен успешный запуск первого в Китае спутника совместного образования "Шаоняньсин-1" /"Юный пионер"/.
Трехкилограммовый Кубсат /100*100*340 мм/ "Шаоняньсин-1" вывели на орбиту высотой 502 км. На борту ракеты-носителя также находились сейсмо-электромагнитный спутник для изучения сейсмических предвестников "Чжанъхэн-1", и еще пять миниспутников.
"Шаоняньсин-1" был разработан пекинской частной спутниковой компанией Commsat, финансируемой Сианьским институтом точной оптической аппаратуры при Академии наук Китая.
Его главные функции заключаются в беспроводном хранении и передаче радиоволн на УФ-частоте, космической визуализации и проверке ссылок пользователей на Интернет вещей, заявил основатель и генеральный директор компании Commsat Се Тао.
После испытаний на орбите "Шаоняньсин-1" будет обмениваться своими ресурсами данных с начальными и средними школами и другими учебными заведениями, оснащенными подстанциями в Китае. Благодаря ему учащиеся получат навыки в сфере беспроводной связи и космической фотографии, сообщил Се Тао.

tnt22

НОРАД обнаружил 8 объектов запуска
0 OBJECT A
1 43192U 18015A   18033.91932939 -.00000069  00000-0  00000+0 0  9999
2 43192  97.3346 165.8218 0014377 257.2097 227.1904 15.22192729    81

0 TBA - TO BE ASSIGNED
1 43193U 18015B   18033.78607056 -.00000068  00000-0  00000+0 0  9993
2 43193  97.2747 165.6800 0009215 220.8075 254.2899 15.22478898    64

0 TBA - TO BE ASSIGNED
1 43194U 18015C   18033.91885595 -.00000070  00000-0  00000+0 0  9998
2 43194  97.3322 165.8113 0015261 261.5201 221.1653 15.22599492    93

0 TBA - TO BE ASSIGNED
1 43195U 18015D   18033.91895760 -.00000070  00000-0  00000+0 0  9994
2 43195  97.3321 165.8158 0015747 264.9620 218.8128 15.22859515    98

0 TBA - TO BE ASSIGNED
1 43196U 18015E   18033.91898728 -.00000071  00000-0  00000+0 0  9993
2 43196  97.3230 165.8190 0017428 274.4921 210.9304 15.23559127    87

0 TBA - TO BE ASSIGNED
1 43197U 18015F   18033.91968763 -.00000070  00000-0  00000+0 0  9990
2 43197  97.3238 165.8218 0017087 278.9609 210.0197 15.23432101    94

0 TBA - TO BE ASSIGNED
1 43198U 18015G   18033.91701332 -.00000080  00000-0  00000+0 0  9999
2 43198  97.2303 165.8261 0049834 305.9017 183.2542 15.30442453    76

0 TBA - TO BE ASSIGNED
1 43199U 18015H   18033.91916549 -.00000070  00000-0  00000+0 0  9997
2 43199  97.3105 165.8206 0015529 276.5796 209.0506 15.23202390    93

SGS_67

Цитироватьche wi пишет:
ЦитироватьIgor Ezhov ‏ @dexterdr · 19h

В пятницу #ESA запустит миниатюрный спутник GomX-4B, одной из задач которого будет проверка работоспособности бытовой компьютерной памяти в жестких условиях космоса. Всего будут протестированы 12 чипов четырех типов, стоимостью по несколько евро каждый.


(CHIMERA — Cubesat Highly Integrated MEmory Radiation Assurance)
Небольшая ремарка - судя по фото, это не "бытовая компьютерная память", а EEPROM или FLASH (12 штук в линейку), которую используют в микросистемах. Шесть больших блямб - буферы, или преобразователи уровней. Проц - древний, как г..но мамонта, Атмега в радстойком исполнении. Технология изготовления платы сделала бы честь разве 70-м годам прошлого века. Вопщем, миг открытий чудных - он вперде.  :)


ЗЫ. А, извиняюсь, там ешё и SRAM с последовательным доступом имеется.
Интересно, нафиг в космосе такое добро нужно?..

zandr

http://russian.news.cn/2018-02/03/c_136946355.htm
ЦитироватьКитай запустил электромагнитный спутник для изучения предвестников землетрясений
2018-02-03 12:55:41丨Russian.News.Cn
Цзюцюань, 3 февраля /Синьхуа/ -- Китай в пятницу запустил свой первый сейсмо-электромагнитный спутник для изучения предвестников землетрясений, который может содействовать созданию системы мониторинга и предсказания землетрясений земля-космос в будущем.
Ракета-носитель "Чжанчжэн-2D" /"Великий поход-2D"/, запущенная с космодрома Цзюцюань в пустыне Гоби на северо-западе Китая, вывела 730-килограммовый китайский сейсмо-электромагнитный спутник "Чжанхэн-1" на гелиосинхронную орбиту на высоте около 500 км.
Как сообщил чиновник Китайского национального космического управления Чжао Цзянь, спутник предназначен для мониторинга электромагнитного поля, ионосферной плазмы и высокоэнергетических частиц в течение пяти лет - именно столько, как ожидается, продлится его миссия.
Спутник "Чжанхэн-1" был разработан компанией DFH Satellite при пятом институте Китайского объединения космических технологий и по своему техническому оснащению соответствует передовому мировому уровню.

tnt22

https://spaceflightnow.com/2018/02/02/china-lofts-earthquake-research-craft-with-cluster-of-smaller-satellites/
ЦитироватьChina lofts earthquake research craft with cluster of smaller satellites
February 2, 2018 Stephen Clark

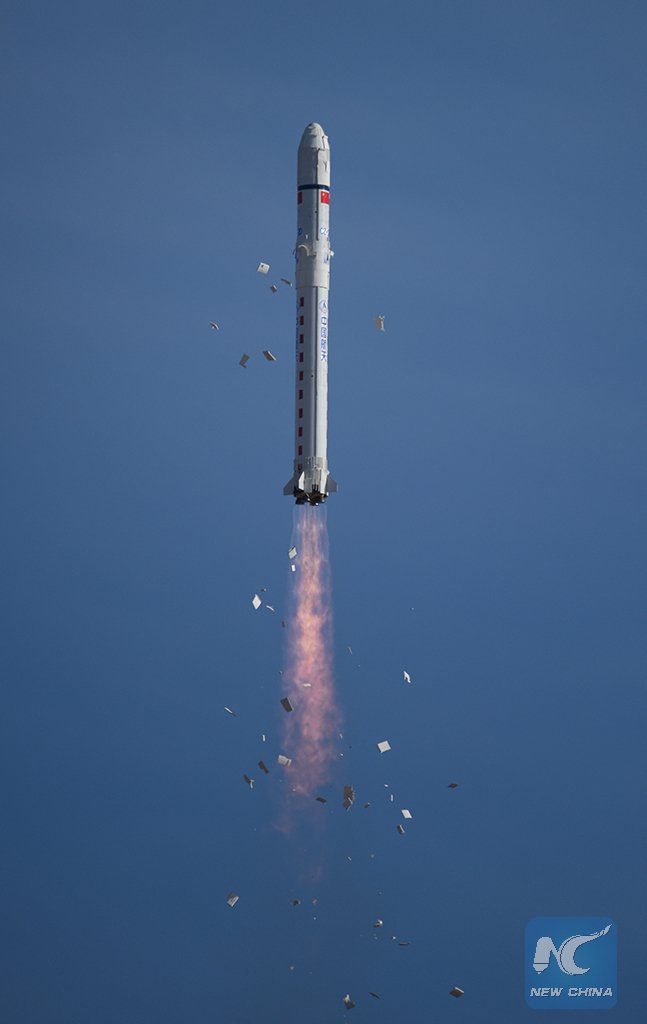

A Long March 2D rocket lifted off Friday with seven satellites. Credit: Xinhua/Wang Jiangbo

A Chinese Long March 2D rocket successfully delivered seven satellites into a 300-mile-high (500-kilometer) orbit Friday, boosting international missions to measure seismic signals that could help predict future earthquakes, take detailed imagery of planet Earth and test compact camera, propulsion and radio technology.

The main payload carried aboard the two-stage Long March 2D rocket was Zhangheng 1, a Chinese-built satellite designed to sense precursor signals emitted before earthquakes, research that could eventually lead to quake predictions.
Спойлер
Nine scientific instruments aboard the 1,600-pound (730-kilogram) Zhangheng 1 spacecraft will measure Earth's magnetic field, plasma and other particles to search for disturbances triggered in the early stages of underground seismic events.

Also known as the China Seismo-Electromagnetic Satellite, or CSES, the mission was developed in partnership between Chinese and Italian scientists fr om the China Earthquake Administration and the Italian Institute for Nuclear Physics.

The joint mission is part of a collaboration between the China National Space Administration and the Italian Space Agency, or ASI.

Named for Zhang Heng, an ancient Chinese scholar who pioneered earthquake detection, the Zhangheng 1 satellite will monitor Earth's ionosphere, a region at the boundary between the atmosphere and space. Scientists will search for waves in the ionosphere's plasma and magnetic field environment that could be linked to tremors and volcanic eruptions far below.

"Zhangheng 1 cannot be used to predict earthquakes directly, but it will help prepare the research and technologies for a ground-space earthquake monitoring and forecasting system in the future," said Zhao Jian, a senior official at the China National Space Administration, in a report published by China's state-run Xinhua news agency.

Zhangheng 1's mission is expected to last five years.

"Zhangheng 1, with a wider coverage and better electromagnetic environment from space, will be an important supplement to earthquake monitoring in Qinghai-Tibet Plateau and sea areas that cannot be fully covered by the ground observation network," said Shen Xuhui, deputy chief designer of Zhangheng 1 and chief engineer of the Institute of Crustal Dynamics at the China Earthquake Administration, according to Xinhua.


Artist's illustration of the Zhangheng 1 satellite. Credit: CNSA/CEA/ASI/INFN

Detecting weak disturbances in the ionosphere triggered by seismic activity requires highly-precise instrumentation.

One of Zhangheng 1's largest science payloads, a high-energy particle detector, was developed by Italian scientists. Several other Chinese-built sensors were tested in a plasma chamber in Rome before their installation on the spacecraft.

Once in space, Zhangheng 1 was expected to deploy six instrument booms to a length of more than 13 feet, or 4 meters, to ensure the sensors are well away from magnetic field disturbances generated by the spacecraft itself. Engineers also designed the satellite to use components, such as titanium screws, to minimize their magnetic effects on Zhangheng 1's sensitive instruments, Xinhua reported.

Italian officials nicknamed their part in the mission the "Limadou collaboration" for Matteo Ricci, a 16th century Italian missionary and explorer who traveled to China, wh ere he was known as Li Madou.

In a statement released after Friday's launch, the Italian space agency said the Zhangheng 1 mission will also aid in the study of solar physics and cosmic rays.

Six other satellites rode into orbit with Zhangheng 1 on a Chinese Long March 2D launcher.

The 134-foot-tall (41-meter) rocket lifted off at 0751 GMT (2:51 a.m. EST; 3:51 p.m. Beijing time) Friday from the Jiuquan space center in northwestern China's Inner Mongolia region.

The rideshare launch opportunity was provided by China Great Wall Industry Corp., a government-owned company responsible for marketing Chinese launch services to commercial and international customers.

Approximately 12 minutes after launch, the satellites were placed into orbit around 500 kilometers (300 miles) above Earth on a track inclined 97.3 degrees to the equator.

Two European CubeSats, each the size of a cereal box, were deployed by the Long March 2D's upper stage. Named GomX-4A and GomX-4B, the satellites were built by GomSpace in Denmark.


Artist's illustration of the GomX-4 satellites. Credit: GomSpace

GomX-4A will collect data for the Danish Ministry of Defense on airplane and ship movements over the Arctic region, and GomX-4B is an experimental nanosatellite funded by the European Space Agency.

The twin satellites will fly in long-distance formation — GomX-4B will do the maneuvering — at a range of up to 2,800 miles (4,500 kilometers) to test an S-band radio link between the craft. GomX-4B carries miniature cold-gas thrusters to guide its flight away from GomX-4A, along with a hyperspectral multi-color camera, a star tracker and components that will be checked to gauge their susceptibility to space radiation, according to ESA.

The GomX-4 satellites build on experience gathered on a predecessor nanosatellite named GomX-3 released from the International Space Station in 2015.

"Unlike GomX-3, GomX-4B will change its orbit using cold-gas thrusters, opening up the prospect of rapidly deploying future constellations and maintaining their separations, and flying nanosatellites in formations to perform new types of measurements from space," said Roger Walker, head of ESA's CubeSat program.

GomSpace said its ground team established contact with both satellites around six hours after their liftoff from China.

"The GomX-4B satellite is the most advanced satellite design we have initiated to date and we are very happy that ESA will participate in this project that will demonstrate possibilities of satellites flying in formation," said Niels Buus, CEO of GomSpace. "We are very happy to work with ESA and together take the nanosatellite technology to a new level.

"Also, we look forward to working closely with (the Danish Ministry of Defense) on this exciting project and jointly develop and demonstrate the GomX-4A mission," Buus said in a statement. "Our satellite and radio technologies are a perfect match for monitoring the vast and remote arctic area with the satellite flying over the scene every 90 minutes."

The ÑuSat 4 and ÑuSat 5 microsatellites owned by Satellogic, an Argentine company, were also aboard the Long March 2D rocket launched Friday.

Nicknamed Ada and Maryam, the satellites were built in Montevideo, Uruguay, and each weighed around 80 pounds (37 kilograms). The ÑuSat 4 and ÑuSat 5 satellites join three others launched on two Chinese rocket missions in May 2016 and June 2017.

Satellogic confirmed the ÑuSat 4 and ÑuSat 5 satellites were alive in orbit after Friday's launch.

Satellogic intends to deploy dozens, and potentially hundreds, of satellites in the next few years to collect high-resolution and hyperspectral imagery to aid urban planners, emergency responders, crop managers, and scientists tracking the effects of climate change.

The hyperspectral imager aboard each ÑuSat is tuned to measure the chemical composition of what it sees on Earth, helping identify pollutants, plants, building materials and other features.

Two CubeSats named FMN 1 and Shaonian Xing also launched Friday for Chinese start-up companies.
[свернуть]

tnt22

http://spaceflight101.com/long-march-2d-launches-zhangheng-1/
ЦитироватьChinese Long March 2D Launches Earthquake Research Satellite & Six MicroSatellites
February 2, 2018


Photo: Xinhua

China launched a Long March 2D rocket fr om the Jiuquan Satellite Launch Center on Friday, carrying a group of seven satellites fr om China, Italy, Argentina and Denmark including an innovative experiment to study the ionospheric precursors of Earthquakes to evaluate whether forecasting of strong Earthquakes will be possible fr om an orbital vantage point.

Friday's launch occurred at 7:51 UTC from Jiuquan's Launch Complex 43 and the two-stage rocket was headed to the south west toward a 500-Kilometer orbit from wh ere its payloads will operate. Chinese state media declared the launch successful not long after the vehicle achieved orbit and the first payload teams confirmed signals from their satellites were being received.
Спойлер
It marked the sixth orbital space launch conducted by the Chinese this year out of a total of 15 space shots already conducted around the world with China leading over the U.S. that conducted four launches so far.


Image: CAST

Friday's launch placed into orbit the China Seismo-Electromagnetic Satellite (CSES) "Zhangheng-1", the next two satellites of the commercial Aleph-1 imaging constellation operated by Satellogic, the GOMX 4A and 4B duo experimenting with inter-satellite communications & stationkeeping, and the Chinese FengMaNiu 1 and Shaonian Xing CubeSats completing technology demonstration and outreach missions via amateur radio equipment.

Zhangheng-1 is a 730-Kilogram, multi-instrument satellite named after Han Dynasty scholar Zhang Heng, setting out to complete a comprehensive study of the ionospheric precursors of Earthquakes using particle, magnetic & electric field and plasma sensors. The satellite, baselined for a five-year science mission, is based on the CAST2000 satellite platform and was developed by the China National Space Administration (CNSA), the China Earthquake Administration and the Italian Space Agency (ASI) which provided the High-Energy Particle Detector instrument.


Global Seismic Hazard Map – Credit: GSHAP

The reliable prediction of Earthquakes brings the potential of saving hundreds if not thousands of lives every year, but so far only came with false starts and methodology based on flawed science. However, promising leads have been found in data from orbiting satellites that showed Earth's crust may be giving hints before large tremors in the form of electromagnetic anomalies that will then percolate through Earth's ionosphere up to altitudes of several hundred Kilometers wh ere they can be detected between a few minutes to a few days before an Earthquake.

But so far, these ionospheric signatures, like increases in total electron count, have only been spotted in data analysis after the fact. And even worse, the mechanism creating the electromagnetic disturbances is not yet agreed upon by scientists – making prediction of Earthquakes before they occur next to impossible without a collecting a large data set to validate hypotheses formed through laboratory testing.


Image: CAST

Scientists conducted a number of small-scale tests wh ere they inducted stress into igneous rock to provoke the electromagnetic signature they thought came as a result of heat stress in the build-up to an earthquake. And indeed, they found the resulting electromagnetic signals match the characteristics seen in ionospheric data, pointing to the likely source of the precursor signals to be the creation of temporary semi-conducting properties in Earth's crust.

As a result of temperature stress, peroxy bonds between a pair of oxygen atoms break and the created radicals pull electrons from their surroundings – leaving positively charged holes that percolate in a chain reaction and create a wave detectable from afar.

Whether it will be possible to identify the magnitude, location and time of Earthquakes in advance remains a debate within the scientific community as there are a number of critics who believe the ionospheric signals obtained to date could fall into the noise created within the Earth-and Atmosphere system. Nevertheless, even skeptics have identified further areas of study to fully explore whether ionospheric precursors are a real phenomenon.


Image: CSES Project

The Zhangheng-1 mission will collect a comprehensive data set on electromagnetic fields and waves, plasma and particle perturbations of the atmosphere, ionosphere and magnetosphere induced by natural sources and anthropogenic factors. This will permit a detailed correlation with the occurrence of seismic events as well as a general investigation of ionospheric structure and dynamics in response to external drivers like the influence of the sun and forcing from below (through weather systems in the dense atmosphere).

The CAST-2000 small satellite platform is designed to accommodate a variety of high-performance payloads up to 600 Kilograms, providing flexibility to host different payloads including remote sensing, communications and navigation payloads. Zhangheng-1 combines nine different instruments to collect a detailed picture of energetic particles, electric & magnetic waves and plasma dynamics: a pair of High-Energy Particle Detectors (HEPD, HEPP) measure the influx and energy spectrum of energetic particles, a Search-Coil Magnetometer (SCM) and a High Precision Magnetometer (HPM) provide the magnetic field vector and field strength, an Electric Field Detector (EFD) measures the same components of the electric field, a Plasma analyzer and a Langmuir probe are tasked with the measurement of plasma disturbances, and a GNSS Occultation instrument & VHF/UHF/L-band beacon measure the column density of electrons above and below the satellite.


Image: Satellogic

Riding shotgun on Friday were Ada & Maryam, the fourth and fifth NuSat satellites joining the Aleph-1 Earth Observation Satellite Constellation operated by Satellogic to collect multi-band imagery of Earth for the commercial market. 43 x 45 x 75 centimeters in size with a mass of 37 Kilograms, ÑuSat-4 and 5 host a powerful imaging payload capable of collecting panchromatic and full-color images of Earth at a one-meter ground resolution across a 5-Kilometer swath. Hyperspectral imaging is possible at 30-meter spatial and 5-nanometer spectral resolution and the satellites have a thermal infrared system for ground temperature measurements.

Satellogic used the initial three-satellite constellation established in 2016/17 to validate the space and ground segment needed for a rapid turnaround of data for operational services and is now pressing into deployment of the operational constellation. The company plans to launch up to 25 satellites that would enable a global revisit time of 1.2 hours with future proposals calling for 100- or even 300-strong constellations to further cut revisit times to only a few minutes.

>> Aleph-1 Constellation Overview


GOMX-4 Satellites – Image: GOMSpace


GOMX-4B – Photo: GOMSpace

Four CubeSats were on Friday's Long March 2D mission: the Danish GOMX 4A and 4B pair, both 6U CubeSats, and the FengMaNiu 1 and Shaonian Xing triple-unit CubeSats from China.

GOMX 4A and 4B will complete an innovative technology demonstration to pave the way toward the management and operation of large satellite formations via inter-satellite communications. The two satellites were commissioned under separate contracts between GOMSpace and the Danish Ministry of Defence (4A) and GOMSpace and the European Space Agency (4B), though both will work together in orbit.

GOMX 4A, nicknamed Ulloriaq – the Greenlandic word for Star, will employ an aeronautical monitoring system capturing ADS-B signals from aircraft, and a ship-tracking system using the Automatic Identification System for monitoring activities in the arctic region for the Danish Ministry of Defence while also engaging in an inter-satellite communications experiment with its near-twin, GOMX 4B.

The 4B Satellite hosts four 1-millinewton cold gas thrusters fed from a Butane tank to demonstrate relative orbit control to follow the 4A satellite and set up different distances for the inter-satellite communications experiment using a software defined radio system demonstrated on an earlier GOMX mission. The same system also doubles as a space-to-ground link to eliminate the need for two separate systems and enable high-speed data downlink to the ground. Testing of the 6Mbit/s inter-satellite link will be performed at 100km intervals up to distances of 4,500 Kilometers via maneuvering by the 4B satellite using a total delta-v budget of 15m/s provided by the cold gas propulsion system.

GOMX 4B also serves as the first flight mission for HyperScout, a miniature, high-performance hyperspectral imaging system for land and vegetation inspection.


HyperScout – Photo: COSINE

HyperScout was developed by COSINE Measurement Systems in the Netherlands and employs a miniaturized imaging system coupled with its own processing segment to go through initial data processing before data leaves the instrument – reducing the amount of downlink volume and directly delivering processed data products with consideration for missions of an operational nature.

Taking up a total volume of one CubeSat unit, HyperScout collects imagery in 45 bands between 400 and 1,000 nanometers across a wide swath of 164 Kilometers and with a ground resolution of 40 meters – enabling application in various areas like land surveys, vegetation monitoring, water resource management, and early warning of natural disasters.

The FengMaNiu 1 CubeSat was developed by Link Space Aerospace Technology to test out a series of new components including a pair of miniaturized panoramic cameras for still image and video collection. It will also serve as a repeater for the worldwide amateur radio community. Shaonian Xing, the "Youth Star", is an outreach mission of Sat-China to promote STEAM education and provide an opportunity to learn hands-on about satellite development and mission operations.


Photo: Xinhua

Friday's launch was the 266th flight of the Long March launcher family and the 38th for the Long March 2D variant that debuted back in 1992.

A member of the Long March family, the 2D vehicle was designed as a two-stage version of the Long March 4 launch vehicle, optimized for Low Earth and Sun Synchronous Orbit missions. Up until last December's partial failure, Long March 2D had kept a perfect success record.

CZ-2D is a two-stage rocket standing 41.1 meters tall, 3.35 meters in diameter and weighing around 232 metric tons at liftoff, capable of placing 3,500 Kilograms into Low Earth Orbit and 1,300kg into Sun Synchronous Orbit. Both Stages of the Long March 2D use Nitrogen Tetroxide and Unsymmetrical Dimethylhydrazine as propellants.

For the first 157 seconds of Flight, the vehicle is powered by its first stage, equipped with a YF-21C engine module that provides a thrust of 2,962 Kilonewtons and comprises four clustered YF-20C engines. The stage is 27.9 meters long, 3.35 meters in diameter and filled with 183 metric tons of Unsymmetrical Dimethylhydrazine and Nitrogen Tetroxide Propellants for a total weight of the first stage at launch of 192,700kg.

After first stage burnout and jettison, the second stage starts controlling the flight. The upper Stage is 10.9 meters in length and has the standard CZ-2D diameter, holding around 52 metric tons of UDMH and NTO propellants at launch. The second stage is powered by a YF-24C main engine providing 742 Kilonewtons of thrust and a 47.1-Kilonewton four-chamber vernier engine for attitude control and circular orbit insertion capability. Long March 2D can be outfitted with two different payload fairings to accommodate payloads of different sizes with fairing diameters of 2.9 and 3.35 meters.
[свернуть]

tnt22

НОРАД опубликовал список из 9-ти обнаруженных объектов запуска


tnt22

T кп = 15:51:04.428


Код миссии - 01-89
№ РН - Y13



Дем

ЦитироватьSGS_67 пишет:
ЗЫ. А, извиняюсь, там ешё и SRAM с последовательным доступом имеется.
Интересно, нафиг в космосе такое добро нужно?..
В космосе - не нужно, а вот результат теста - много где пригодится.
И такая матрица ячеек для теста очень хорошо подходит
Летать в космос необходимо. Жить - не необходимо.

tnt22

ЦитироватьAndrew Jones‏ @AJ_FI 7h ago

Commemorative postcard for last week's Long March 2D launch from Jiuquan of Zhangheng-1 seismo-electromagnetic probe, GomX-4A & 4B; Satellogic's NuSat-4 & 5, FMN-1 for Linkspace, & an educational sat developed by Commsat.

tnt22


tnt22

ЦитироватьAndrew Jones‏ @AJ_FI 44m ago

First image returned by 'Young Pioneer 1' (少年星一号), a Chinese shared educational satellite, from 502 km. The 3U-CubeSat was made by Commsat, a Beijing-based private satellite company with student involvement and launched on Feb 2 along with Zhangheng-1 (CSES) & others.
