Dragon SpX-14 (CRS-14) – Falcon 9 – Canaveral SLC-40 – 02.04.2018 20:30 UTC

[tnt22]

[tnt22]

[tnt22]

[tnt22]

[tnt22]

[tnt22]

Все 16 захватов на месте - есть сцепка!

[tnt22]

Chris B - NSF‏ @NASASpaceflight 4 мин. назад

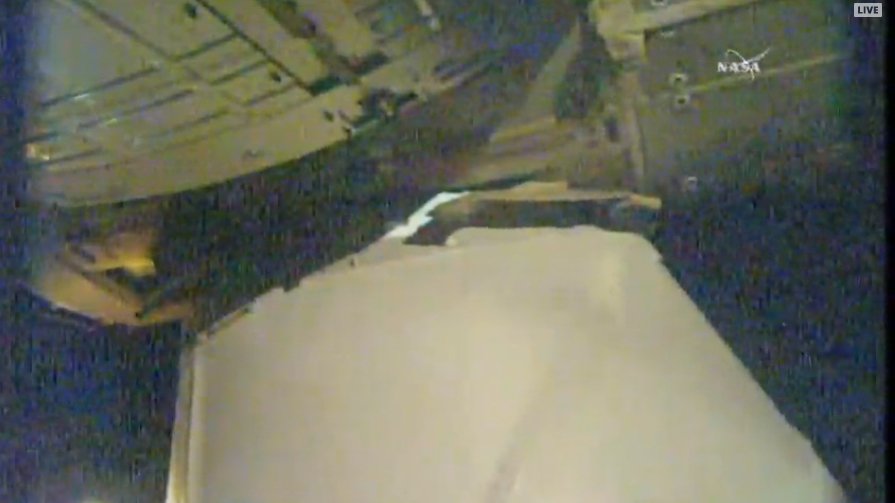

And now installed!. Unloading will begin later today or tomorrow. (They usually plan for the next day, but they usually get ahead of the timeline, via "astro eagerness" to unpack the goodies sent from Earth. A lot of required upmass, but also personal items).

[tnt22]

Трансляция НАСА завершена

[tnt22]

Jonathan McDowell‏Подлинная учетная запись @planet4589 9 мин. назад

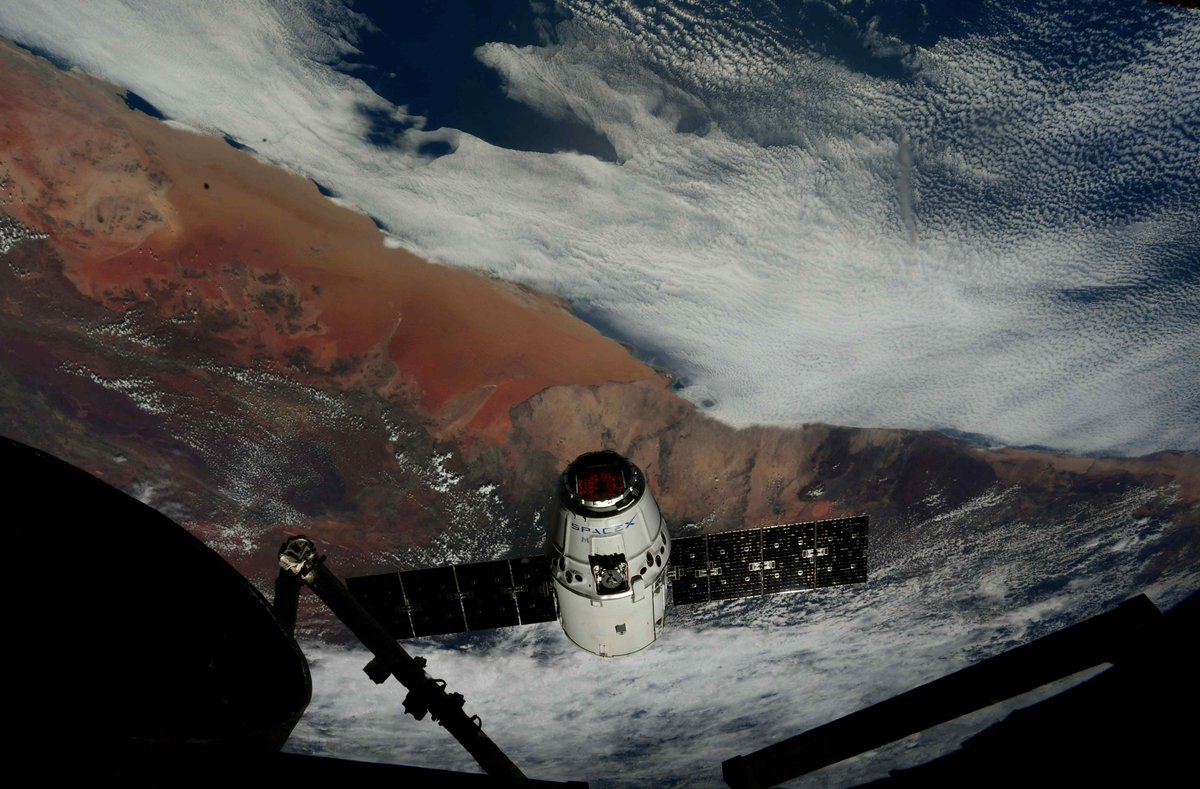

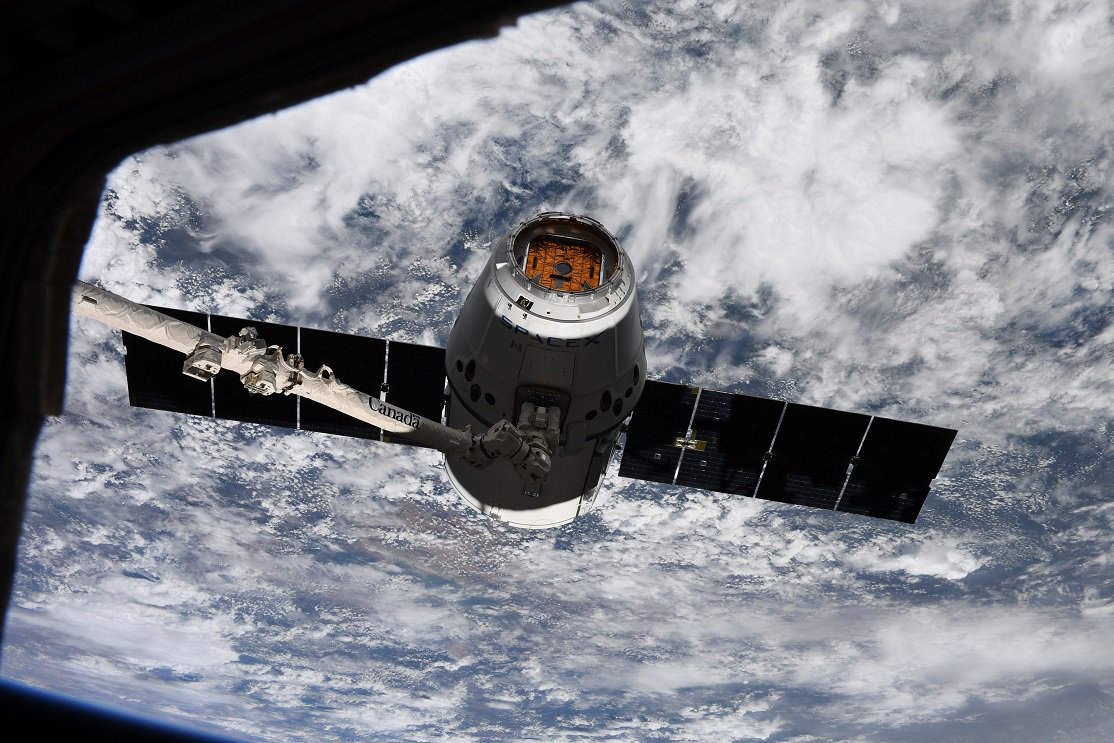

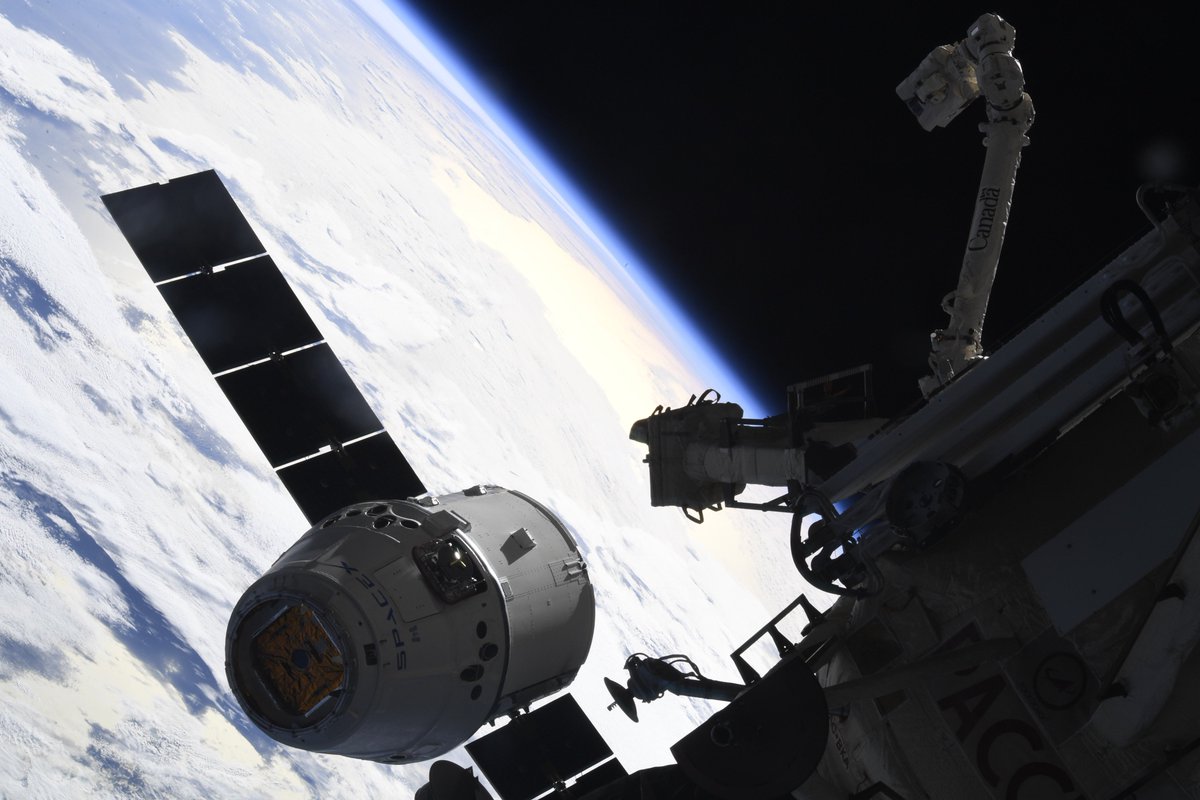

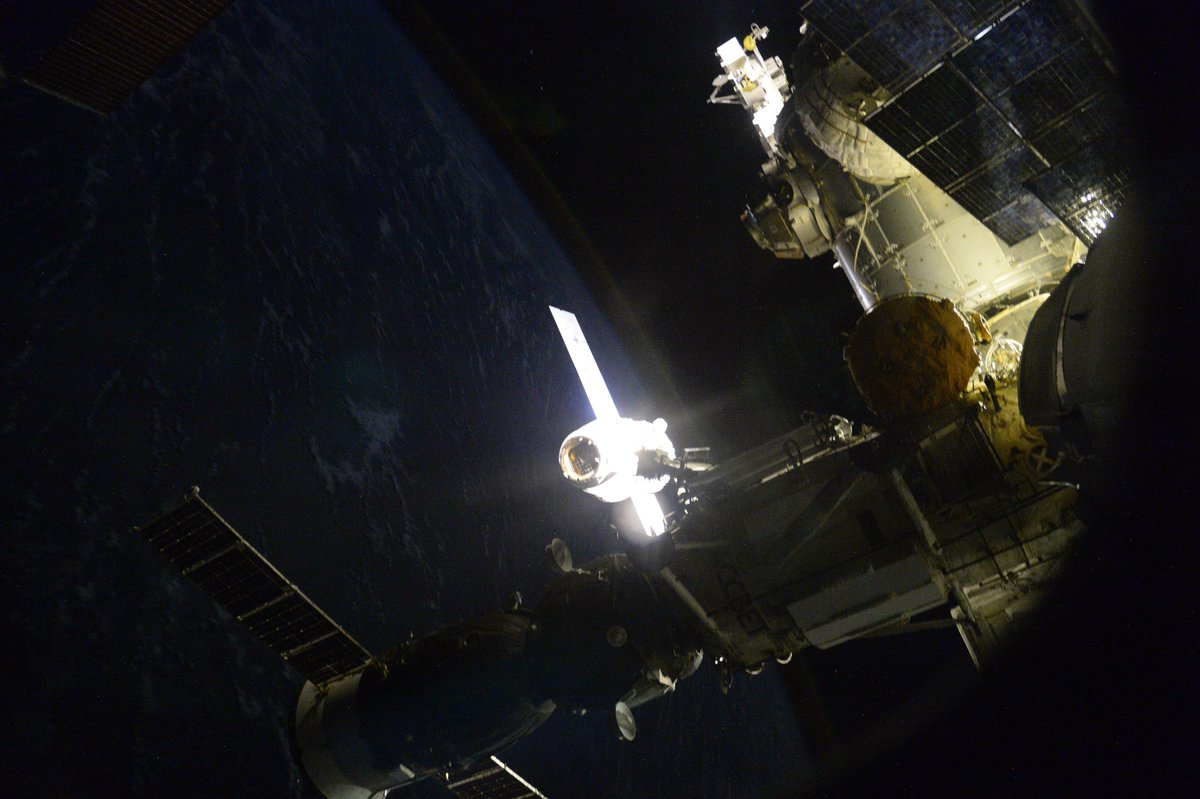

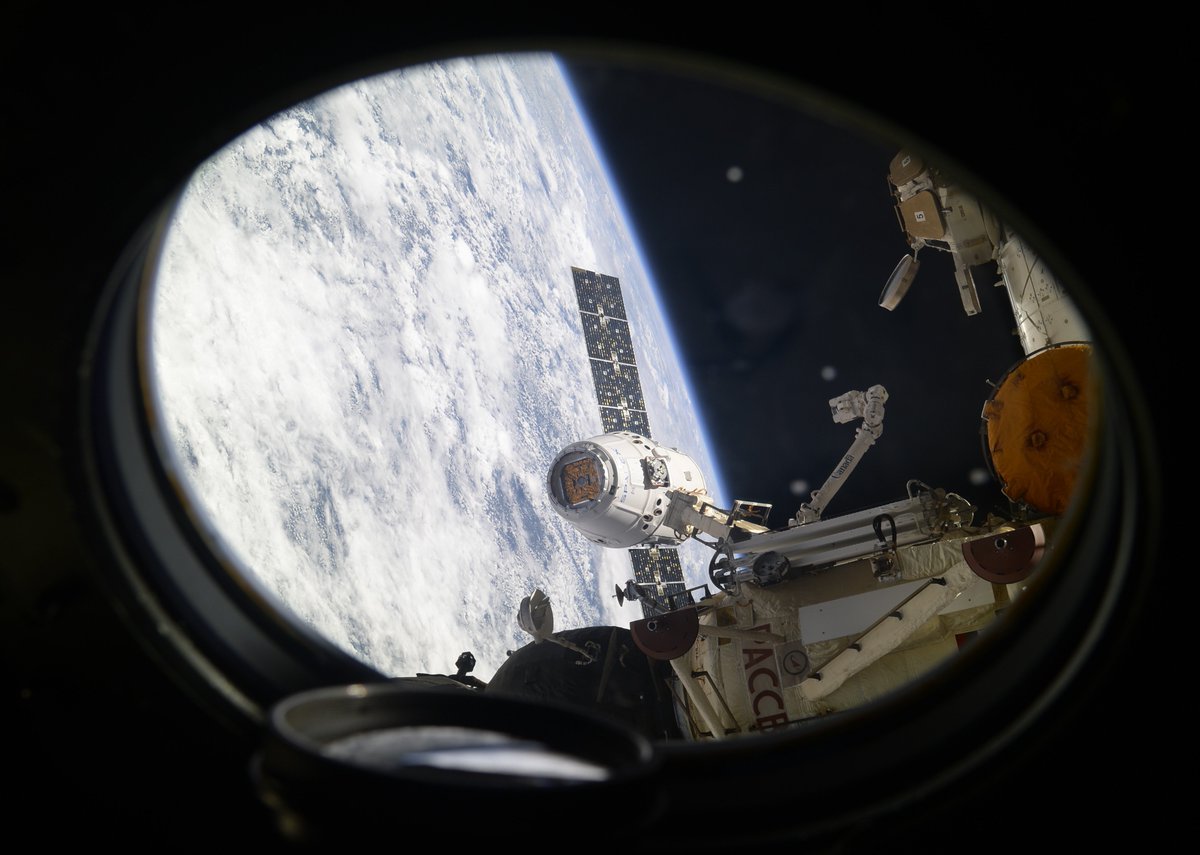

Dragon CRS-14 has arrived at the ISS. It parked itself floating 10 metres off the station; the Canadarm-2 grabbed it at 1040 UTC and berthed it on the Harmony module's nadir port at 1300 UTC

[tnt22]

https://blogs.nasa.gov/spacestation/2018/04/04/dragon-bolted-to-stations-harmony-module/

Dragon Bolted to Station's Harmony Module

Mark Garcia
Posted Apr 4, 2018 at 9:14 am

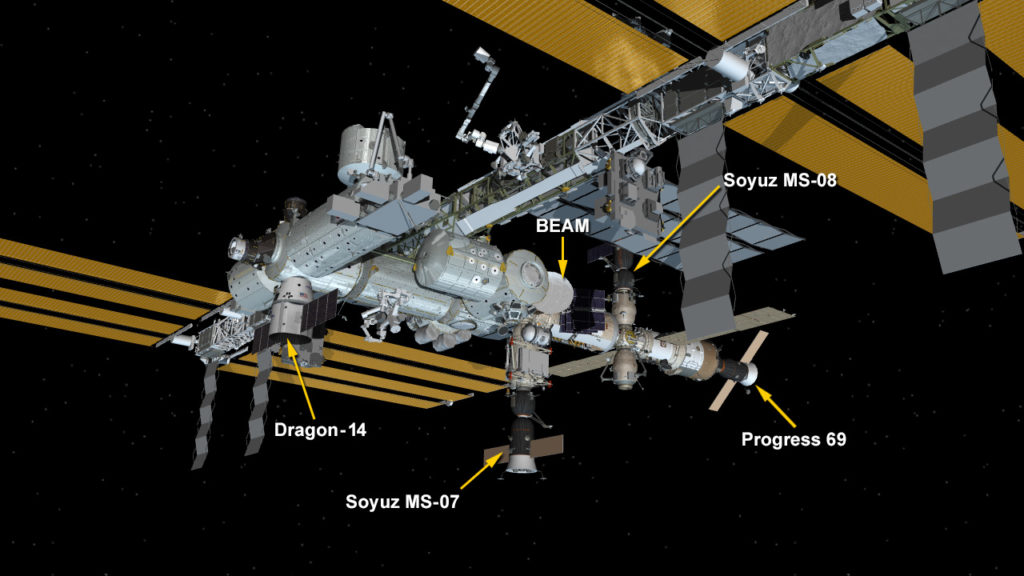

Four spaceships are docked at the space station including the SpaceX Dragon space freighter, the Progress 69 resupply ship and the Soyuz MS-07 and MS-08 crew ships.

Two days after its launch from Florida, the SpaceX Dragon cargo spacecraft was installed on the Harmony module of the International Space Station at 9:00 a.m. EDT.

Спойлер

The 14th contracted commercial resupply mission from SpaceX (CRS-14) delivered about 5,800 pounds of research, crew supplies and hardware to the orbiting laboratory.

Among the research arriving to the U.S. National Laboratory is a Metabolic Tracking investigation to evaluate the use of a new method to test, in microgravity, the metabolic impacts of pharmaceutical drugs. This could lead to more effective, less expensive medicines on Earth. The Multi-use Variable-g Platform (MVP) will serve as a new test bed aboard the space station, able to host 12 separate experiment modules with samples such as plants, cells, protein crystals and fruit flies. The Center for the Advancement of Science in Space (CASIS), which manages the U.S. National Laboratory, is sponsoring the investigation and the MVP.

Dragon will remain attached to the space station until May, when it will return to Earth with more than 3,500 pounds of research, hardware and crew supplies.

[свернуть]

[tnt22]

SpaceX CRS-14: Dragon capture, 4 April 2018

SciNews

Опубликовано: 4 апр. 2018 г.

 (8:39)

[tnt22]

SpaceX CRS-14: Dragon berthing to the ISS, 4 April 2018

SciNews

Опубликовано: 4 апр. 2018 г.

 (4:01)

[Филипп Романов]

Здравствуйте! Вчера вечером, с 21:10 по 21:13 (по МСК), в Подмосковье, мне удалось сфотографировать пролёт МКС и грузового космического корабля Dragon CRS-14. Можете ознакомиться с выполненным мной видео данного пролёта

[tnt22]

Anton Shkaplerov‏ @Anton_Astrey 6 ч. назад

"Дракон" на подлете, скоро будет его захват манипулятором. «Захватчик» - @Astro_Kanai! // #Dragon is getting ready to be captured by @Astro_Kanai!

[tnt22]

金井 宣茂‏Подлинная учетная запись @Astro_Kanai 3 ч. назад
捕獲成功。
おとなしくて、美しい白竜でした。

Успешный захват.
Это был тихий и красивый белый дракон.

[tnt22]

Ricky Arnold‏Подлинная учетная запись @astro_ricky 50 мин. назад

Welcome @SpaceX 14 – packed with science and hopefully a few goodies for us too!

[tnt22]

https://spaceflightnow.com/2018/04/04/dragon-cargo-capsule-reaches-space-station-for-second-time/

Dragon cargo capsule reaches space station for second time
April 4, 2018 | Stephen Clark

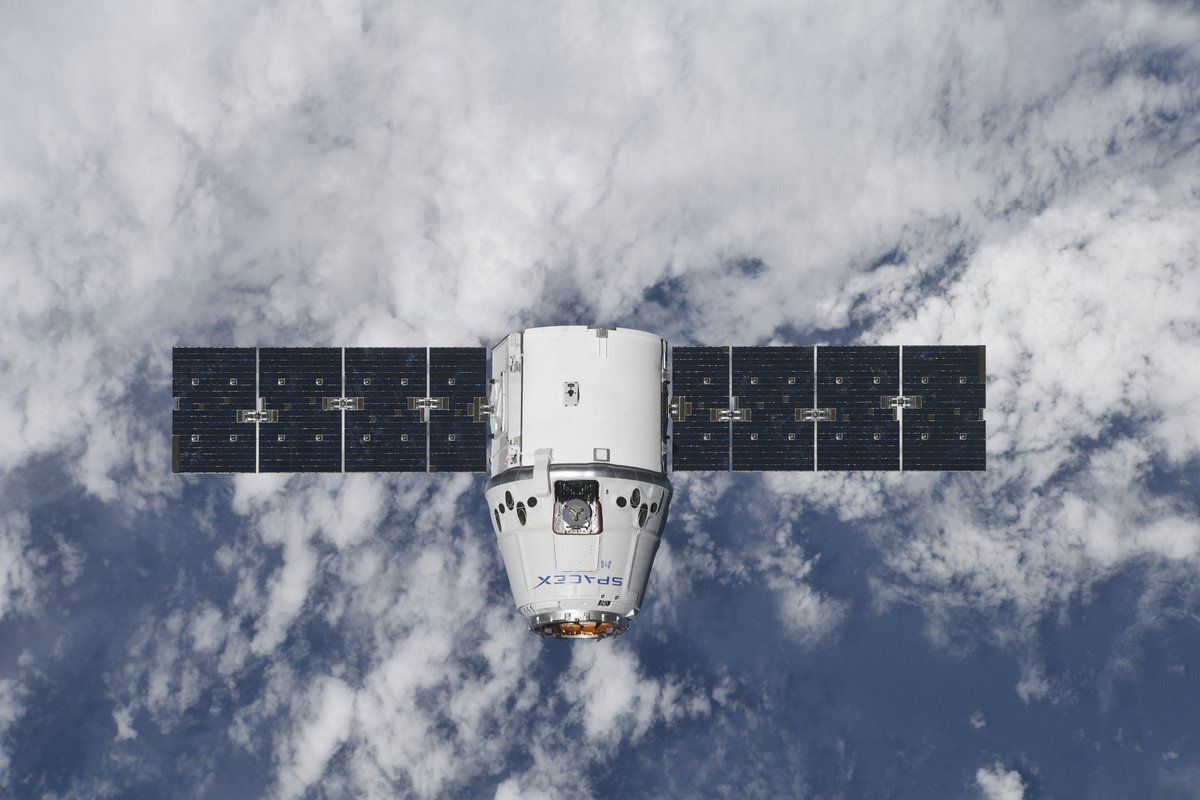

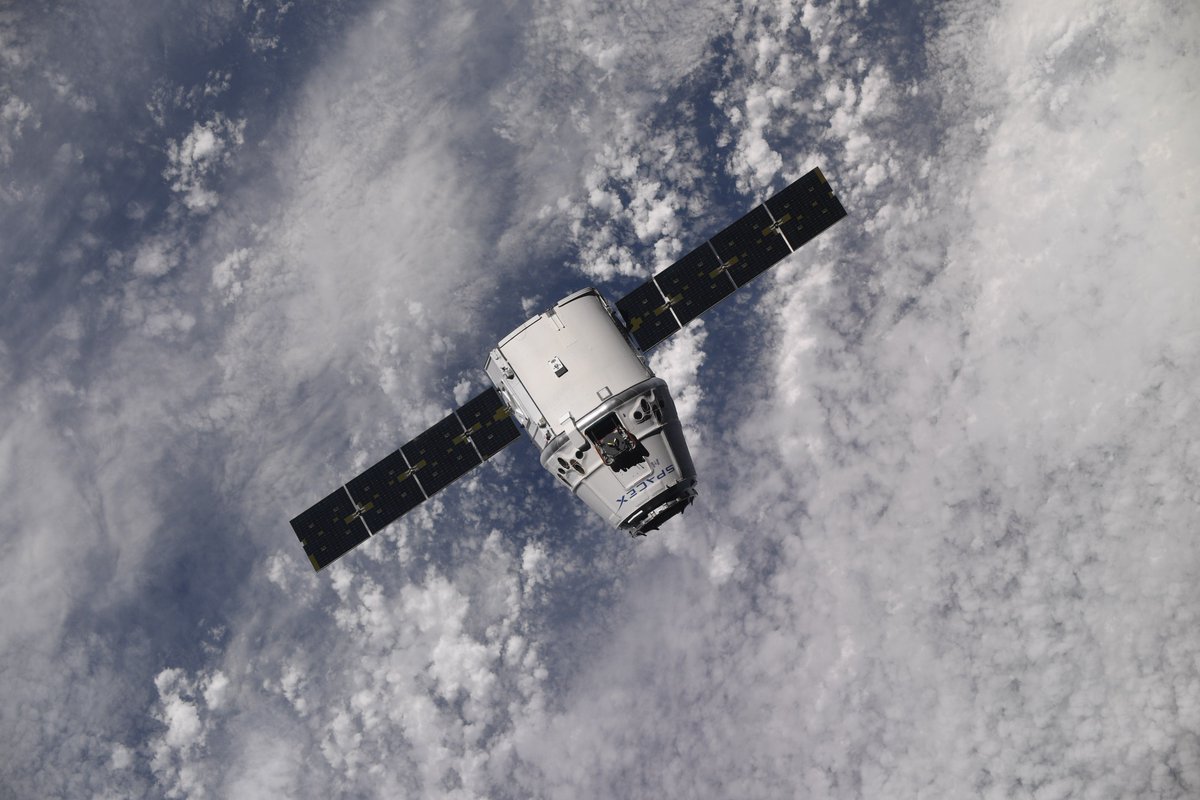

SpaceX's Dragon spacecraft arrives at the International Space Station Wednesday. Credit: NASA/JAXA/Norishige Kanai

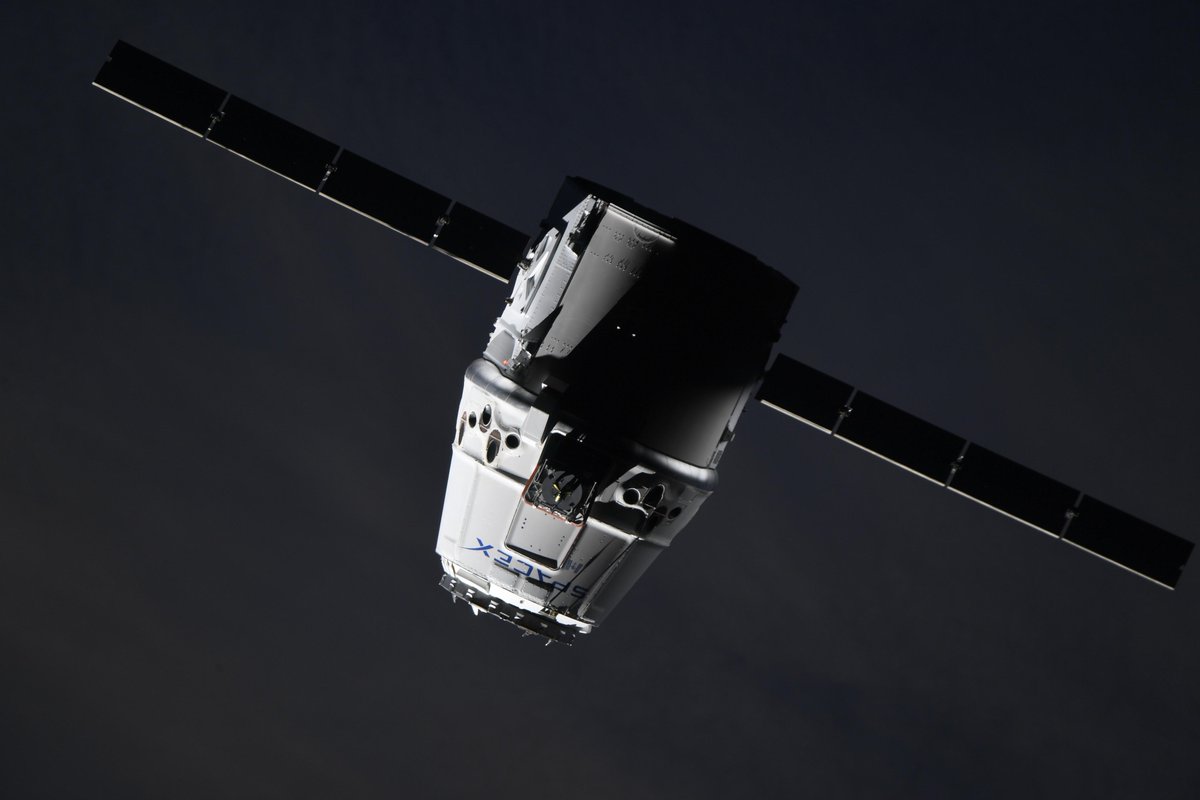

A commercial Dragon spacecraft glacially approached the International Space Station on Wednesday, allowing a robotic arm controlled by Japanese astronaut Norishige Kanai to reach out and grapple the supply ship as it soared 250 miles over Africa, completing SpaceX's 14th mission to the research complex, and the second by the same capsule.

Taking navigation cues fr om laser ranging and thermal sensors, the Dragon spacecraft approached the space station fr om below, pausing at pre-planned points to allow ground controllers and station astronauts to assess the ship's performance.

The rendezvous ran about 20 minutes ahead of schedule, and Kanai, a first-time space flier more than 100 days into his crew's station expedition, unlimbered the lab's Canadian-built robotic arm to snare the free-flying Dragon capsule at 6:40 a.m. EDT (1040 GMT).

Спойлер

"Capture complete," radioed station astronaut Scott Tingle, who assisted Kanai in Wednesday's operations. "I don't think it gets any better than that."

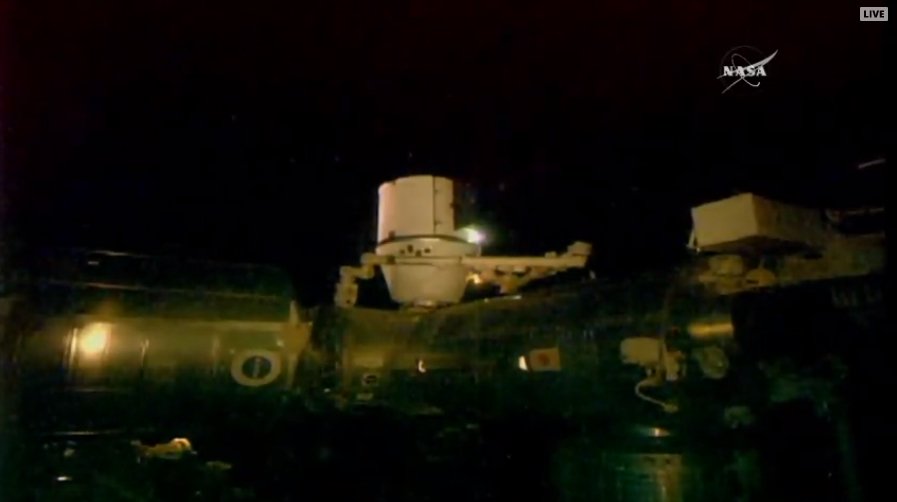

Ground controllers in Houston and Canada took command of the robotic arm to maneuver the Dragon capsule to a berthing port on the station's Harmony module. Sixteen bolts closed to firmly attach the supply ship to the space station at 9 a.m. EDT (1300 GMT).

Wednesday's arrival came a day-and-a-half after the Dragon spacecraft blasted off fr om Cape Canaveral aboard a SpaceX Falcon 9 rocket. Monday's launch flew with a previously-used Falcon 9 first stage booster, along with the recycled Dragon capsule.

The Dragon capsule that arrived at the station Wednesday first flew on a round-trip mission to the orbiting outpost in April and May of 2016. It's the 14th time a SpaceX supply ship has reached the space station, including a demonstration mission in 2012, and the SpaceX's 14th full-up revenue-earning cargo mission under a more than $2 billion contract with NASA.

One of those cargo flights failed during launch in 2015.

The Dragon capsule delivered 5,836 pounds (2,647 kilograms) of cargo and experiments, including around two tons of hardware for research investigations and scientific instruments. Here's a breakdown of the Dragon's cargo manifest:

[/li]
• 2,359 pounds (1,070 kilograms) of science equipment
• 2,041 pounds (926 kilograms of hardware in Dragon's unpressurized trunk
• 758 pounds (344 kilograms) of crew supplies
• 326 pounds (148 kilograms) of vehicle hardware
• 218 pounds (99 kilograms) of spacewalking gear
• 108 pounds (49 kilograms) of computer resources
• 24 pounds (11 kilograms) of Russian cargo


Astronauts inside the station planned to open hatches between the Harmony module and the Dragon's pressurized compartment Thursday to begin unpacking the roughly 1.9 tons of cargo inside. The space station's Canadarm 2 arm and Dextre robot will extract three payloads from Dragon's external cargo bay.

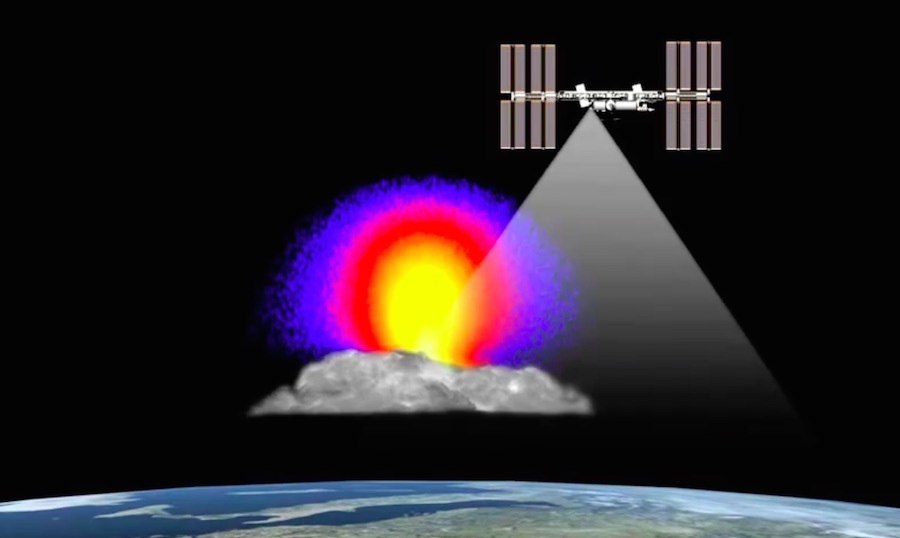

Artist's illustration of the Atmosphere-Space Interactions Monitor's observing method from its mounting platform on the space station's Columbus module. Credit: Terma/DTU/ESA/Jan Rasmussen

The experiments carried in Dragon's pressurized module include a robotic testbed satellite that will be released from the space station in the next few months to study the effectiveness of techniques to capture a chunk of space junk and move it out of Earth orbit.

Developed in a public-private partnership between the European Commission and European industry, the RemoveDebris mission will test the utility of nets and harpoons to capture tumbling objects in space, repurposing devices commonly used in fishing to pluck debris out of orbit and bring them into Earth's atmosphere to burn up.

Guglielmo Aglietti, principal investigator for the RemoveDebris mission, calls the project a "proof-of-concept."

Scientists also developed experiments to look at the effects of microgravity on bone marrow and wound healing. Lessons from those studies could help researchers develop ways to counteract negative health effects of long-duration spaceflight or bedrest, and investigate treatments for wounds soldiers suffer in combat.

The Dragon capsule also carried frozen human and bull sperm samples to the space station, wh ere astronauts will thaw the specimens, then add chemicals to activate the cells and allow them to become more mobile, a step required before the sperm can fuse with an egg for fertilization.

"Previous experiments with sea urchin and bull sperm suggest that activating movement happens more quickly in microgravity, while the steps leading up to fusion happen more slowly, or not at all," NASA wrote in an overview of the sperm experiment, known as Micro-11. "Delays or problems at this stage could prevent fertilization from happening in space."

"Researchers will use video to assess how well the space sperm move," scientists wrote. "Finally, the samples will be mixed with preservatives and returned to Earth, wh ere they'll be analyzed to see whether the steps necessary for fusion occurred and whether the samples from space differ from sperm samples activated on the ground."

Scientists prepared a new method of delivering nutrients to vegetables grown on the space station to supplement the astronaut's diet. Seven new plant growth modules, developed in partnership between NASA and Tupperware Brands Corp., were delivered by the Dragon spacecraft Wednesday for testing with red romaine lettuce.

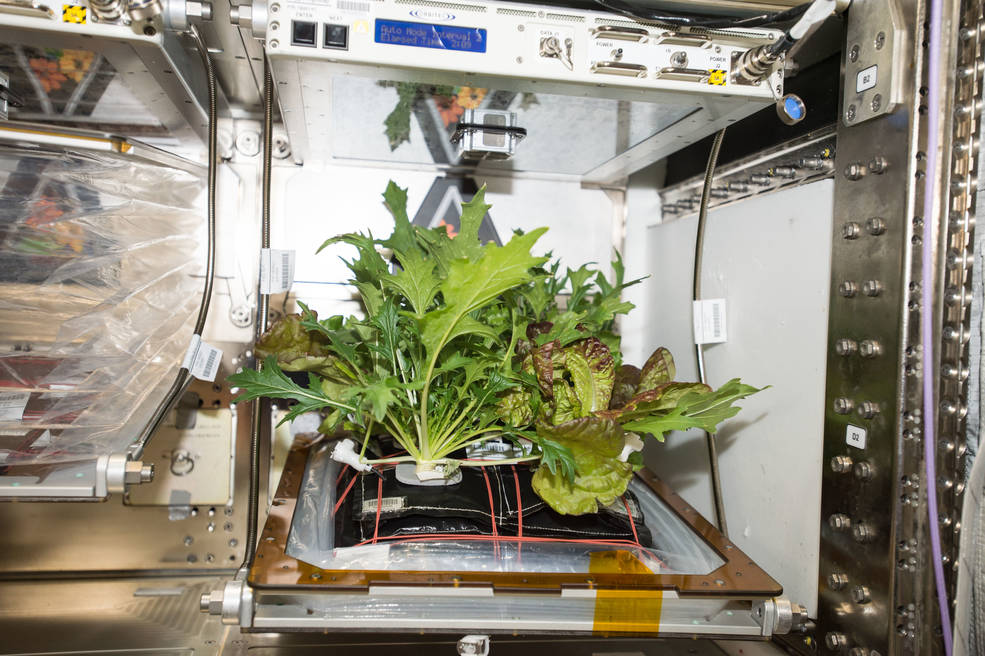

Leafy greens grown on the International Space Station. Credit: NASA

There is also an experiment in sintering that could help engineers fabricate or repair tools and spacecraft components on future missions. New high-definition cameras and a custom HP printer for station astronauts also launched inside the Dragon capsule that reached the space station Wednesday.

Payloads mounted inside the Dragon's trunk included the Atmosphere-Space Interactions Monitor, or ASIM, an instrument funded by the European Space Agency and led by Danish scientists to study lightning from the space station.

The instrument's optical, X-ray and gamma ray sensors will observe electrical discharges high above thunderstorms — with names like blue jets, red sprites and elves — that extend up to the edge of space.

Scientists know little about how the discharges are triggered, said Torsten Neubert, ASIM science team coordinator at the Technical University of Denmark.

Lightning processes are slowed at high altitude, Neubert said, making it a good laboratory for studying how electrical discharges emanate through the atmosphere.

"They are really lightning, except they are lightning processes in the upper atmosphere," Neubert said of sprites and jets. "So they look a little bit different, but if we understand them, we'll also understand normal lightning much better."

Once mounted outside the European Columbus module, the lightning monitor may help scientists pinpoint the sources of flashes of gamma rays detected coming from Earth's atmosphere by some astronomical instruments in space. Scientists also hope to study lightning's effects on ozone and other gases in the atmosphere during the instrument's two-year observing campaign.

Also inside the trunk: A platform to expose materials like polymers, coatings, fabrics, computer chips, and solar cells to the harsh environment of space, helping engineers design future spacecraft. The Materials ISS Experiment Flight Facility, or MISSE-FF, was developed by Alpha Space, a Houston-based company that wants to offer the platform to companies seeking to test the resilience of materials to extreme temperatures, ionizing radiation, space junk and other hazards of spaceflight.

NASA is also sending up a refurbished coolant pump for staging outside the space station as a spare for the orbiting lab's huge power truss segments.

The Dragon spacecraft is scheduled to remain at the space station until May 2, when it will depart bring around two tons of scientific specimens back to Earth.

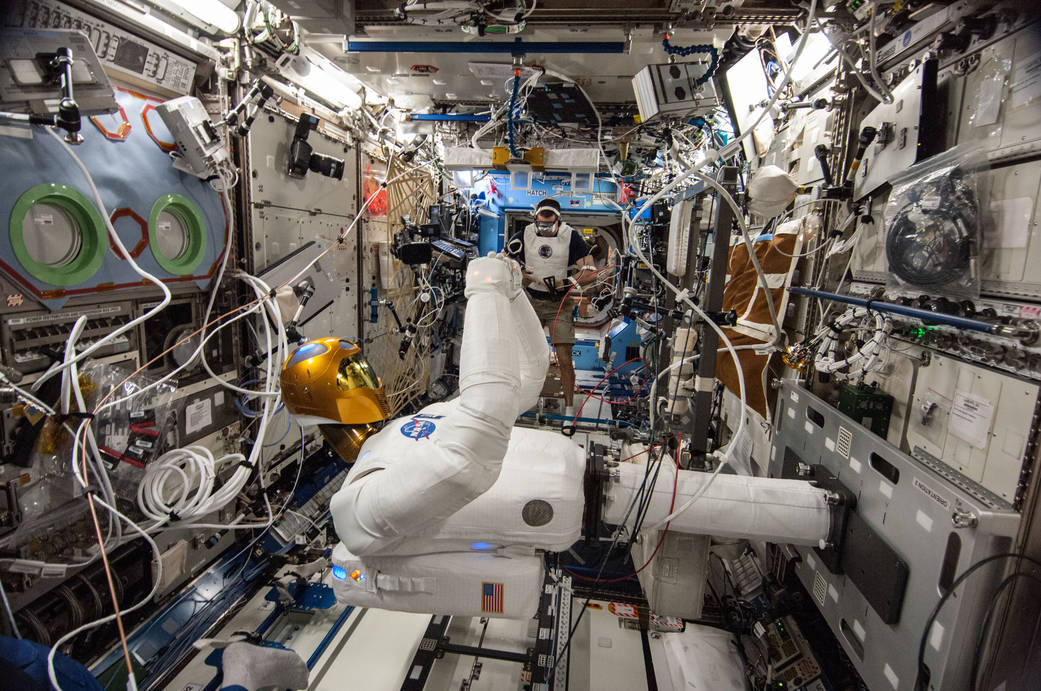

Robonaut aboard the International Space Station. Credit: NASA

Also hitching a ride back home with the Dragon will be NASA's Robonaut 2, a humanoid robot launched on the final flight of the space shuttle Discovery in February 2011.

"Robonaut has had some issues with being able to power up on-orbit ... and after a lot of troubleshooting on-orbit and a lot of analysis on the ground, they've concluded pretty conclusively that there's a short of some sort on one of the circuitboards, and they need to bring it home in order to repair that," said Pete Hasbrook, NASA's associate space station program scientist.

Engineers developed Robotnaut as a testbed to see whether robots could help astronauts clean and maintain the space station, an objective aimed at freeing up crew time for more intensive tasks. A SpaceX Dragon cargo capsule delivered legs for Robonaut in 2014.

Robonaut could be re-launched on a future mission after the repairs are finished.

"The plan is to bring this one down, understand why it failed, and then make the decision of wh ere we want to go in the future," said Joel Montalbano, NASA's deputy space station program manager.

[свернуть]

[tnt22]

Oleg Artemyev‏Подлинная учетная запись @OlegMKS 20 мин. назад

Вчера на Международную космическую станцию @Space_Station прилетел #Dragon CRS-14 — американский грузовой корабль @SpaceX . Доставил он нам 2,5 тонны научной техники и различных грузов.

Спойлер

[свернуть]

19 мин. назад

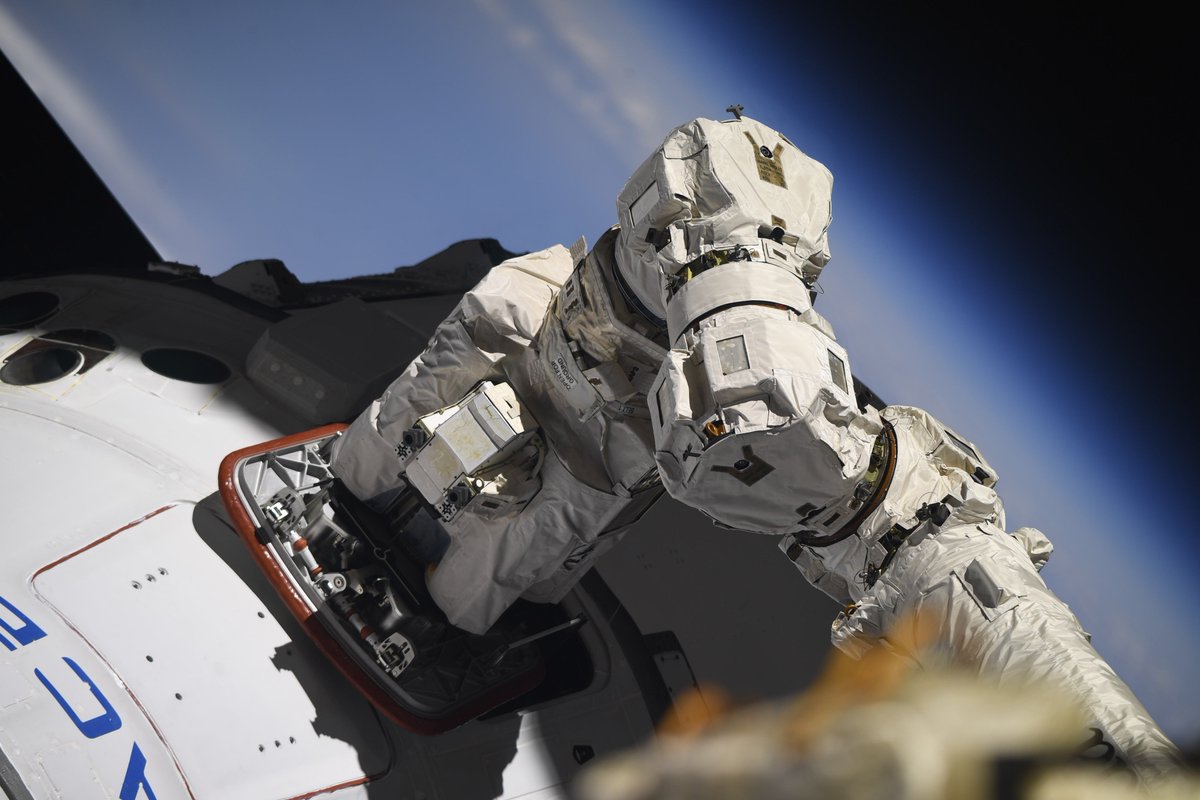

The @SpaceX #Dragon CRS-14 cargo spacecraft was captured with the International Space Station's robotic Canadarm2 on 4 April 2018. The spacecraft delivered more than 2.5 tons of supplies to the @Space_Station

Спойлер

[свернуть]

[tnt22]

Официоз от НАСА

SpaceX CRS-14 Launch - April 2, 2018

NASA Video

Опубликовано: 5 апр. 2018 г.

 (2:14:49)

[tnt22]

Официальное видео (НАСА)

SpaceX CRS-14 Grapple - April 4, 2018

NASA Video

Опубликовано: 5 апр. 2018 г.

 (2:05:00)
