Echostar 23 – Falcon 9 – Кеннеди LC-39A – 16.03.2017 06:00 UTC

[Boris Mekler]

Major Meff пишет:
Я, может, пропустил, но что там с первой ступенью? На море села? Третий раз полетит? Или все уже болт положили на нее?

Этот пуск был без посадки первой ступени, слишком тяжёлая ПН. Следующий пуск (SES-10, запланирован на 27/3/17) будет на б/у ступени и с посадкой.

[Apollo13]

Major Meff пишет:
Я, может, пропустил, но что там с первой ступенью? На море села? Третий раз полетит? Или все уже болт положили на нее?

Доброе утро!

[tnt22]

Major Meff пишет:
Я, может, пропустил, но что там с первой ступенью? На море села? Третий раз полетит? Или все уже болт положили на нее?

Благополучно утопла по плану в Атлантике.

[Major Meff]

Apollo13 пишет:
Доброе утро!

Утро добрым не бывает

[тавот]

tnt22 пишет:

Major Meff пишет:
Я, может, пропустил, но что там с первой ступенью? На море села? Третий раз полетит? Или все уже болт положили на нее?

Благополучно утопла по плану в Атлантике.

А со второй как поступят ?

[tnt22]

http://www.patrick.af.mil/News/Article-Display/Article/1120143/45th-sw-supports-successful-falcon-9-echostar-xxiii-launch

45th SW supports successful Falcon 9 EchoStar XXIII launch

, 45th Space Wing Public Affairs / Published March 16, 2017


 1 of 1
 DOWNLOAD HI-RES  /   PHOTO DETAILS

The U.S. Air Force's 45th Space Wing supported SpaceX's successful launch of the EchoStar XXIII spacecraft aboard a Falcon 9 rocket from Launch Complex 39A at NASA's Kennedy Space Center March 16 at 2 a.m. EDT. (Courtesy photo/SpaceX webcast)

 CAPE CANAVERAL AIR FORCE STATION, Fla. --

The U.S. Air Force's 45th Space Wing supported SpaceX's successful launch of the EchoStar XXIII spacecraft aboard a Falcon 9 rocket from Launch Complex 39A at NASA's Kennedy Space Center March 16 at 2 a.m. EDT.
EchoStar 23, designed and built by Space Systems Loral for EchoStar Corporation, will provide television broadcast services over Brazil with an estimated service life of 15 years.

This launch marks the last SpaceX Falcon 9 launch utilizing ground-based mission flight control personnel and equipment in the mission control center.  All future SpaceX rockets will utilize an Autonomous Flight Safety System which replaces the ground-based mission flight control personnel and equipment with on-board Positioning, Navigation and Timing sources and decision logic.  The benefits of AFSS include increased public safety, reduced reliance on range infrastructure, reduced range spacelift cost, increased schedule predictability and availability, operational flexibility, and launch slot flexibility.
SpaceX's CRS-10 launch Feb.18 from LC 39A marked the historic first-ever launch utilizing AFSS on either of Air Force Space Command's Eastern or Western Ranges.

The Falcon 9 Echostar XXIII launch was the third major launch operation for the Eastern Range this year and the second from LC 39A.  Before any spacecraft can launch on the range, a combined team of military, government civilians and contractors from across the 45th Space Wing provide the mission assurance to ensure a safe and successful lift-off for range customers.

"We truly have a tremendous team here on the Space Coast and it's my honor to be a part of this mission supporting the commercial space industry," said Brig. Gen. Wayne Monteith, 45th Space Wing commander and Launch Decision Authority for this mission.  "Assured access to space is a team sport here on the Eastern Range.  This operation once again clearly demonstrates the successful collaboration we have with our mission partner SpaceX as we continue to shape the future of America's space operations and showcase why the 45th Space Wing is the 'World's Premier Gateway to Space.'"

Since the late 1960s, LC 39A has served as the starting point for America's most significant human spaceflight endeavors such as the Apollo 11 launch for the first manned moon landing in 1969 and the first Space Transportation System mission in 1981 with the launch of the Space Shuttle Columbia, also named STS-1.  Thirty years later, NASA's 135th and final mission of the Space Shuttle program, STS-135, successfully launched the orbiter Atlantis from LC 39A.

[тавот]

Deflang пишет:
Пуски Флакона равносильны тяжелым родам

А чему равносильны пуски Протона - абортам с осложнениями ?

[tnt22]

Echostar XXIII Hosted Webcast (в записи, 55:25)

[Apollo13]

[tnt22]

http://www.spaceflightinsider.com/organizations/space-exploration-technologies/expendable-falcon-9-launches-indispensable-echostar-23/

Expendable Falcon 9 launches indispensable EchoStar 23
Derek Richardson
March 16th, 2017

Спойлер

SpaceX's Falcon 9 rocket with the EchoStar 23 communications satellite soars out of Kennedy Space Center's Launch Complex 39A. This was the first all-commercial flight fr om this historic pad. Photo Credit: SpaceX

[свернуть]

KENNEDY SPACE CENTER, Fla. — Lighting up the Florida night skies, an expendable SpaceX Falcon 9 rocket soared toward space with the EchoStar 23 satellite after lifting off from historic Launch Complex 39A. Liftoff took place at 2 a.m. EDT (06:00 GMT) March 16, 2017, some 25 minutes into a 2.5-hour long window.

The launch was postponed from March 14, ultimately because of high winds. Throughout the first attempt's countdown, weather was spotty at best with conditions periodically entering rule-violating territory.

For this second attempt, however, conditions were much better. Despite being pushed 25 minutes into the launch window because of high-altitude winds, the countdown went by the book. The 45th Space Wing, which supports launches from the Space Coast, predicted the weather would have a 90 percent chance of favorable conditions, with high winds being the primary concern.


Спойлер

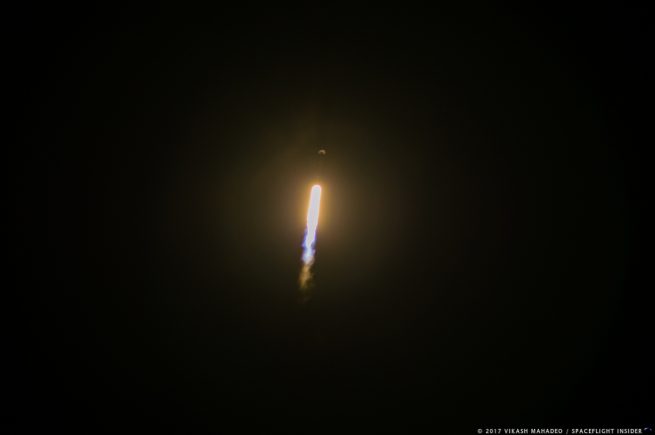

Photo Credit: Vikash Mahadeo / SpaceFlight Insider

 "We truly have a tremendous team here on the Space Coast and it's my honor to be a part of this mission supporting the commercial space industry," said Brig. Gen. Wayne Monteith, 45th Space Wing commander and Launch Decision Authority for this mission. "Assured access to space is a team sport here on the Eastern Range. This operation once again clearly demonstrates the successful collaboration we have with our mission partner SpaceX as we continue to shape the future of America's space operations and showcase why the 45th Space Wing is the 'World's Premier Gateway to Space.'"

EchoStar 23 was the payload for the 230-foot tall Falcon 9. Because the communications satellite was heavy enough and traveling to a high-energy geostationary transfer orbit (GTO), the rocket needed as much fuel as possible. As such, a first stage recovery was not attempted.

This was the first legless SpaceX booster since April 2015 and is expected to be one of the last expendable Falcon 9 rockets. According to SpaceX CEO and founder Elon Musk, future payload like EchoStar 23 will either be flown on a Falcon Heavy or an upgraded "Block 5" Falcon 9.

The SpaceX launch conductor took the launch readiness poll at around 12:48 a.m. EDT (04:48 GMT). Loading of rocket grade kerosene into both stages began at 70 minutes before liftoff. That was followed by liquid oxygen 45 minutes before liftoff.

At seven minutes before liftoff, the nine Merlin 1D engines at the base of the Falcon 9 began a chill phase to condition them before launch. About five minutes later, the Range Control Officer verified the range was clear for flight.

About 60 seconds before launch, the propellant tanks were pressurized. At three seconds to liftoff, the nine Merlin 1D engines ignited and powered up to full throttle. Once the onboard computer deemed all was well, the launch mounts were commanded to release the vehicle.

Meanwhile, once the rocket was released, the strongback, the structure used to transport the Falcon 9 from the hangar to the launchpad and lift it to the vertical position, performed a movement known as the "throwback" wh ere the whole structure rapidly moved out of the way of the rising rocket. The strongback lowered to about 45 degrees from the vertical position in about 8 seconds.


The Falcon 9 arcs toward its targeted geostationary transfer orbit to deposit the EchoStar 23 satellite. Photo Credit: SpaceX

 Producing 190,000 pounds (845 kilonewtons) of thrust each, the nine Merlin 1D engines powered the vehicle vertically to clear the tower at LC-39A. Then the rocket began its pitch, yaw and roll maneuver toward its designated geostationary transfer orbit.

Just after a minute into flight, the vehicle surpassed the speed of sound and the moment of peak mechanical stress on the rocket known as Max Q.

At 2 minutes, 43 seconds, the first stage engines shut down. Four seconds later, the first and second stages separated.

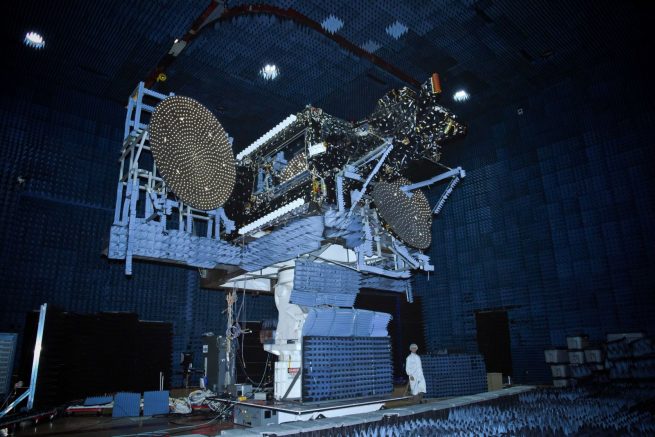

EchoStar 23 undergoes tests before being shipped to the launch site. Photo Credit: SSL

 Eight seconds after separating, the single Merlin 1D Vacuum engine ignited and powered to full throttle. It produced about 205,000 pounds (914 kilonewtons) of thrust as it continued to push it and EchoStar 23 to orbit.

The second stage fired for about five-and-a-half minutes. During that time, at 3 minutes, 43 seconds, the vehicle was far enough out of the atmosphere and the fairing was no longer needed to protect EchoStar 23. As such, it was jettisoned.

At 8 minutes, 31 seconds, the second stage engine cut out as planned. The booster and spacecraft were in orbit.

At 2:26 a.m. EDT (06:26 GMT), after spending 18 minutes coasting, the Merlin engine ignited for a second time, this time for a 1-minute burn, to increase the higher end of its orbit to around 22,000 miles (35,000 kilometers) – geostationary transfer orbit.

EchoStar 23 separated from the second stage 34 minutes after leaving LC-39A. Next the satellite will deploy its solar panels and begin circularizing its orbit at 22,000 miles (35,000 kilometers) using its own engines.

Once at this altitude, the spacecraft will orbit Earth at the same rate the planet rotates. This allows a spacecraft to "hover" over a specific spot. In this case, EchoStar 23 will stay over South America at 45 degrees West longitude to provide television services to Brazil.

EchoStar 23 was built by SSL and will be operated by the EchoStar corporation. It has an expected lifespan of 15 years.

The spacecraft is a Ku-band satellite. It has four main reflectors with multiple sub-reflectors. According to Gunter's Space Page, it weighs about 12,100 pounds (5,500 kilograms) and is built around the SSL-1300 spacecraft platform. Moreover, it has two deployable solar panels that will produce 20 kilowatts of power.

This was the third Falcon 9 rocket to fly in 2017 and the second to utilize LC-39A. It was also the 31st Falcon 9 since its inaugural flight in 2010.

According to the 45th Space Wing, this was the last SpaceX Falcon 9 launch to utilize the Eastern Range's ground-based mission flight control personnel and equipment in the mission control center.

"All future SpaceX rockets will utilize an Autonomous Flight Safety System which replaces the ground-based mission flight control personnel and equipment with on-board Positioning, Navigation and Timing sources and decision logic," a statement by the 45th Space Wing reads.

The 45th Space Wing said the benefits of the automated system include increased public safety, reduced reliance on range infrastructure, reduced range spacelift cost, increased schedule predictability and availability, operational flexibility, and launch slot flexibility.

Overall, this is part of the Range's plan to be able to support up to 48 launches from the Space Coast each year by 2020.

SpaceX's next launch is expected to be the first flight to utilize a recovered Falcon 9 first stage. The SES-10 mission will see the same booster recovered during the CRS-8 mission back in April 2016. Liftoff is currently targeted for no earlier than late March 2017.

Up next for the Space Coast will be the launch of a Delta IV Medium+ 5,4 rocket with the ninth Wideband Global SATCOM satellite. It is targeting a liftoff at 7:44 p.m. EDT (23:44 GMT) March 18. After that, an Atlas V carrying the S.S. John Glenn Cygnus cargo spacecraft to the International Space Station will launch on March 24.

If all goes as currently scheduled, that will make three launches in about eight days from the Space Coast.

Video courtesy of SpaceX

[свернуть]

[Чебурашка]

Deflang пишет:
Пуски Флакона равносильны тяжелым родам

Бгг... а Ангара тогда замёрзшая беременность???

[tnt22]

тавот пишет:
А со второй как поступят ?

Если предусмотрено 3-е вкл Мерлина (в апогее) - уйдёт тоже в океан достаточно быстро (порядка 6-ти часов).
Если не предусмотрено - ну поболтается на верхотуре суток эдак, м-м, много (тут как фишка ляжет, может долго тормозить...)

[tnt22]

Сообщение SpaceX
http://www.spacex.com/news/2017/03/16/echostar-xxiii-mission

March 16, 2017

ECHOSTAR XXIII MISSION

On March 16, 2017, SpaceX's Falcon 9 successfully delivered EchoStar XXIII, a commercial communications satellite for EchoStar Corporation, to a Geostationary Transfer Orbit (GTO).  EchoStar XXIII is a highly flexible, Ku-band broadcast satellite services (BSS) satellite with four main reflectors and multiple sub-reflectors supporting multiple mission profiles. Initial commercial deployment of EchoStar XXIII will be at 45° West, and the Satellite End of Life (EOL) Power is 20 kilowatts (kW).

Below is a summary of the mission in photos, with more photos available on our Flickr site. You can also watch the archived webcast , and find more information about the mission in our press kit.

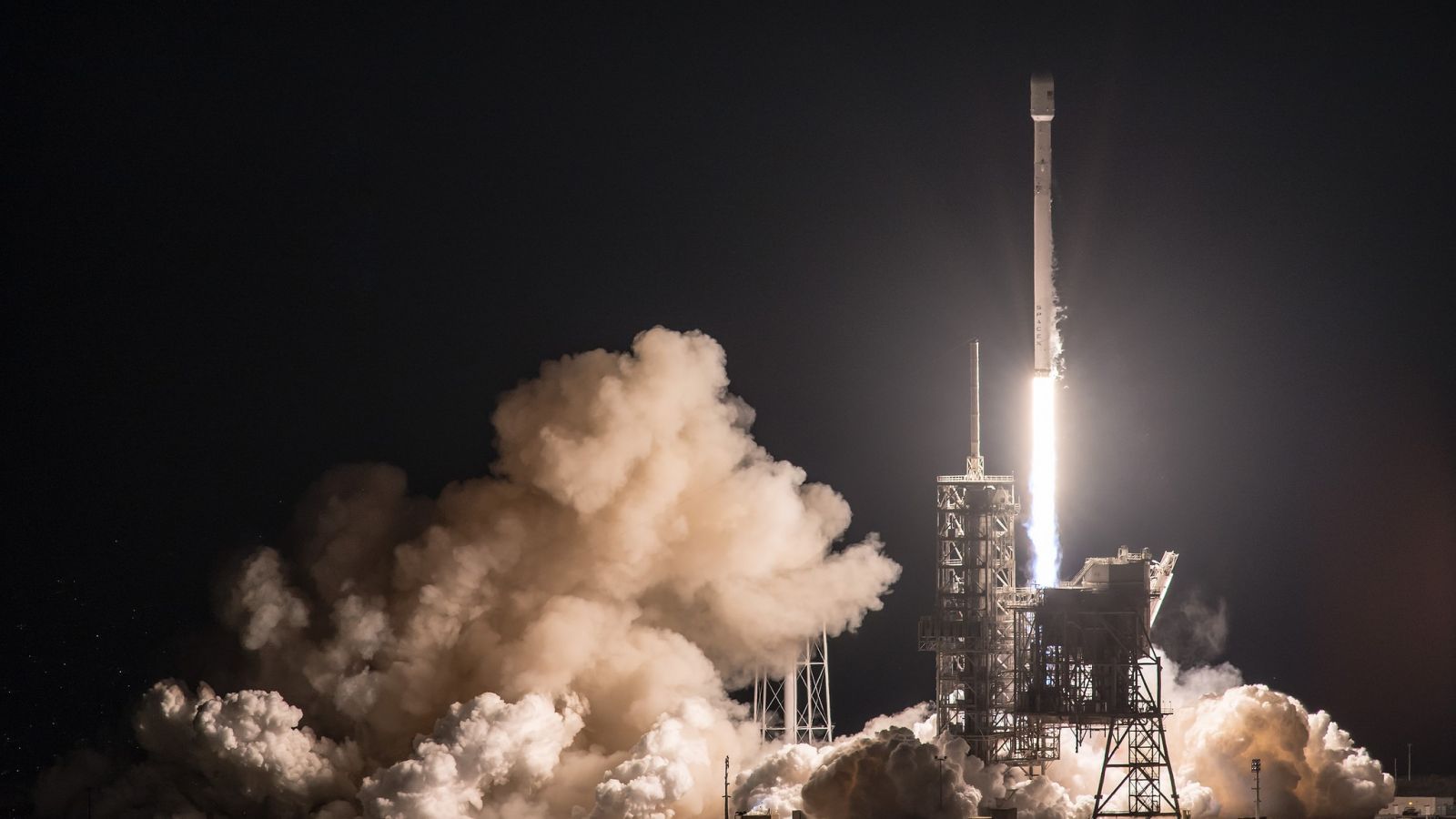

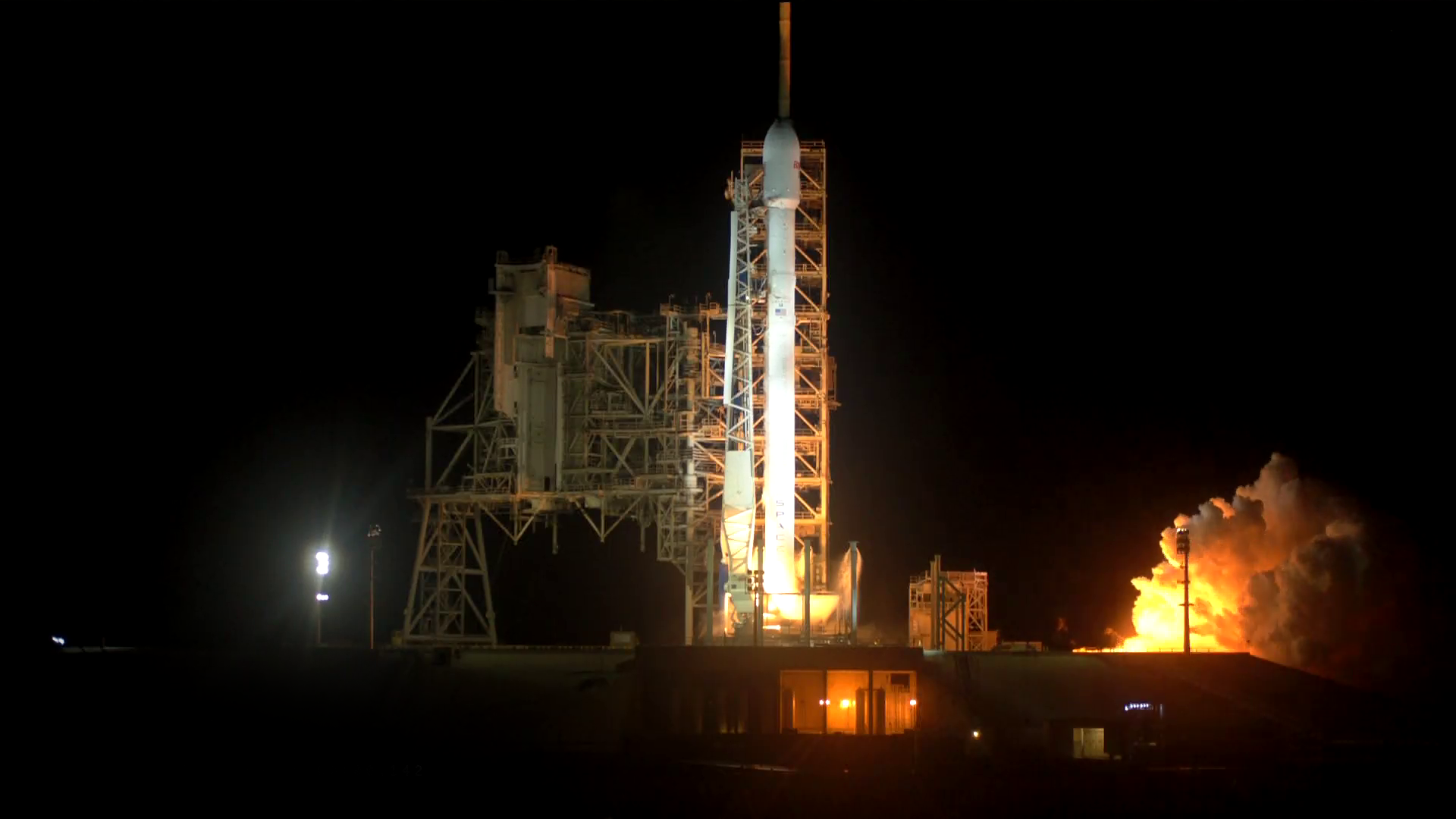

Falcon 9 lifted off from Launch Complex 39A at NASA's Kennedy Space Center at 2:00 am EDT, 6:00 am UTC.

Спойлер

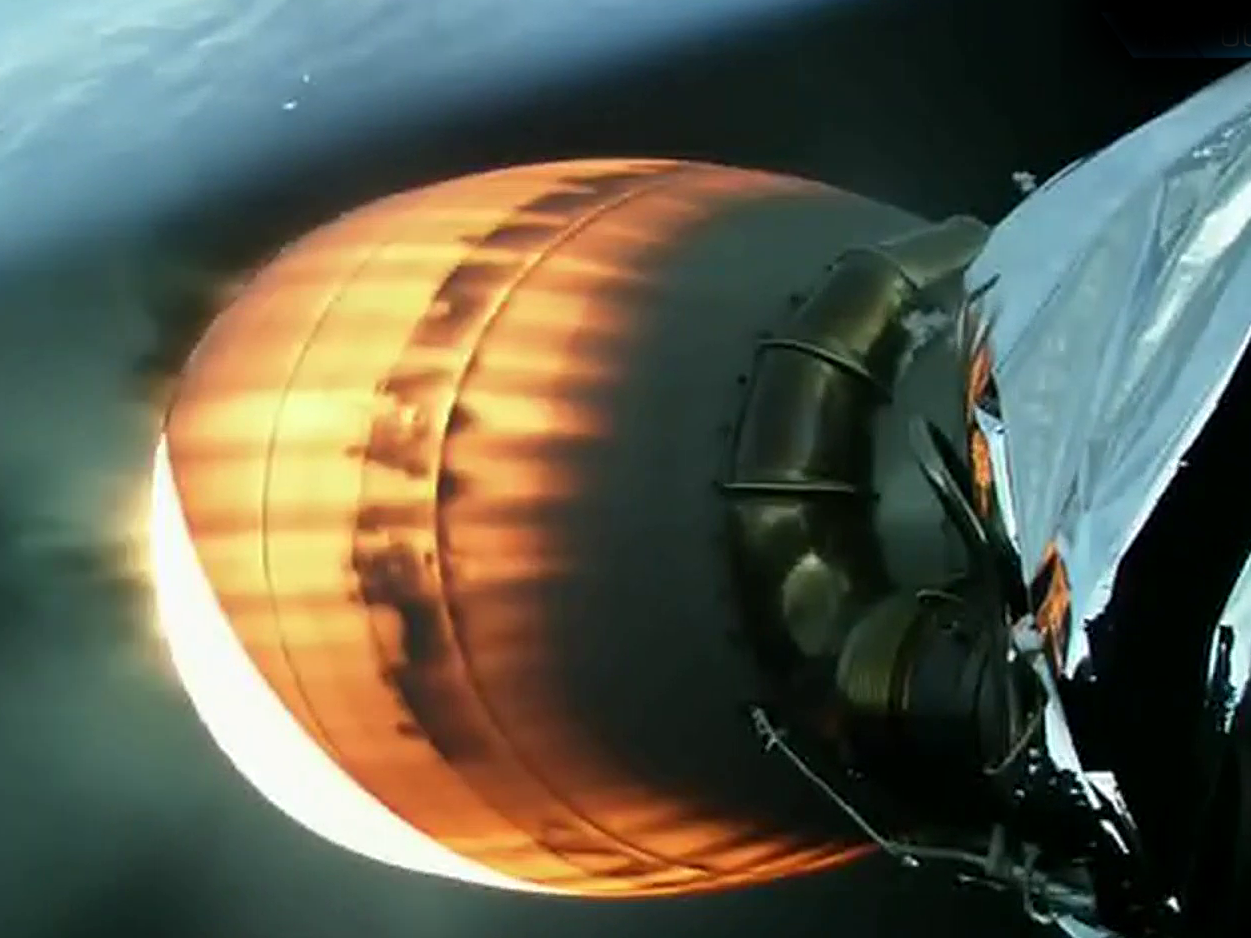

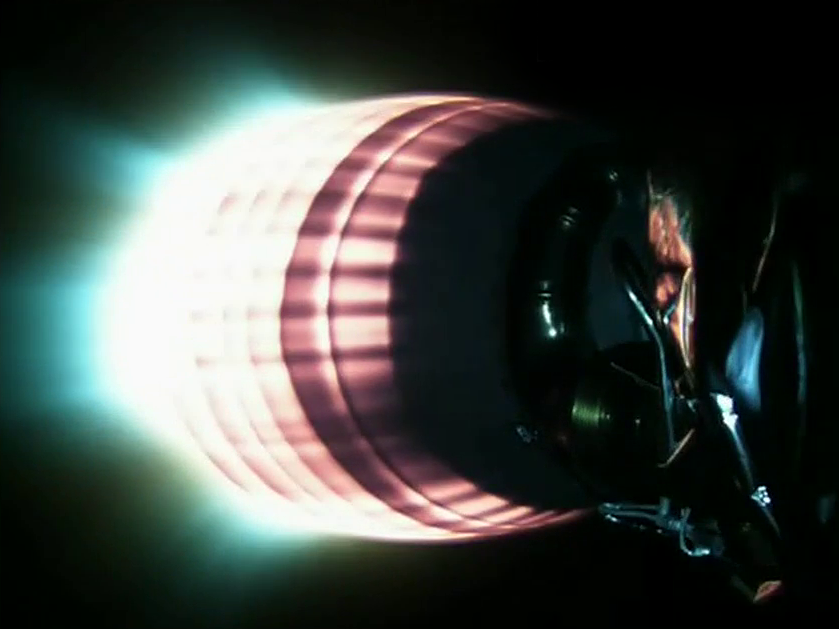

View of the engine end of the Falcon 9 first stage as the vehicle powers EchoStar XXIII to orbit.

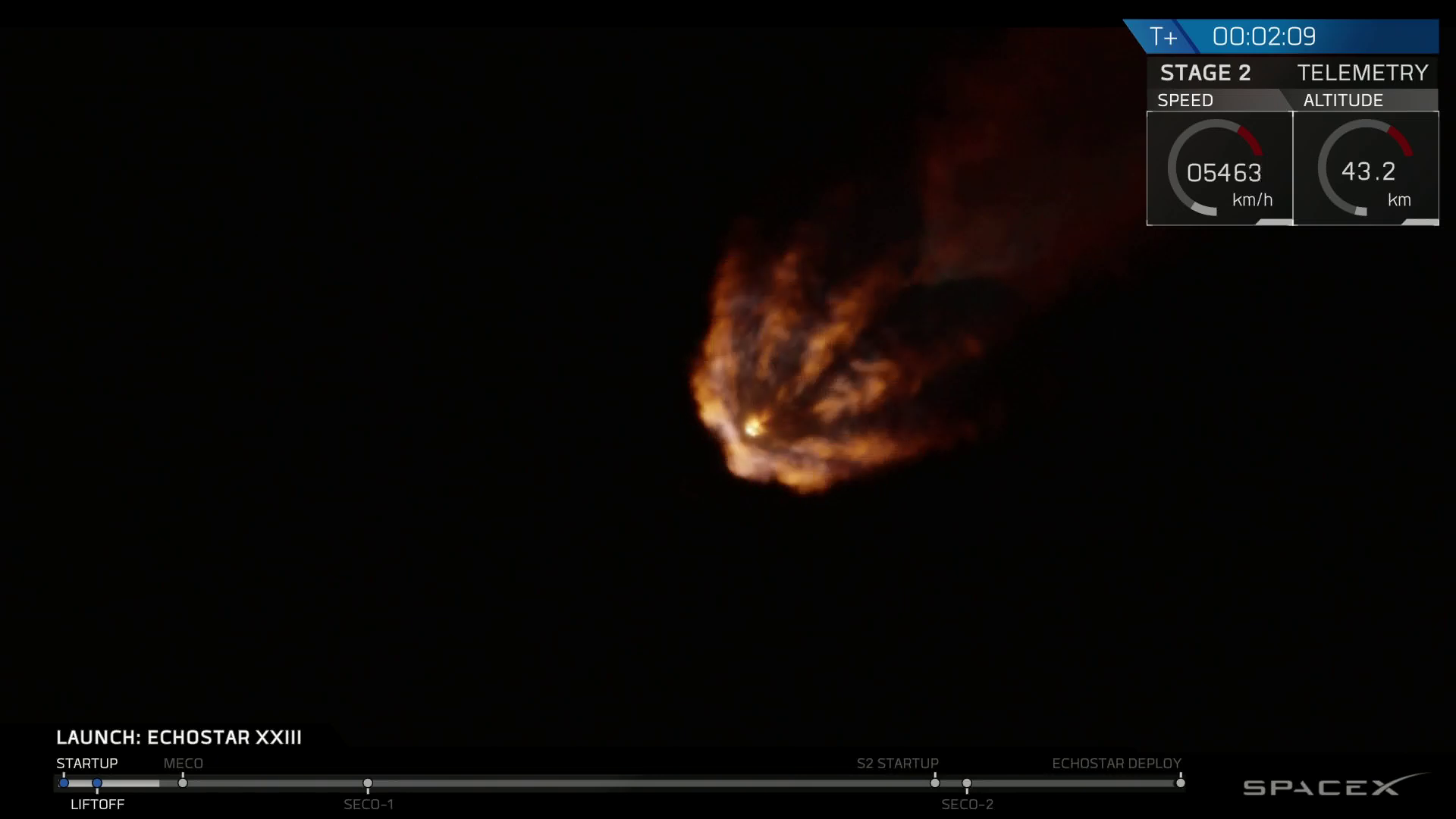

Approximately two and a half minutes into flight, the first and second stages separate, and the second stage engine ignites.



Following a nearly 18 minute coast phase, the second stage engine relights to provide the final boost for the EchoStar XXIII satellite

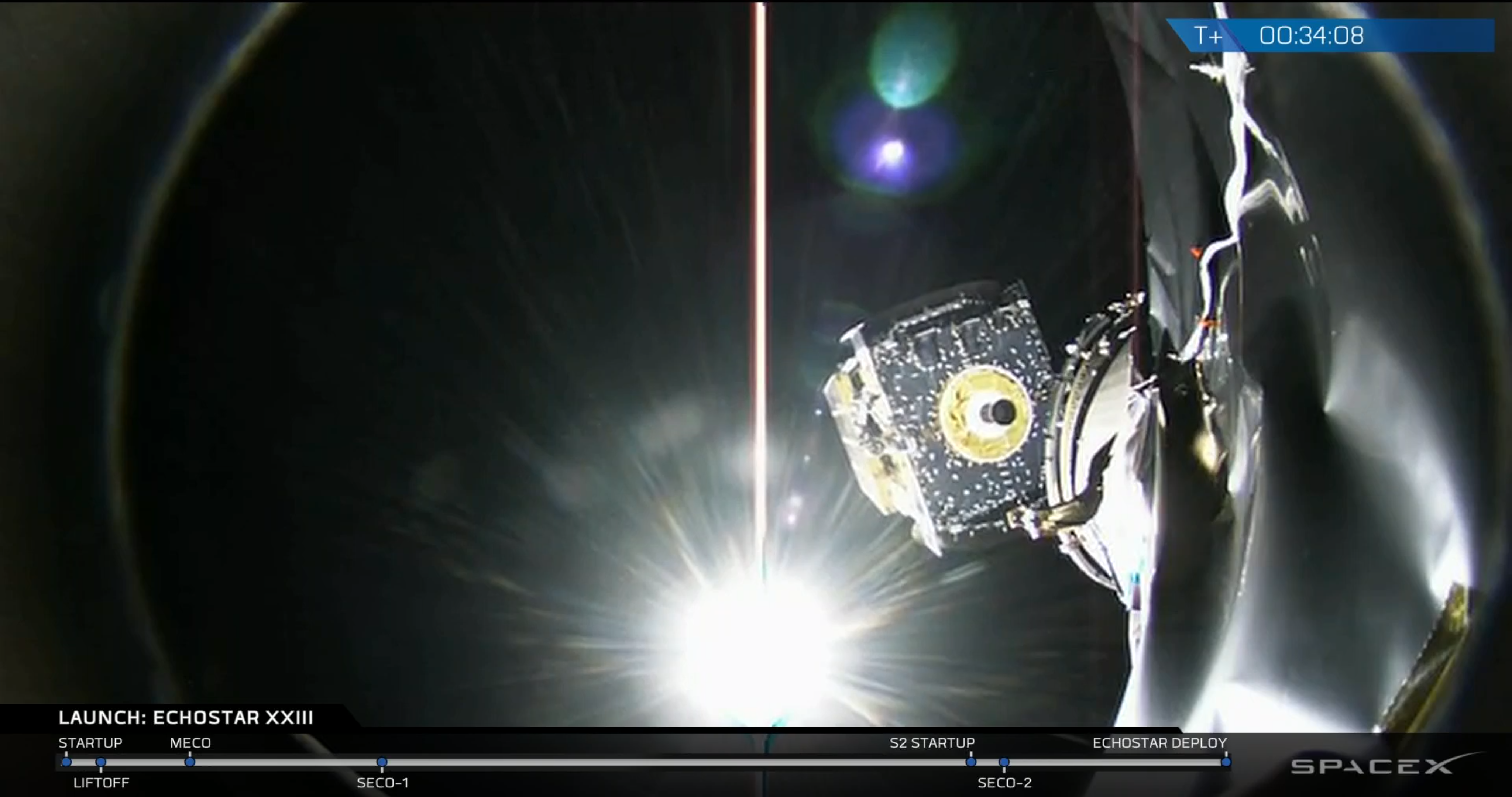

View of the EchoStar XXIII satellite as it deploys from the Falcon 9 second stage

[свернуть]

[Apollo13]

tnt22 пишет:
Если предусмотрено 3-е вкл Мерлина (в апогее) - уйдёт тоже в океан достаточно быстро (порядка 6-ти часов).

До сих пор так не делали. Ступень видимо еще не может дожить до апогея.

[Astro Cat]

Улетел наконец то! ))) Ждем Б/У! Когда, кстати?

[Nilk]

Georgea пишет:
Очевидный фотошоп. Источник света впереди, а мы ясно "видим" заднюю часть спутника.

Вот откуда такие берутся? Сектанты святой церкви фотошопа, блин.

[tnt22]

Apollo13 пишет:
До сих пор так не делали. Ступень видимо еще не может дожить до апогея.

Я надеюсь, Спейс-Треку Вы доверяете... Смотрим

41943

FREGAT R/B

2017-006B

ROCKET BODY

CIS

2017-01-28

FRGUI

616.20

5.40

35047

171

LARGE

TLE | OMM

41947	ARIANE 5 DEB (SYLDA)	2017-007D	DEBRIS	FR	2017-02-14	FRGUI		629.57	3.93	35642	267	SMALL	TLE | OMM
41946	ARIANE 5 R/B	2017-007C	ROCKET BODY	FR	2017-02-14	FRGUI		632.07	3.81	35765	272	LARGE	TLE | OMM

Эти объекты вполне себе существуют на подобного рода орбитах, доживают до апогея и не один раз, два из них держатся больше месяца и о-оч-ч-чень медленно тормозят об верхние слои атмосферы (только не говорите, что её там нет), а третий существует на подобной орбите уже полтора месяца и тормозит уже активнее, но при всём при этом в разряд DECAY вся тройка пока не переведена, и со слежения не снята...
Теперь возьмём запуск Sentinel-2B, вернее блок AVUM - у него было предусмотрено подобное включение, - как результат:

42064

AVUM R/B

2017-013B

ROCKET BODY

FR

2017-03-07

FRGUI

2017-03-07

100.49

98.54

794

771

TLE | OMM

- затоп в тот же день и снят с сопровождения.

[tnt22]

Spacenews360‏ @SpaceNews360 41 мин. назад

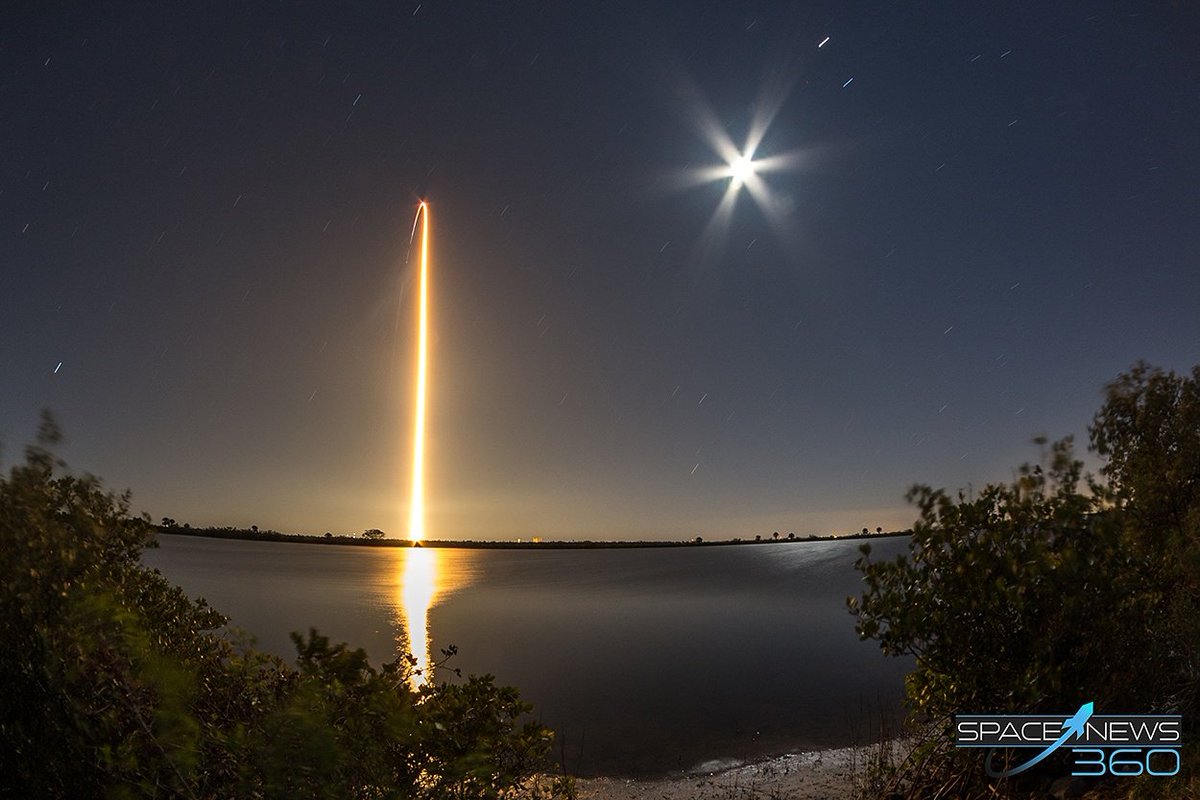

Photo of #SpaceX #Falcon9 #EchoStar23 launching into #GTO for #Brasil #brazil #45thspacewing. @SpaceX


[Apollo13]

tnt22 пишет:
Эти объекты вполне себе существуют на подобного рода орбитах, доживают до апогея и не один раз, два из них держатся больше месяца и о-оч-ч-чень медленно тормозят об верхние слои атмосферы

Я имел в виду что ступень не доживает до апогея, чтобы свести себя с орбиты. Мертвой то она конечно месяцами там болтается.

[Apollo13]

Лучший кадр
