Dragon SpX-11 (CRS-11), ROSA, MUSES, NICER - Falcon 9 - Kennedy LC-39A - 03.06.2017 21:07 UTC

[tnt22]

1-й импульс увода


[tnt22]

2-й импульс увода

завершен

[tnt22]

Заключительный импульс увода


[tnt22]

Chris B - NSF‏ @NASASpaceflight 4 мин. назад

Jack says "she's been an incredible vehicle - covered in awesome sauce - that's given them no problems." - Departing KOS,

Спойлер

[свернуть]

[tnt22]

07/03/2017 09:45 Dragon release

Dragon is now flying on its own, having been released from the grasp of the space station robotic arm at 2:41 a.m. EDT (0641 GMT) as the craft flew 258 miles above Australia.

07/03/2017 09:45

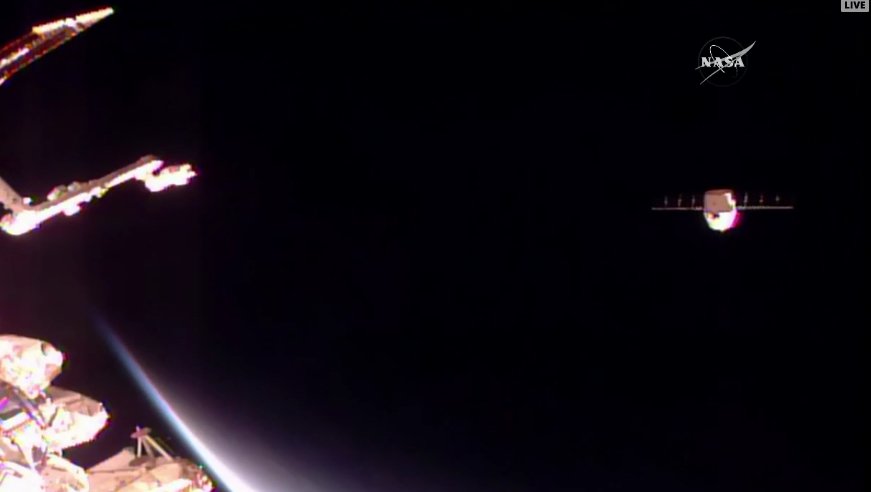

The robotic arm has backed away to a distance of more than 10 feet. The first of three rocket burns to guide Dragon away from the space station is complete.

07/03/2017 09:45
The Dragon spacecraft has finished its second departure burn. A yaw maneuver is coming up at about 2:51 a.m. EDT (0651 GMT), then a final departure maneuver is planned about a minute later.

07/03/2017 09:52
Dragon's third and final departure burn is complete, moving the craft beyond the 200-meter keep-out sphere, an imaginary bubble around the space station.

[tnt22]

SpaceX‏Подлинная учетная запись @SpaceX 16 мин. назад

Dragon has been released from the @Space_Station! Three departure burns are now underway


6 мин. назад

The three departure burns to move Dragon away from the @Space_Station are complete.

[tnt22]

07/03/2017 09:59
Coming up in a few hours, the Dragon spacecraft will close the door to its guidance, navigation and control bay before 6:30 a.m. EDT (1030 GMT).

Ignition of the capsule's thrusters is set for approximately 7:13 a.m. EDT (1113 GMT) for an appoximately 10-minute deorbit burn. Splashdown around 260 miles southwest of Long Beach, California, is scheduled for 8:12 a.m. EDT (1212 GMT).

NASA Television coverage of the Dragon resupply flight has ended. SpaceX does not plan to provide live coverage of splashdown, but you can check back here for updates on the status of the mission as we receive information.

[tnt22]

SpaceX‏Подлинная учетная запись @SpaceX 2 мин. назад

Dragon will re-enter Earth's atmosphere in ~5 hours. Splashdown at 8:12 a.m. EDT, 12:12 UTC.

[tnt22]

07/03/2017 10:09
Astronaut Jack Fischer radioed his congratulations to the Dragon shortly after its departure.

Спойлер

"Dragon's been an incredible spacecraft," Fischer said. "I could even say it was slathered in awesome sauce. This baby has had almost no problems, which is an incredible feat considering it's the first reuse of a Dragon vehicle.

"And the science we've done -- oh my, the science. Most of the 6,000 pounds of cargo carried was science, and almost all the return cargo are precious samples for discoveries we can't wait to see," he said. "In addition, Dragon brought up a host of external experiments. We've added an external platform for science, a neutron star analyzer and a new solar array that rolled out like a party horn on New Year's Eve.

"The science on this mission has been non-stop, and we think the scientists will be extremely happy with the volumes of data we gathered for them up here in space in our floating world-class laboratory we call home," Fischer said.

"For the whole SpaceX team, thank you for building such a great vehicle and for finding us some good weather today to allow us to bring home the science on time.

"Godspeed and fair winds, Dragon-11."

[свернуть]

[tnt22]

https://blogs.nasa.gov/spacestation/2017/07/03/dragon-cargo-craft-flies-away-from-station/

Dragon Cargo Craft Flies Away Fr om Station
Posted on July 3, 2017 at 3:10 am by Mark Garcia.

Expedition 52 astronauts Jack Fischer and Peggy Whitson of NASA released the SpaceX Dragon cargo spacecraft from the International Space Station's robotic arm at 2:41 a.m. EDT.

Спойлер

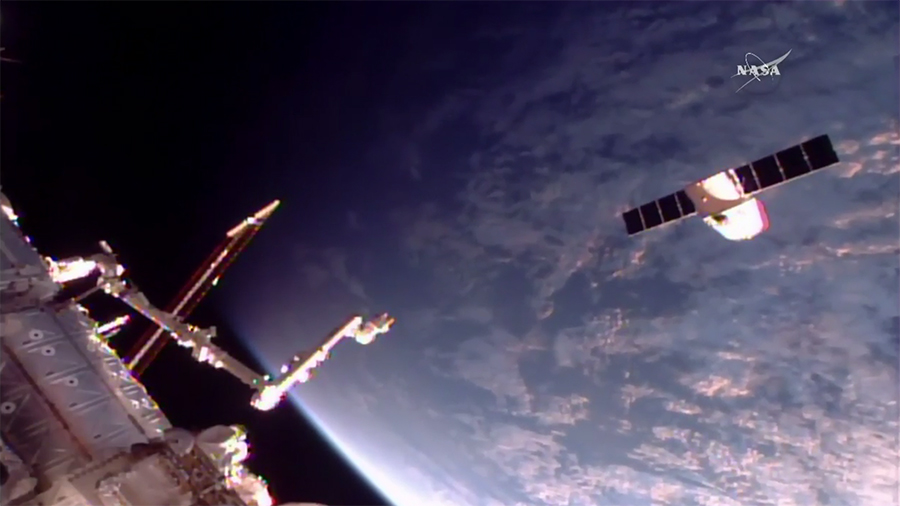

The SpaceX Dragon cargo craft is seen departing the space station after its release from the space station's Canadarm2. Credit: NASA TV

Dragon's thrusters will be fired to move the spacecraft a safe distance from the station before SpaceX flight controllers in Hawthorne, California, command its deorbit burn. The capsule will splash down at about 8:12 a.m. in the Pacific Ocean, wh ere recovery forces will retrieve the capsule and its more than 4,100 pounds of cargo. This cargo will include science from human and animal research, biotechnology studies, physical science investigations and education activities.

Splashdown will not be broadcast on NASA TV.

NASA and the Center for the Advancement of Science in Space (CASIS), the non-profit organization that manages research aboard the U.S. national laboratory portion of the space station, will receive time-sensitive samples and begin working with researchers to process and distribute them within 48 hours of splashdown.

Dragon, the only space station resupply spacecraft able to return to Earth intact, launched June 3 on a SpaceX Falcon 9 rocket from historic Launch Complex 39A at NASA's Kennedy Space Center in Florida, and arrived at the station June 5 for the company's eleventh NASA-contracted commercial resupply mission carrying almost 6,000 pounds of cargo and research supplies.

Keep up with the International Space Station, and its research and crew members, at:

www.nasa.gov/station

Get breaking news, images, videos and features from the station on social media at:

https://www.facebook.com/ISS

http://instagram.com/iss

http://www.twitter.com/Space_Station

This entry was posted in Expedition 52 and tagged dragon, International Space Station, NASA, Roscosmos, science, spacex on July 3, 2017 by Mark Garcia.

[свернуть]

[tnt22]

First Re-Used Dragon CRS-11 Departs International Space Station

Space Videos

Опубликовано: 3 июл. 2017 г.

(13:14)

[tnt22]

Запись трансляции НАСА

Departure of SpaceX Dragon CRS-11 Spacecraft from ISS

Space Videos

(1:00:38 )

[Lesobaza]

SpaceX‏Подлинная учетная запись @SpaceX  6 мин6 минут назад

Good splashdown of Dragon confirmed—completing first re-flight of a commercial spacecraft to and from the @Space_Station.

[che wi]

Вроде бы первое ночное приводнение Драгона.

[Spacetourist]

Извесно ли точное время и место приводнения?

[Spacetourist]

Я вот думаю, что им там, сложно, что-ли сразу выдать всю энциклопедическую информацию для интересующихся?

[Spacetourist]

Lesobaza пишет:

SpaceX ‏Подлинная учетная запись @SpaceX 6 мин6 минут назад

Good splashdown of Dragon confirmed—completing first re-flight of a commercial spacecraft to and from the @Space_Station .


                   Ad astra per rectum!!

Подпись зачетная!

[tnt22]

Jack Fischer‏Подлинная учетная запись @Astro2fish 2 ч. назад

Beautiful expanse of stars-but the "long" orange one is SpaceX-11 reentering! Congrats team for a successful splashdown & great mission!

[tnt22]

http://spaceflight101.com/dragon-spx11/dragon-spx-11-successful-pacific-splashdown/

SpaceX Dragon Parachutes to Pre-Sunrise Splashdown, capping First Re-Use Flight
July 3, 2017


Astronaut Jack Fischer captured this picture of Dragon's re-entry – Dragon is leading the way, the disintegrating object behind it is the trunk section jettisoned fr om Dragon – Photo: NASA

SpaceX's first Dragon re-use mission successfully concluded on Monday with the spacecraft parachuting to a safe splashdown landing in the Pacific Ocean to return nearly two metric tons of science and hardware from the International Space Station. Monday's splashdown landing marked the end of a 29-day and 16-hour mission, bringing this spacecraft's total time in space to 64 days after an earlier visit to ISS back in 2014.

Splashdown was confirmed by SpaceX at 12:14 UTC in the intended landing zone around 420 Kilometers from the Californian coast, marking the first nighttime landing of the Dragon spacecraft, occurring roughly one hour before sunrise in the landing area wh ere teams were pre-staged after splashdown was moved from Sunday to Monday due to unfavorable weather in the original recovery zone.

Спойлер

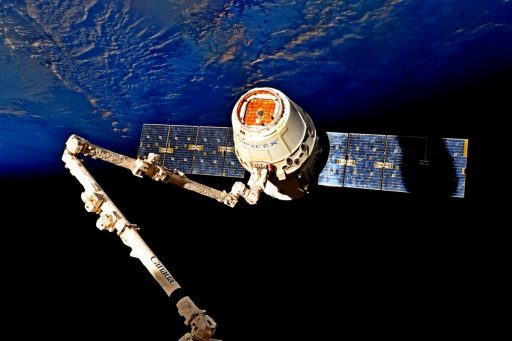

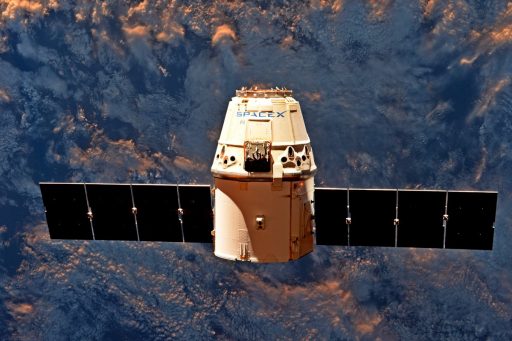

Dragon before Departure – Photo: NASA

Over the course of its month-long stay, the Dragon delivered 2.7 metric tons of cargo to the Space Station including three high-profile external payloads and dozens of science experiments to be performed by the Station's crew. For landing, the craft held some 1,860 Kilograms of equipment, the majority of which being performed experiments and samples that will be rushed to NASA for distribution to their home institutions in the shortest time possible after Dragon returns to shore.

SpaceX's eleventh operational cargo mission began back on June 3 with a successful launch atop a Falcon 9 rocket that delivered the Dragon into Low Earth Orbit and returned its first stage to a powered landing at Cape Canaveral's Landing Zone 1 to further SpaceX's re-use aspirations. The first stage was not the only re-use element involved in this mission, marking the first time a Dragon flew to space for a second time. Dragon C106 spent over 34 days in orbit in September/October 2014 as part of SpaceX's fourth operational ISS mission, facilitating the delivery of 2,216 Kilograms of cargo.


Dragon 6 ready to depart the factory for its second mission – Photo: Instagram / the_brae_area

The SpX-11 mission served as a demonstration for future Dragon re-use missions per an agreement SpaceX worked out with NASA, modifying the original contract that only called for new Dragons to be flown to ISS.

The company provided technical data to NASA on the longevity of Dragon's systems, proving the craft – with the exception of a few components – could easily deal with multiple mission cycles. Equipment replaced between flights includes the trunk section that burns up in the atmosphere, the heat shield that makes contact with sea water, some avionics boxes & external panels, and any other components for which lifetime concerns existed. The principal parts of the spacecraft like the pressure vessel, main structure and propulsion system remained unchanged.

Re-flying Dragon 1 spacecraft will allow SpaceX to close down its production line and place focus on ramping up production of the Dragon 2 that will ferry crews to and from ISS and also fly in a cargo version, starting in the second Commercial Resupply Services round after SpX-20.


ROSA deployed outside ISS – Photo: NASA

Heading off on its second mission, Dragon performed admirably, arriving at ISS two days after launch for a robotic capture and berthing to the Harmony module. The craft's four-week stay at ISS was extremely busy – inside and outside the Station as plenty of internal payloads had to be dealt with by the crew while the Station's robots spent the better part of Dragon's stay handling the three external payloads, two of which found a home on the Station's truss to provide ISS with a new articulated Earth observation bench and a high-fidelity X-ray telescope studying ultra-dense Neutron-Stars. ROSA – the Roll Out Solar Array completed a week-long demonstration mission before being jettisoned overboard when its locks failed to re-engage at the end of the test.


Dragon packed for return – Photo: NASA

Riding uphill on the Dragon was a group of 40 lab mice, participating in a study of a novel drug that promises to stop or even reverse bone loss incurred by Astronauts spending extended periods in space and patients suffering from Osteoporosis on Earth. Twenty of the mice returned on Monday as the first live return of animals under the Rodent Research Program while the other twenty will be kept aboard ISS for another five weeks before being euthanized and returned at a later date.

The Dragon also returned with the Fruit Fly Lab-2 experiment that includes thousands of flies acting as model organisms to look into changes in heart function caused by exposure to microgravity. Four powered Polar freezers were installed in the Dragon for return, holding hundreds of sample tubes as Dragon missions are a welcome opportunity to empty the Station's laboratory freezers that hold everything from crew members' bodily fluids and rodent organs to plant parts.

>> Dragon SpX-11 Cargo & Science Overview


Photo: NASA TV

Final cargo items were loaded into the Dragon over the weekend and USOS crew members Peggy Whitson and Jack Fischer buttoned up the spacecraft on Sunday, closing the Dragon hatch and moving through the vestibule outfitting task to remove power/data jumpers and install drive mechanisms for the berthing mechanism bolts. Once the Harmony hatch was closed, the cavity between Dragon and ISS was depressurized for a period of leak checks before ROBO controllers in Houston and Saint-Hubert received clearance for the craft's unberthing.

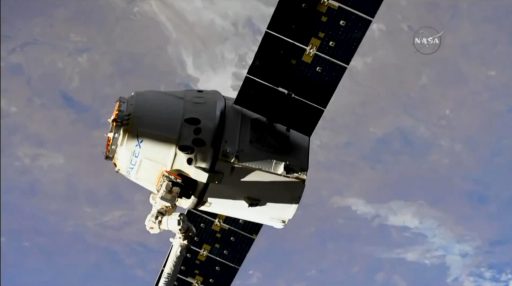

Dragon was demated from Harmony by releasing four sets of four bolts and four capture latches, giving Canadarm2 full control over the spacecraft for a slow maneuver away from Harmony and then into the release position ten meters below the complex. The craft was kept in the release position overnight and Whitson and Fischer assumed control of robotics after an early wake up on Monday to put in motion final preparations for releasing the spacecraft.


Photo: NASA

The snares of the arm's Latching End Effector opened at 6:41 UTC and Canadarm2 was retracted to a safe distance for Dragon to re-enable thruster control for a pair of departure burns accelerating the spacecraft down the R-Bar, or radial vector, taking the vehicle out the ISS Keep Out Sphere. The third and largest departure maneuver placed Dragon on a prograde trajectory, pulling out in front of ISS to open up a gap of around 150 Kilometers to set the stage for the rocket-powered braking maneuver.

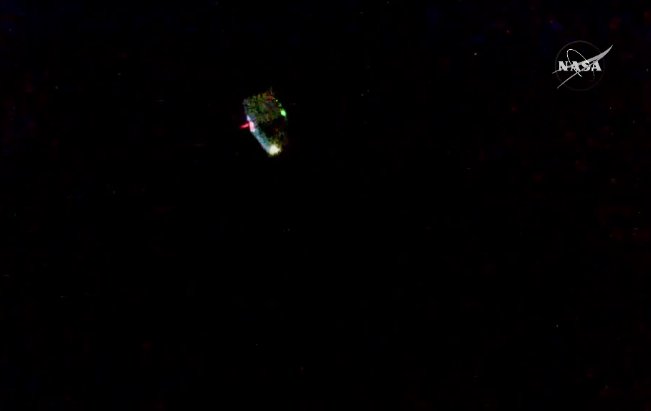

Dragon's green-and-red navigation lights quickly faded as the craft headed into orbital night for five hours of free flying dedicated to final deorbit preparation such as the closure of the GNC Bay Door to shield Dragon's star tracker and proximity navigation sensors from the heat of re-entry. With Dragon out of the ISS Approach Ellipsoid, NASA involvement in the mission ended and SpaceX's Control Center in Hawthorne was in full control of Dragon's return to the planet.


Image: SpaceX

To set its homebound course, Dragon fired its Draco thrusters for around ten minutes to slow down by some 100 meters per second, enough to drop the craft out of orbit with re-entry targeting a precise location to enable Dragon to reach its landing area. Around four minutes prior to entry interface, Dragon jettisoned its disposable Trunk Section that is not equipped to survive re-entry. The sole disposal item in the trunk for the SpX-11 mission was the Active Flight Releasable Attachment Mechanism that once held the ROSA solar array that was jettisoned into orbit to undergo a natural decay towards a fiery re-entry.

Encountering the dense atmosphere, Dragon's PICA-X heat shield had to endure temperatures up to 1,600 degrees Celsius and Dragon constantly modified its lift to optimize the flight path toward the planned parachute opening target. Having slowed to a subsonic speed of 240 meters per second, Dragon deployed two Drogue Chutes around 13.7 Kilometers in altitude followed by the large main chutes at around three Kilometers to slow the vehicle down to under 20 Kilometers per hour for splashdown.

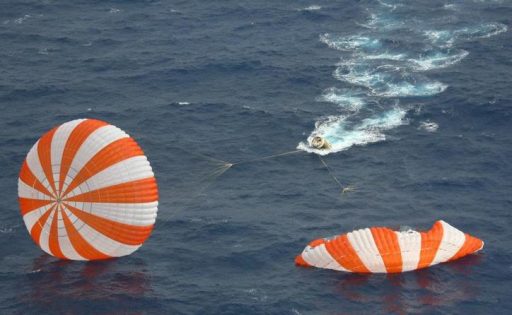

Photo: SpaceX (File)

SpaceX confirmed the landing via Twitter, declaring the first re-flight of Dragon a success.

As is typical for Dragons returning valuable ISS science, landing marks the beginning of a race against time as SpaceX aims to get the spacecraft out of the water and on the way back to shore as quickly as possible to be able to ship time-critical cargo back to NASA within 48 hours of splashdown. The time-critical samples and experiment materials will be flown back to Houston and other institutions as soon as they arrive on shore, using the Port of Long Beach to welcome the Dragon back on land.

Per current planning schedules, the next two ISS visiting vehicle events will occur on the Russian side with Progress MS-05 expected to depart the complex on July 20 after a five-month stay followed on the 28th by the launch and docking of the Soyuz MS-05 spacecraft bringing Sergei Ryazansky, Randy Bresnik and Paolo Nespoli to ISS – all three of them being return visitors. The next SpaceX Dragon mission is targeting liftoff No Earlier Than August 10, though ISS schedules are never set in stone and dates can move in a fluid manner.

[свернуть]

[tnt22]

Jonathan McDowell‏Подлинная учетная запись @planet4589 1 ч назад

Dragon CRS-11's capsule C106.2 splashed down near 27N 122W at about 1213 UTC Jul 3 completing its mission.
