JPSS-1 (NOAA-20) – Delta II 7920-10C – Vandenberg SLC-2W – 18.11.2017

[tnt22]

NOAA Satellites‏Подлинная учетная запись @NOAASatellites 9 мин. назад

On Nov. 14th #JPSS1 will ride into space aboard a Delta II 7920-10C rocket. Get a preview of the rocket in action @ https://youtu.be/UW3zhwP0Bds  #COUNTDOWNtoLAUNCH

NOAA / NASA Suomi NPP Launch Delta II 7920 10C October 28, 2011

NOAASatellites

Опубликовано: 9 нояб. 2017 г.

Suomi National Polar-orbiting Partnership, formerly known as the NPOESS Preparatory Project, will serve as a bridge between the EOS satellites and the forthcoming series of Joint Polar Satellite System (JPSS) satellites. Suomi NPP represents a critical first step in building this next-generation satellite system. The JPSS satellites, previously called the National Polar-orbiting Operational Environmental Satellite System (NPOESS), will be developed by NASA for the National Oceanic and Atmospheric Administration (NOAA).

(15:43)

[tnt22]

https://www.nesdis.noaa.gov/JPSS-1

Spotlight on the JPSS Launch Vehicle
Nov 8, 2017

Спойлер

At launch time, JPSS-1 will weigh 5,025 pounds, so getting it from Earth to space will require quite an effort. Fortunately, we have a launch vehicle that's up to the task.

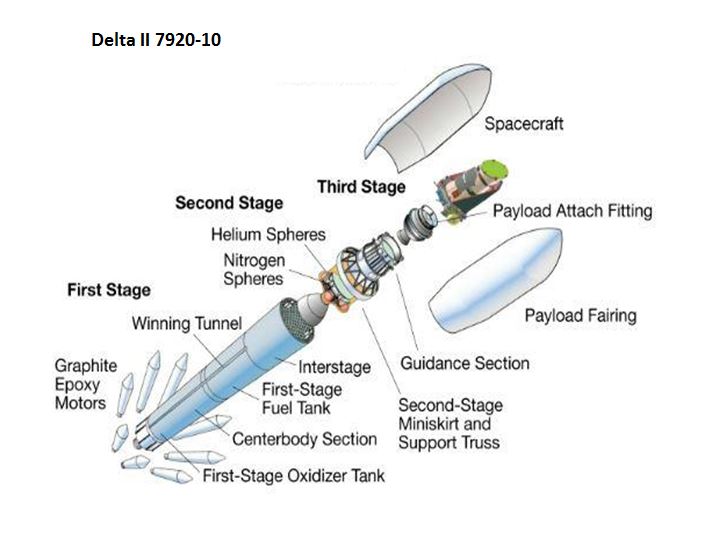

JPSS-1 will rocket into space into polar orbit aboard 128-foot Delta II 7920-10C rocket consisting of a booster stage, hypergolic second stage, nine solid rocket motors and a 10-foot diameter payload fairing. (Whew!)

The JPSS-1 launch will mark the 53rd Delta II mission for NASA and 154th launch since the rocket's first launch in 1989. Previous Delta II missions for NASA include the Spirit and Opportunity Mars rovers as well as Suomi NPP, the precursor to the next-generation polar-orbiting satellite in the JPSS series.

To learn more about the vehicle that will take JPSS-1 to the stars, go to https://www.nesdis.noaa.gov/content/jpss-1-spacecraft

[свернуть]

[tnt22]

Ball Aerospace‏ @BallAerospace 4 мин. назад

Ready for launch! The #JPSS1 spacecraft is encapsulated inside the fairing of its @ulalaunch #DeltaII and ready for lift off from Vandenberg AFB on Nov. 14! http://ow.ly/NC4W30gsUWK

[tnt22]

Ball Aerospace‏ @BallAerospace 30 мин. назад

It takes a sophisticated set of antennas to transmit/receive data between #JPSS1 & Earth. Ball Aerospace designed and built all five! http://ow.ly/YATR30fE4EN

[tnt22]

CubeSat to Test Miniaturized Weather Satellite

NASA Goddard

Опубликовано: 9 нояб. 2017 г.

Behind every weather forecast—from your local, five-day prediction to a late-breaking hurricane track update—are the satellites that make them possible. Government agencies depend on observations from weather satellites to inform forecast models that help us prepare for approaching storms and identify areas that need evacuating or emergency first responders.

(2:37)

[tnt22]

https://www.nasa.gov/feature/goddard/2017/cubesat-to-test-miniaturized-weather-satellite

Nov. 8, 2017

NASA CubeSat to Test Miniaturized Weather Satellite Technology

Behind every weather forecast—from your local, five-day prediction to a late-breaking hurricane track update—are the satellites that make them possible. Government agencies depend on observations from weather satellites to inform forecast models that help us prepare for approaching storms and identify areas that need evacuating or emergency first responders.

Спойлер

(youtube.com/watch?v=m5gKBo-uXSQ, 2:37)
Weather satellites have traditionally been large, both in the effort needed to build them and in actual size. A NASA-funded CubeSat, called Microwave Radiometer Technology Acceleration (MiRaTA), which will be launched into Earth's orbit from the rocket carrying the next big U.S. weather satellite (NOAA's JPSS-1) into space, was designed to demonstrate that a small satellite can carry instrument technology that's capable of reducing the cost and size of future weather satellites and has the potential to routinely collect reliable weather data.
Credits: Willaman Creative/NASA Earth Science Technology Office
Download more at the Science Visualization Studio

Weather satellites have traditionally been large, both in the effort needed to build them and in actual size. They can take several years to build and can be as big as a small school bus. But all of that could change in the future with the help of a shoebox-sized satellite that will start orbiting Earth later this month.

The NASA-funded CubeSat, called Microwave Radiometer Technology Acceleration (MiRaTA), will be launched into Earth's orbit from the rocket carrying the next big U.S. weather satellite (NOAA's JPSS-1) into space. MiRaTA is designed to demonstrate that a small satellite can carry instrument technology that's capable of reducing the cost and size of future weather satellites and has the potential to routinely collect reliable weather data.

Microwave radiometers are one of the workhorse instruments aboard today's weather satellites. These sensitive instruments measure radio frequency signals related to the thermal radiation emitted by atmospheric gases, such as molecular oxygen and water vapor, and also detect particles such as cloud ice. These data are key inputs for models that track storms and other weather events. Calibrating these radiometers is important for keeping them from drifting so their data can be used for accurate weather and climate models. Therefore, a calibration target is usually included in the satellite to help the radiometer maintain its accuracy.

Miniaturizing microwave radiometer instruments to fit on a CubeSat leads to the challenge of finding a calibration instrument that is not only accurate but also compact, said Kerri Cahoy, principal investigator for MiRaTA and an associate professor in the Department of Aeronautics and Astronautics at the Massachusetts Institute of Technology. "You don't have room for the bulky calibration targets that you would normally use on larger satellites," Cahoy said. "Microwave radiometer calibration targets on larger satellites can be the size of a toaster, but for CubeSats, it would have to be the size of a deck of cards."


The Microwave Radiometer Technology Acceleration (MiRaTA) satellite, a 3U CubeSat, is shown with solar panels fully deployed, flanking the body of the spacecraft, which has a circular aperture at the top for the microwave radiometer antenna, used for atmospheric science measurements. There are also two small, thin tape-measure antennas on the top, used for UHF radio communication with the ground station.
Credits: MIT Lincoln Laboratory

Cahoy and her colleague William Blackwell, the microwave radiometer instrument lead at MIT Lincoln Laboratory, have come up with a solution based on a technique she studied in graduate school called radio occultation (RO), whereby radio signals received from GPS satellites in a higher orbit are used to measure the temperature of the same volume of atmosphere that the radiometer is viewing. The GPS-RO temperature measurement can then be used for calibrating the radiometer.

"In physics class, you learn that a pencil submerged in water looks like it's broken in half because light bends differently in the water than in the air," Cahoy said. "Radio waves are like light in that they refract when they go through changing densities of air, and we can use the magnitude of the refraction to calculate the temperature of the surrounding atmosphere with near-perfect accuracy and use this to calibrate a radiometer."


Credits: MIT Lincoln Laboratory

In 2012 NASA's In-Space Validation of Earth Science Technologies (InVEST) program issued a request for technology demonstration proposals, which prompted Blackwell and Cahoy, who was then teaching at MIT, put their theory to the test by offering a project to Cahoy's students in her sensors and instrumentation class to determine if the idea was feasible. When two students demonstrated through computer modeling that radio occultation could indeed function for radiometer calibration, Cahoy and Blackwell asked The Aerospace Corporation's Rebecca Bishop, who has developed GPS-RO receivers for CubeSats, to join the team. They then submitted a full proposal for MiRaTA to NASA, which gave the greenlight for funding in the spring of 2013.

Building MiRaTA was a team effort. Bishop modified an off-the-shelf, low-cost GPS receiver to make the radio occultation measurements for calibration; MIT Lincoln Laboratory and University of Massachusetts Amherst applied their engineering skills to further miniaturize the microwave radiometer; and Cahoy and her student team, guided by expert mentors at MIT Lincoln, built the satellite that would house everything.

"Building a CubeSat can be hard because you have to put batteries, a radio, a computer, your instruments, wheels that you spin to tip and turn your satellite, and folded solar panels and antennas all into a very small space," Cahoy said. "And you're using the space equivalent of scotch tape and super glue to constrain this mess of wires and connectors and get it into its housing.

"But," Cahoy added, "the hard work will really pay off in great science data if it all goes as planned."

In the best-case scenario, three weeks after launch MiRaTA will be fully operational, and within three months the team will have obtained validation data from both the radiometer and the GPS receiver. The big goal for the mission—declaring the technology demonstration a success—would be confirmed a bit farther down the road, at least half a year away, following the data analysis.

If MiRaTA's technology validation is successful, Cahoy said she envisions an eventual constellation of these CubeSats orbiting the entire Earth, taking snapshots of the state of the atmosphere and weather every 15 minutes—frequent enough to track storms, from blizzards to hurricanes, in real time. "Our goal is to have our radiometers perform just as well as those on current weather satellites and be able to provide the kind of data that helps agencies and people in the path of a natural disaster prepare early and wisely," she said.

"This is a very exciting mission as it will be the first on-orbit demonstration of an all-weather, three-frequency radiometer CubeSat using atmospheric GPS-RO-based calibration," said NASA Jet Propulsion Laboratory's Charles Norton, a program associate in NASA's Earth Science Technology Office (ESTO) and the task manager for MiRaTA. "It's a true testament to the creativity and innovation of the teams involved that they're advancing measurement technologies for future small satellite constellation missions," he said, while adding that Utah State University's Space Dynamics Laboratory and NASA Wallops Flight Facility are supporting ground station and mission operations for the CubeSat.

MiRaTA and other Earth science InVEST missions are funded and managed by NASA's ESTO program in NASA's Earth Science Division. ESTO supports technologists at NASA centers, industry and academia to develop, refine and demonstrate new methods for observing Earth from space, from information systems to new components and instruments.

Small satellites, including CubeSats, are playing an increasingly larger role in exploration, technology demonstration, scientific research and educational investigations at NASA, including: planetary space exploration; Earth observations; fundamental Earth and space science; and developing precursor science instruments like cutting-edge laser communications, satellite-to-satellite communications and autonomous movement capabilities.

For NASA's ESTO program, visit: https://esto.nasa.gov/

By Samson Reiny
NASA's Earth Science News Team

[свернуть]

Last Updated: Nov. 9, 2017
Editor: Sara Blumberg

[tnt22]

[tnt22]

http://www.multivu.com/players/English/7987651-ball-aerospace-joint-polar-satellite-system-jpss-1-launch/

Ready for Launch, Ball Aerospace Completes Prep for JPSS-1 Satellite

BOULDER, Colo., Nov. 9, 2017 — NOAA's Joint Polar Satellite System-1 (JPSS-1) is encapsulated inside the fairing (nose cone) of a United Launch Alliance Delta II launch vehicle ready for lift off fr om Space Launch Complex-2W at Vandenberg Air Force Base, California, on November 14, 2017 at 1:47 a.m., PST. JPSS-1 is a collaborative effort between NOAA and NASA.

Спойлер

"The JPSS-1 bus is based on our Ball Configurable Platform 2000, a proven, agile spacecraft, which has 50 years of on-orbit operations and is designed for cost-effective, remote sensing applications," said Alex Chernushin, JPSS-1 Program Manager, Ball Aerospace. "JPSS-1 is the twelfth spacecraft built on this core architecture, including the Suomi National Polar-orbiting Partnership (Suomi NPP) spacecraft launched in 2011."

The sensor capabilities for JPSS-1 have similar capabilities to those of Suomi NPP: the Advanced Technology Microwave Sounder (ATMS) and the Clouds and the Earth's Radiant Energy System (CERES), built by Northrop Grumman; the Cross-track Infrared Sounder (CrIS), built by Harris; the Ozone Mapping and Profiler Suite-Nadir (OMPS-N), built by Ball; and the Visible Infrared Imaging Radiometer Suite (VIIRS), built by Raytheon.

Collecting data on our Earth's atmosphere, oceans and land surface, JPSS-1, or NOAA-20 as it will be known once it reaches its polar orbit, will feed NOAA's National Weather Service models, giving forecasters the actionable environment intelligence they need to monitor and predict weather patterns with greater speed and accuracy. This will enable emergency managers to make timely decisions to protect lives and property, including ordering effective evacuations five to seven days in advance.

In addition, the data from JPSS-1 gives troops a competitive advantage on the battlefield; allows transportation industry to prepare and move resources, protecting local economies; and provides citizens with more accurate weather forecasts to plan their day.

The JPSS-1 spacecraft was built and integrated by Ball Aerospace in Boulder, Colorado, wh ere the business has operated for more than 60 years and continues to invest heavily in its capabilities and the community. Since expanding its Fisher Manufacturing Complex by 82,000 square-feet in 2014, Ball is installing a new, 1,200 square-foot thermal vacuum chamber to support the continued demand for large spacecraft. Ball is also growing in nearby Westminster, Colorado with a 145,000 square-foot addition to its Aerospace Manufacturing Center currently under construction. Ball employs more than 3,000 people across the U.S., with 2,500 based in Colorado. The business has hired more than 600 new employees during the past two years to meet growing customer needs.

Visit ball.com/aerospace for more information and interactive downloads. Follow Ball Aerospace on Facebook, Instagram and Twitter to tune into the latest JPSS-1 news leading up to launch!

[свернуть]

[tnt22]

https://www.nesdis.noaa.gov/JPSS-1

Watch the JPSS-1 Launch Press Conferences
Nov 12, 2017



If you're not going to make it to California to see NOAA's JPSS-1 rocket into space, don't worry! You can watch it live wherever you are via the NASA website!

NASA TV will begin live coverage of the launch beginning at 4:15 a.m. EST, 1:15 a.m. PST on Nov. 14 and conclude after the CubeSat deployment.

Спойлер

You can watch liftoff LIVE at: www.nasa.gov/nasatv

Prelaunch and launch day coverage of the JPSS-1 flight will be available on http://www.nasa.gov. Coverage will include live streaming and blog updates beginning at 4:15 a.m. EST Nov. 14 as the countdown milestones occur. You can follow countdown coverage on our launch blog at https://blogs.nasa.gov/jpss.

However you decide to watch the launch, don't forget to LIVE tweet during the main event! Use the hashtag #JPSS1!

NASA TV will also air two JPSS-1 prelaunch news briefings on Wednesday, Nov. 8. Both briefings will be broadcast from NASA's Press Site Auditorium at Vandenberg Air Force Base.

You can watch the press conference and science briefing LIVE at: www.nasa.gov/nasatv

The prelaunch news conference will be held at 4 p.m. EST.

Briefing participants will be:

[/li]
• Steve Volz, director, NOAA's Satellite and Information Service
• Greg Mandt, director, Joint Polar Satellite System Program
• Sandra Smalley, director, Joint Agency Satellite Division, NASA Headquarters
• Omar Baez, NASA launch director
• Scott Messer, United Launch Alliance program manager for NASA missions
• Capt. Ross Malugani, launch weather officer, Vandenberg Air Force Base 30th Space Wing


Following the prelaunch news conference, a science briefing will be held at 5:30 p.m.

Briefing participants will be:


[/li]
• Mitch Goldberg, NOAA chief program scientist, Joint Polar Satellite System
• Joe Pica, director, NOAA's National Weather Service Office of Observations
• James Gleason, NASA senior project scientist, Joint Polar Satellite System
• Jana Luis, division chief, predictive services, California Department of Forestry and Fire Protection


[свернуть]

[tnt22]

NASA_LSP‏Подлинная учетная запись @NASA_LSP 14 мин. назад

@NASA_LSP and @ulalaunch completed the Launch Readiness Review for the @NOAA #JPSS1 launch. All systems are go for a launch on November 14th at 0147 PST (0447 EST) from California's Vandenberg Air Force Base. NASA LSP personnel are on site at Vandenberg Air Force Base to support.

[tnt22]

[tnt22]



[tnt22]

[tnt22]



[tnt22]



[tnt22]

[tnt22]

Прогноз погоды:

[tnt22]

Пресс-конференция завершена


[tnt22]

[tnt22]
